GIOTTO XE/EW

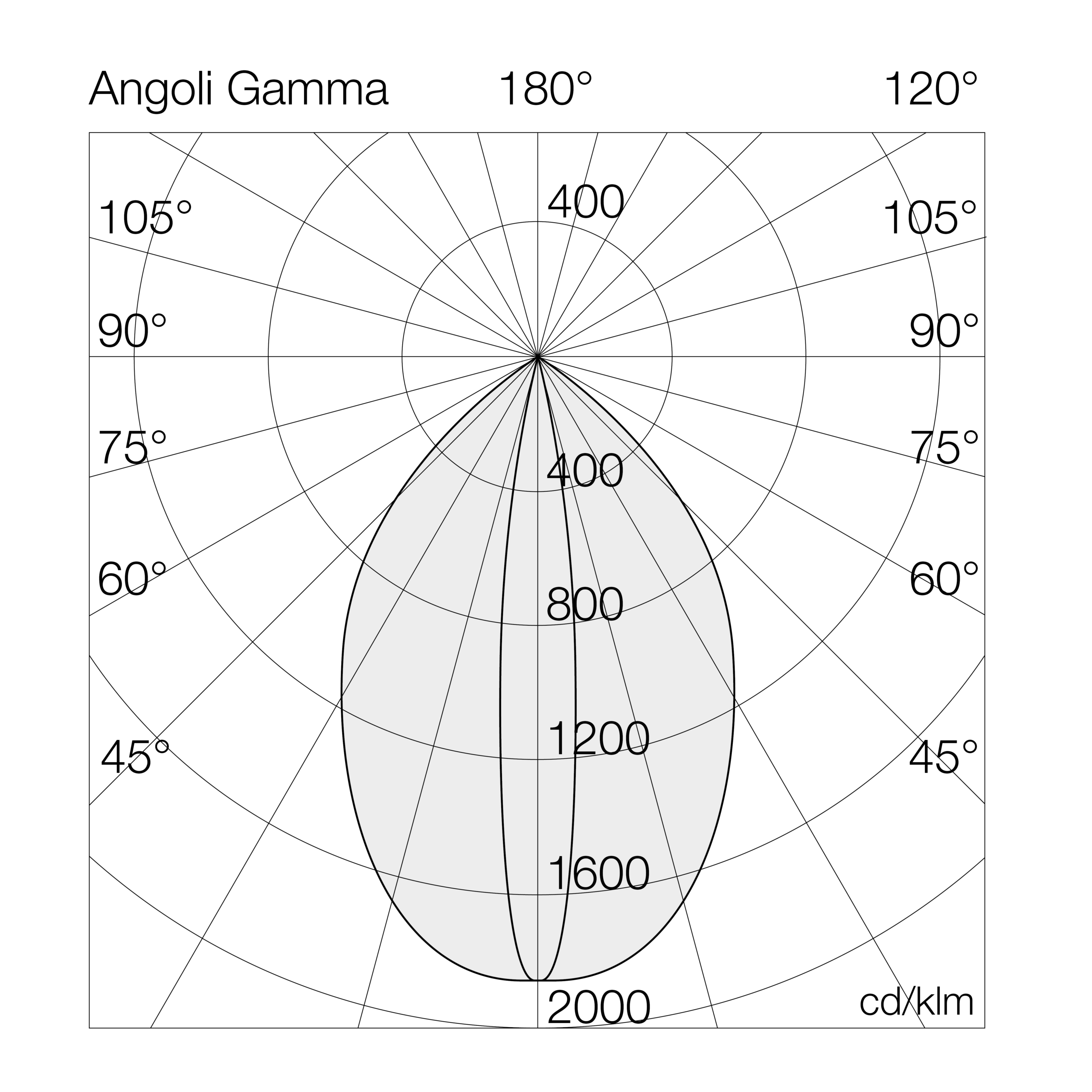

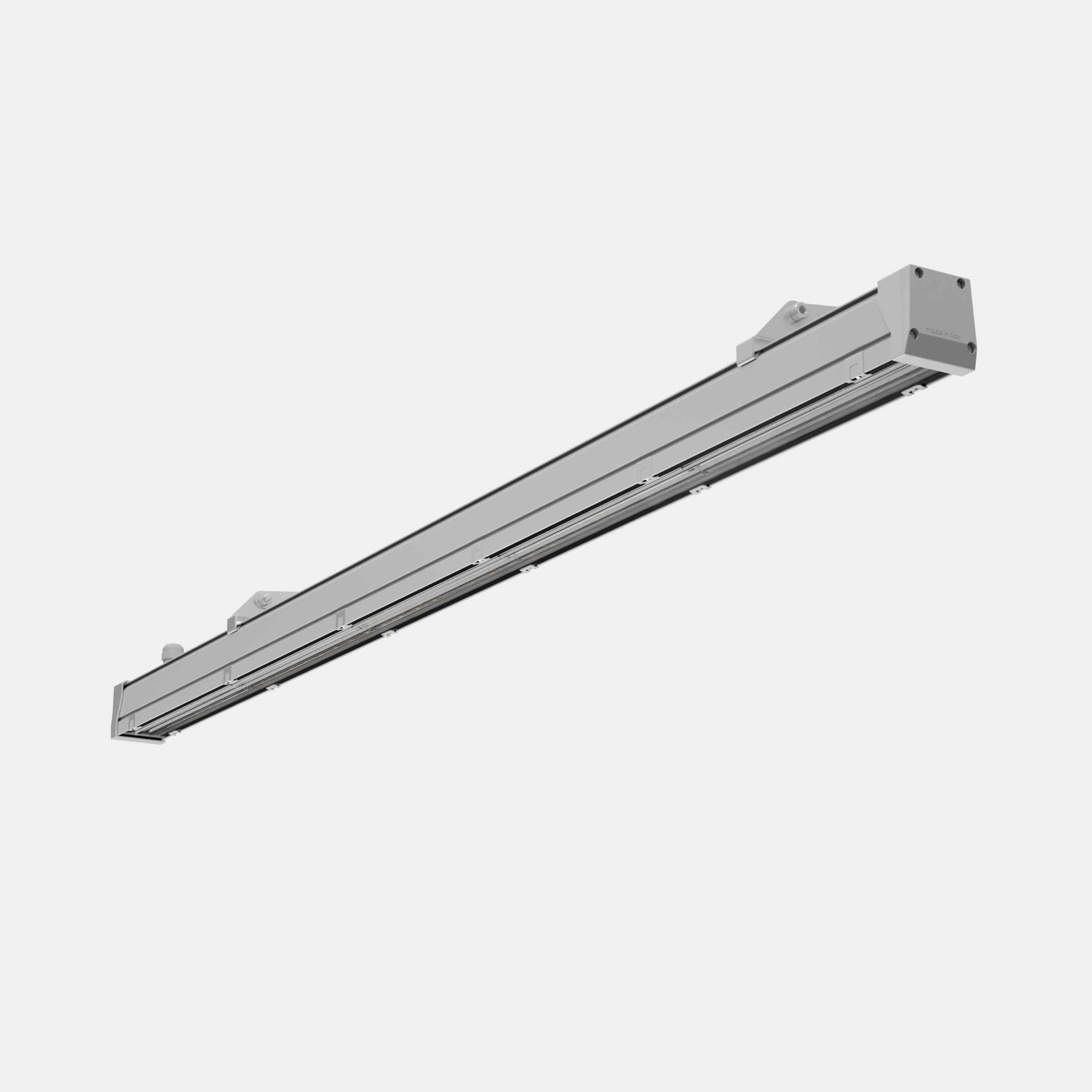

Outdoor linear projector for architectural lighting of facades, porches, architectural frames, walkways, underscoring, structural details, monuments and green spaces. Suitable for floor/ ground, ceiling and wall installation. Anodized extruded aluminum body in silver finish, die-cast aluminum end caps painted with anti-corrosion polyester thermosetting powders in silver color, silicone gasket. Stainless steel closing clips, hardware and fixing brackets. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. 60°/15° elliptical optics with high flux efficiency, anti-glare and anti-reflection PMMA lenses, black painted steel sheet reflector.
Categories: Led, GIOTTO XE - 3006, art. 3006 Giotto XE, Architectural Outdoor, art. 3006 Giotto XE
Models: 60
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3006EW27= 2700°K (CRI >80)0833GL= on/off
30= 3000°K (CRI >80)1237GD= dali 2
40= 4000°K (CRI >80)1742
2449
2560

Models

W tot.
°K - CRI
Options

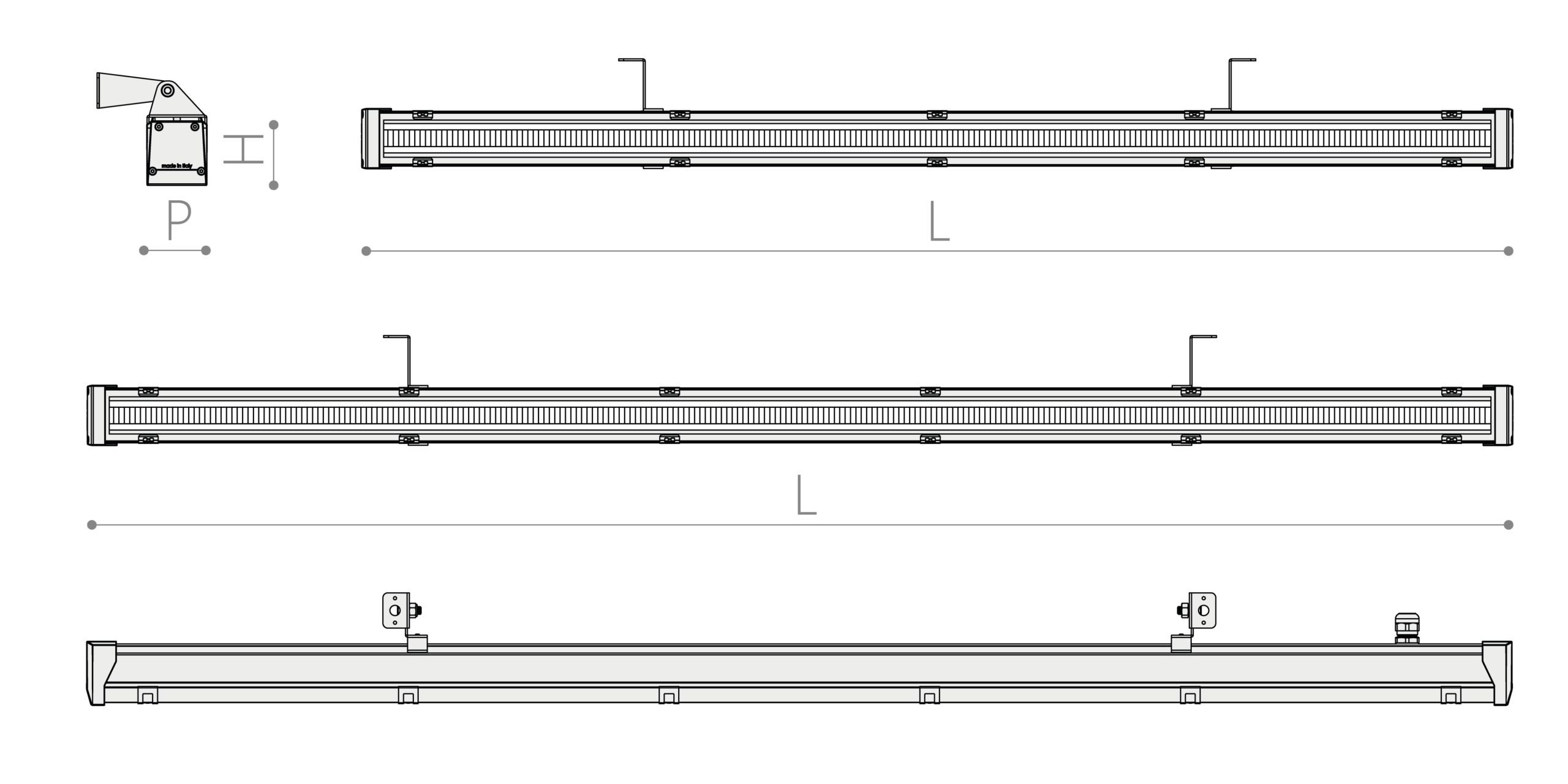

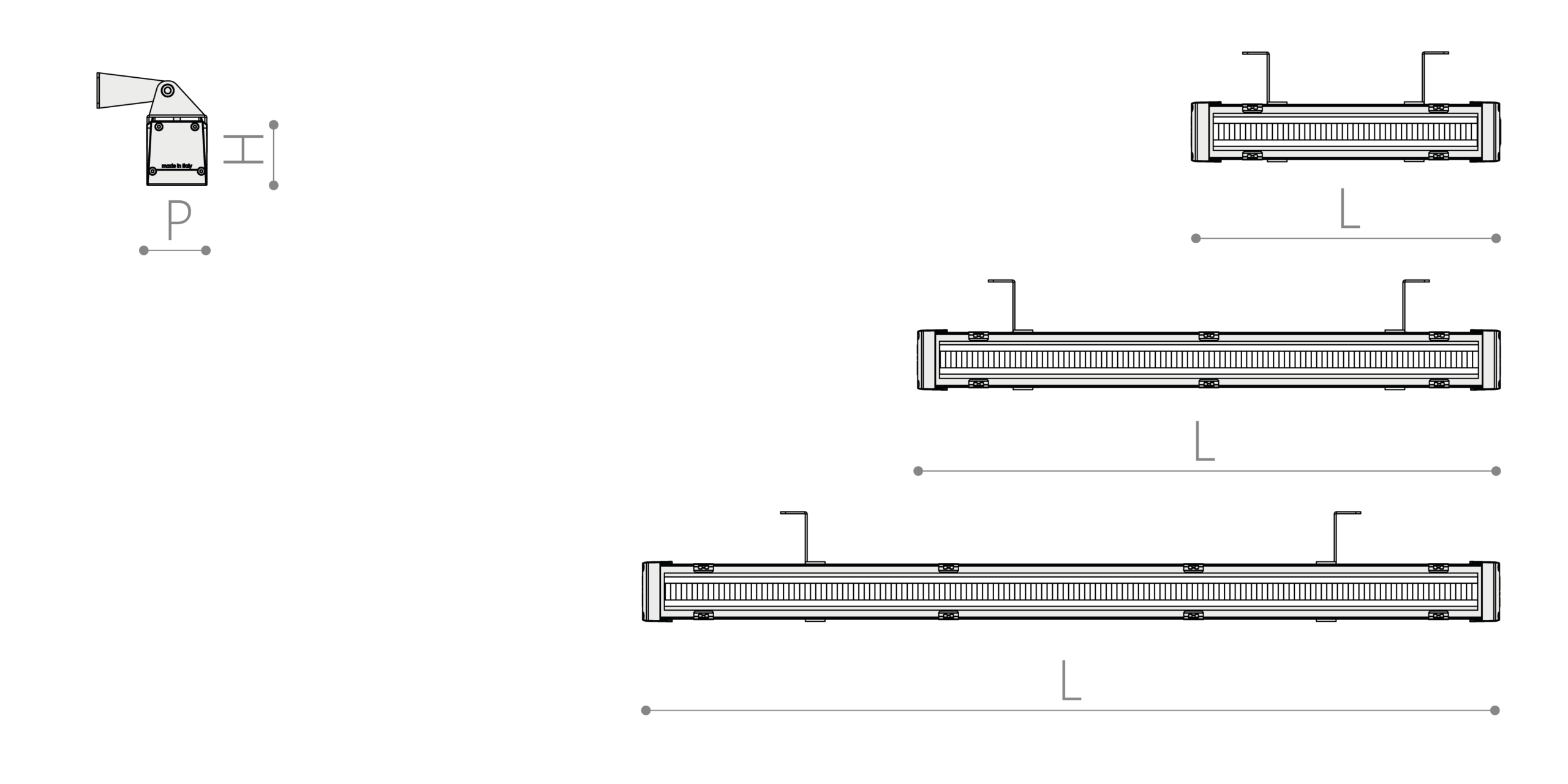

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
3006EW4008GL8-4000°K - CRI>80on/off11011386231575--
3006EW4012GL12-4000°K - CRI>80on/off14131186231575--
3006EW4017GL17-4000°K - CRI>80on/off22031306259575--
3006EW4024GL24-4000°K - CRI>80on/off30551276259575--
3006EW4025GL25-4000°K - CRI>80on/off33041326287575--
3006EW4037GL37-4000°K - CRI>80on/off45831246287575--
3006EW4033GL33-4000°K - CRI>80on/off440613462117575--
3006EW4049GL49-4000°K - CRI>80on/off611012562117575--
3006EW4042GL42-4000°K - CRI>80on/off550713162145575--
3006EW4060GL60-4000°K - CRI>80on/off763812762145575--
3006EW4008GD8-4000°K - CRI>80dali 211011386231575--
3006EW4012GD12-4000°K - CRI>80dali 214131186231575--
3006EW4017GD17-4000°K - CRI>80dali 222031306259575--
3006EW4024GD24-4000°K - CRI>80dali 230551276259575--
3006EW4025GD25-4000°K - CRI>80dali 233041326287575--
3006EW4037GD37-4000°K - CRI>80dali 245831246287575--
3006EW4033GD33-4000°K - CRI>80dali 2440613462117575--
3006EW4049GD49-4000°K - CRI>80dali 2611012562117575--
3006EW4042GD42-4000°K - CRI>80dali 2550713162145575--
3006EW4060GD60-4000°K - CRI>80dali 2763812762145575--
