art.-3007-giotto-xr-w1-w2-w3-e1

GIOTTO XR/E1

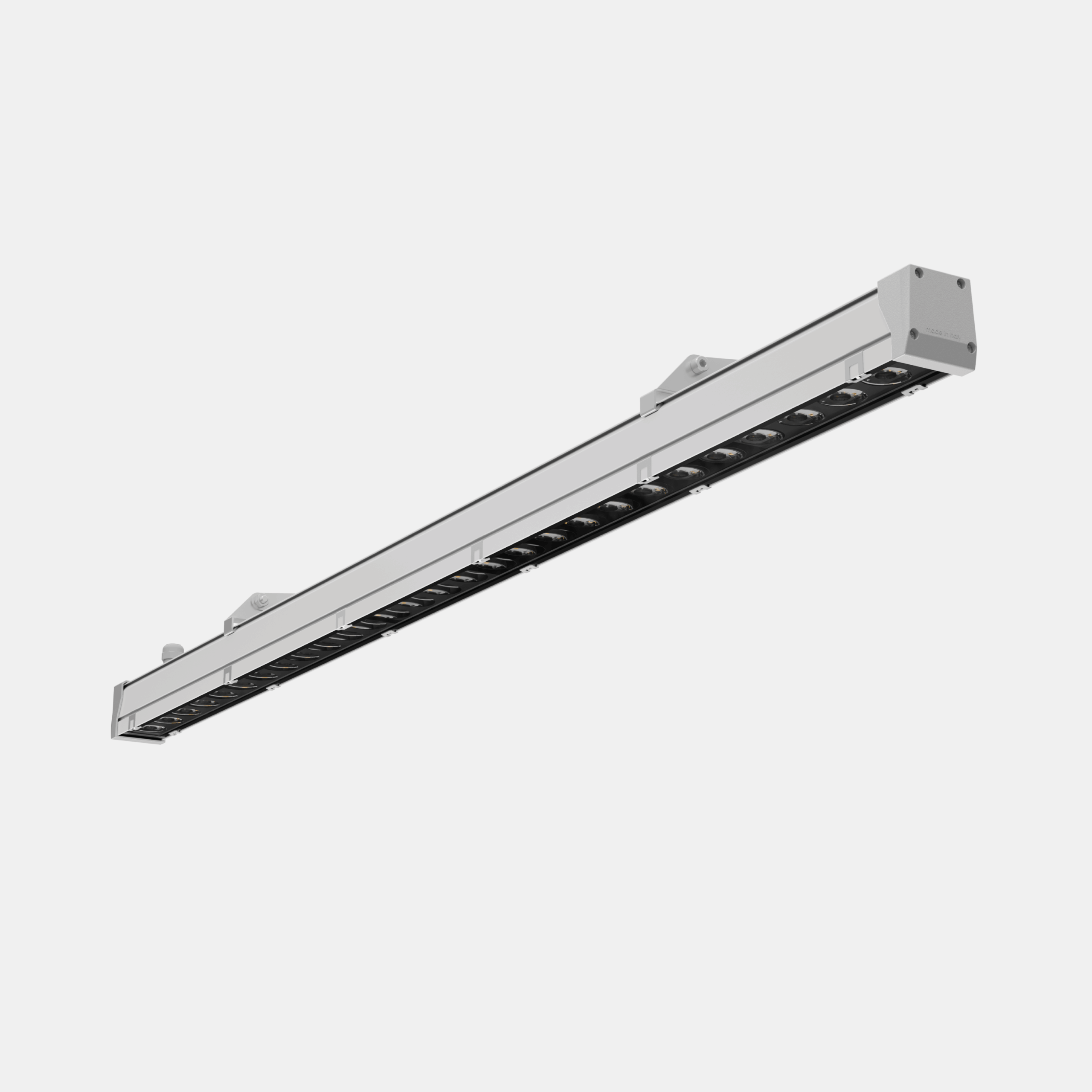

Outdoor RGB+White LED linear projector for architectural lighting of facades, porches, architectural frames, walkways, under eaves, structural details, monuments and green spaces. Suitable for floor/ground, ceiling and wall installation. Extruded and anodized aluminum body in silver finish, die-cast aluminum end caps painted with anti-corrosion polyester thermosetting powders in silver color, silicone gasket. Stainless steel closing clips, hardware and adjustable fixing brackets. Extra-clear tempered flat glass diffuser 4 mm thick. Available in four types of optics with high flux efficiency, anti-glare and anti-reflective PMMA lenses and steel sheet reflector painted matte black: two spot optics (10°-25°), one 35° medium optic and one 40°/13° elliptical optic.
Categories: Led, GIOTTO XR - 3007, art. 3007 Giotto XR, Architectural Outdoor, art. 3007 Giotto XR
Models: 5
Color: Silver
Catalogue abstract
Installation instructions

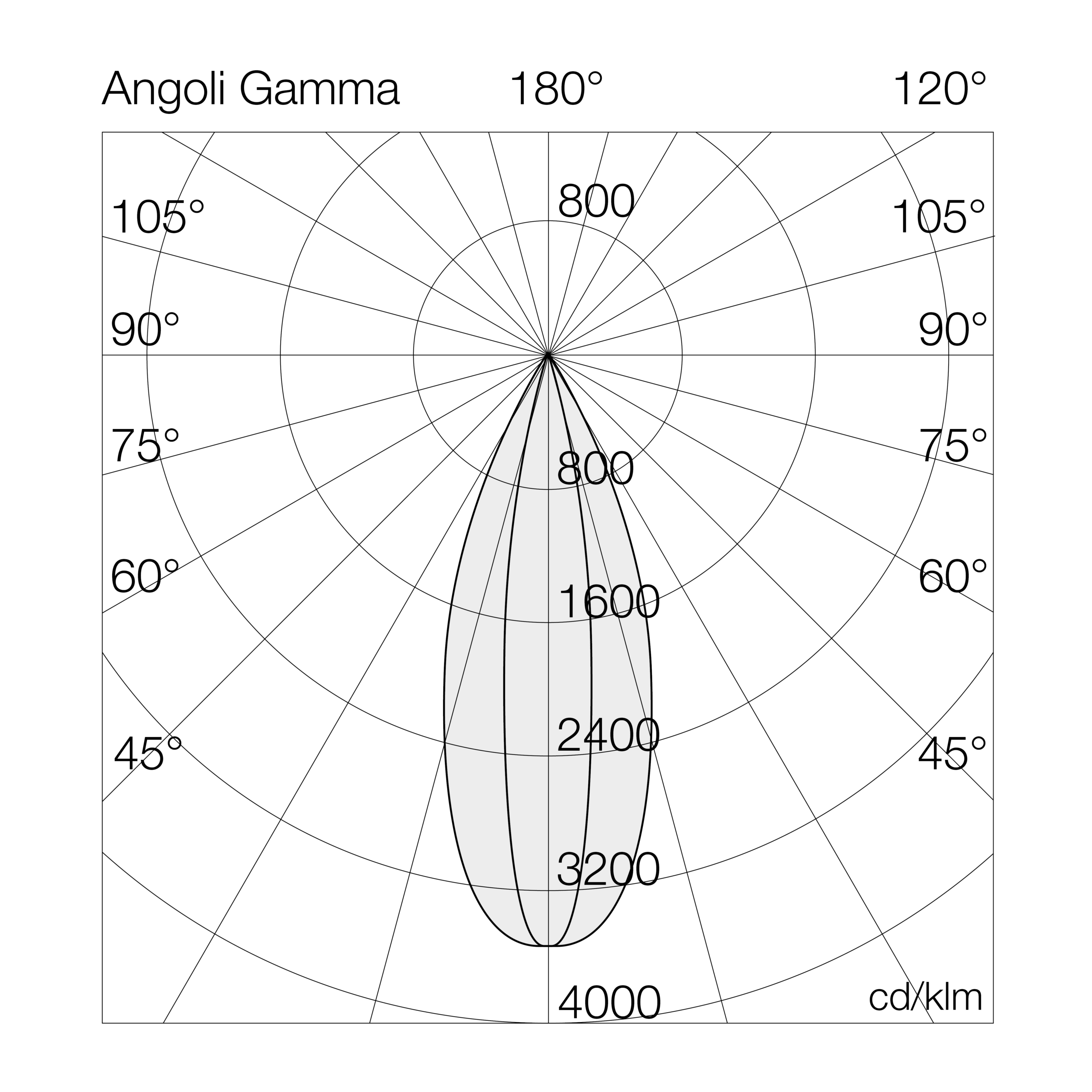

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3007E1RW= RGB+White12GL= on/off
25
38
50
60

Models

W tot.
°K - CRI
Options

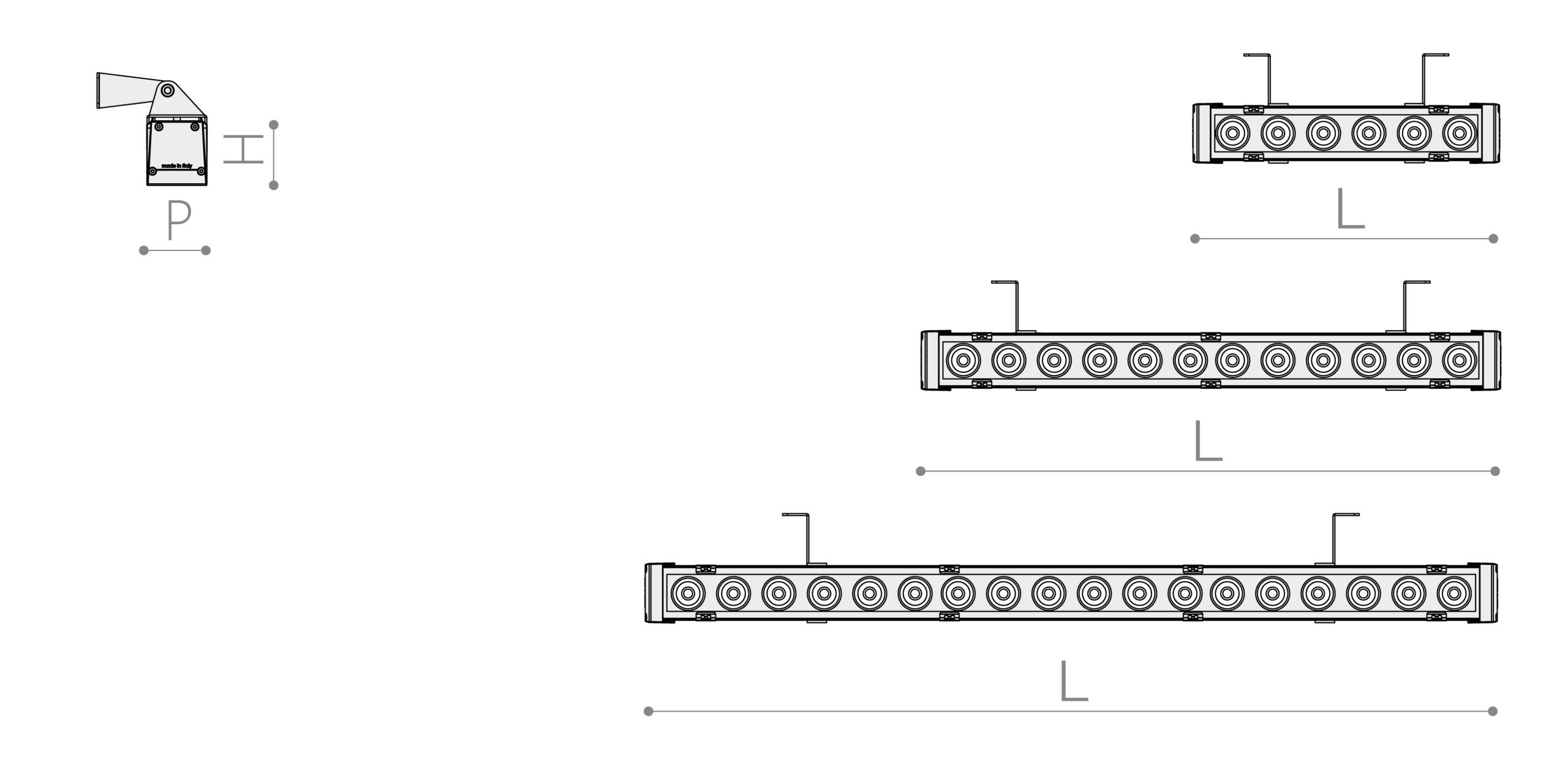

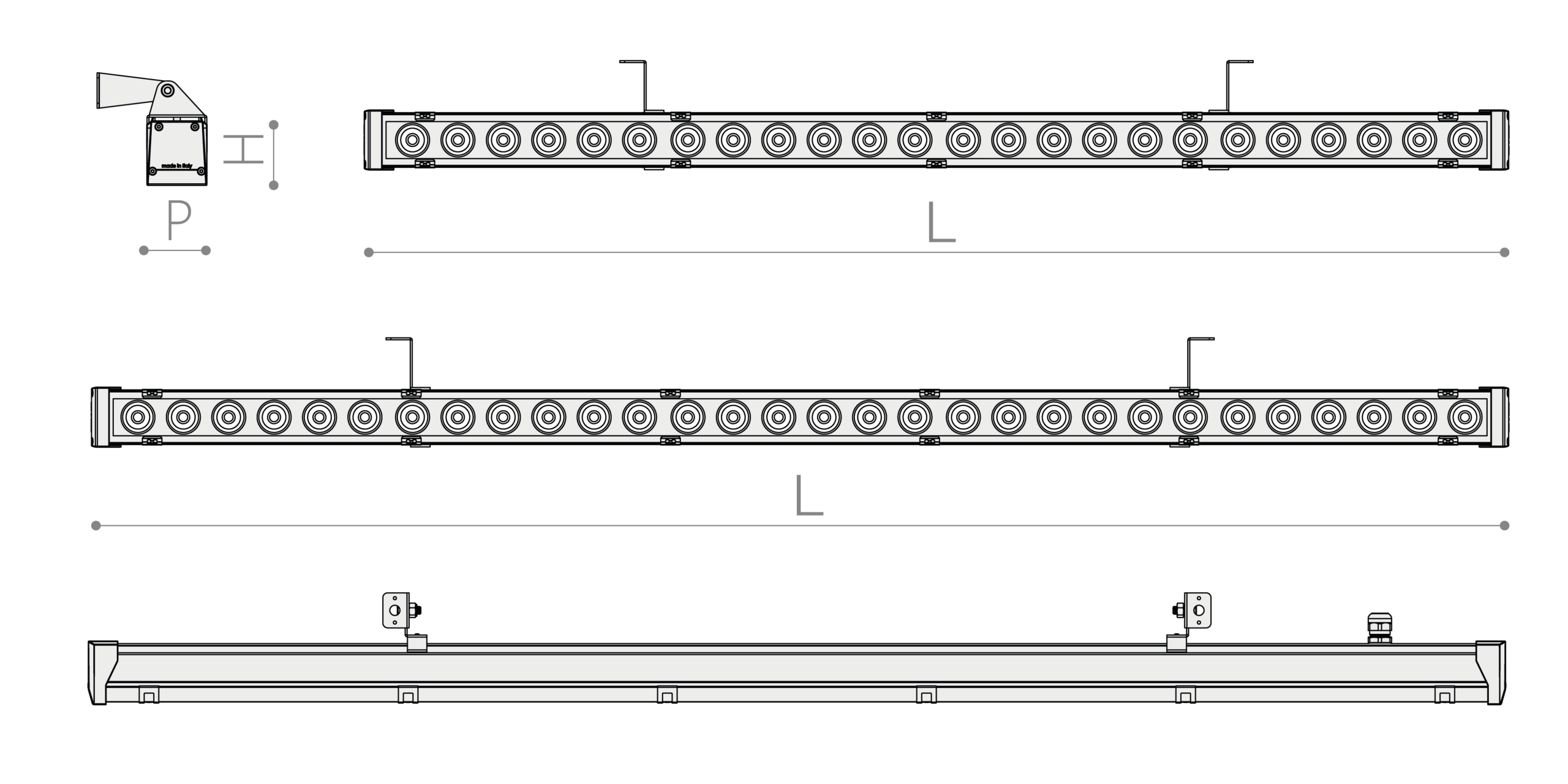

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
3007E1RW12GL12-RGB+Won/off534456275400-1.9
3007E1RW25GL25-RGB+Won/off1068436275680-3.2
3007E1RW38GL38-RGB+Won/off1603426275960-4.2
3007E1RW50GL50-RGB+Won/off21374362751240-5.2
3007E1RW60GL60-RGB+Won/off26714562751520-5.9

Accessories
