art.-3007-giotto-xr-w1-w2-w3-e1

GIOTTO XR (RGB+White) – Mod. W2

(Medium optics 25°)

Outdoor RGB+White LED linear projector for architectural lighting of facades, porches, architectural frames, walkways, under eaves, structural details, monuments and green spaces. Suitable for floor/ground, ceiling and wall installation. Extruded and anodized aluminum body in silver finish, die-cast aluminum end caps painted with anti-corrosion polyester thermosetting powders in silver color, silicone gasket. Stainless steel closing clips, hardware and adjustable fixing brackets. Extra-clear tempered flat glass diffuser 4 mm thick. Medium optics 25°.
Categories: Led, GIOTTO XR (RGB+White), GIOTTO XR - 3007, Architectural Outdoor, GIOTTO XR (RGB+White)
Models: 5
Color: Silver
Catalogue abstract
Installation instructions

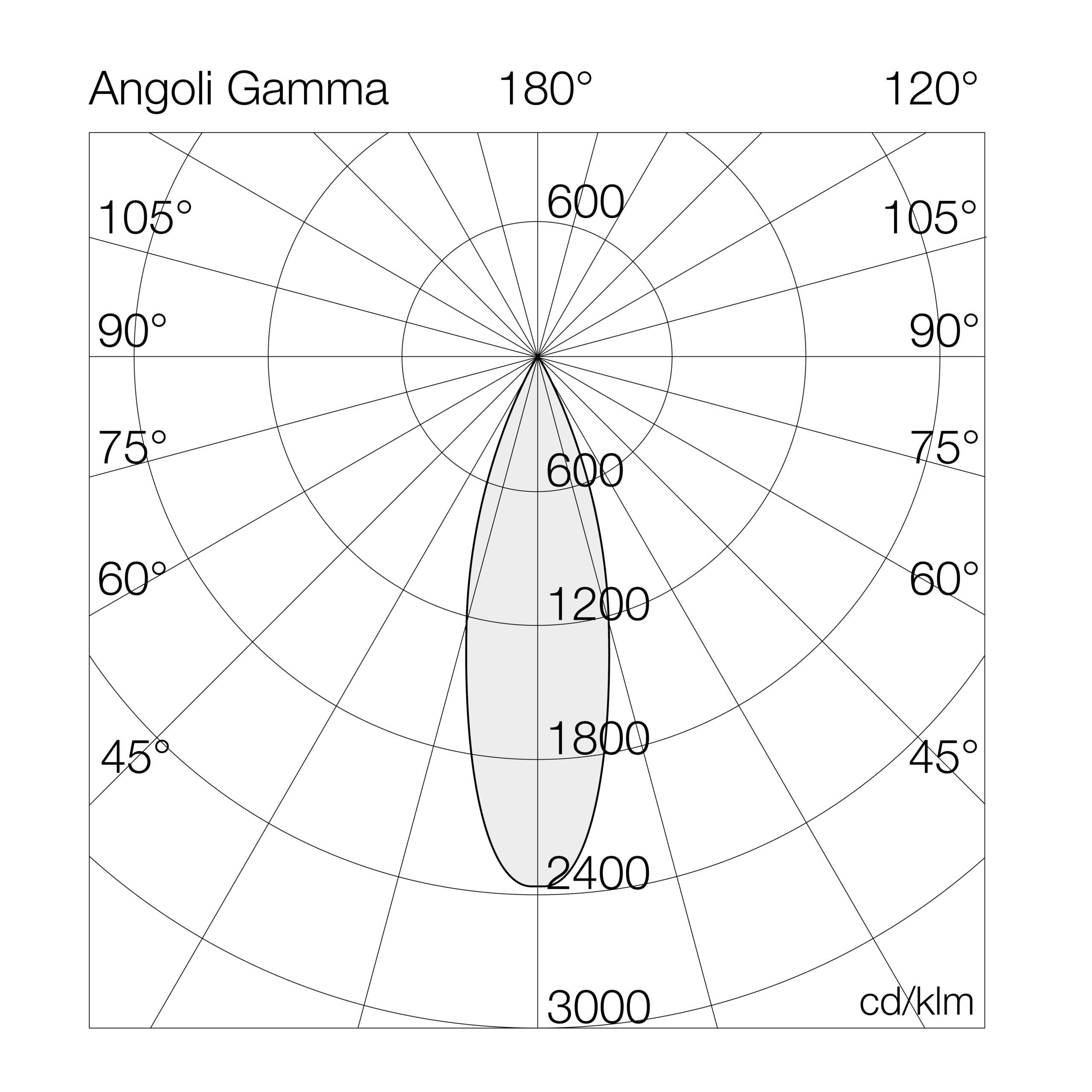

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3007W2RW= RGB+White12GL= on/off
25
38
50
60

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
3007W2RW12GL12-RGB+Won/off534456275400-1.9
3007W2RW25GL25-RGB+Won/off1068436275680-3.2
3007W2RW38GL38-RGB+Won/off1603426275960-4.2
3007W2RW50GL50-RGB+Won/off21374362751240-5.2
3007W2RW60GL60-RGB+Won/off26714562751520-5.9

Accessories
