ISA – Mod. QSC

(UGR<16)

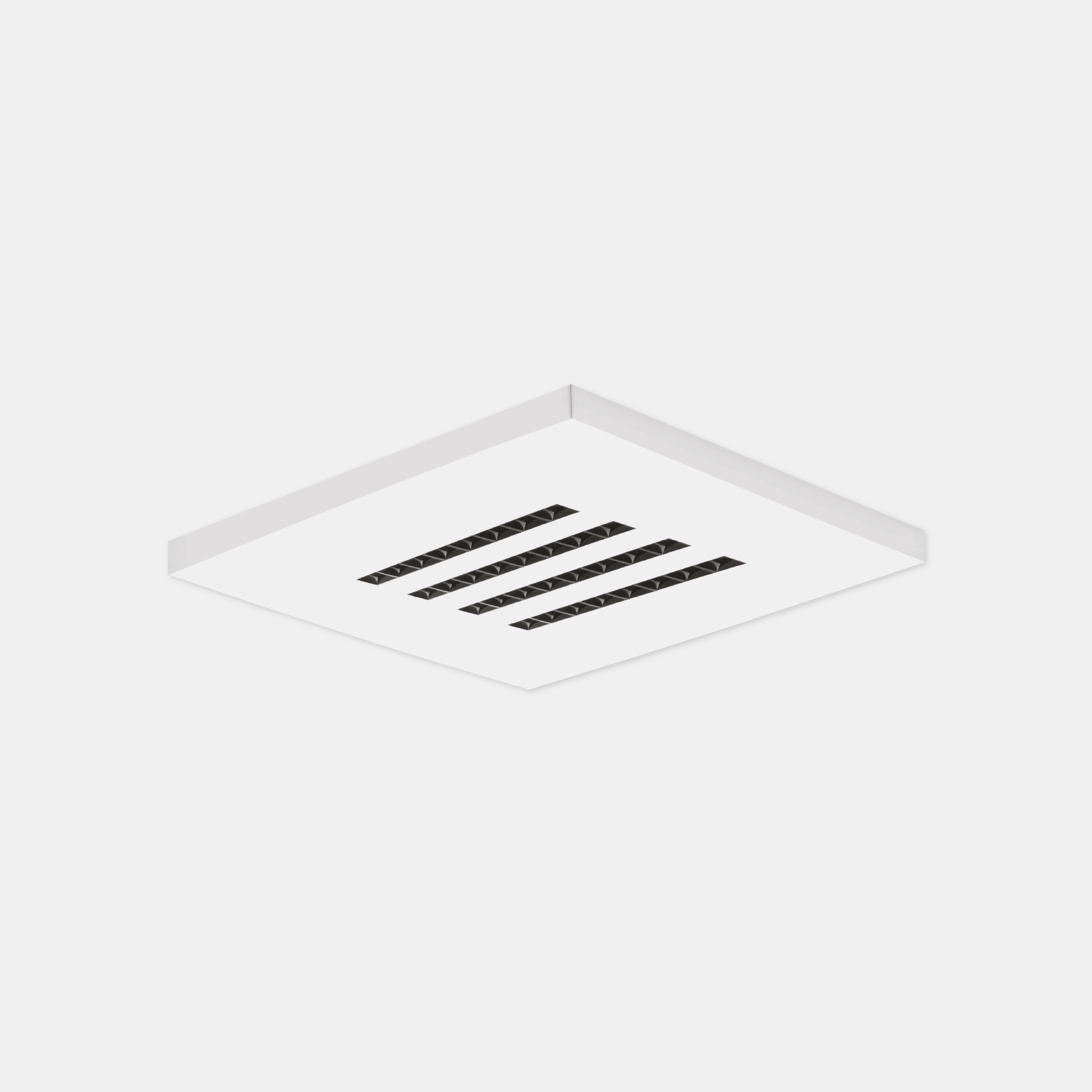

DIRECT BACKLIGHT LED luminaire, suitable for surface mounted or suspended (via accessory). Sheet steel body, painted with white epoxy-polyester powders, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment. Polycarbonate reflectors, anti-glare and anti-reflective black gloss color, optics with PMMA lenses with high flux efficiency and controlled UGR <16.
Categories: Led, ISA, ISA - 3020, Office, ISA
Models: 60
Color: Matt white
Catalogue abstract
Installation instructions

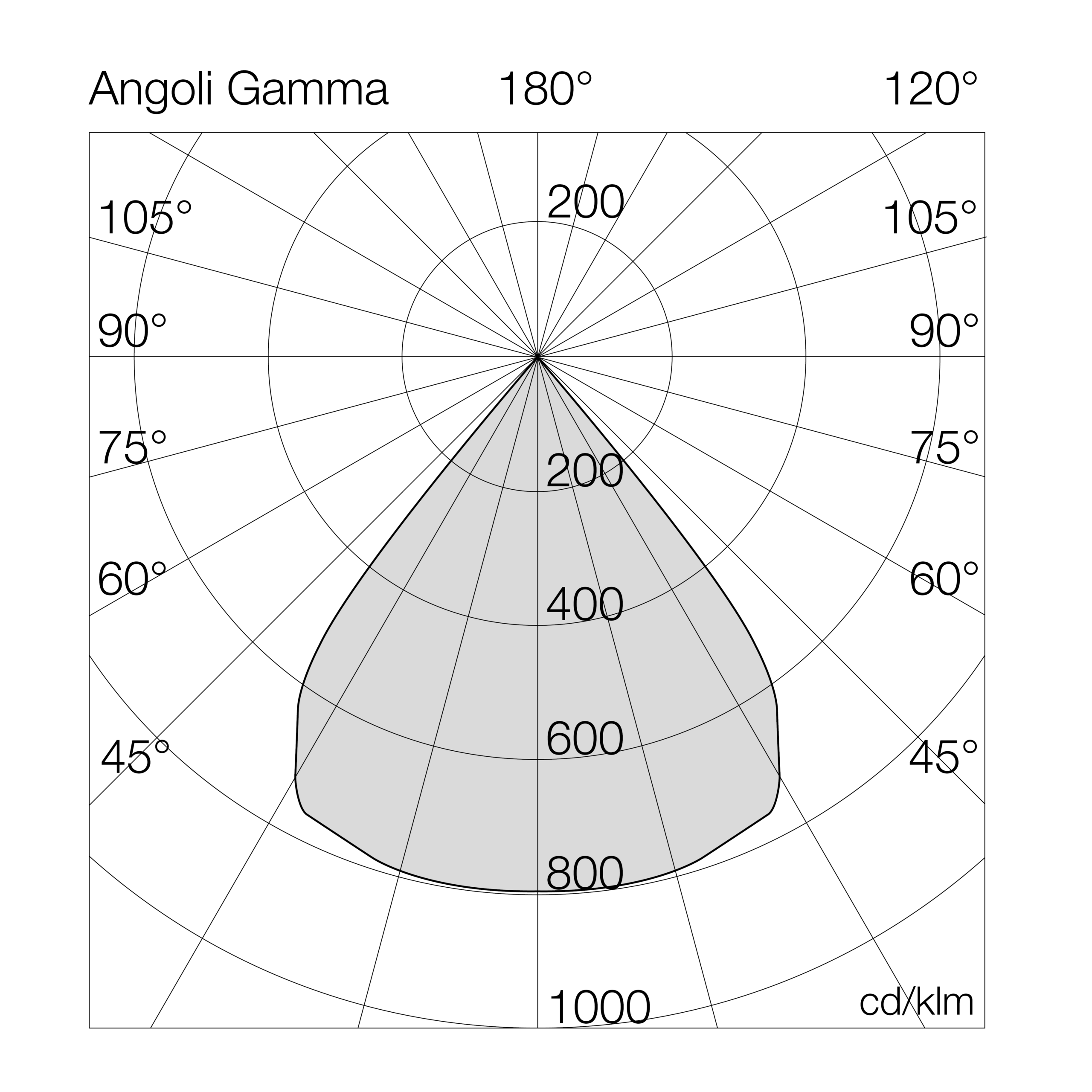

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3020QSC3= 3000°K (CRI >80)18EL= on/off
4= 4000°K (CRI >80)26LD= dali 2 / dali 2 push
9= 4000°K (CRI >90)32D1= dali 2 + em.1h
42E1= em. 1h
E3= em. 3h

Models

W tot.
°K - CRI
Options

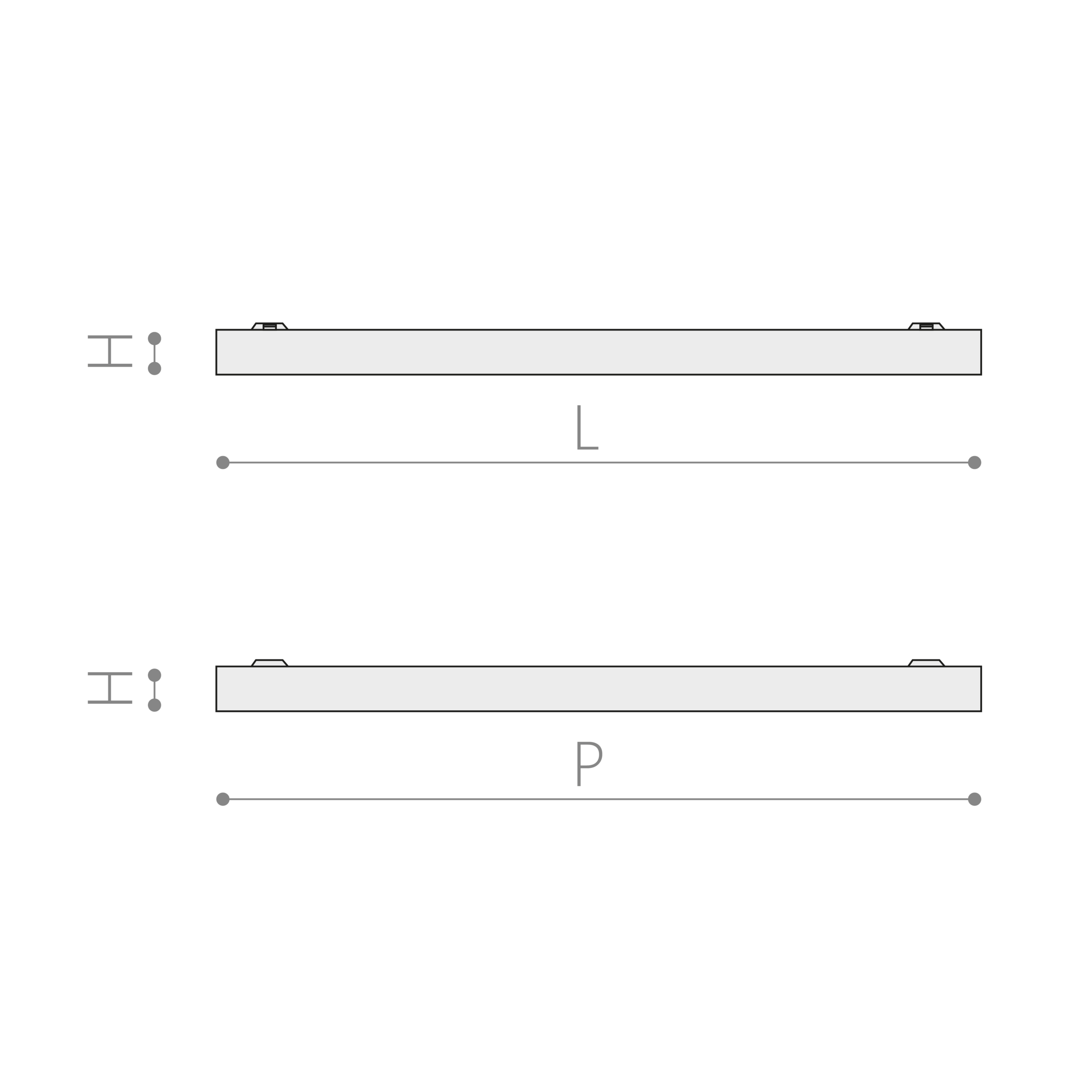

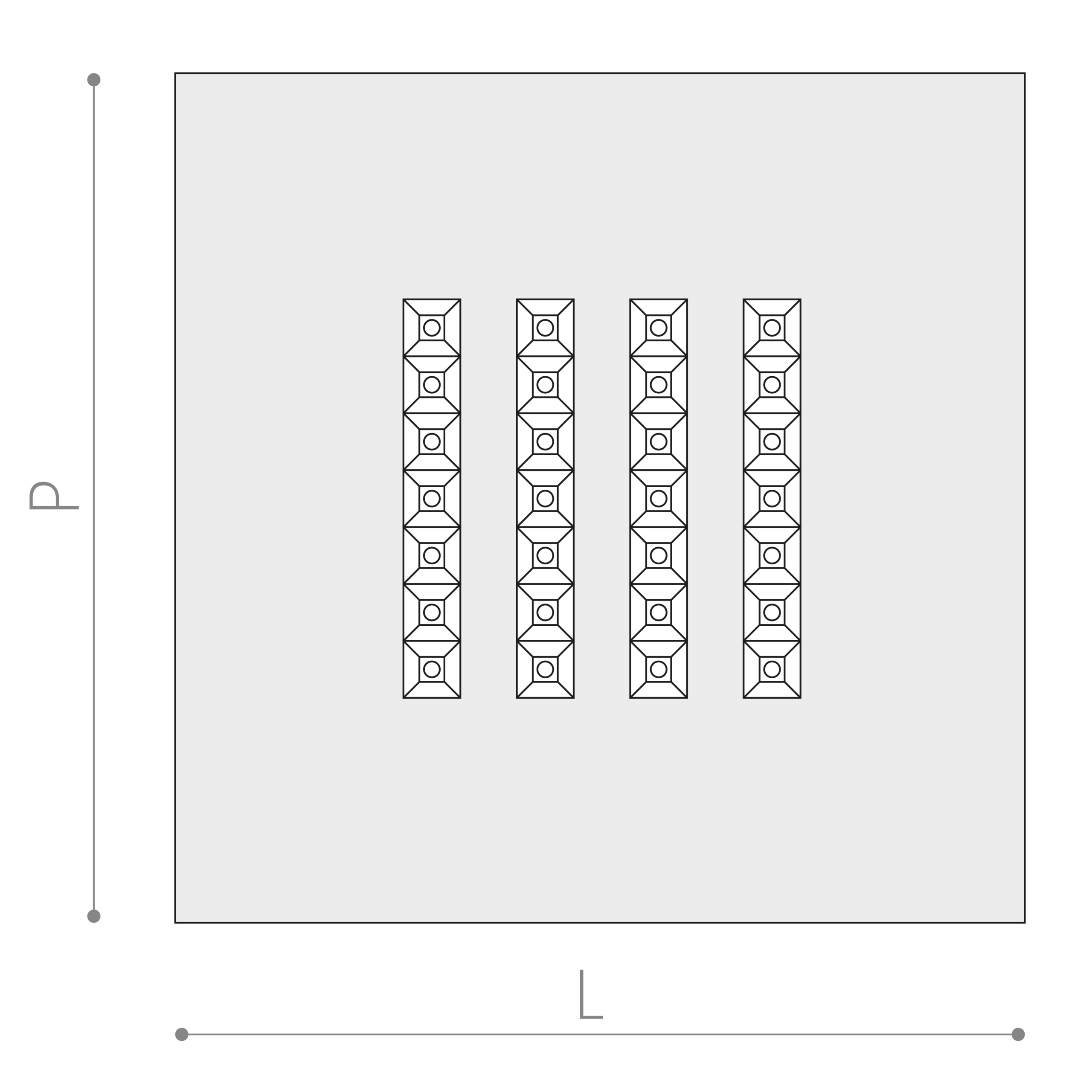

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
3020QSC418EL18-4000°K - CRI>80on/off273015259559535-4.5
3020QSC426EL26-4000°K - CRI>80on/off342613259559535-4.5
3020QSC432EL32-4000°K - CRI>80on/off422913259559535-4.5
3020QSC442EL42-4000°K - CRI>80on/off524812559559535-4.5
3020QSC418LD18-4000°K - CRI>80dali 2 / dali 2 push273015259559535-4.5
3020QSC426LD26-4000°K - CRI>80dali 2 / dali 2 push342613259559535-4.5
3020QSC432LD32-4000°K - CRI>80dali 2 / dali 2 push422913259559535-4.5
3020QSC442LD42-4000°K - CRI>80dali 2 / dali 2 push524812559559535-4.5
3020QSC418D118-4000°K - CRI>80dali 2 + em. 1h273015259559535-4.5
3020QSC426D126-4000°K - CRI>80dali 2 + em. 1h342613259559535-4.5
3020QSC432D132-4000°K - CRI>80dali 2 + em. 1h422913259559535-4.5
3020QSC442D142-4000°K - CRI>80dali 2 + em. 1h524812559559535-4.5
3020QSC418E118-4000°K - CRI>80em. 1h273015259559535-4.5
3020QSC426E126-4000°K - CRI>80em. 1h342613259559535-4.5
3020QSC432E132-4000°K - CRI>80em. 1h422913259559535-4.5
3020QSC442E142-4000°K - CRI>80em. 1h524812559559535-4.5
3020QSC418E318-4000°K - CRI>80em. 3h273015259559535-4.5
3020QSC426E326-4000°K - CRI>80em. 3h342613259559535-4.5
3020QSC432E332-4000°K - CRI>80em. 3h422913259559535-4.5
3020QSC442E342-4000°K - CRI>80em. 3h524812559559535-4.5

Accessories
