ISA – Mod. RSD

(UGR<16)

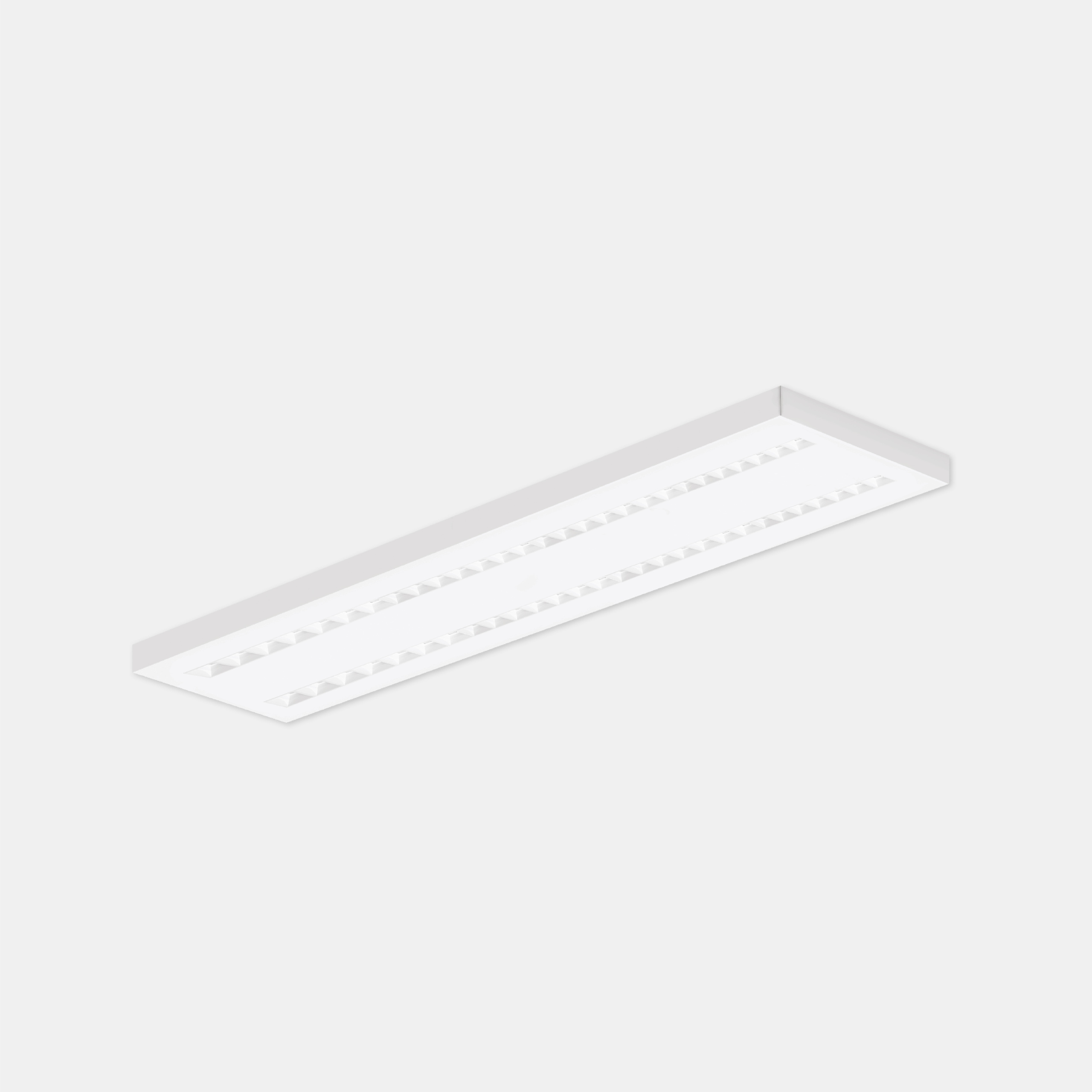

DIRECT BACKLIGHT LED luminaire, suitable for surface mounted or suspended (via accessory). Sheet steel body, painted with white epoxy-polyester powders, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment. Polycarbonate reflectors, anti-glare and anti-reflective white gloss color, optics with PMMA lenses with high flux efficiency and controlled UGR <16.
Categories: Led, ISA, ISA - 3020, Office, ISA
Models: 60
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
3020RSD3= 3000°K (CRI >80)18EL= on/off
4= 4000°K (CRI >80)26LD= dali 2 / dali 2 push
9= 4000°K (CRI >90)32D1= dali 2 + em.1h
42E1= em. 1h
E3= em. 3h

Models

W tot.
°K - CRI
Options

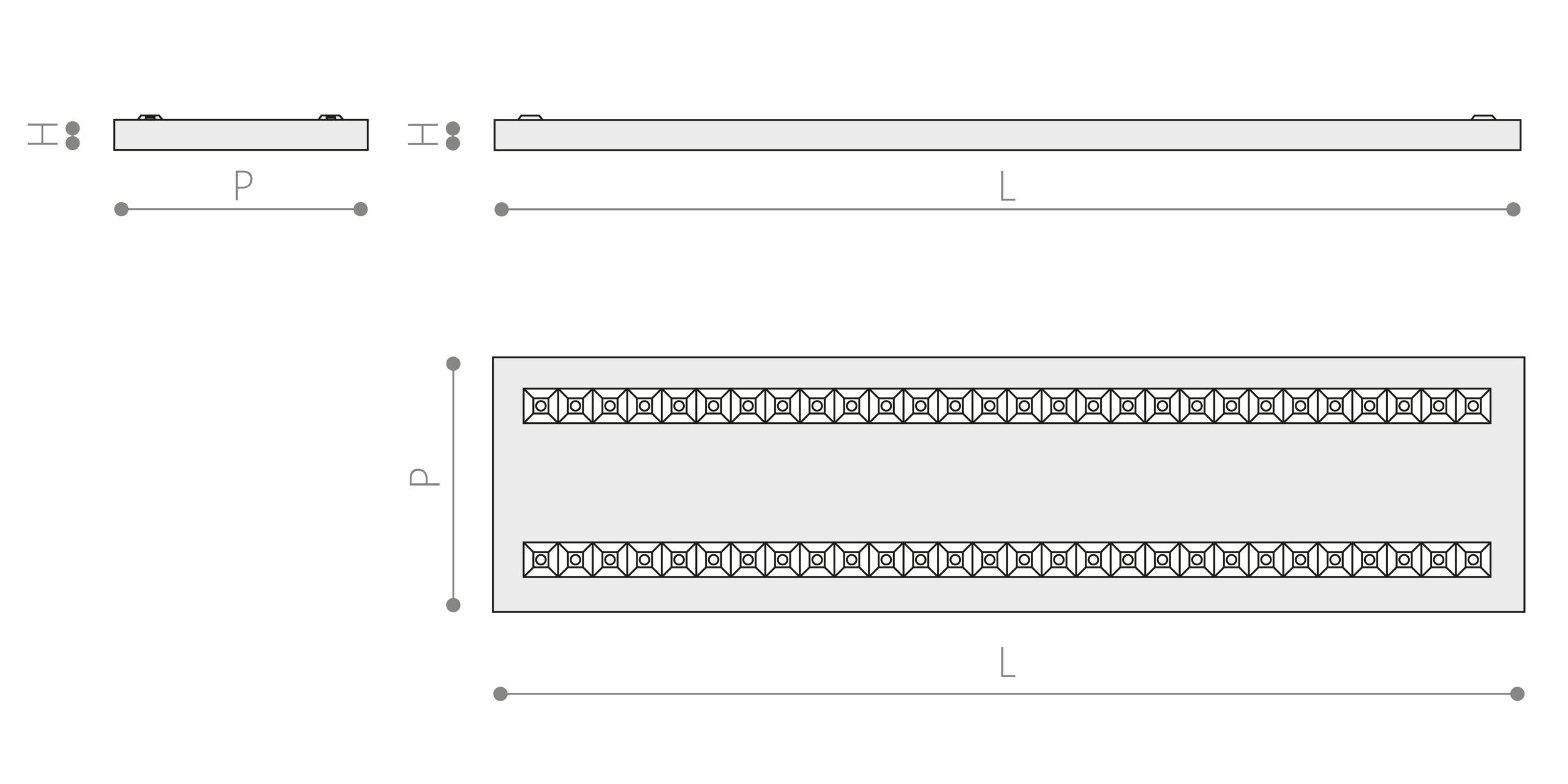

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
3020RSD418EL18-4000°K - CRI>80on/off2730152295119535-4.5
3020RSD426EL26-4000°K - CRI>80on/off3426132295119535-4.5
3020RSD432EL32-4000°K - CRI>80on/off4229132295119535-4.5
3020RSD442EL42-4000°K - CRI>80on/off5248125295119535-4.5
3020RSD418LD18-4000°K - CRI>80dali 2 / dali 2 push2730152295119535-4.5
3020RSD426LD26-4000°K - CRI>80dali 2 / dali 2 push3426132295119535-4.5
3020RSD432LD32-4000°K - CRI>80dali 2 / dali 2 push4229132295119535-4.5
3020RSD442LD42-4000°K - CRI>80dali 2 / dali 2 push5248125295119535-4.5
3020RSD418D118-4000°K - CRI>80dali 2 + em. 1h2730152295119535-4.5
3020RSD426D126-4000°K - CRI>80dali 2 + em. 1h3426132295119535-4.5
3020RSD432D132-4000°K - CRI>80dali 2 + em. 1h4229132295119535-4.5
3020RSD442D142-4000°K - CRI>80dali 2 + em. 1h5248125295119535-4.5
3020RSD418E118-4000°K - CRI>80em. 1h2730152295119535-4.5
3020RSD426E126-4000°K - CRI>80em. 1h3426132295119535-4.5
3020RSD432E132-4000°K - CRI>80em. 1h4229132295119535-4.5
3020RSD442E142-4000°K - CRI>80em. 1h5248125295119535-4.5
3020RSD418E318-4000°K - CRI>80em. 3h2730152295119535-4.5
3020RSD426E326-4000°K - CRI>80em. 3h3426132295119535-4.5
3020RSD432E332-4000°K - CRI>80em. 3h4229132295119535-4.5
3020RSD442E342-4000°K - CRI>80em. 3h5248125295119535-4.5

Accessories
