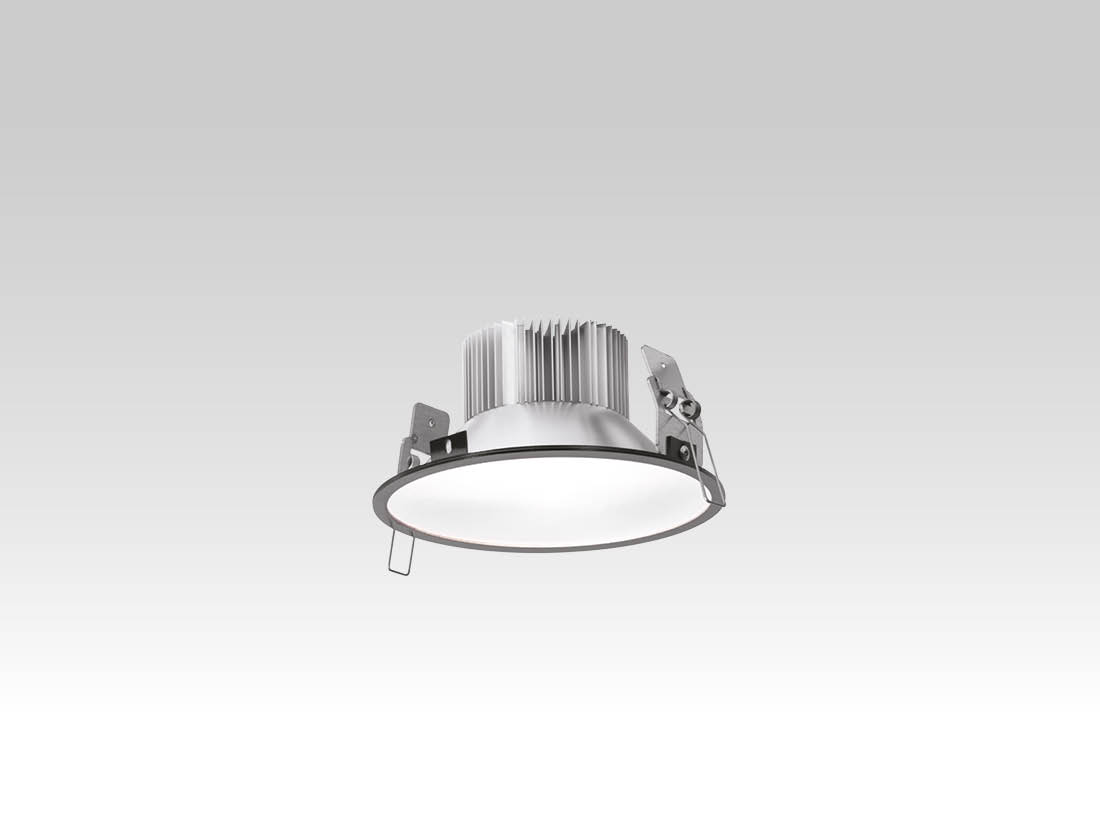

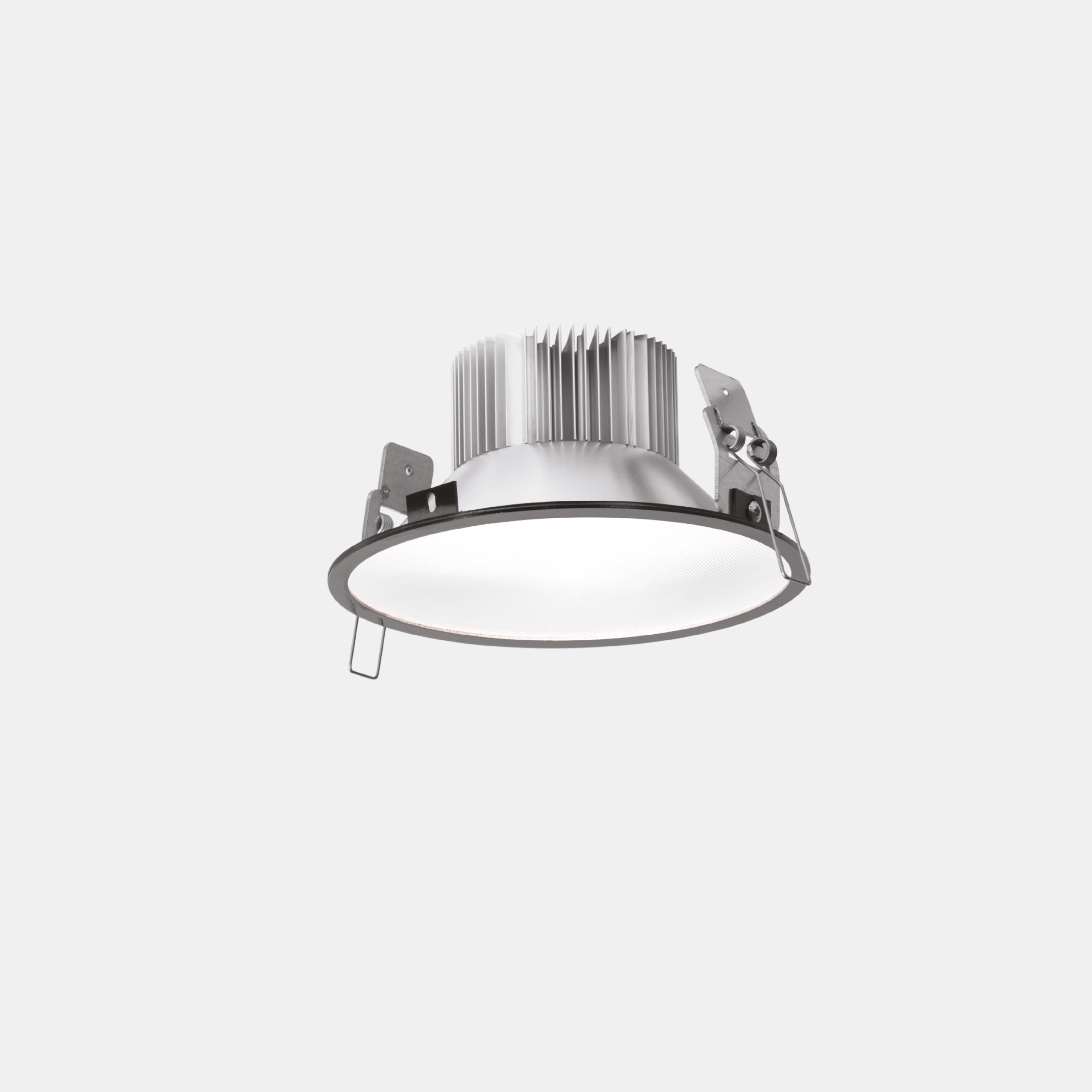

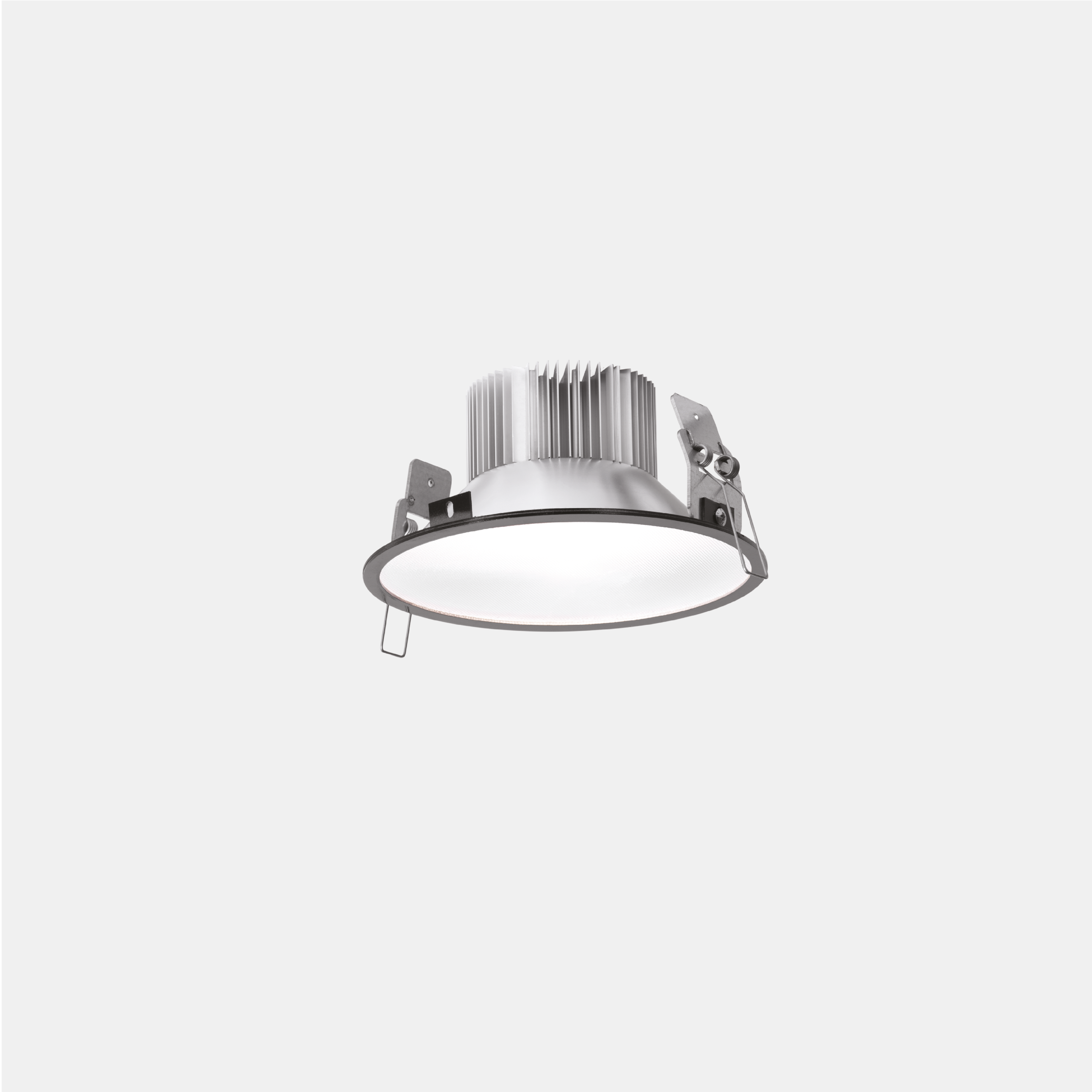

STELLA – Mod. 12

(90° diffusing optics - UGR<19)

Indoor LED fixture suitable for recessed installation on any type of false ceiling. Steel sheet body, painted with black epoxy-polyester powders, anti-yellowing with fine embossed finish, with phosphating and degreasing pretreatment. 90° diffusing optics with anodized turned aluminum reflector and anti-glare and anti-reflection microprismatic polycarbonate diffuser. Mounting brackets included.
Categories: Led, STELLA - 6001, Retail, STELLA
Models: 175
Color: Matt black
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
60011203= 3000°K (CRI >80)11NL= on/off
04= 4000°K (CRI >80)13ND= dali 2 / dali 2 push
93= 3000°K (CRI >90)181N= dali 2 + em. 1h
94= 4000°K (CRI >90)20N1= em. 1h
26N3= em. 3h
30
40

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
6001120411NL11-4000°K - CRI>80on/off1388126120-50-0.50
6001120413NL13-4000°K - CRI>80on/off1659128120-50-0.50
6001120418NL18-4000°K - CRI>80on/off2343130120-60-0.60
6001120420NL20-4000°K - CRI>80on/off2416121120-60-0.60
6001120426NL26-4000°K - CRI>80on/off3226124120-60-0.60
6001120430NL30-4000°K - CRI>80on/off297699120-60-0.60
6001120440NL40-4000°K - CRI>80on/off4692117120-90-0.60
6001120411ND11-4000°K - CRI>80dali 2 / dali 2 push1388126120-50-0.50
6001120413ND13-4000°K - CRI>80dali 2 / dali 2 push1659128120-50-0.50
6001120418ND18-4000°K - CRI>80dali 2 / dali 2 push2343130120-60-0.60
6001120420ND20-4000°K - CRI>80dali 2 / dali 2 push2416121120-60-0.60
6001120426ND26-4000°K - CRI>80dali 2 / dali 2 push3226124120-60-0.60
6001120430ND30-4000°K - CRI>80dali 2 / dali 2 push297699120-60-0.60
6001120440ND40-4000°K - CRI>80dali 2 / dali 2 push4692117120-90-0.60
60011204111N11-4000°K - CRI>80dali 2 + em. 1h1388126120-50-0.50
60011204131N13-4000°K - CRI>80dali 2 + em. 1h1659128120-50-0.50
60011204181N18-4000°K - CRI>80dali 2 + em. 1h2343130120-60-0.60
60011204201N20-4000°K - CRI>80dali 2 + em. 1h2416121120-60-0.60
60011204261N26-4000°K - CRI>80dali 2 + em. 1h3226124120-60-0.60
60011204301N30-4000°K - CRI>80dali 2 + em. 1h297699120-60-0.60
