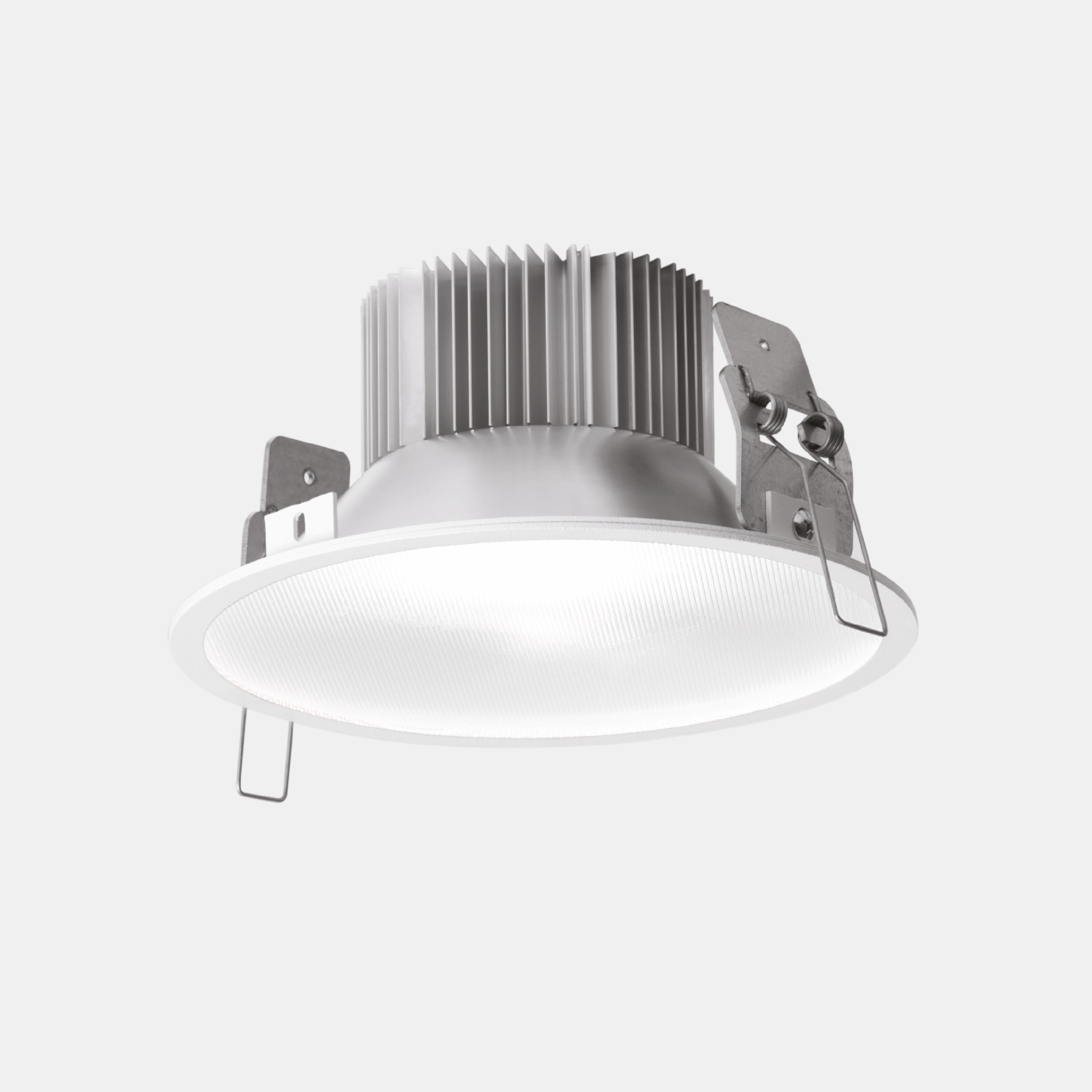

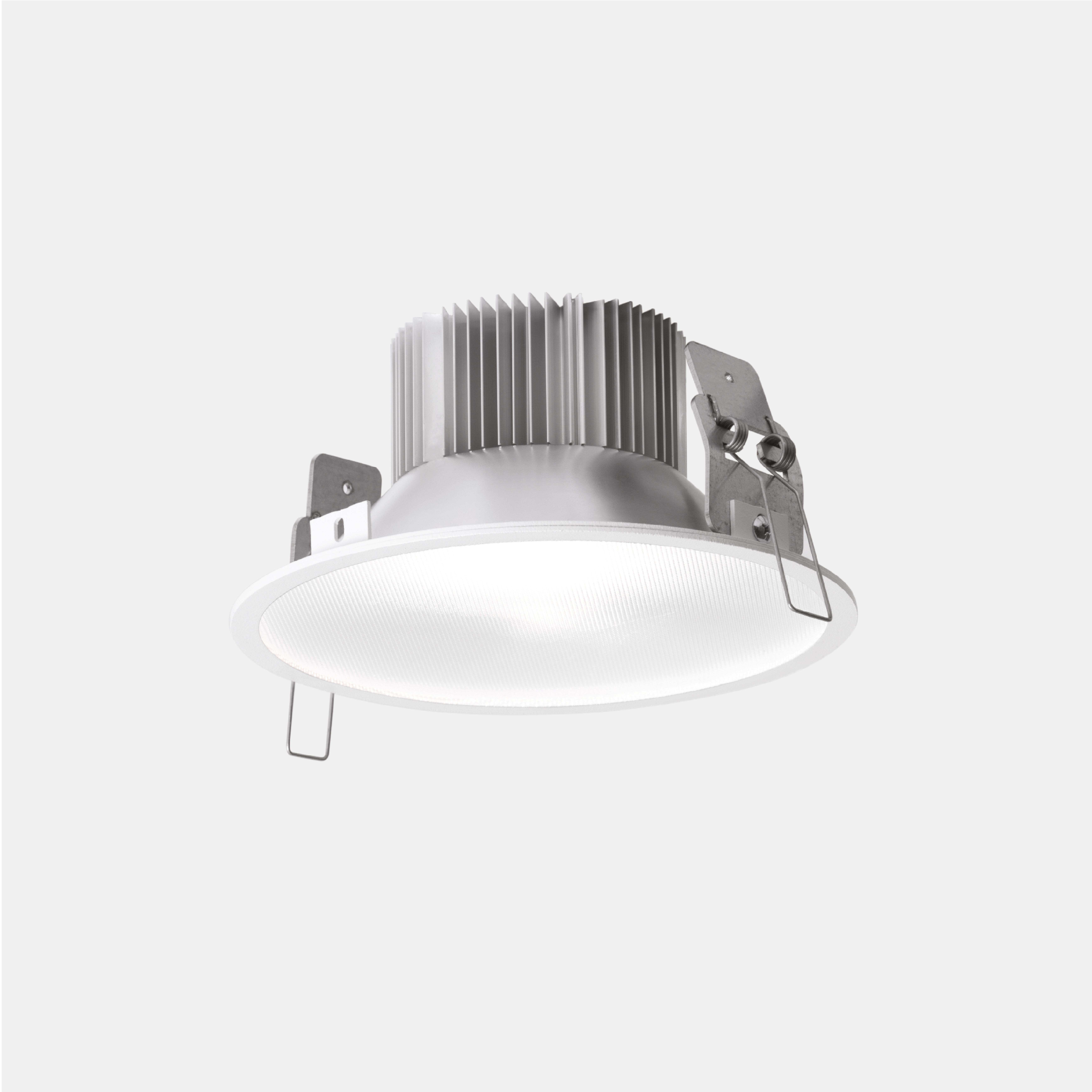

STELLA/20

Led downlight suitable for all false ceiling types. Steel sheet ring, painted with embossed matt white anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz class II. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, Retail, art. 6001 Stella

Models: 225

Color: Matt white

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
6001	20	27	= 2700°K (CRI >80)	11	EL	= on/off
		03	= 3000°K (CRI >80)	13	LD	= dali 2 / dali 2 push
		04	= 4000°K (CRI >80)	18	D1	= dali 2 + em. 1h
		93	= 3000°K (CRI >90)	20	E1	= em. 1h
		94	= 4000°K (CRI >90)	26	E3	= em. 3h
				30
				40
				55
				75

Models

Codice	W tot.	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	C (mm)	Kg
6001200411EL	11	4000°K - CRI>80	on/off	1388	126	200	50	0.60
6001200413EL	13	4000°K - CRI>80	on/off	1659	128	200	50	0.60
6001200418EL	18	4000°K - CRI>80	on/off	2343	130	200	60	0.70
6001200420EL	20	4000°K - CRI>80	on/off	2416	121	200	60	0.70
6001200426EL	26	4000°K - CRI>80	on/off	3226	124	200	60	0.70
6001200430EL	30	4000°K - CRI>80	on/off	2976	99	200	60	0.70
6001200440EL	40	4000°K - CRI>80	on/off	4692	117	200	90	0.70
6001200455EL	55	4000°K - CRI>80	on/off	6061	110	200	90	0.70
6001200475EL	75	4000°K - CRI>80	on/off	7852	105	200	90	0.70
6001200411LD	11	4000°K - CRI>80	dali 2 / dali 2 push	1388	126	200	50	0.60
6001200413LD	13	4000°K - CRI>80	dali 2 / dali 2 push	1659	128	200	50	0.60
6001200418LD	18	4000°K - CRI>80	dali 2 / dali 2 push	2343	130	200	60	0.70
6001200420LD	20	4000°K - CRI>80	dali 2 / dali 2 push	2416	121	200	60	0.70
6001200426LD	26	4000°K - CRI>80	dali 2 / dali 2 push	3226	124	200	60	0.70
6001200430LD	30	4000°K - CRI>80	dali 2 / dali 2 push	2976	99	200	60	0.70
6001200440LD	40	4000°K - CRI>80	dali 2 / dali 2 push	4692	117	200	90	0.70
6001200455LD	55	4000°K - CRI>80	dali 2 / dali 2 push	6061	110	200	90	0.70
6001200475LD	75	4000°K - CRI>80	dali 2 / dali 2 push	7852	105	200	90	0.70
6001200411D1	11	4000°K - CRI>80	dali 2 + em. 1h	1388	126	200	50	0.60
6001200413D1	13	4000°K - CRI>80	dali 2 + em. 1h	1659	128	200	50	0.60
