art.-6002-eos-12-bianco

EOS – Mod. 12

(90° diffusing optics - UGR<19)

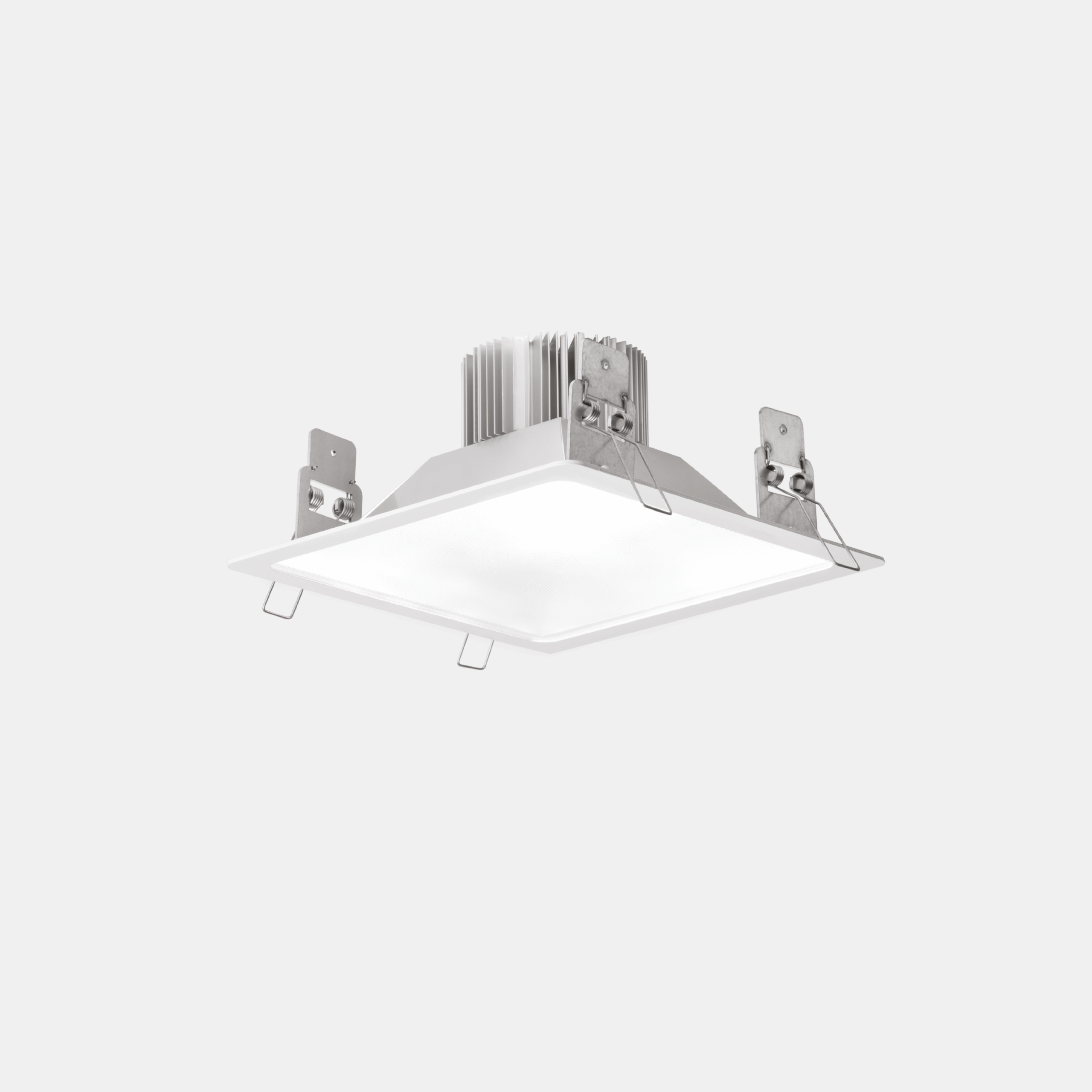

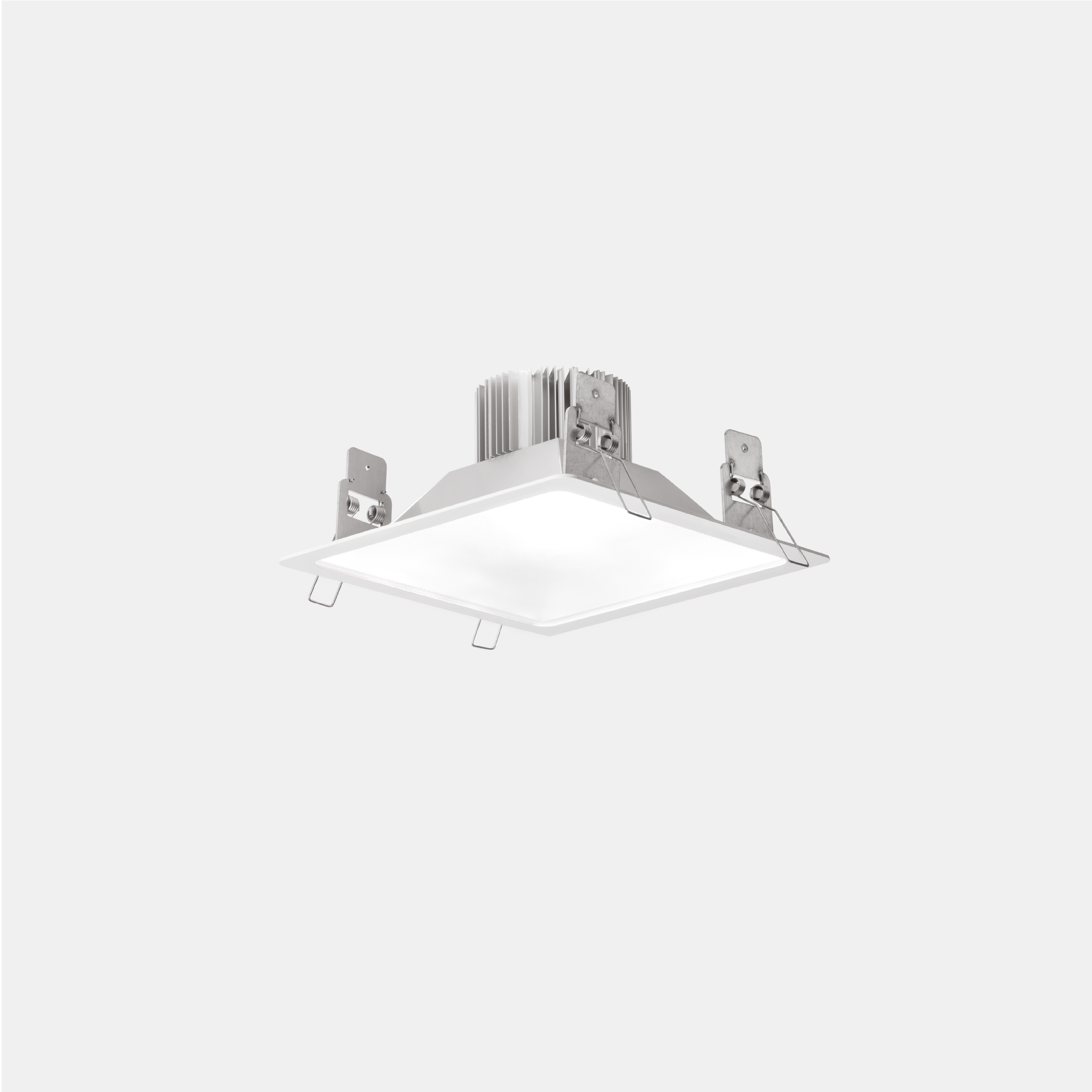

Indoor LED fixture suitable for recessed installation on any type of false ceiling. Steel sheet body, painted with white epoxy-polyester powder coating, anti-yellowing with fine embossed finish, with phosphating and degreasing pretreatment. 90° diffusing optics with anodized aluminum reflector and anti-glare and anti-reflection microprismatic polycarbonate diffuser.
Categories: Led, EOS - 6002, Retail, EOS
Models: 175
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
60021203= 3000°K (CRI >80)11EL= on/off
04= 4000°K (CRI >80)13LD= dali 2 / dali 2 push
93= 3000°K (CRI >90)18D1= dali 2 + em. 1h
94= 4000°K (CRI >90)20E1= em. 1h
26E3= em. 3h
30
40

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
6002120411EL11-4000°K - CRI>80on/off138812612012050-0.50
6002120413EL13-4000°K - CRI>80on/off165912812012050-0.50
6002120418EL18-4000°K - CRI>80on/off234313012012060-0.60
6002120420EL20-4000°K - CRI>80on/off241612112012060-0.60
6002120426EL26-4000°K - CRI>80on/off322612412012060-0.60
6002120430EL30-4000°K - CRI>80on/off29769912012060-0.60
6002120440EL40-4000°K - CRI>80on/off469211712012090-0.60
6002120411LD11-4000°K - CRI>80dali 2 / dali 2 push138812612012050-0.50
6002120413LD13-4000°K - CRI>80dali 2 / dali 2 push165912812012050-0.50
6002120418LD18-4000°K - CRI>80dali 2 / dali 2 push234313012012060-0.60
6002120420LD20-4000°K - CRI>80dali 2 / dali 2 push241612112012060-0.60
6002120426LD26-4000°K - CRI>80dali 2 / dali 2 push322612412012060-0.60
6002120430LD30-4000°K - CRI>80dali 2 / dali 2 push29769912012060-0.60
6002120440LD40-4000°K - CRI>80dali 2 / dali 2 push469211712012090-0.60
6002120411D111-4000°K - CRI>80dali 2 + em. 1h138812612012050-0.50
6002120413D113-4000°K - CRI>80dali 2 + em. 1h165912812012050-0.50
6002120418D118-4000°K - CRI>80dali 2 + em. 1h234313012012060-0.60
6002120420D120-4000°K - CRI>80dali 2 + em. 1h241612112012060-0.60
6002120426D126-4000°K - CRI>80dali 2 + em. 1h322612412012060-0.60
6002120430D130-4000°K - CRI>80dali 2 + em. 1h29769912012060-0.60

Accessories
