EOS – Mod. 15

(90° diffusing optics - UGR<19)

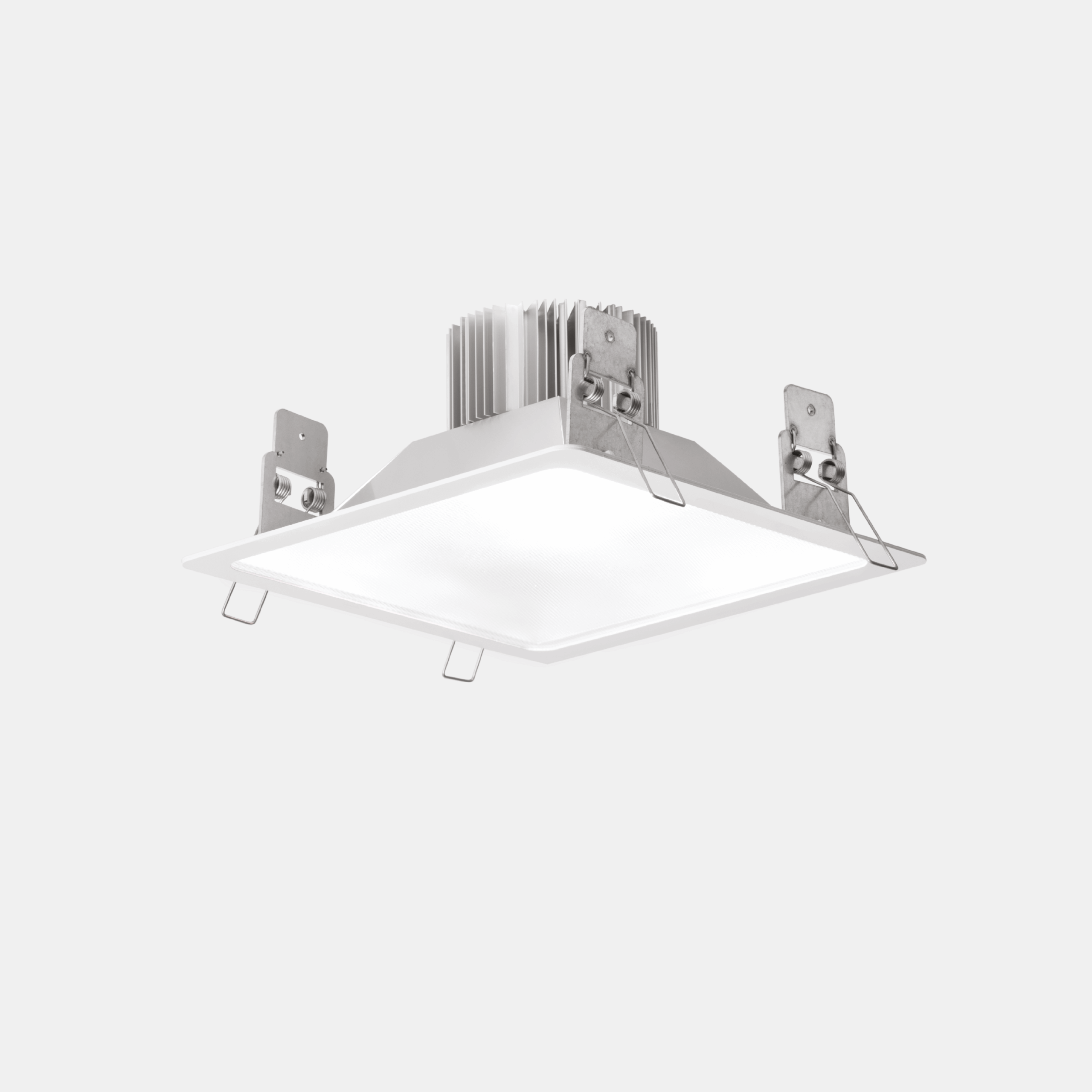

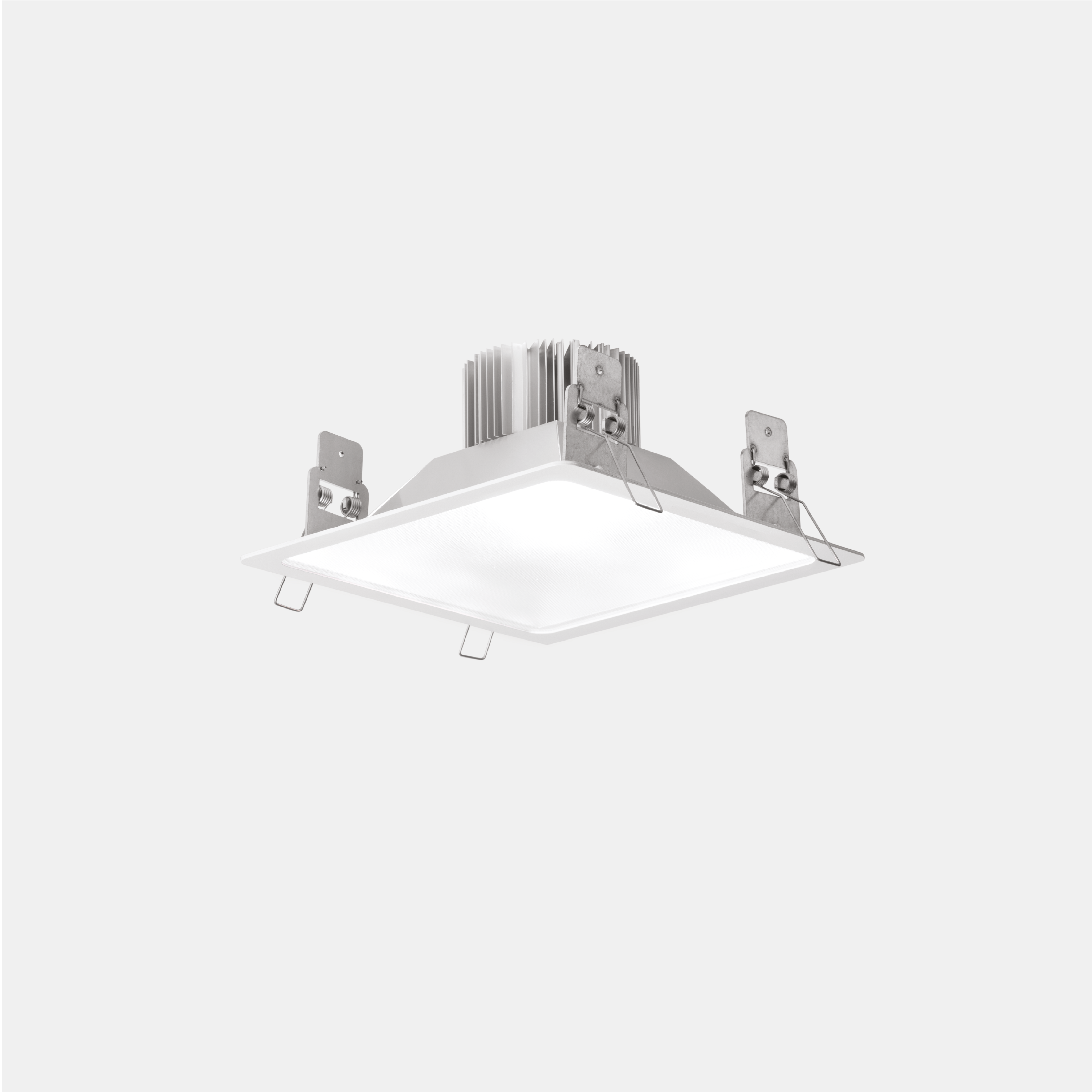

Indoor LED fixture suitable for recessed installation on any type of false ceiling. Steel sheet body, painted with white epoxy-polyester powder coating, anti-yellowing with fine embossed finish, with phosphating and degreasing pretreatment. 90° diffusing optics with anodized aluminum reflector and anti-glare and anti-reflection microprismatic polycarbonate diffuser.

Categories: Led, EOS - 6002, Retail, EOS

Models: 225

Color: Matt white

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
6002	15	03	= 3000°K (CRI >80)	11	EL	= on/off
		04	= 4000°K (CRI >80)	13	LD	= dali 2 / dali 2 push
		93	= 3000°K (CRI >90)	18	D1	= dali 2 + em. 1h
		94	= 4000°K (CRI >90)	20	E1	= em. 1h
				26	E3	= em. 3h
				30
				40
				55
				75

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
6002150411EL	11	-	4000°K - CRI>80	on/off	1388	126	150	150	50	-	0.50
6002150413EL	13	-	4000°K - CRI>80	on/off	1659	128	150	150	50	-	0.50
6002150418EL	18	-	4000°K - CRI>80	on/off	2343	130	150	150	60	-	0.60
6002150420EL	20	-	4000°K - CRI>80	on/off	2416	121	150	150	60	-	0.60
6002150426EL	26	-	4000°K - CRI>80	on/off	3226	124	150	150	60	-	0.60
6002150430EL	30	-	4000°K - CRI>80	on/off	2976	99	150	150	60	-	0.60
6002150440EL	40	-	4000°K - CRI>80	on/off	4692	117	150	150	90	-	0.60
6002150455EL	55	-	4000°K - CRI>80	on/off	6061	110	150	150	90	-	0.60
6002150475EL	75	-	4000°K - CRI>80	on/off	7852	105	150	150	90	-	0.60
6002150411LD	11	-	4000°K - CRI>80	dali 2 / dali 2 push	1388	126	150	150	50	-	0.50
6002150413LD	13	-	4000°K - CRI>80	dali 2 / dali 2 push	1659	128	150	150	50	-	0.50
6002150418LD	18	-	4000°K - CRI>80	dali 2 / dali 2 push	2343	130	150	150	60	-	0.60
6002150420LD	20	-	4000°K - CRI>80	dali 2 / dali 2 push	2416	121	150	150	60	-	0.60
6002150426LD	26	-	4000°K - CRI>80	dali 2 / dali 2 push	3226	124	150	150	60	-	0.60
6002150430LD	30	-	4000°K - CRI>80	dali 2 / dali 2 push	2976	99	150	150	60	-	0.60
6002150440LD	40	-	4000°K - CRI>80	dali 2 / dali 2 push	4692	117	150	150	90	-	0.60
6002150455LD	55	-	4000°K - CRI>80	dali 2 / dali 2 push	6061	110	150	150	90	-	0.60
6002150475LD	75	-	4000°K - CRI>80	dali 2 / dali 2 push	7852	105	150	150	90	-	0.60
6002150411D1	11	-	4000°K - CRI>80	dali 2 + em. 1h	1388	126	150	150	50	-	0.50
6002150413D1	13	-	4000°K - CRI>80	dali 2 + em. 1h	1659	128	150	150	50	-	0.50
