EOS – Mod. 15

(90° diffusing optics - UGR<19)

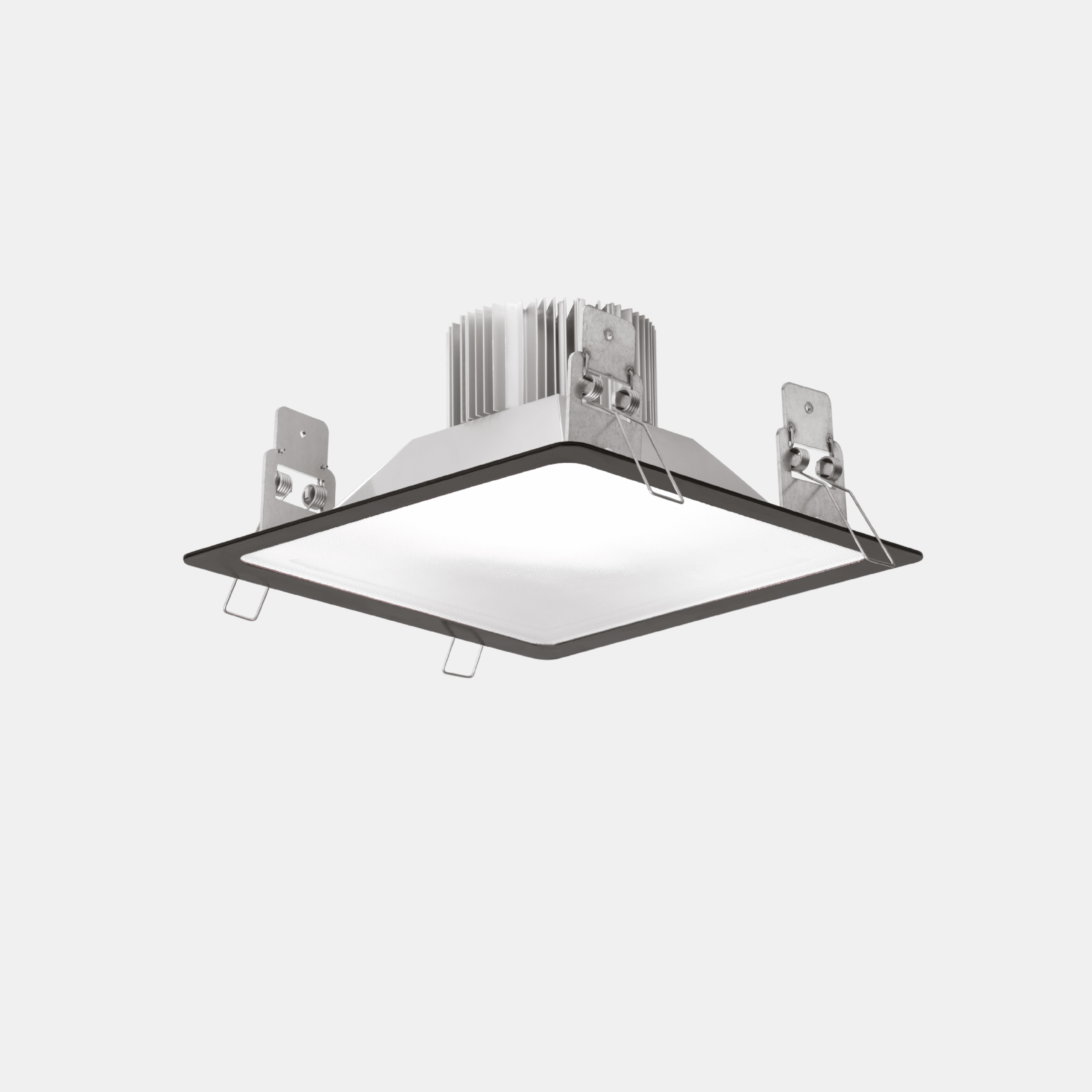

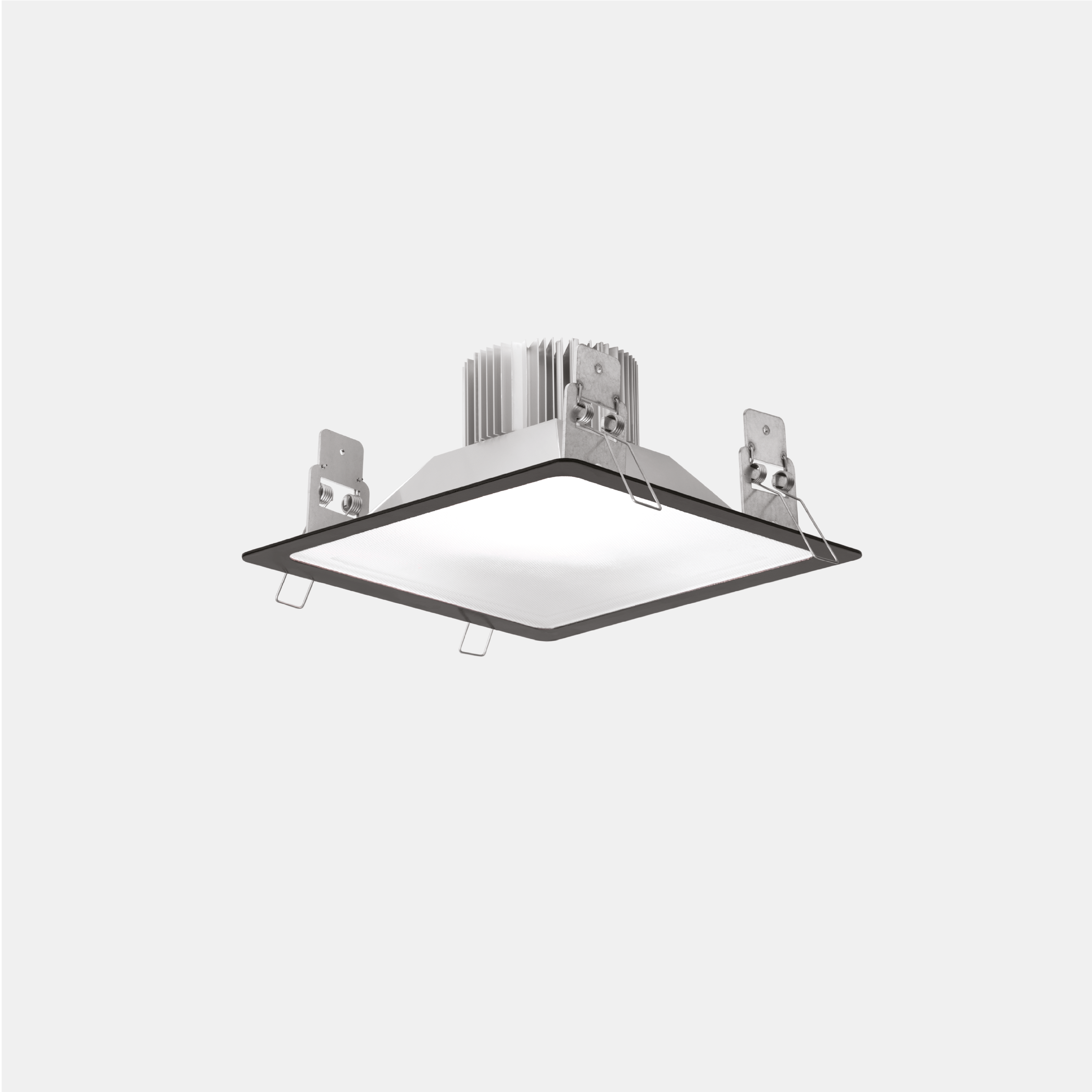

Indoor LED fixture suitable for recessed installation on any type of false ceiling. Steel sheet body, painted with black epoxy-polyester powder coating, anti-yellowing with fine embossed finish, with phosphating and degreasing pretreatment. 90° diffusing optics with anodized aluminum reflector and anti-glare and anti-reflection microprismatic polycarbonate diffuser.

Categories: Led, EOS - 6002, Retail, EOS

Models: 225

Color: Matt black

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
6002	15	03	= 3000°K (CRI >80)	11	NL	= on/off
		04	= 4000°K (CRI >80)	13	ND	= dali 2 / dali 2 push
		93	= 3000°K (CRI >90)	18	1N	= dali 2 + em. 1h
		94	= 4000°K (CRI >90)	20	N1	= em. 1h
				26	N3	= em. 3h
				30
				40
				55
				75

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
6002150411NL	11	-	4000°K - CRI>80	on/off	1388	126	150	150	50	-	0.50
6002150413NL	13	-	4000°K - CRI>80	on/off	1659	128	150	150	50	-	0.50
6002150418NL	18	-	4000°K - CRI>80	on/off	2343	130	150	150	60	-	0.60
6002150420NL	20	-	4000°K - CRI>80	on/off	2416	121	150	150	60	-	0.60
6002150426NL	26	-	4000°K - CRI>80	on/off	3226	124	150	150	60	-	0.60
6002150430NL	30	-	4000°K - CRI>80	on/off	2976	99	150	150	60	-	0.60
6002150440NL	40	-	4000°K - CRI>80	on/off	4692	117	150	150	90	-	0.60
6002150455NL	55	-	4000°K - CRI>80	on/off	6061	110	150	150	90	-	0.60
6002150475NL	75	-	4000°K - CRI>80	on/off	7852	105	150	150	90	-	0.60
6002150411ND	11	-	4000°K - CRI>80	dali 2 / dali 2 push	1388	126	150	150	50	-	0.50
6002150413ND	13	-	4000°K - CRI>80	dali 2 / dali 2 push	1659	128	150	150	50	-	0.50
6002150418ND	18	-	4000°K - CRI>80	dali 2 / dali 2 push	2343	130	150	150	60	-	0.60
6002150420ND	20	-	4000°K - CRI>80	dali 2 / dali 2 push	2416	121	150	150	60	-	0.60
6002150426ND	26	-	4000°K - CRI>80	dali 2 / dali 2 push	3226	124	150	150	60	-	0.60
6002150430ND	30	-	4000°K - CRI>80	dali 2 / dali 2 push	2976	99	150	150	60	-	0.60
6002150440ND	40	-	4000°K - CRI>80	dali 2 / dali 2 push	4692	117	150	150	90	-	0.60
6002150455ND	55	-	4000°K - CRI>80	dali 2 / dali 2 push	6061	110	150	150	90	-	0.60
6002150475ND	75	-	4000°K - CRI>80	dali 2 / dali 2 push	7852	105	150	150	90	-	0.60
60021504111N	11	-	4000°K - CRI>80	dali 2 + em. 1h	1388	126	150	150	50	-	0.50
60021504131N	13	-	4000°K - CRI>80	dali 2 + em. 1h	1659	128	150	150	50	-	0.50
