art.-6002-eos-18-bianco

EOS – Mod. 18

(90° diffusing optics - UGR<19)

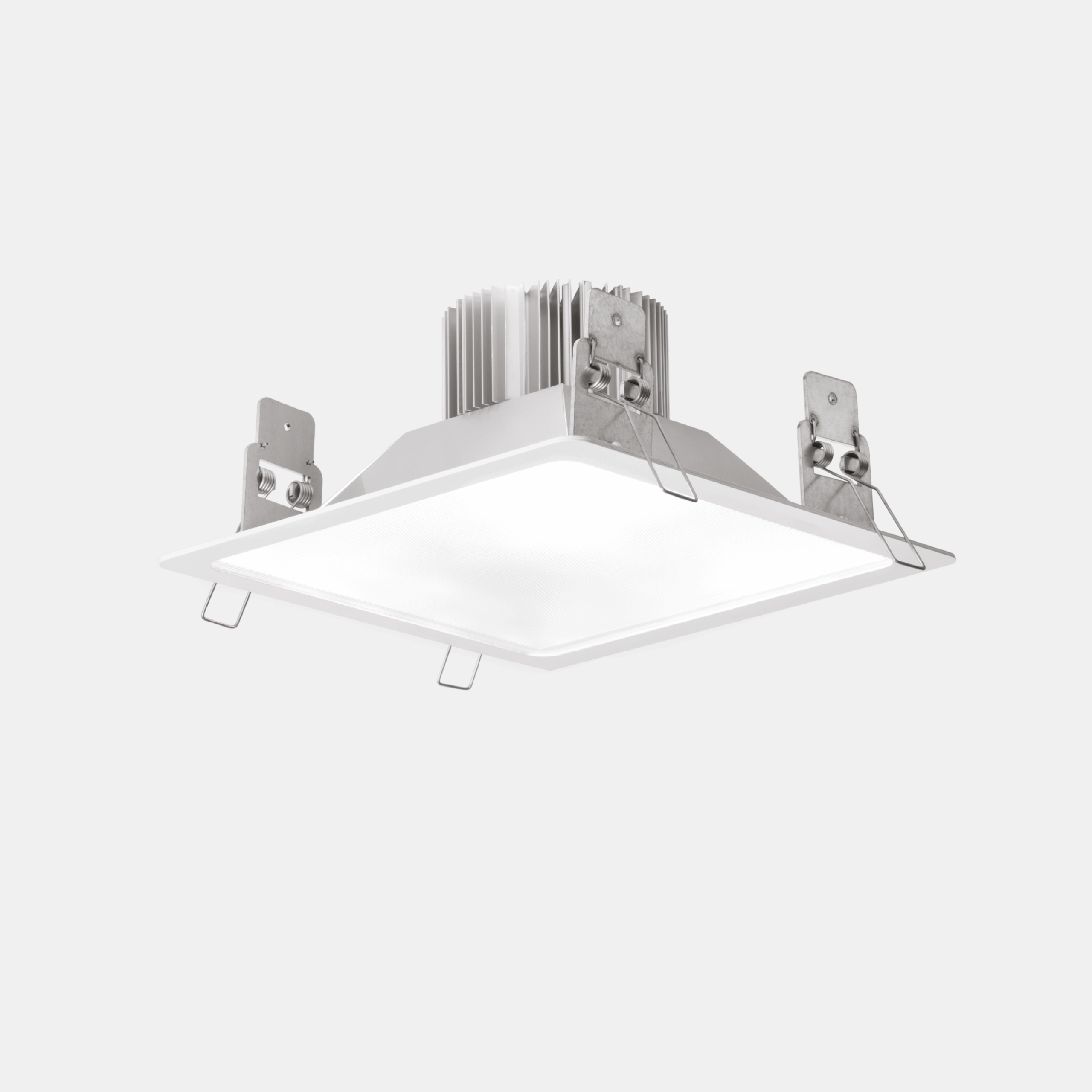

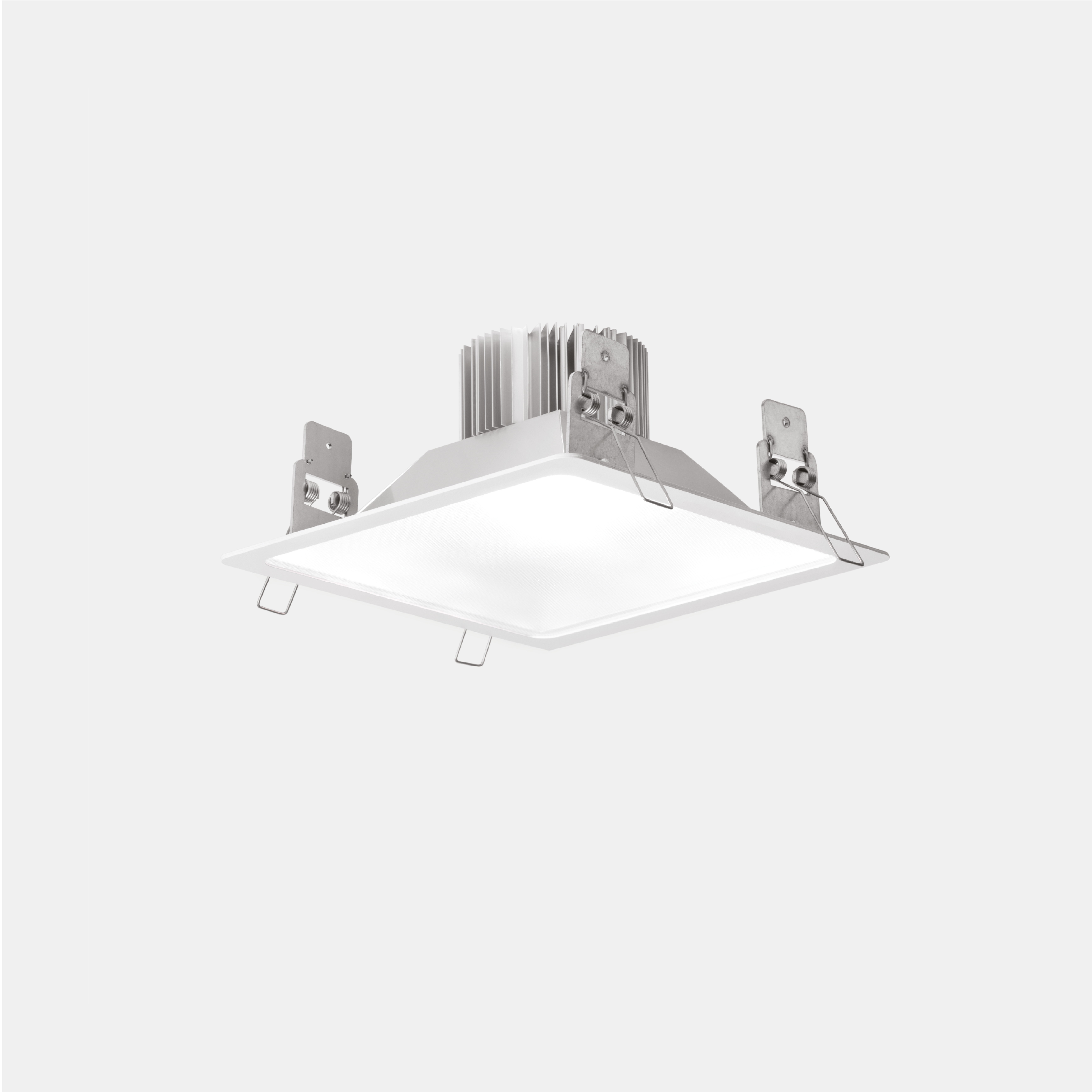

Indoor LED fixture suitable for recessed installation on any type of false ceiling. Steel sheet body, painted with white epoxy-polyester powder coating, anti-yellowing with fine embossed finish, with phosphating and degreasing pretreatment. 90° diffusing optics with anodized aluminum reflector and anti-glare and anti-reflection microprismatic polycarbonate diffuser.
Categories: Led, EOS - 6002, Retail, EOS
Models: 225
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
60021803= 3000°K (CRI >80)11EL= on/off
04= 4000°K (CRI >80)13LD= dali 2 / dali 2 push
93= 3000°K (CRI >90)18D1= dali 2 + em. 1h
94= 4000°K (CRI >90)20E1= em. 1h
26E3= em. 3h
30
40
55
75

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
6002180411EL11-4000°K - CRI>80on/off138812618018050-0.60
6002180413EL13-4000°K - CRI>80on/off165912818018050-0.60
6002180418EL18-4000°K - CRI>80on/off234313018018060-0.70
6002180420EL20-4000°K - CRI>80on/off241612118018060-0.70
6002180426EL26-4000°K - CRI>80on/off322612418018060-0.70
6002180430EL30-4000°K - CRI>80on/off29769918018060-0.70
6002180440EL40-4000°K - CRI>80on/off469211718018090-0.70
6002180455EL55-4000°K - CRI>80on/off606111018018090-0.70
6002180475EL75-4000°K - CRI>80on/off785210518018090-0.70
6002180411LD11-4000°K - CRI>80dali 2 / dali 2 push138812618018050-0.60
6002180413LD13-4000°K - CRI>80dali 2 / dali 2 push165912818018050-0.60
6002180418LD18-4000°K - CRI>80dali 2 / dali 2 push234313018018060-0.70
6002180420LD20-4000°K - CRI>80dali 2 / dali 2 push241612118018060-0.70
6002180426LD26-4000°K - CRI>80dali 2 / dali 2 push322612418018060-0.70
6002180430LD30-4000°K - CRI>80dali 2 / dali 2 push29769918018060-0.70
6002180440LD40-4000°K - CRI>80dali 2 / dali 2 push469211718018090-0.70
6002180455LD55-4000°K - CRI>80dali 2 / dali 2 push606111018018090-0.70
6002180475LD75-4000°K - CRI>80dali 2 / dali 2 push785210518018090-0.70
6002180411D111-4000°K - CRI>80dali 2 + em. 1h138812618018050-0.60
6002180413D113-4000°K - CRI>80dali 2 + em. 1h165912818018050-0.60
