EOS – Mod. 20

(90° diffusing optics - UGR<19)

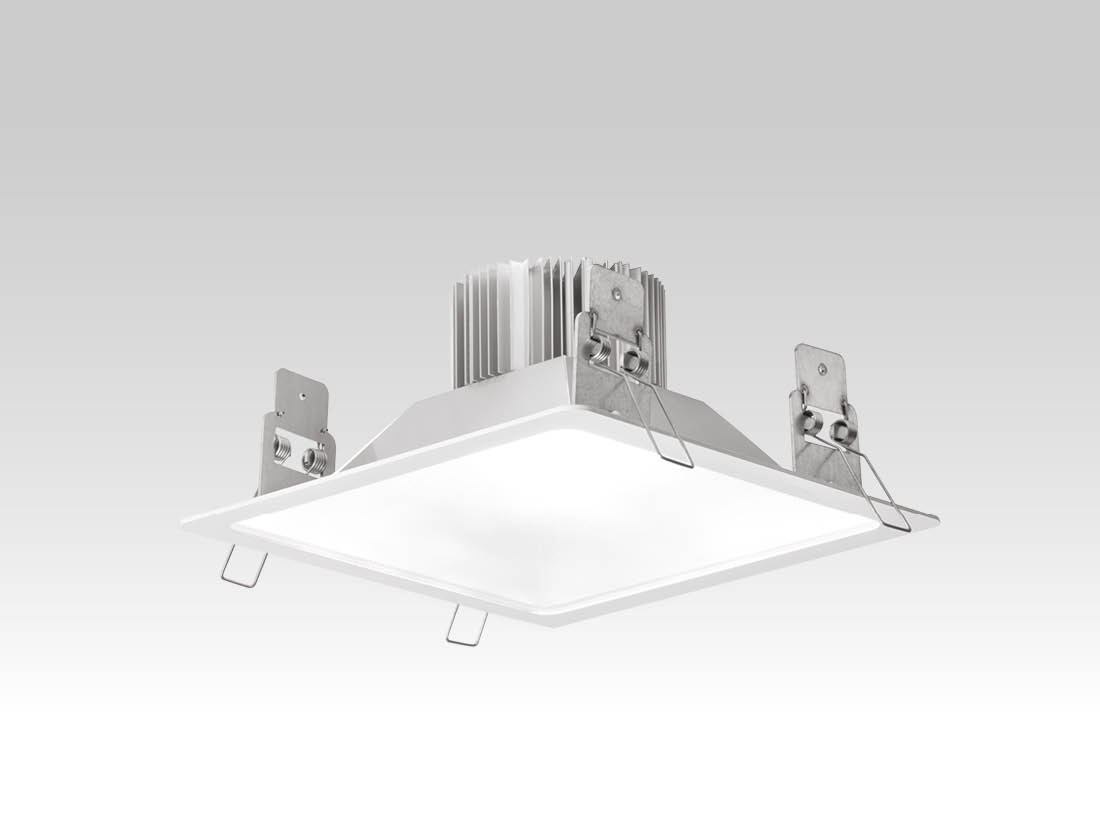

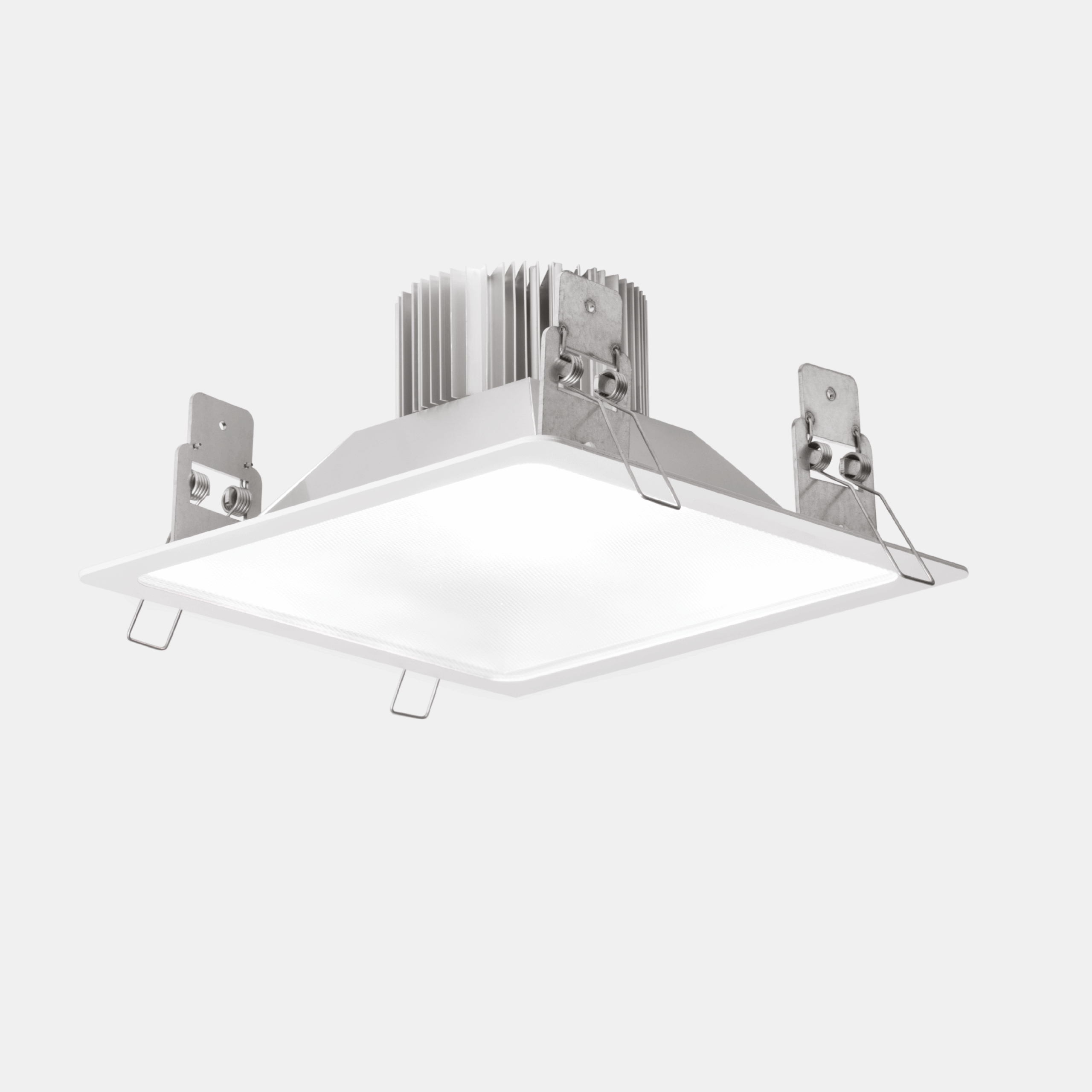

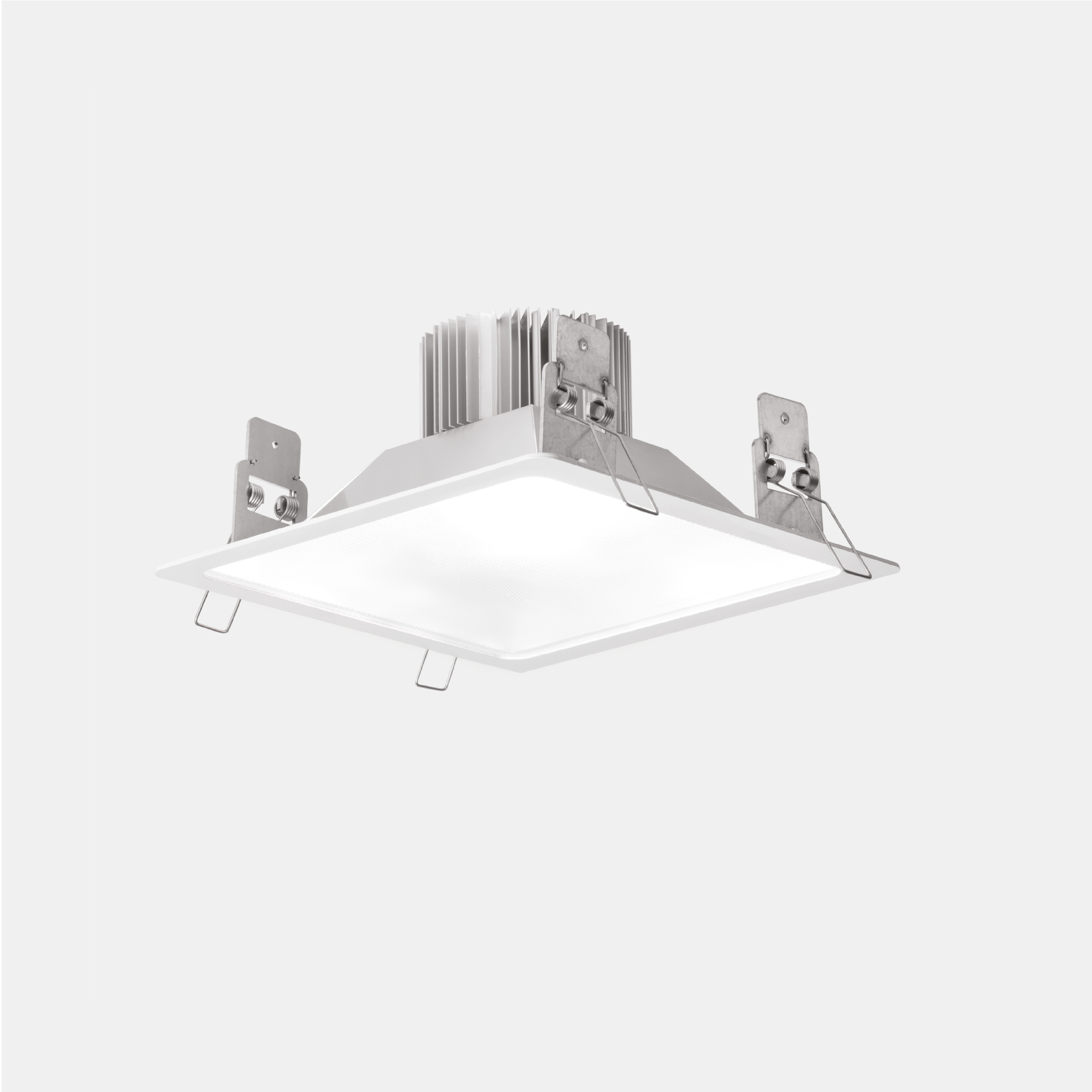

Indoor LED fixture suitable for recessed installation on any type of false ceiling. Steel sheet body, painted with white epoxy-polyester powder coating, anti-yellowing with fine embossed finish, with phosphating and degreasing pretreatment. 90° diffusing optics with anodized aluminum reflector and anti-glare and anti-reflection microprismatic polycarbonate diffuser.
Categories: Led, EOS - 6002, Retail, EOS
Models: 225
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
60022003= 3000°K (CRI >80)11EL= on/off
04= 4000°K (CRI >80)13LD= dali 2 / dali 2 push
93= 3000°K (CRI >90)18D1= dali 2 + em. 1h
94= 4000°K (CRI >90)20E1= em. 1h
26E3= em. 3h
30
40
55
75

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
6002200411EL11-4000°K - CRI>80on/off138812620020050-0.60
6002200413EL13-4000°K - CRI>80on/off165912820020050-0.60
6002200418EL18-4000°K - CRI>80on/off234313020020060-0.70
6002200420EL20-4000°K - CRI>80on/off241612120020060-0.70
6002200426EL26-4000°K - CRI>80on/off322612420020060-0.70
6002200430EL30-4000°K - CRI>80on/off29769920020060-0.70
6002200440EL40-4000°K - CRI>80on/off469211720020090-0.70
6002200455EL55-4000°K - CRI>80on/off606111020020090-0.70
6002200475EL75-4000°K - CRI>80on/off785210520020090-0.70
6002200411LD11-4000°K - CRI>80dali 2 / dali 2 push138812620020050-0.60
6002200413LD13-4000°K - CRI>80dali 2 / dali 2 push165912820020050-0.60
6002200418LD18-4000°K - CRI>80dali 2 / dali 2 push234313020020060-0.70
6002200420LD20-4000°K - CRI>80dali 2 / dali 2 push241612120020060-0.70
6002200426LD26-4000°K - CRI>80dali 2 / dali 2 push322612420020060-0.70
6002200430LD30-4000°K - CRI>80dali 2 / dali 2 push29769920020060-0.70
6002200440LD40-4000°K - CRI>80dali 2 / dali 2 push469211720020090-0.70
6002200455LD55-4000°K - CRI>80dali 2 / dali 2 push606111020020090-0.70
6002200475LD75-4000°K - CRI>80dali 2 / dali 2 push785210520020090-0.70
6002200411D111-4000°K - CRI>80dali 2 + em. 1h138812620020050-0.60
6002200413D113-4000°K - CRI>80dali 2 + em. 1h165912820020050-0.60

Accessories
