art.-6002-eos-24-nero

EOS – Mod. 24

(90° diffusing optics - UGR<19)

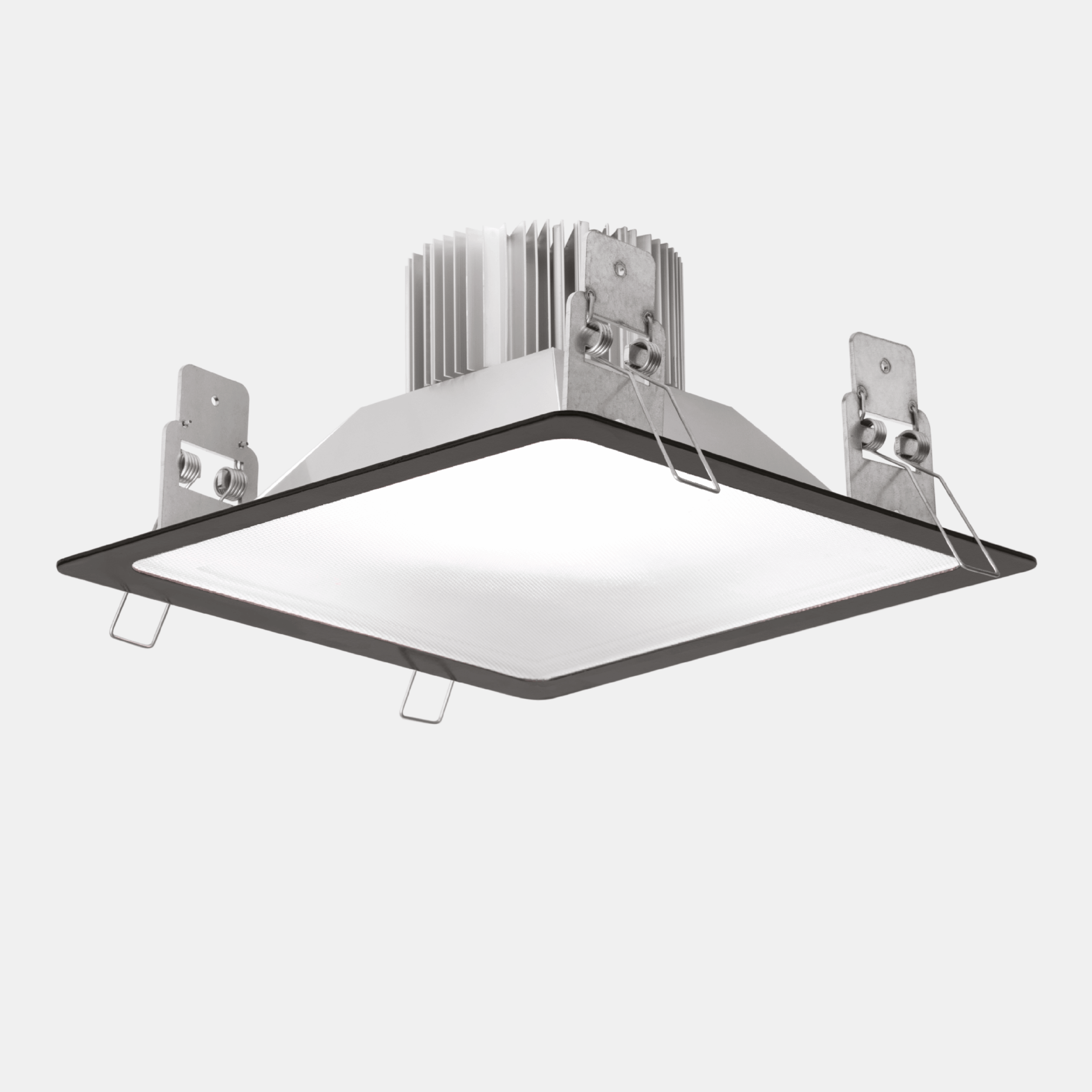

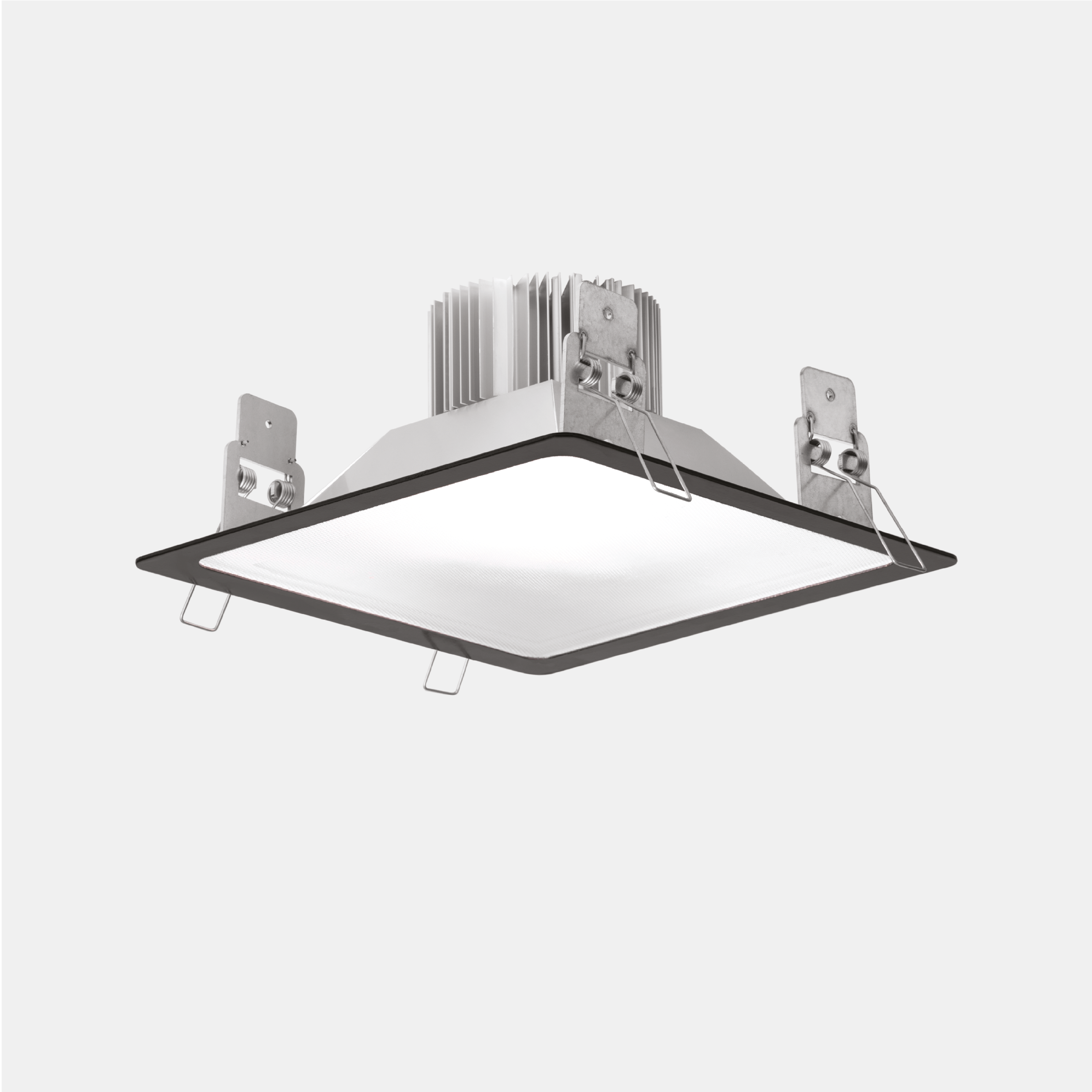

Indoor LED fixture suitable for recessed installation on any type of false ceiling. Steel sheet body, painted with black epoxy-polyester powder coating, anti-yellowing with fine embossed finish, with phosphating and degreasing pretreatment. 90° diffusing optics with anodized aluminum reflector and anti-glare and anti-reflection microprismatic polycarbonate diffuser.
Categories: Led, EOS - 6002, Retail, EOS
Models: 225
Color: Matt black
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
60022403= 3000°K (CRI >80)11NL= on/off
04= 4000°K (CRI >80)13ND= dali 2 / dali 2 push
93= 3000°K (CRI >90)181N= dali 2 + em. 1h
94= 4000°K (CRI >90)20N1= em. 1h
26N3= em. 3h
30
40
55
75

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
6002240411NL11-4000°K - CRI>80on/off138812624024050-0.70
6002240413NL13-4000°K - CRI>80on/off165912824024050-0.70
6002240418NL18-4000°K - CRI>80on/off234313024024060-0.80
6002240420NL20-4000°K - CRI>80on/off241612124024060-0.80
6002240426NL26-4000°K - CRI>80on/off322612424024060-0.80
6002240430NL30-4000°K - CRI>80on/off29769924024060-0.80
6002240440NL40-4000°K - CRI>80on/off469211724024090-0.80
6002240455NL55-4000°K - CRI>80on/off606111024024090-0.80
6002240475NL75-4000°K - CRI>80on/off785210524024090-0.80
6002240411ND11-4000°K - CRI>80dali 2 / dali 2 push138812624024050-0.70
6002240413ND13-4000°K - CRI>80dali 2 / dali 2 push165912824024050-0.70
6002240418ND18-4000°K - CRI>80dali 2 / dali 2 push234313024024060-0.80
6002240420ND20-4000°K - CRI>80dali 2 / dali 2 push241612124024060-0.80
6002240426ND26-4000°K - CRI>80dali 2 / dali 2 push322612424024060-0.80
6002240430ND30-4000°K - CRI>80dali 2 / dali 2 push29769924024060-0.80
6002240440ND40-4000°K - CRI>80dali 2 / dali 2 push469211724024090-0.80
6002240455ND55-4000°K - CRI>80dali 2 / dali 2 push606111024024090-0.80
6002240475ND75-4000°K - CRI>80dali 2 / dali 2 push785210524024090-0.80
60022404111N11-4000°K - CRI>80dali 2 + em. 1h138812624024050-0.70
60022404131N13-4000°K - CRI>80dali 2 + em. 1h165912824024050-0.70

Accessories
