art.-6003-doge-18-bianco

DOGE/18

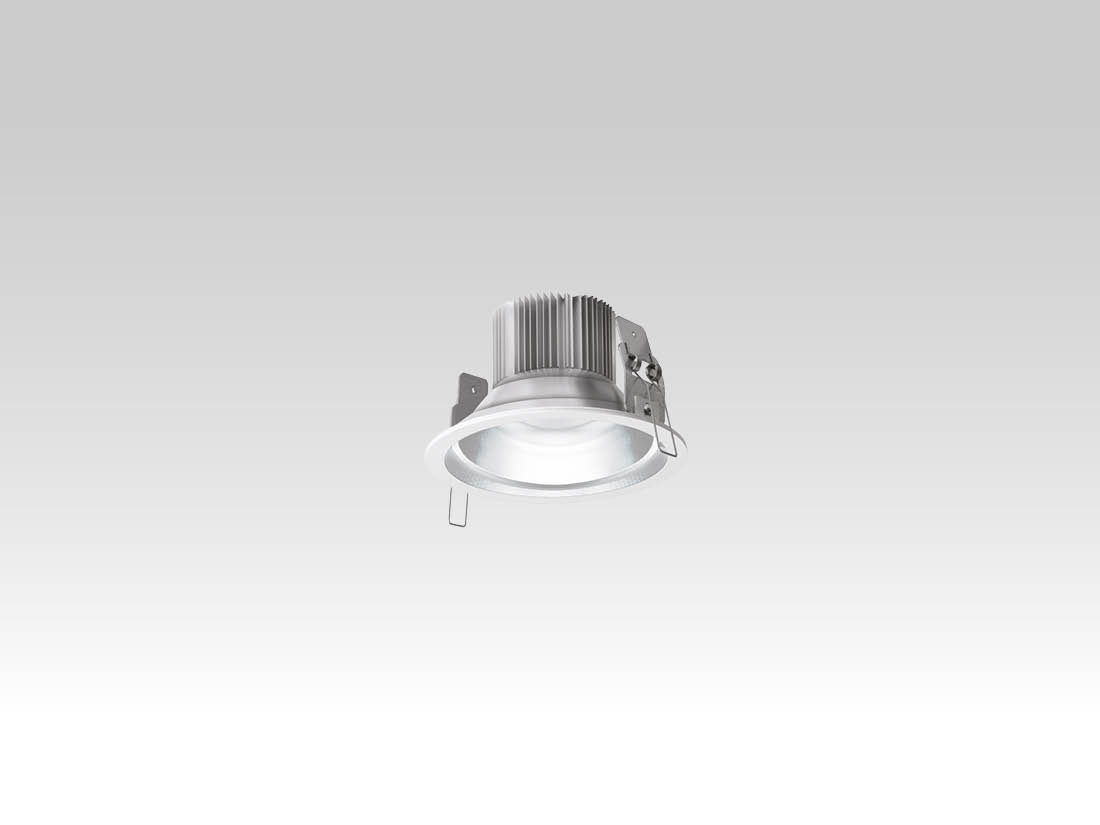

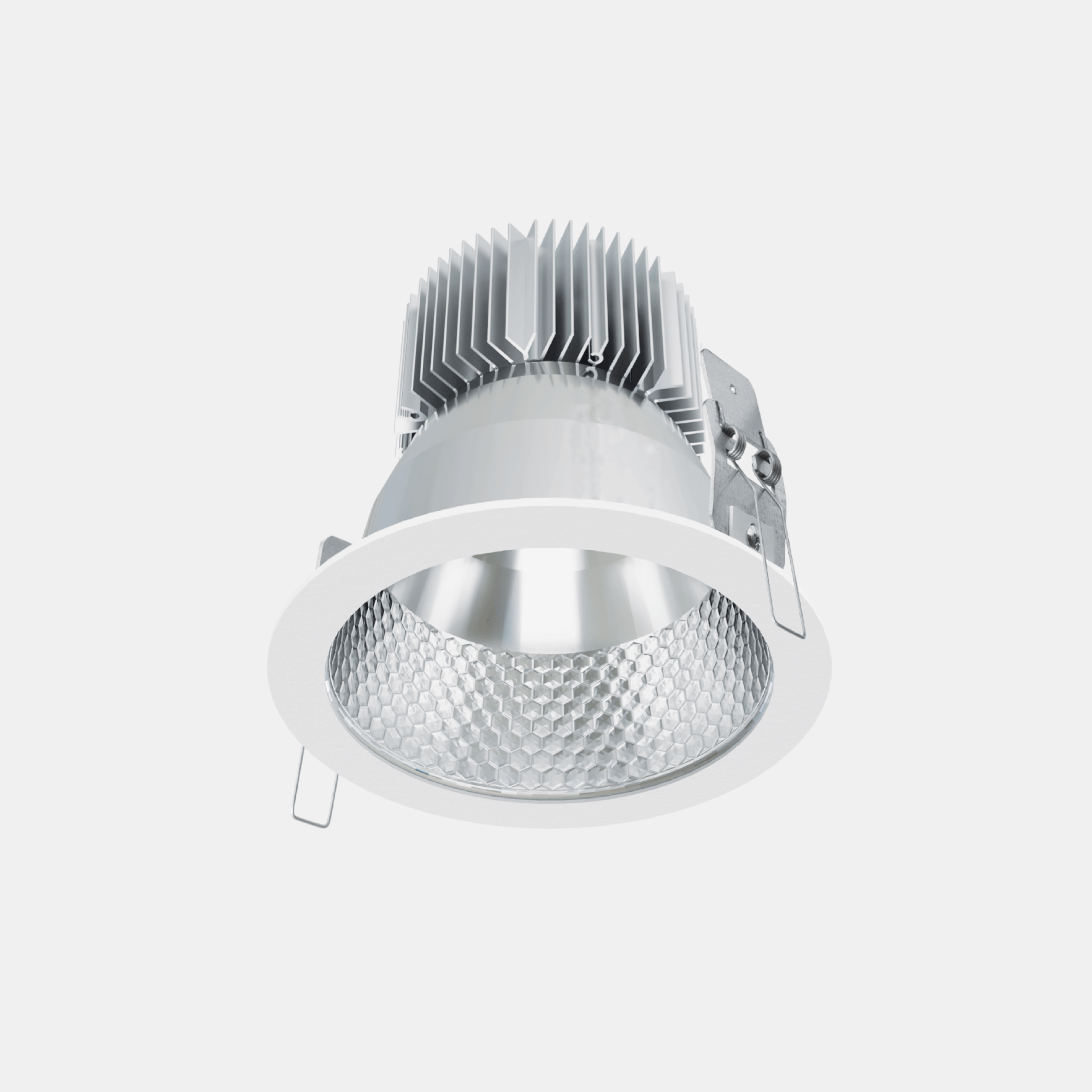

Led indoor downlight for recessed installation. Ring in steel sheet painted with matt white epoxy-polyester powders, anti-yellowing with fine embossed finish, polished and pressed aluminum reflector. Electronic driver 220- 240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, DOGE - 6003, Retail, art. 6003 Doge
Models: 225
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
60031803= 3000°K (CRI >80)11EL= on/off
04= 4000°K (CRI >80)13LD= dali 2 / dali 2 push
93= 3000°K (CRI >90)18D1= dali 2 + em. 1h
94= 4000°K (CRI >90)20E1= em. 1h
26E3= em. 3h
30
40
55
75

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6003180411EL11-4000°K - CRI>80on/off1571143180-60-0.60
6003180413EL13-4000°K - CRI>80on/off1878144180-60-0.60
6003180418EL18-4000°K - CRI>80on/off2652147180-70-0.70
6003180420EL20-4000°K - CRI>80on/off2734137180-70-0.70
6003180426EL26-4000°K - CRI>80on/off3651140180-70-0.70
6003180430EL30-4000°K - CRI>80on/off3368112180-70-0.70
6003180440EL40-4000°K - CRI>80on/off5311133180-100-0.70
6003180455EL55-4000°K - CRI>80on/off6861125180-100-0.70
6003180475EL75-4000°K - CRI>80on/off8888119180-100-0.70
6003180411LD11-4000°K - CRI>80dali 2 / dali 2 push1571143180-60-0.60
6003180413LD13-4000°K - CRI>80dali 2 / dali 2 push1878144180-60-0.60
6003180418LD18-4000°K - CRI>80dali 2 / dali 2 push2652147180-70-0.70
6003180420LD20-4000°K - CRI>80dali 2 / dali 2 push2734137180-70-0.70
6003180426LD26-4000°K - CRI>80dali 2 / dali 2 push3651140180-70-0.70
6003180430LD30-4000°K - CRI>80dali 2 / dali 2 push3368112180-70-0.70
6003180440LD40-4000°K - CRI>80dali 2 / dali 2 push5311133180-100-0.70
6003180455LD55-4000°K - CRI>80dali 2 / dali 2 push6861125180-100-0.70
6003180475LD75-4000°K - CRI>80dali 2 / dali 2 push8888119180-100-0.70
6003180411D111-4000°K - CRI>80dali 2 + em. 1h1571143180-60-0.60
6003180413D113-4000°K - CRI>80dali 2 + em. 1h1878144180-60-0.60
