art.-6003-doge-18-nero

DOGE/18

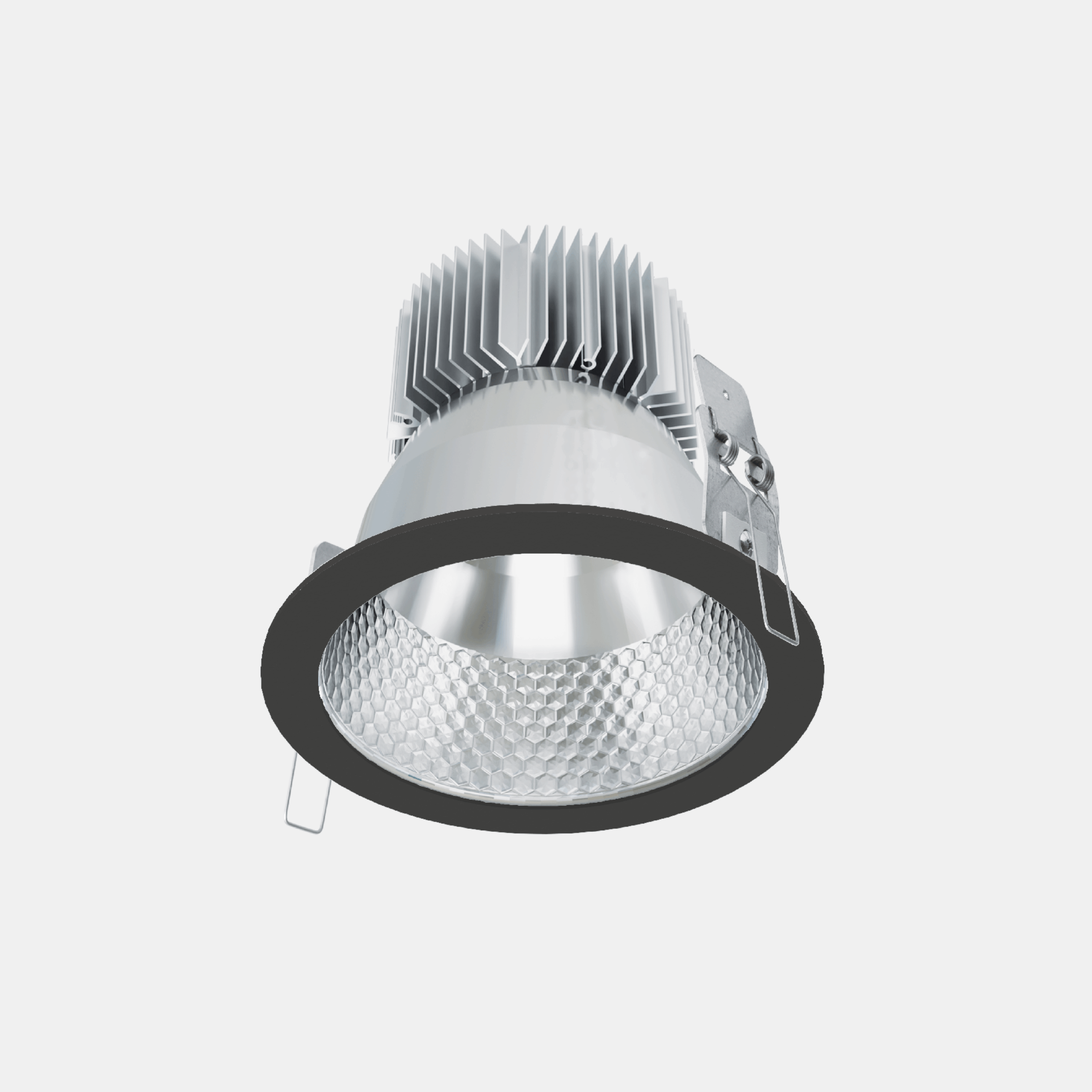

Led indoor downlight for recessed installation. Ring in steel sheet painted with matt black epoxy-polyester powders, anti-yellowing with fine embossed finish, polished and pressed aluminum reflector. Electronic driver 220- 240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, DOGE - 6003, Retail, art. 6003 Doge
Models: 225
Color: Matt black
Catalogue abstract
Installation instructions

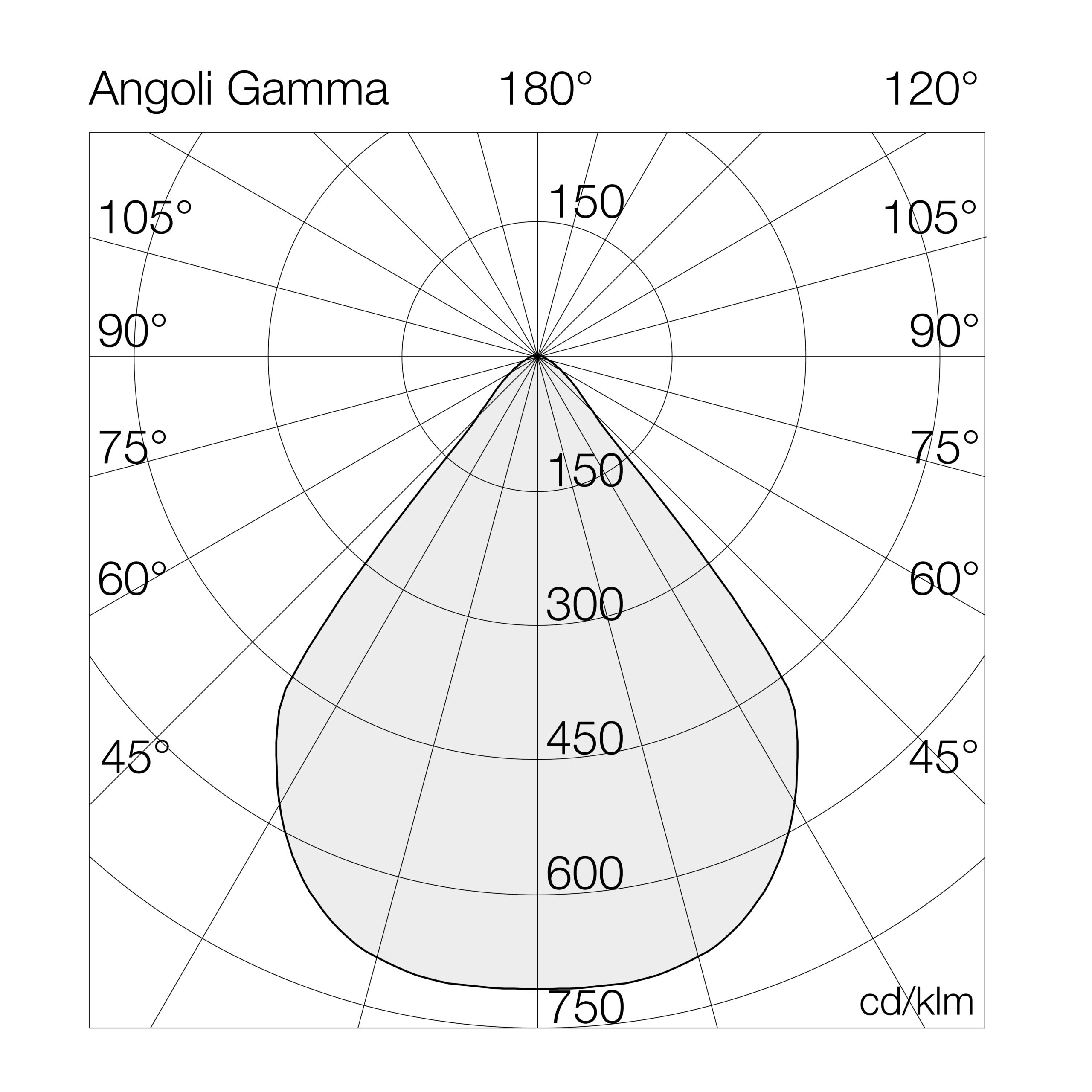

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
60031803= 3000°K (CRI >80)11NL= on/off
04= 4000°K (CRI >80)13ND= dali 2 / dali 2 push
93= 3000°K (CRI >90)181N= dali 2 + em. 1h
94= 4000°K (CRI >90)20N1= em. 1h
26N3= em. 3h
30
40
55
75

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6003180411NL11-4000°K - CRI>80on/off1571143180-60-0.60
6003180413NL13-4000°K - CRI>80on/off1878144180-60-0.60
6003180418NL18-4000°K - CRI>80on/off2652147180-70-0.70
6003180420NL20-4000°K - CRI>80on/off2734137180-70-0.70
6003180426NL26-4000°K - CRI>80on/off3651140180-70-0.70
6003180430NL30-4000°K - CRI>80on/off3368112180-70-0.70
6003180440NL40-4000°K - CRI>80on/off5311133180-100-0.70
6003180455NL55-4000°K - CRI>80on/off6861125180-100-0.70
6003180475NL75-4000°K - CRI>80on/off8888119180-100-0.70
6003180411ND11-4000°K - CRI>80dali 2 / dali 2 push1571143180-60-0.60
6003180413ND13-4000°K - CRI>80dali 2 / dali 2 push1878144180-60-0.60
6003180418ND18-4000°K - CRI>80dali 2 / dali 2 push2652147180-70-0.70
6003180420ND20-4000°K - CRI>80dali 2 / dali 2 push2734137180-70-0.70
6003180426ND26-4000°K - CRI>80dali 2 / dali 2 push3651140180-70-0.70
6003180430ND30-4000°K - CRI>80dali 2 / dali 2 push3368112180-70-0.70
6003180440ND40-4000°K - CRI>80dali 2 / dali 2 push5311133180-100-0.70
6003180455ND55-4000°K - CRI>80dali 2 / dali 2 push6861125180-100-0.70
6003180475ND75-4000°K - CRI>80dali 2 / dali 2 push8888119180-100-0.70
60031804111N11-4000°K - CRI>80dali 2 + em. 1h1571143180-60-0.60
60031804131N13-4000°K - CRI>80dali 2 + em. 1h1878144180-60-0.60
