MOON – Mod. F4

(60° medium diffusing optics - UGR<19)

Indoor LED fixture suitable for recessed installation in any type of false ceiling. Turned aluminum body, painted with epoxy-polyester powders in non-yellowing white with fine embossed finish, with phosphating and degreasing pretreatment. Medium 60° diffusing optics with high flux efficiency, anti-glare and anti-reflective PMMA lenses. Perfixing brackets included.
Categories: Led, MOON - 6007, Retail, MOON
Models: 125
Color: Matt white
Catalogue abstract
Installation instructions

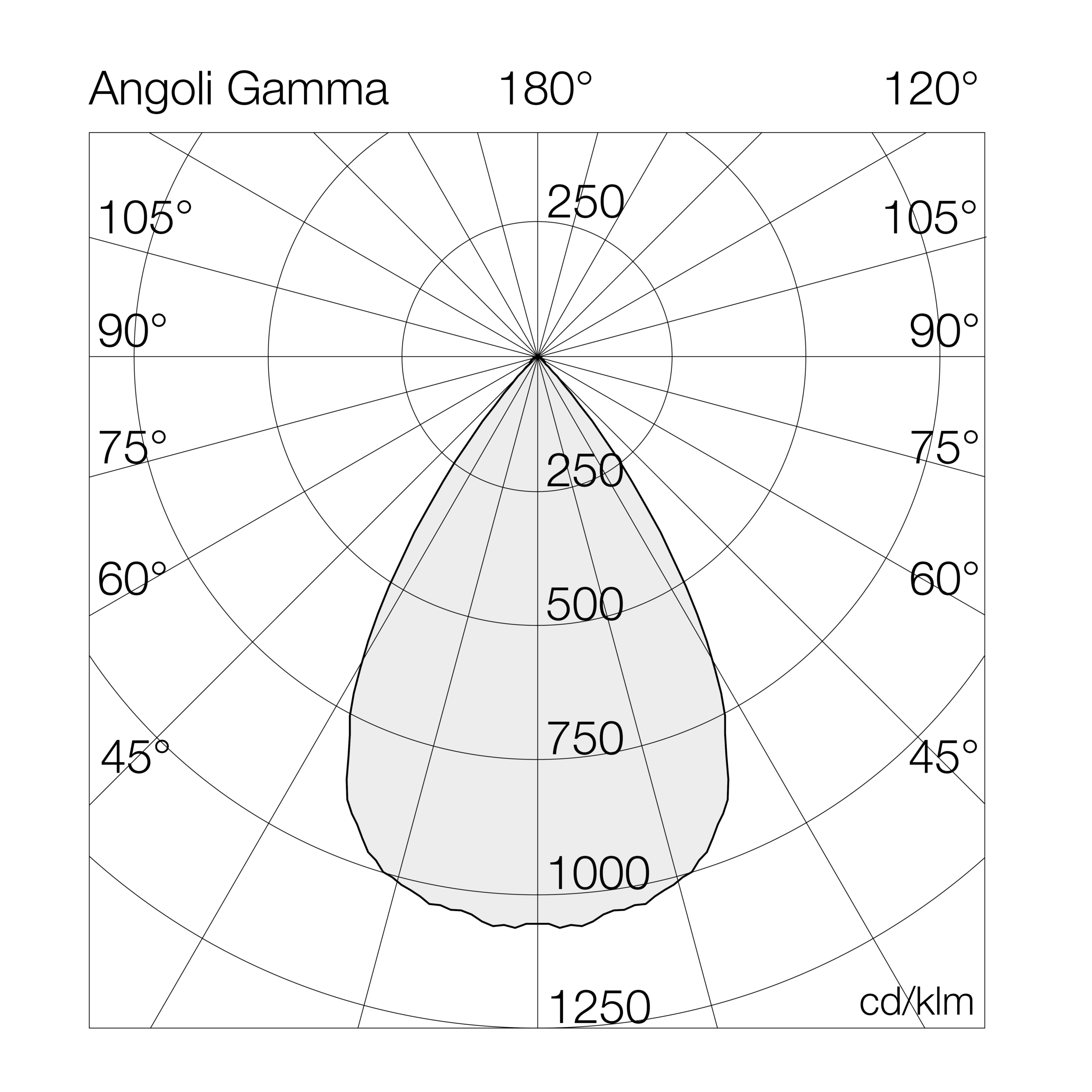

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6007F403= 3000°K (CRI >80)10EL= on/off
04= 4000°K (CRI >80)15LD= dali 2 / dali 2 push
93= 3000°K (CRI >90)20D1= dali 2 + em. 1h
94= 4000°K (CRI >90)23E1= em. 1h
30E3= em. 3h

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
6007F40410EL10-4000°K - CRI>80on/off1180118245-85-0.6
6007F40415EL15-4000°K - CRI>80on/off1672111245-85-0.6
6007F40420EL20-4000°K - CRI>80on/off2227111245-85-0.6
6007F40423EL23-4000°K - CRI>80on/off2403104245-85-0.75
6007F40430EL30-4000°K - CRI>80on/off289396245-105-0.75
6007F40410LD10-4000°K - CRI>80dali 2 / dali 2 push1180118245-85-0.6
6007F40415LD15-4000°K - CRI>80dali 2 / dali 2 push1672111245-85-0.6
6007F40420LD20-4000°K - CRI>80dali 2 / dali 2 push2227111245-85-0.6
6007F40423LD23-4000°K - CRI>80dali 2 / dali 2 push2403104245-85-0.75
6007F40430LD30-4000°K - CRI>80dali 2 / dali 2 push289396245-105-0.75
6007F40410D110-4000°K - CRI>80dali + em. 1h1180118245-85-0.6
6007F40415D115-4000°K - CRI>80dali + em. 1h1672111245-85-0.6
6007F40420D120-4000°K - CRI>80dali + em. 1h2227111245-85-0.6
6007F40423D123-4000°K - CRI>80dali + em. 1h2403104245-85-0.75
6007F40430D130-4000°K - CRI>80dali + em. 1h289396245-105-0.75
6007F40410E110-4000°K - CRI>80em. 1h1180118245-85-0.6
6007F40415E115-4000°K - CRI>80em. 1h1672111245-85-0.6
6007F40420E120-4000°K - CRI>80em. 1h2227111245-85-0.6
6007F40423E123-4000°K - CRI>80em. 1h2403104245-85-0.75
6007F40430E130-4000°K - CRI>80em. 1h289396245-105-0.75

Accessories
