art.-6008-sun-12

SUN/12

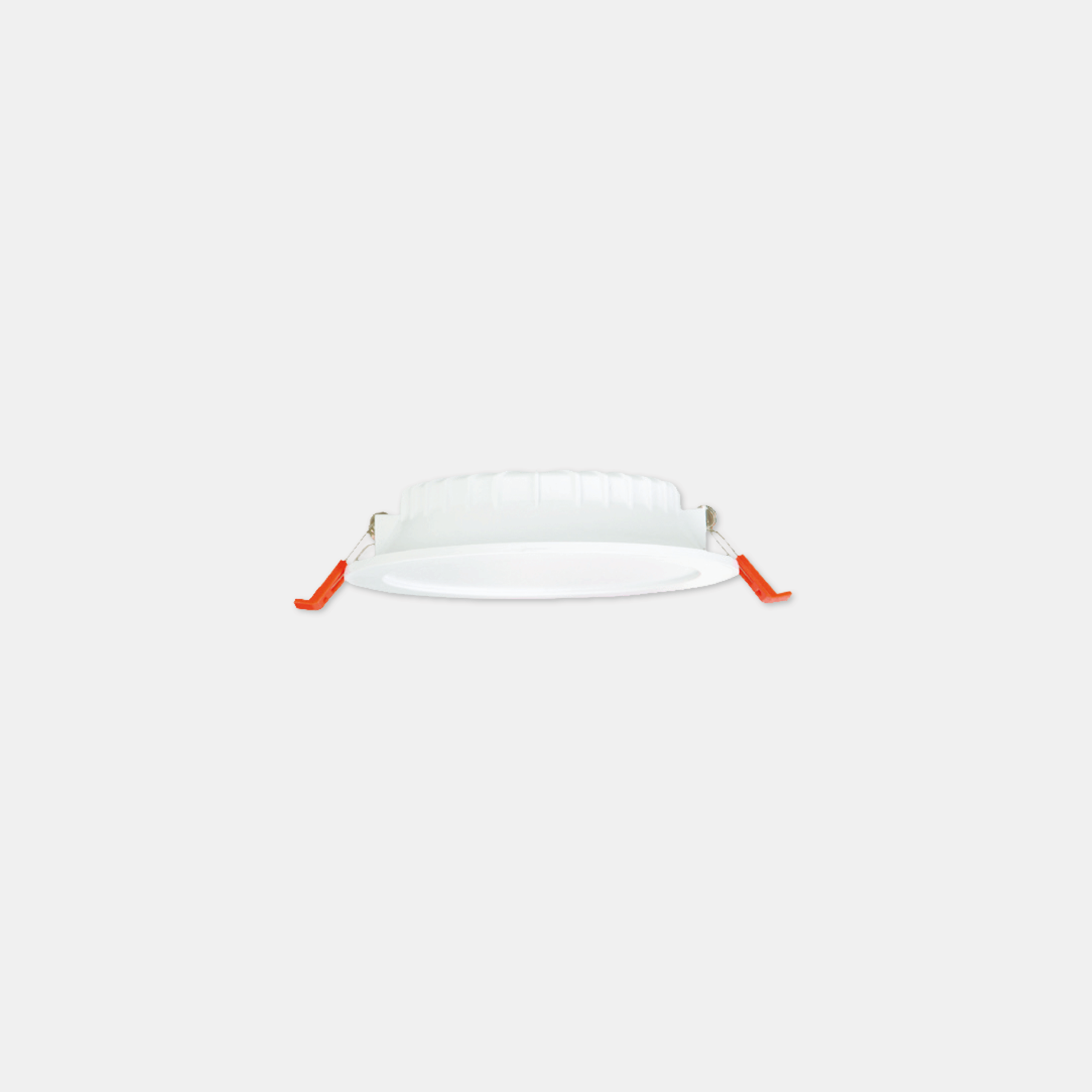

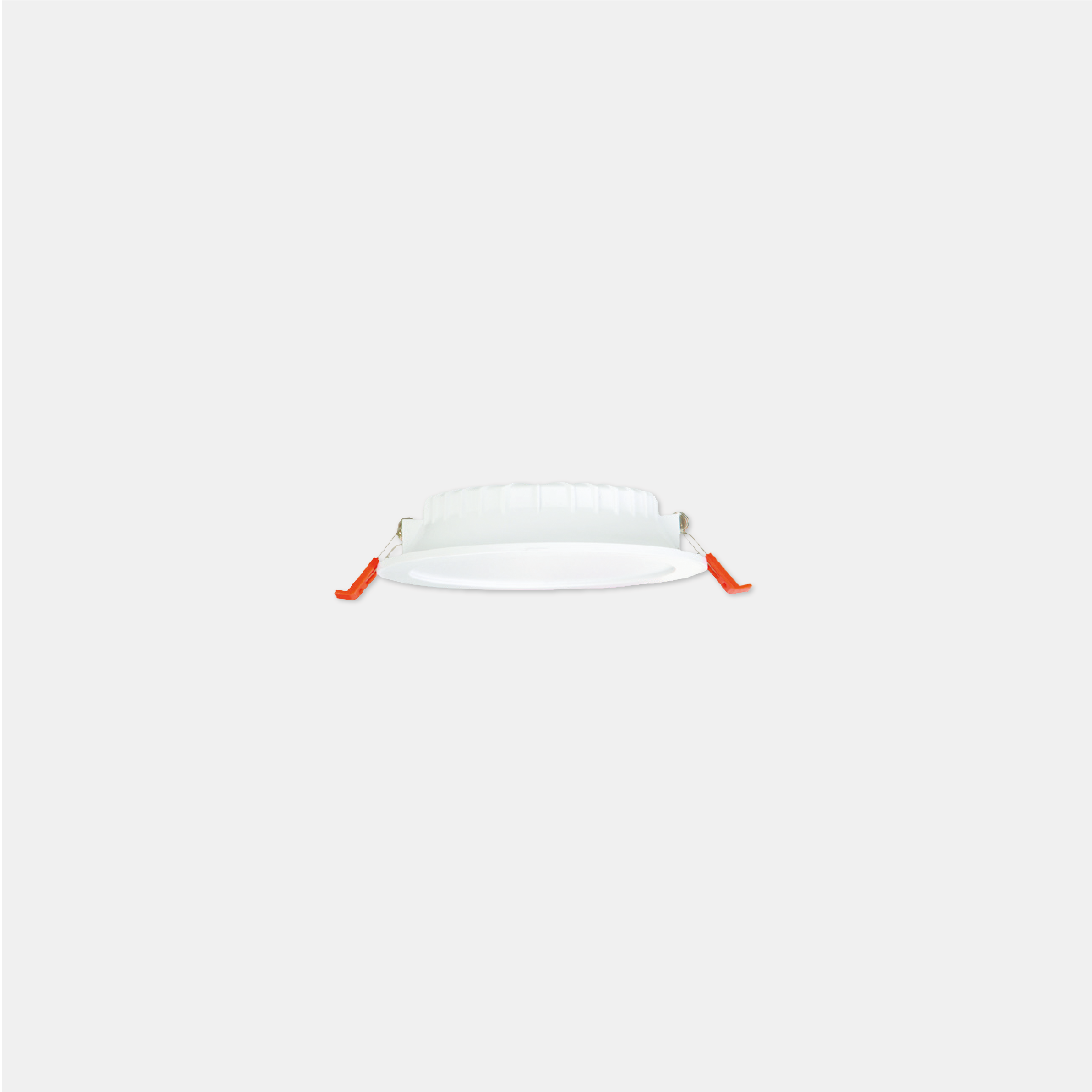

Indoor LED fixture, suitable for installation on any type of false ceiling. Injection-molded polycarbonate body, white color. Optics with anti-glare and anti-reflection satin opal diffuser with high light diffusion. Fixing brackets included.
Categories: Led, SUN - 6008, Office, art. 6008 Sun
Models: 10
Color: Matt white
Catalogue abstract

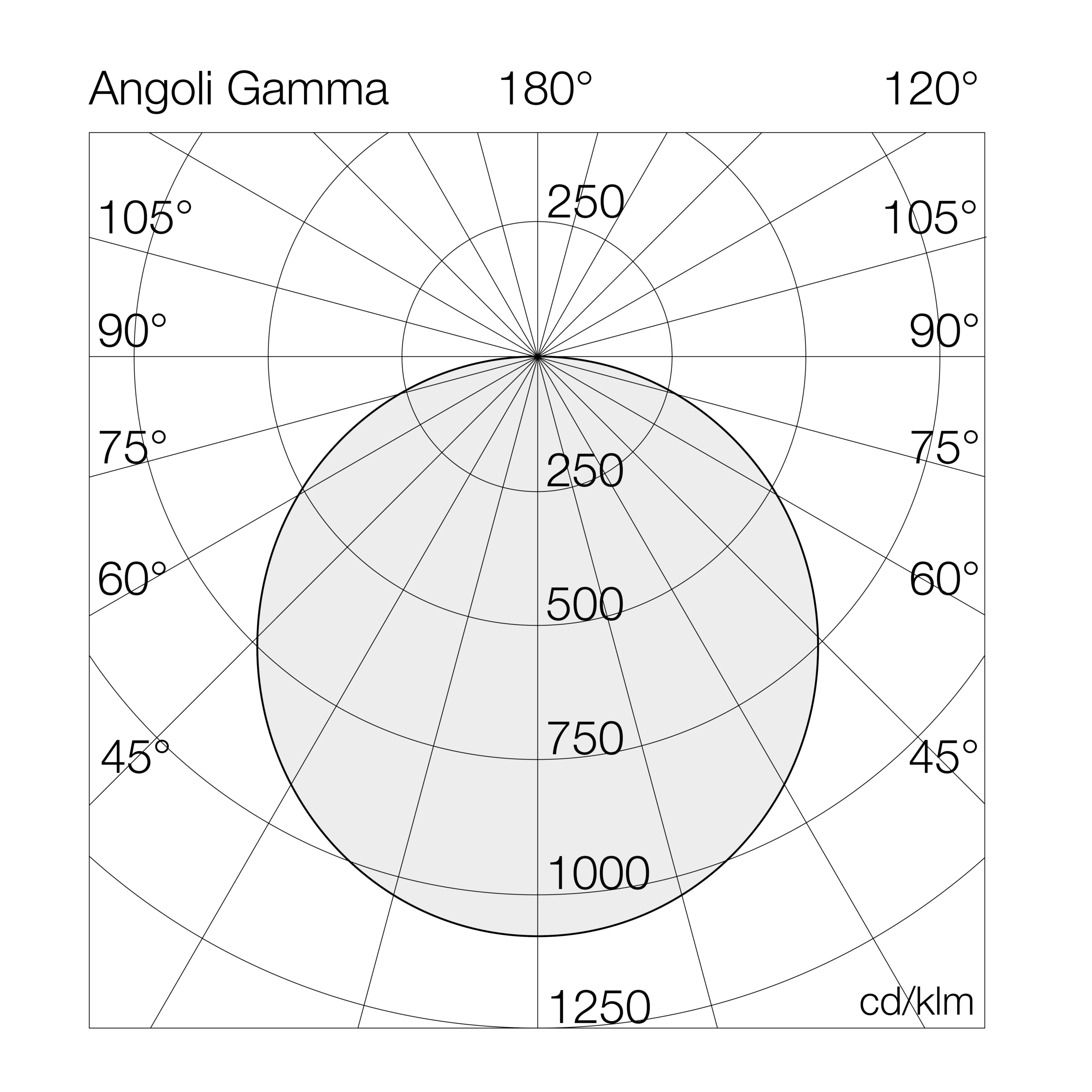

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
60081203= 3000°K (CRI >80)07EL= on/off
04= 4000°K (CRI >80)18LD= dali 2 / dali 2 push
22D1= dali 2 + em. 1h
E1= em. 1h
E3= em. 3h

Models

W tot.
°K - CRI
Options

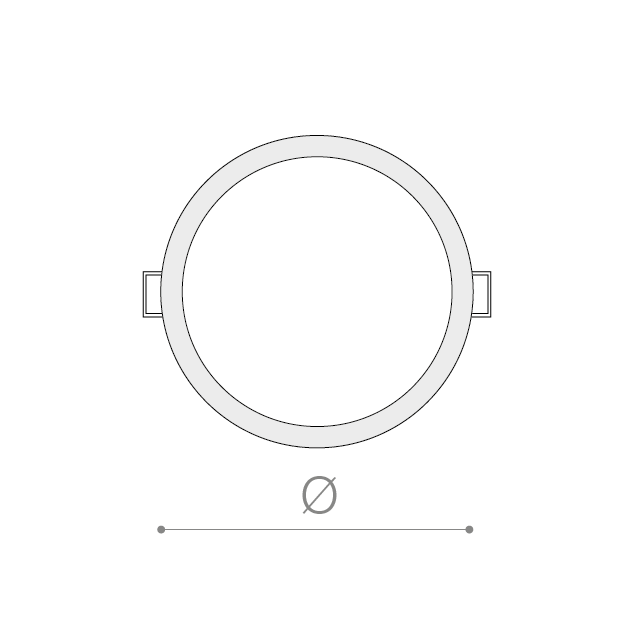

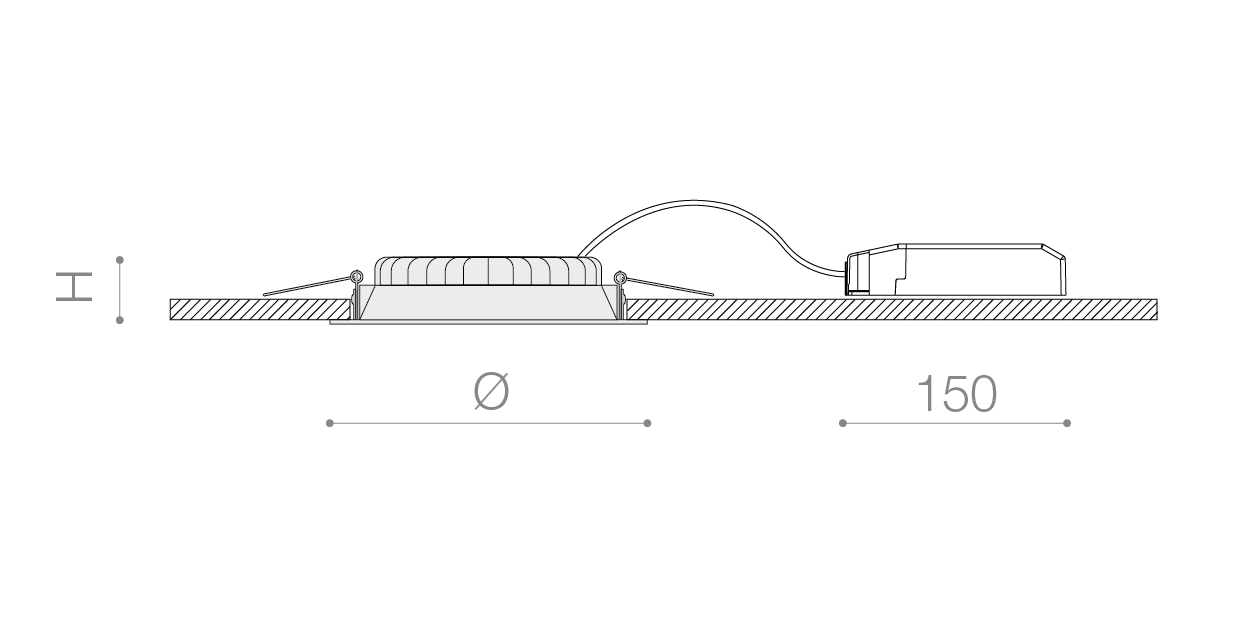

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6008120407EL7-4000°K - CRI>80on/off791113120-45-0.2
6008120407LD7-4000°K - CRI>80 dali / dali push791113120-45-0.2
6008120407D17-4000°K - CRI>80 dali + em. 1h791113120-45-0.2
6008120407E17-4000°K - CRI>80 em. 1h791113120-45-0.2
6008120407E37-4000°K - CRI>80 em. 3h791113120-45-0.2
6008120307EL7-3000°K - CRI>80on/off747107120-45-0.2
6008120307LD7-3000°K - CRI>80 dali / dali push747107120-45-0.2
6008120307D17-3000°K - CRI>80 dali + em. 1h747107120-45-0.2
6008120307E17-3000°K - CRI>80 em. 1h747107120-45-0.2
6008120307E37-3000°K - CRI>80 em. 3h747107120-45-0.2

Accessories
