OSLO – Mod. 2N

(80° diffusing optics - UGR<19)

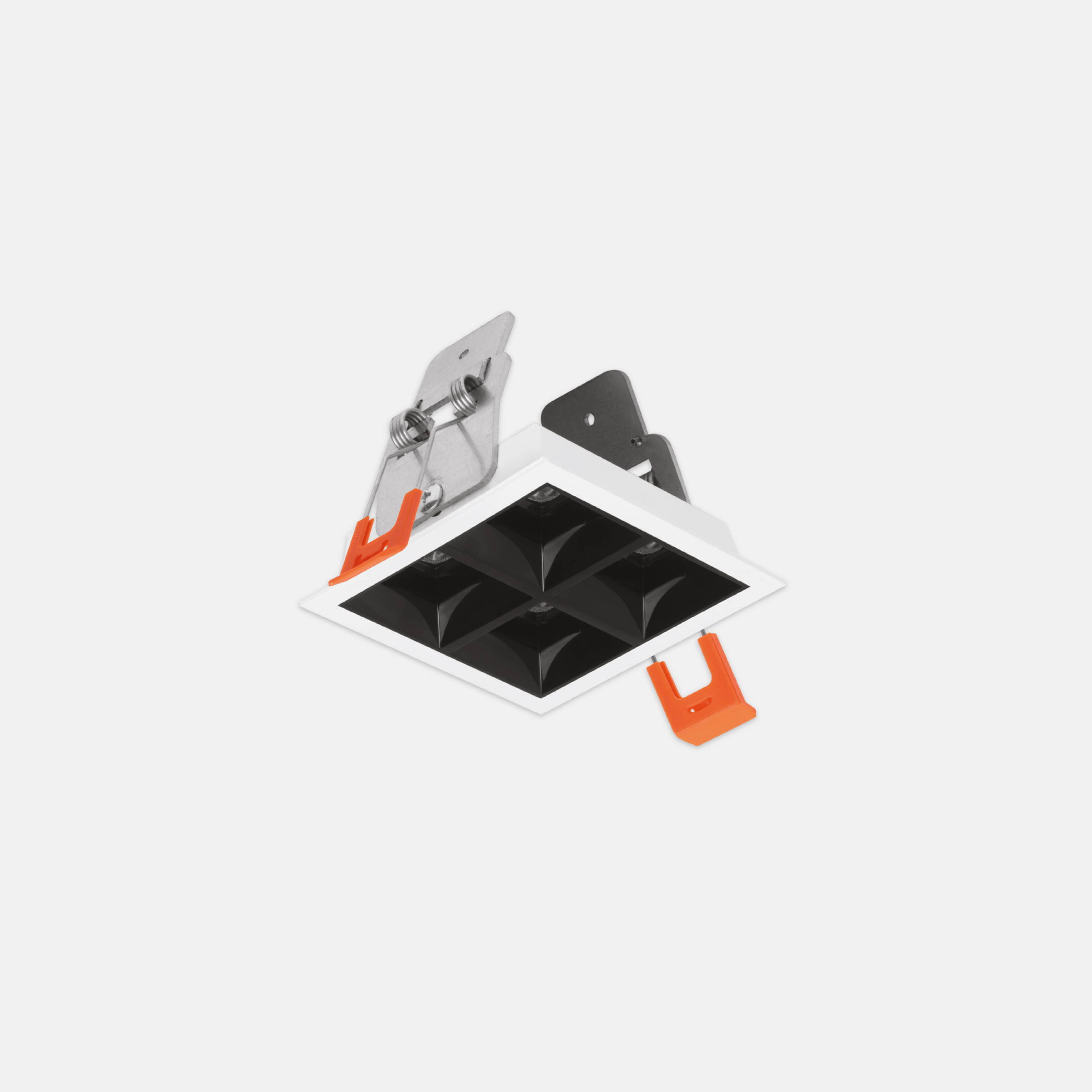

Square or rectangular indoor LED fixture suitable for any type of false ceiling, installation with springs included. Body constructed of sheet steel, painted with epoxy-polyester powder coating in white non-yellowing color with fine embossed finish, with phosphating and degreasing pretreatment. 80° diffusing optics with high flux efficiency PMMA lenses, black color polycarbonate reflector anti-glare and anti-reflection with controlled UGR <19.

Categories: Led, OSLO - 6010, Architectural Indoor, OSLO

Models: 20

Color: Matt white

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
6010	2N	27	= 2700°K (CRI >80)	08	EL	= on/off
		03	= 3000°K (CRI >80)	13	LD	= dali 2 / dali 2 push
		04	= 4000°K (CRI >80)
		93	= 3000°K (CRI >90)
		94	= 4000°K (CRI >90)

Models

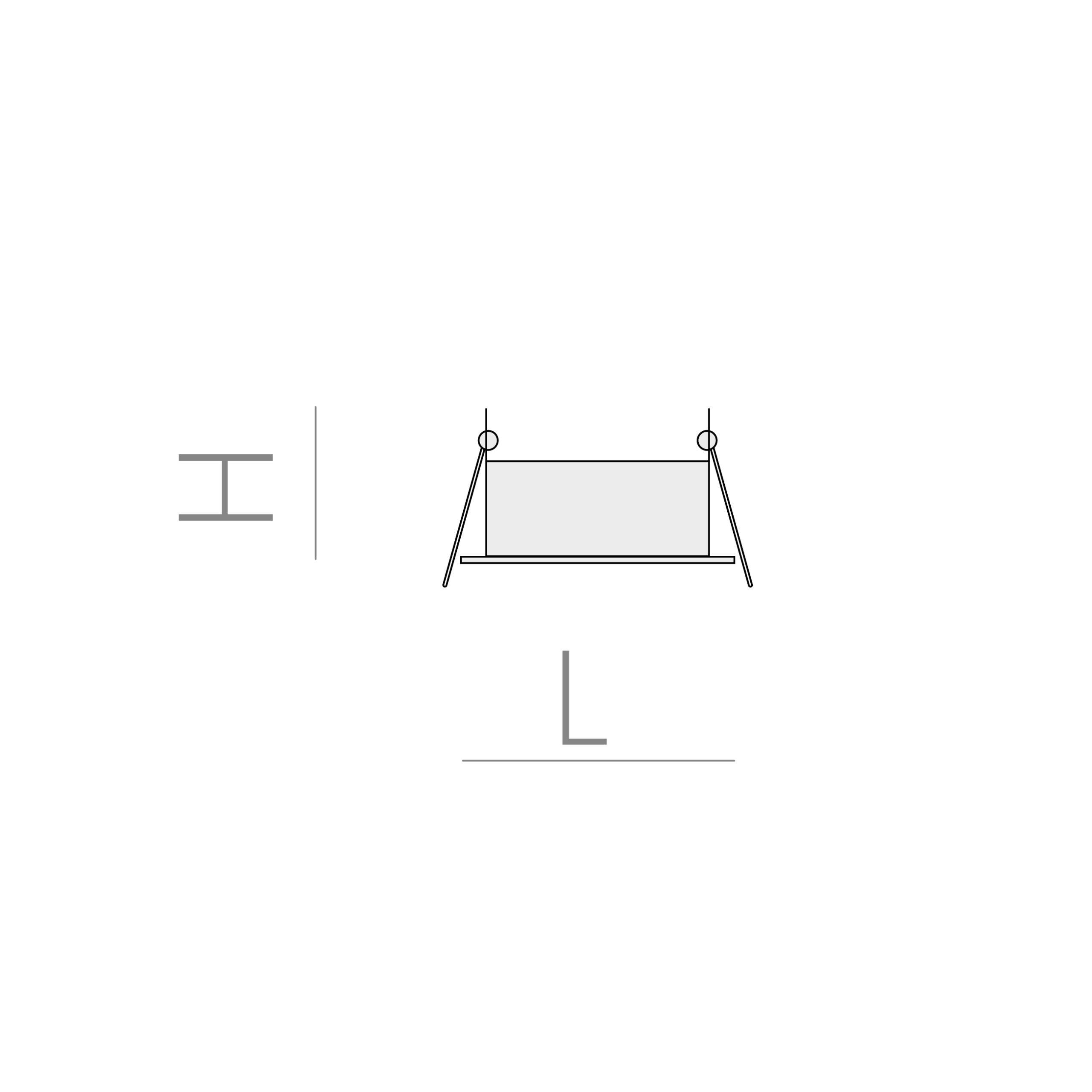

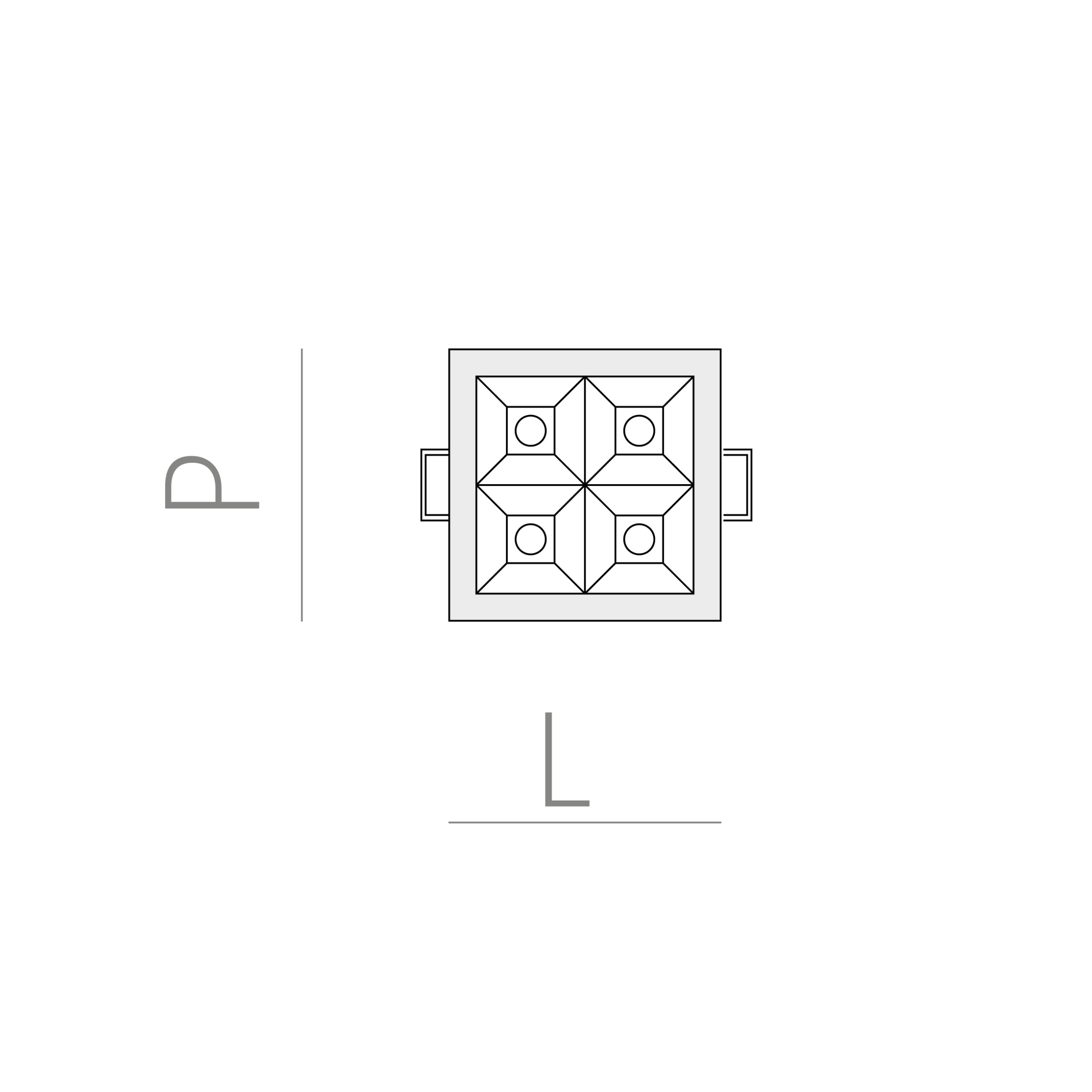

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
60102N0408EL	8	-	4000°K - CRI>80	on/off	1244	156	95	95	52	-	0.40
60102N0413EL	13	-	4000°K - CRI>80	on/off	1746	134	95	95	52	-	0.40
60102N0408LD	8	-	4000°K - CRI>80	dali 2 / dali 2 push	1244	156	95	95	52	-	0.40
60102N0413LD	13	-	4000°K - CRI>80	dali 2 / dali 2 push	1746	134	95	95	52	-	0.40
60102N0308EL	8	-	3000°K - CRI>80	on/off	1180	148	95	95	52	-	0.40
60102N0313EL	13	-	3000°K - CRI>80	on/off	1656	127	95	95	52	-	0.40
60102N0308LD	8	-	3000°K - CRI>80	dali 2 / dali 2 push	1180	148	95	95	52	-	0.40
60102N0313LD	13	-	3000°K - CRI>80	dali 2 / dali 2 push	1656	127	95	95	52	-	0.40
60102N9408EL	8	-	4000°K - CRI>90	on/off	1056	132	95	95	52	-	0.40
60102N9413EL	13	-	4000°K - CRI>90	on/off	1483	114	95	95	52	-	0.40
60102N9408LD	8	-	4000°K - CRI>90	dali 2 / dali 2 push	1056	132	95	95	52	-	0.40
60102N9413LD	13	-	4000°K - CRI>90	dali 2 / dali 2 push	1483	114	95	95	52	-	0.40
60102N9308EL	8	-	3000°K - CRI>90	on/off	1038	130	95	95	52	-	0.40
60102N9313EL	13	-	3000°K - CRI>90	on/off	1457	112	95	95	52	-	0.40
60102N9308LD	8	-	3000°K - CRI>90	dali 2 / dali 2 push	1038	130	95	95	52	-	0.40
60102N9313LD	13	-	3000°K - CRI>90	dali 2 / dali 2 push	1457	112	95	95	52	-	0.40
60102N2708EL	8	-	2700°K - CRI>80	on/off	1143	143	95	95	52	-	0.40
60102N2713EL	13	-	2700°K - CRI>80	on/off	1605	123	95	95	52	-	0.40
60102N2708LD	8	-	2700°K - CRI>80	dali 2 / dali 2 push	1143	143	95	95	52	-	0.40
60102N2713LD	13	-	2700°K - CRI>80	dali 2 / dali 2 push	1605	123	95	95	52	-	0.40
