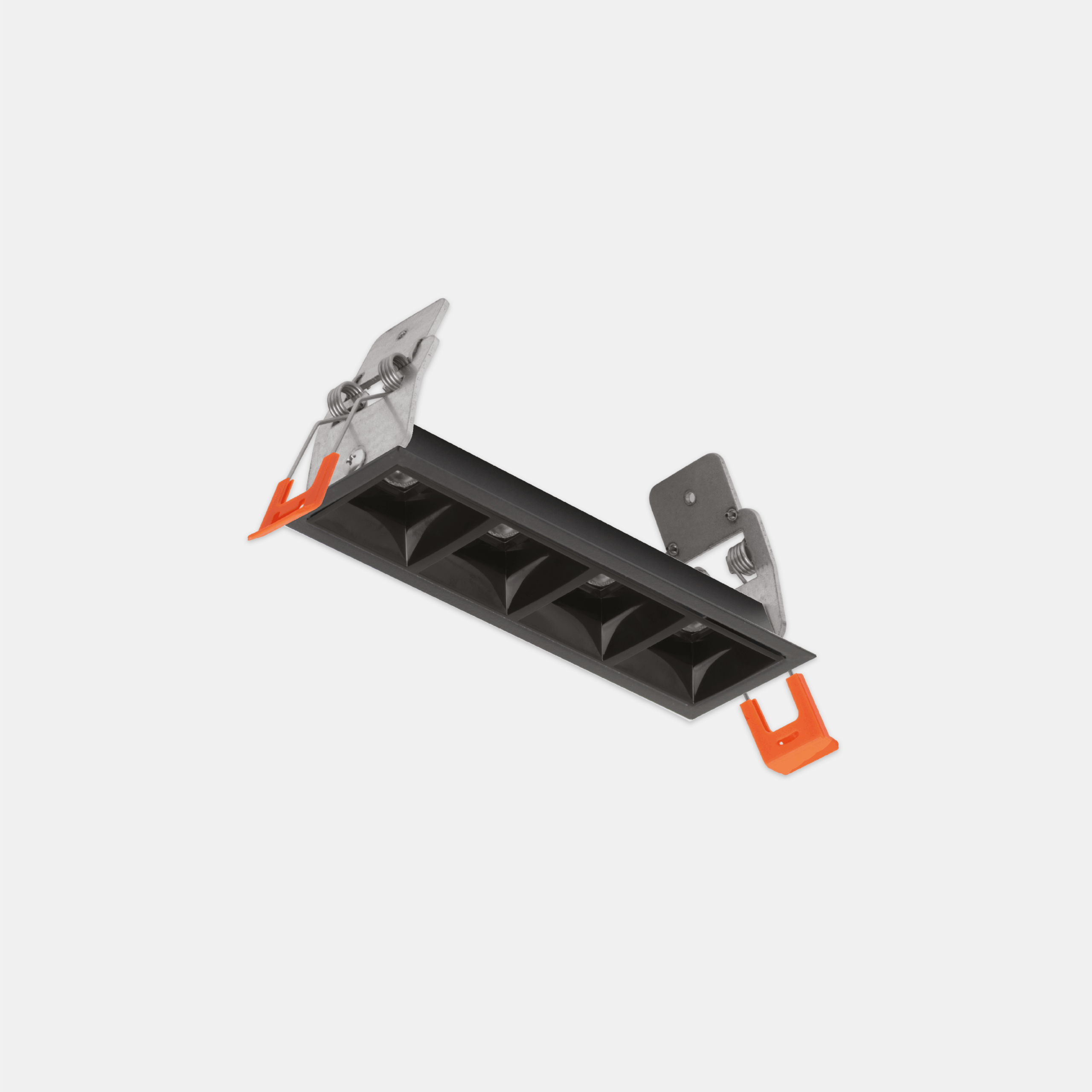

OSLO – Mod. 4N

(80° diffusing optics - UGR<19)

Square or rectangular indoor LED fixture suitable for any type of false ceiling, installation with springs included. Body constructed of sheet steel, painted with epoxy-polyester powder coating in black non-yellowing color with fine embossed finish, with phosphating and degreasing pretreatment. 80° diffusing optics with high flux efficiency PMMA lenses, black color polycarbonate reflector anti-glare and anti-reflection with controlled UGR <19.
Categories: Led, OSLO - 6010, Architectural Indoor, OSLO
Models: 20
Color: Matt black
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
60104N27= 2700°K (CRI >80)08NL= on/off
03= 3000°K (CRI >80)13ND= dali 2 / dali 2 push
04= 4000°K (CRI >80)
93= 3000°K (CRI >90)
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
60104N0408NL8-4000°K - CRI>80on/off12441561755552-0.40
60104N0413NL13-4000°K - CRI>80on/off17461341755552-0.40
60104N0408ND8-4000°K - CRI>80dali 2 / dali 2 push12441561755552-0.40
60104N0413ND13-4000°K - CRI>80dali 2 / dali 2 push17461341755552-0.40
60104N0308NL8-3000°K - CRI>80on/off11801481755552-0.40
60104N0313NL13-3000°K - CRI>80on/off16561271755552-0.40
60104N0308ND8-3000°K - CRI>80dali 2 / dali 2 push11801481755552-0.40
60104N0313ND13-3000°K - CRI>80dali 2 / dali 2 push16561271755552-0.40
60104N9408NL8-4000°K - CRI>90on/off10561321755552-0.40
60104N9413NL13-4000°K - CRI>90on/off14831141755552-0.40
60104N9408ND8-4000°K - CRI>90dali 2 / dali 2 push10561321755552-0.40
60104N9413ND13-4000°K - CRI>90dali 2 / dali 2 push14831141755552-0.40
60104N9308NL8-3000°K - CRI>90on/off10381301755552-0.40
60104N9313NL13-3000°K - CRI>90on/off14571121755552-0.40
60104N9308ND8-3000°K - CRI>90dali 2 / dali 2 push10381301755552-0.40
60104N9313ND13-3000°K - CRI>90dali 2 / dali 2 push14571121755552-0.40
60104N2708NL8-2700°K - CRI>80on/off11431431755552-0.40
60104N2713NL13-2700°K - CRI>80on/off16051231755552-0.40
60104N2708ND8-2700°K - CRI>80dali 2 / dali 2 push11431431755552-0.40
60104N2713ND13-2700°K - CRI>80dali 2 / dali 2 push16051231755552-0.40
