art.-6010-oslo-8b-bianco

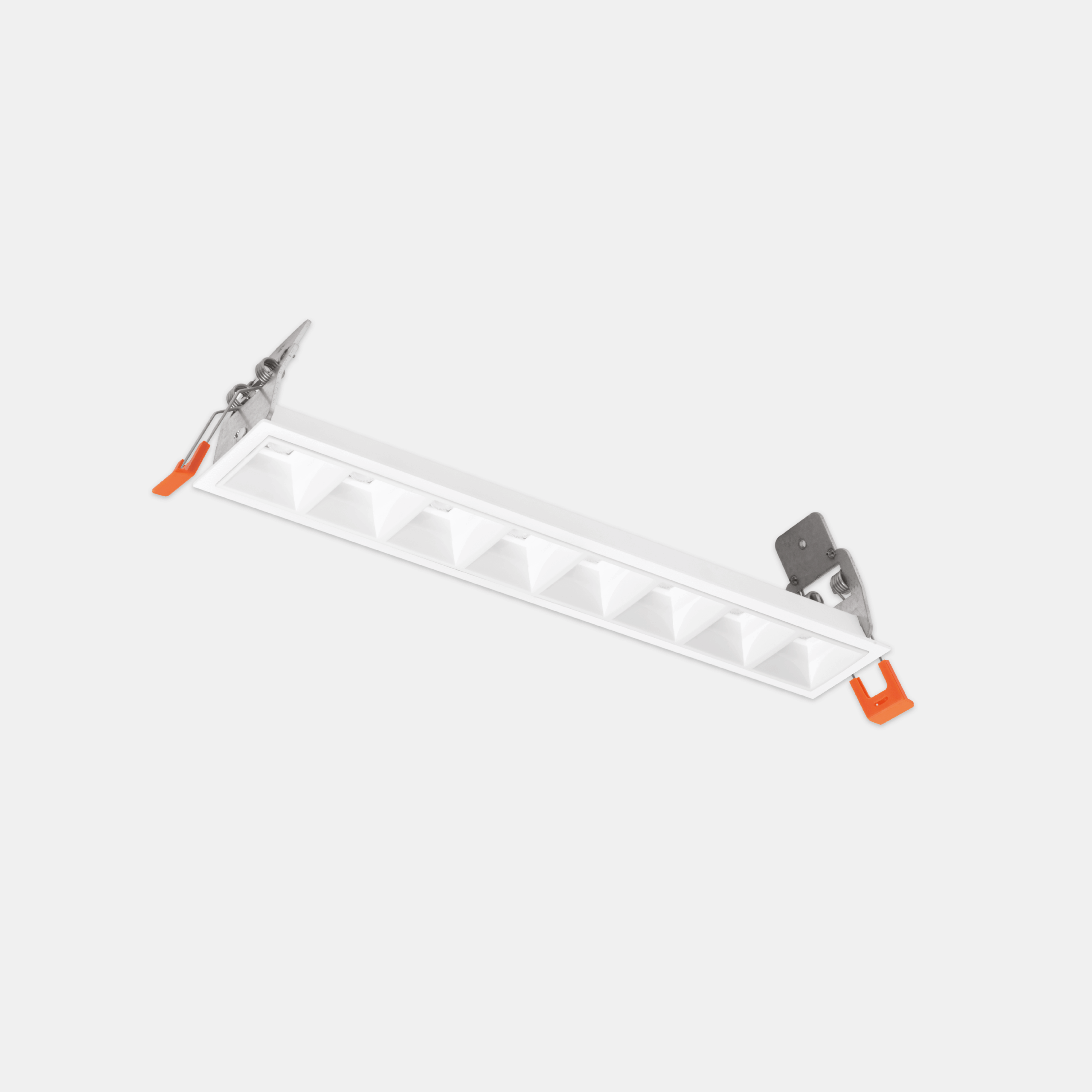

OSLO – Mod. 8B

(80° diffusing optics - UGR<19)

Square or rectangular indoor LED fixture suitable for any type of false ceiling, installation with springs included. Body constructed of sheet steel, painted with epoxy-polyester powder coating in white non-yellowing color with fine embossed finish, with phosphating and degreasing pretreatment. 80° diffusing optics with high flux efficiency PMMA lenses, white color polycarbonate reflector anti-glare and anti-reflection with controlled UGR <19.
Categories: Led, OSLO - 6010, Architectural Indoor, OSLO
Models: 20
Color: Matt white
Catalogue abstract
Installation instructions

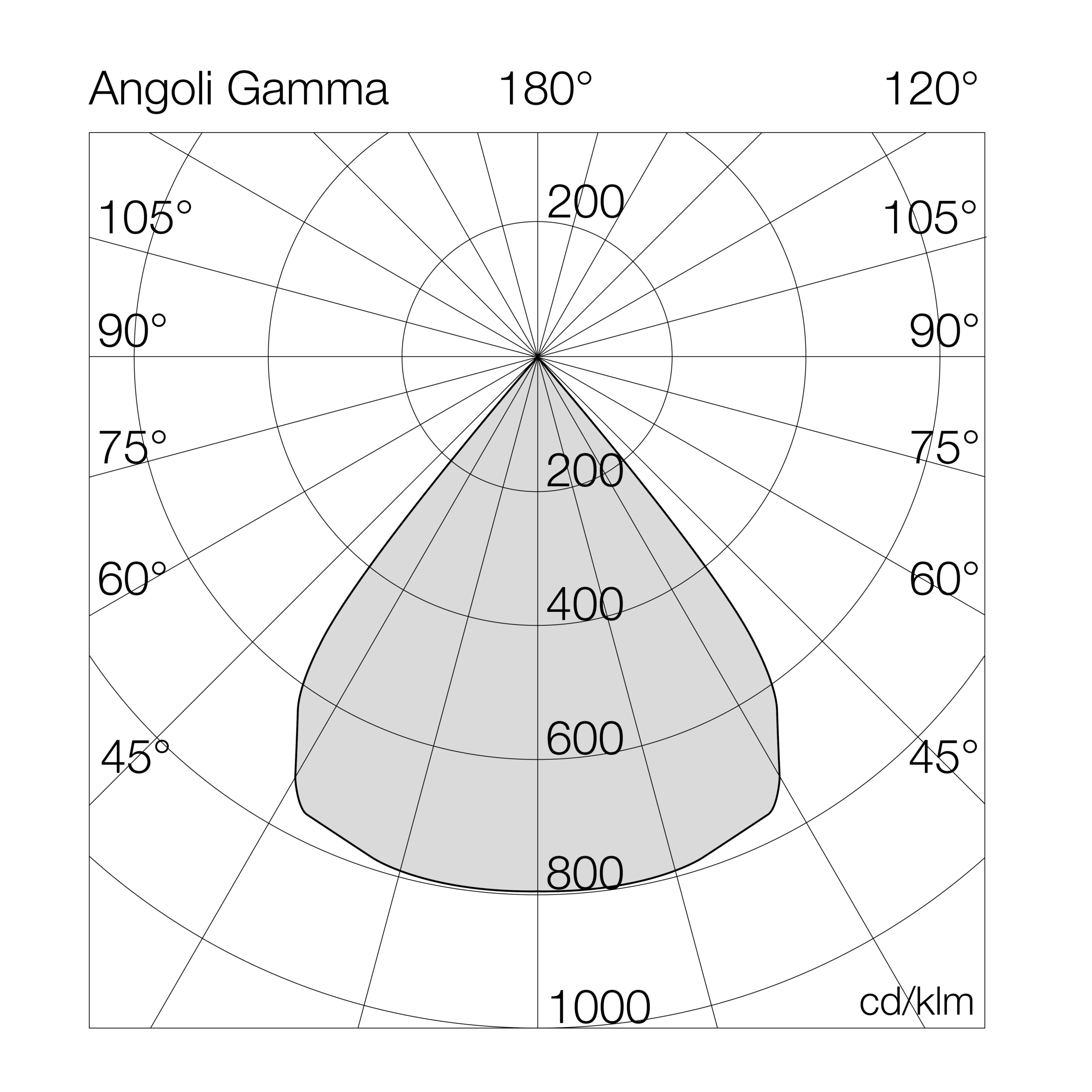

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
60108B27= 2700°K (CRI >80)17EL= on/off
03= 3000°K (CRI >80)26LD= dali 2 / dali 2 push
04= 4000°K (CRI >80)
93= 3000°K (CRI >90)
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
60108B0417EL17-4000°K - CRI>80on/off24891463355552-0.60
60108B0426EL26-4000°K - CRI>80on/off34921343355552-0.60
60108B0417LD17-4000°K - CRI>80dali 2 / dali 2 push24891463355552-0.60
60108B0426LD26-4000°K - CRI>80dali 2 / dali 2 push34921343355552-0.60
60108B0317EL17-3000°K - CRI>80on/off23611393355552-0.60
60108B0326EL26-3000°K - CRI>80on/off33121273355552-0.60
60108B0317LD17-3000°K - CRI>80dali 2 / dali 2 push23611393355552-0.60
60108B0326LD26-3000°K - CRI>80dali 2 / dali 2 push33121273355552-0.60
60108B9417EL17-4000°K - CRI>90on/off21141243355552-0.60
60108B9426EL26-4000°K - CRI>90on/off29651143355552-0.60
60108B9417LD17-4000°K - CRI>90dali 2 / dali 2 push21141243355552-0.60
60108B9426LD26-4000°K - CRI>90dali 2 / dali 2 push29651143355552-0.60
60108B9317EL17-3000°K - CRI>90on/off20771223355552-0.60
60108B9326EL26-3000°K - CRI>90on/off29131123355552-0.60
60108B9317LD17-3000°K - CRI>90dali 2 / dali 2 push20771223355552-0.60
60108B9326LD26-3000°K - CRI>90dali 2 / dali 2 push29131123355552-0.60
60108B2717EL17-2700°K - CRI>80on/off22871353355552-0.60
60108B2726EL26-2700°K - CRI>80on/off32091233355552-0.60
60108B2717LD17-2700°K - CRI>80dali 2 / dali 2 push22871353355552-0.60
60108B2726LD26-2700°K - CRI>80dali 2 / dali 2 push32091233355552-0.60

Accessories
