art.-6010-oslo-8n-nero

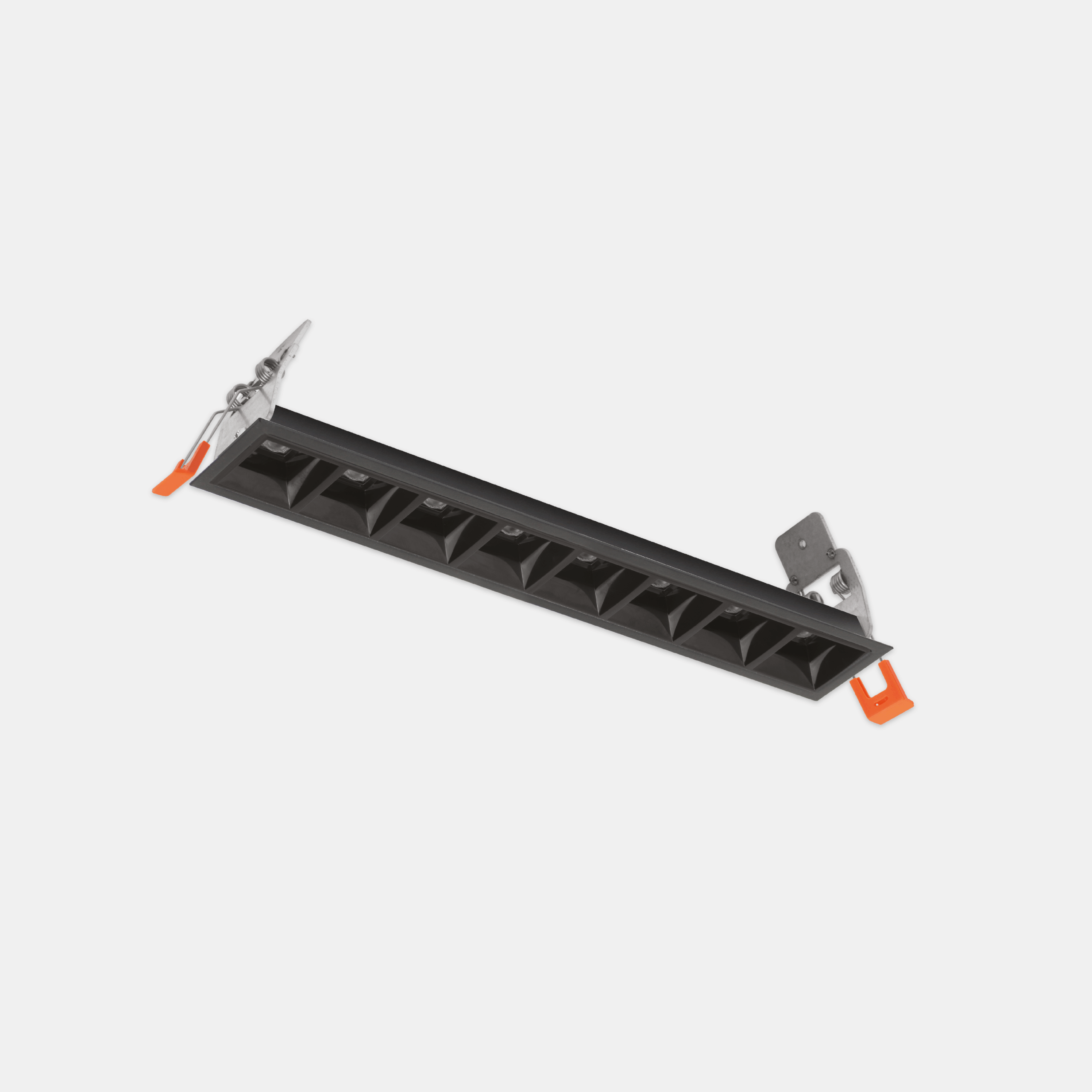

OSLO – Mod. 8N

(80° diffusing optics - UGR<19)

Square or rectangular indoor LED fixture suitable for any type of false ceiling, installation with springs included. Body constructed of sheet steel, painted with epoxy-polyester powder coating in black non-yellowing color with fine embossed finish, with phosphating and degreasing pretreatment. 80° diffusing optics with high flux efficiency PMMA lenses, black color polycarbonate reflector anti-glare and anti-reflection with controlled UGR <19.
Categories: Led, OSLO - 6010, Architectural Indoor, OSLO
Models: 20
Color: Matt black
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
60108N27= 2700°K (CRI >80)17NL= on/off
03= 3000°K (CRI >80)26ND= dali 2 / dali 2 push
04= 4000°K (CRI >80)
93= 3000°K (CRI >90)
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
60108N0417NL17-4000°K - CRI>80on/off24891463355552-0.60
60108N0426NL26-4000°K - CRI>80on/off34921343355552-0.60
60108N0417ND17-4000°K - CRI>80dali 2 / dali 2 push24891463355552-0.60
60108N0426ND26-4000°K - CRI>80dali 2 / dali 2 push34921343355552-0.60
60108N0317NL17-3000°K - CRI>80on/off23611393355552-0.60
60108N0326NL26-3000°K - CRI>80on/off33121273355552-0.60
60108N0317ND17-3000°K - CRI>80dali 2 / dali 2 push23611393355552-0.60
60108N0326ND26-3000°K - CRI>80dali 2 / dali 2 push33121273355552-0.60
60108N9417NL17-4000°K - CRI>90on/off21141243355552-0.60
60108N9426NL26-4000°K - CRI>90on/off29651143355552-0.60
60108N9417ND17-4000°K - CRI>90dali 2 / dali 2 push21141243355552-0.60
60108N9426ND26-4000°K - CRI>90dali 2 / dali 2 push29651143355552-0.60
60108N9317NL17-3000°K - CRI>90on/off20771223355552-0.60
60108N9326NL26-3000°K - CRI>90on/off29131123355552-0.60
60108N9317ND17-3000°K - CRI>90dali 2 / dali 2 push20771223355552-0.60
60108N9326ND26-3000°K - CRI>90dali 2 / dali 2 push29131123355552-0.60
60108N2717NL17-2700°K - CRI>80on/off22871353355552-0.60
60108N2726NL26-2700°K - CRI>80on/off32091233355552-0.60
60108N2717ND17-2700°K - CRI>80dali 2 / dali 2 push22871353355552-0.60
60108N2726ND26-2700°K - CRI>80dali 2 / dali 2 push32091233355552-0.60

Accessories
