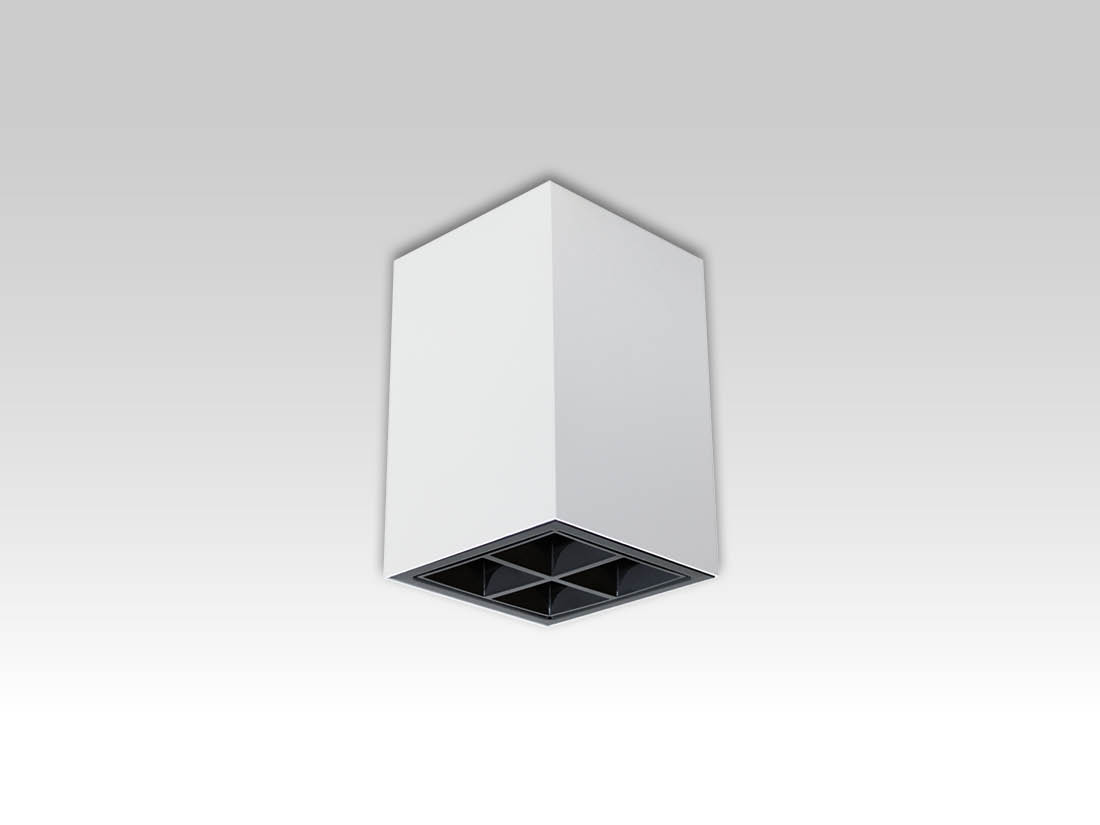

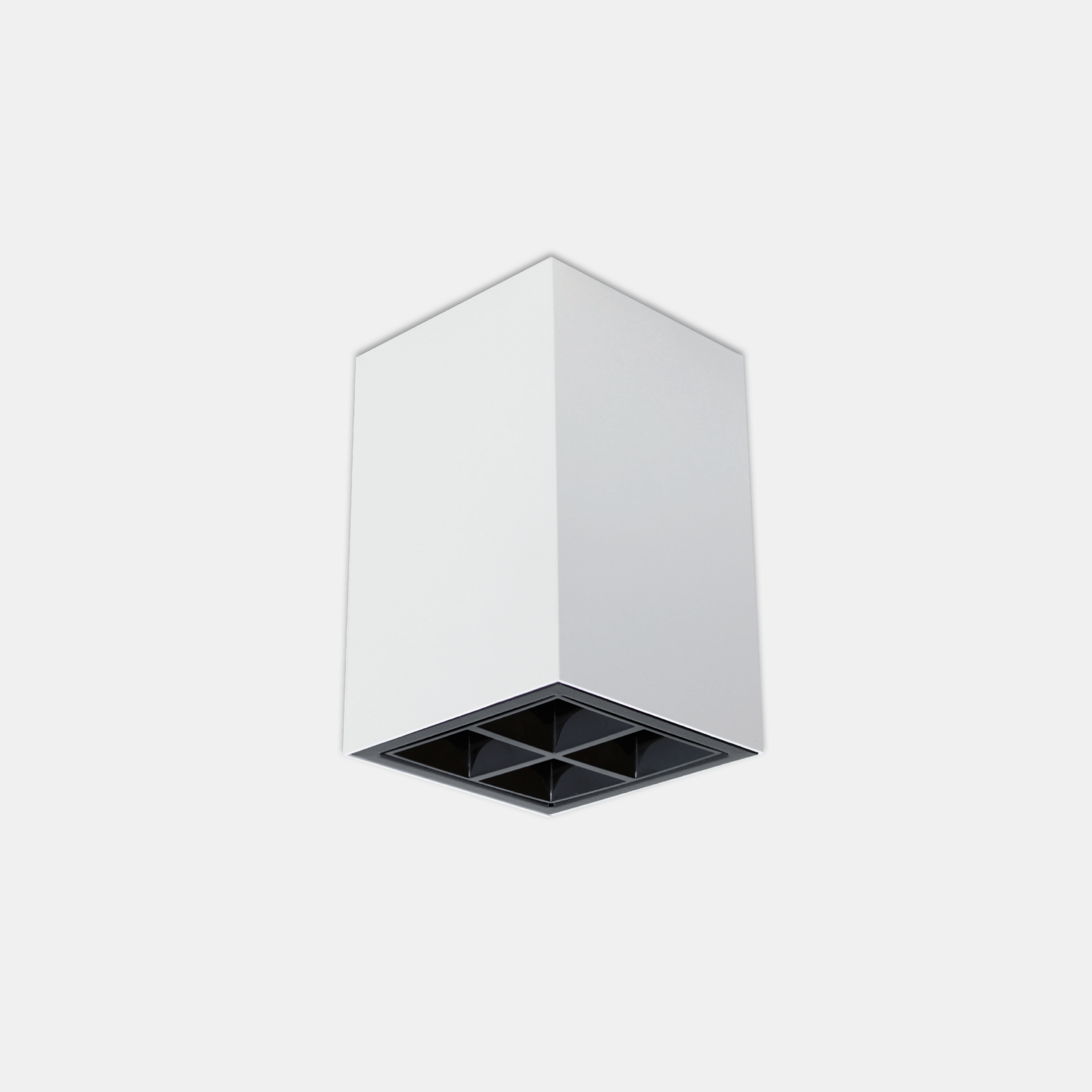

MODU – Mod. 2N

(80° diffusing optics - UGR<19)

Indoor LED fixture of square or rectangular shape suitable for ceiling installation. Body constructed of sheet steel, painted with white epoxy-polyester powders with fine embossed finish and with phosphating and degreasing pretreatment. 80° diffusing optics with high flux efficiency PMMA lenses, black color polycarbonate reflector anti-glare and anti-reflection with UGR<19.

Categories: Led, MODU - 6011, Architectural Indoor, MODU

Models: 20

Color: Matt white

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
6011	2N	27	= 2700°K (CRI >80)	08	BL	= on/off
		03	= 3000°K (CRI >80)	13	BD	= dali 2 / dali 2 push
		04	= 4000°K (CRI >80)
		93	= 3000°K (CRI >90)
		94	= 4000°K (CRI >90)

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
60112N0408BL	8	-	4000°K - CRI>80	on/off	1244	156	98	98	150	-	1.1
60112N0413BL	13	-	4000°K - CRI>80	on/off	1746	134	98	98	150	-	1.1
60112N0408BD	8	-	4000°K - CRI>80	dali 2 / dali 2 push	1244	156	98	98	150	-	1.1
60112N0413BD	13	-	4000°K - CRI>80	dali 2 / dali 2 push	1746	134	98	98	150	-	1.1
60112N0308BL	8	-	3000°K - CRI>80	on/off	1180	148	98	98	150	-	1.1
60112N0313BL	13	-	3000°K - CRI>80	on/off	1656	127	98	98	150	-	1.1
60112N0308BD	8	-	3000°K - CRI>80	dali 2 / dali 2 push	1180	148	98	98	150	-	1.1
60112N0313BD	13	-	3000°K - CRI>80	dali 2 / dali 2 push	1656	127	98	98	150	-	1.1
60112N9408BL	8	-	4000°K - CRI>90	on/off	1056	132	98	98	150	-	1.1
60112N9413BL	13	-	4000°K - CRI>90	on/off	1483	114	98	98	150	-	1.1
60112N9408BD	8	-	4000°K - CRI>90	dali 2 / dali 2 push	1056	132	98	98	150	-	1.1
60112N9413BD	13	-	4000°K - CRI>90	dali 2 / dali 2 push	1483	114	98	98	150	-	1.1
60112N2708BL	8	-	2700°K - CRI>80	on/off	1148	144	98	98	150	-	1.1
60112N2713BL	13	-	2700°K - CRI>80	on/off	1612	124	98	98	150	-	1.1
60112N2708BD	8	-	2700°K - CRI>80	dali 2 / dali 2 push	1148	144	98	98	150	-	1.1
60112N2713BD	13	-	2700°K - CRI>80	dali 2 / dali 2 push	1612	124	98	98	150	-	1.1
60112N9308BL	8	-	3000°K - CRI>90	on/off	1038	130	98	98	150	-	1.1
60112N9313BL	13	-	3000°K - CRI>90	on/off	1457	112	98	98	150	-	1.1
60112N9308BD	8	-	3000°K - CRI>90	dali 2 / dali 2 push	1038	130	98	98	150	-	1.1
60112N9313BD	13	-	3000°K - CRI>90	dali 2 / dali 2 push	1457	112	98	98	150	-	1.1
