MODU – Mod. 4N

(80° diffusing optics - UGR<19)

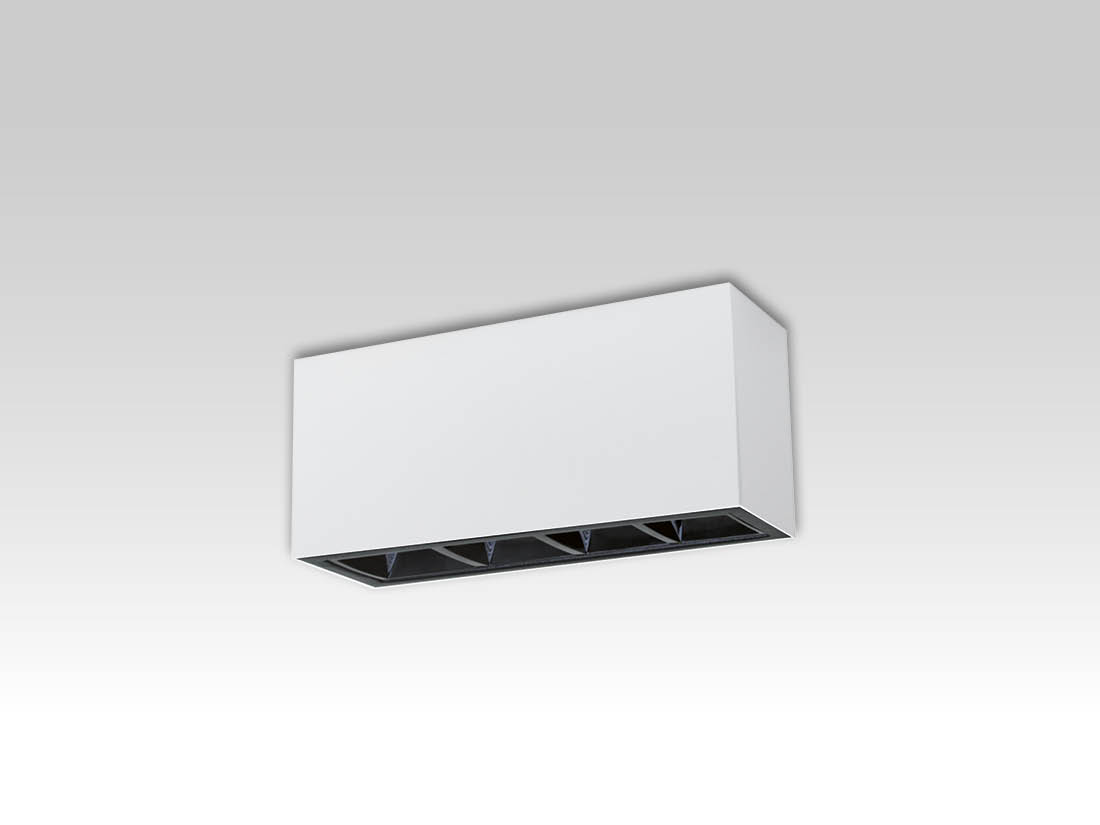

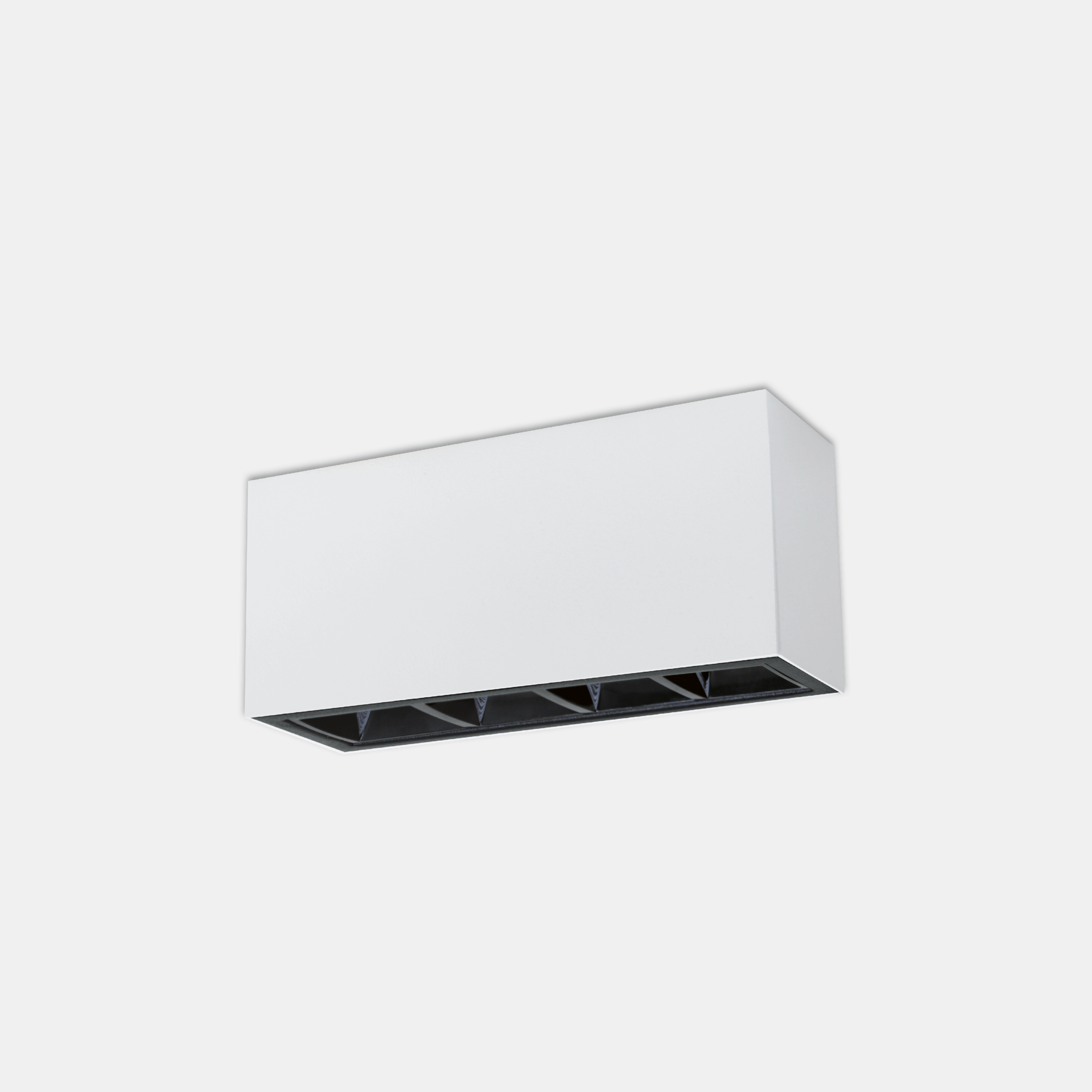

Indoor LED fixture of square or rectangular shape suitable for ceiling installation. Body constructed of sheet steel, painted with white epoxy-polyester powders with fine embossed finish and with phosphating and degreasing pretreatment. 80° diffusing optics with high flux efficiency PMMA lenses, black color polycarbonate reflector anti-glare and anti-reflection with UGR<19.
Categories: Led, MODU - 6011, Architectural Indoor, MODU
Models: 20
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
60114N27= 2700°K (CRI >80)08BL= on/off
03= 3000°K (CRI >80)13BD= dali 2 / dali 2 push
04= 4000°K (CRI >80)
93= 3000°K (CRI >90)
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
60114N0408BL8-4000°K - CRI>80on/off12441561785880-0.70
60114N0413BL13-4000°K - CRI>80on/off17461341785880-0.70
60114N0408BD8-4000°K - CRI>80dali 2 / dali 2 push12441561785880-0.70
60114N0413BD13-4000°K - CRI>80dali 2 / dali 2 push17461341785880-0.70
60114N0308BL8-3000°K - CRI>80on/off11801481785880-0.70
60114N0313BL13-3000°K - CRI>80on/off16561271785880-0.70
60114N0308BD8-3000°K - CRI>80dali 2 / dali 2 push11801481785880-0.70
60114N0313BD13-3000°K - CRI>80dali 2 / dali 2 push16561271785880-0.70
60114N9408BL8-4000°K - CRI>90on/off10561321785880-0.70
60114N9413BL13-4000°K - CRI>90on/off14831141785880-0.70
60114N9408BD8-4000°K - CRI>90dali 2 / dali 2 push10561321785880-0.70
60114N9413BD13-4000°K - CRI>90dali 2 / dali 2 push14831141785880-0.70
60114N2708BL8-2700°K - CRI>80on/off11481441785880-0.70
60114N2713BL13-2700°K - CRI>80on/off16121241785880-0.70
60114N2708BD8-2700°K - CRI>80dali 2 / dali 2 push11481441785880-0.70
60114N2713BD13-2700°K - CRI>80dali 2 / dali 2 push16121241785880-0.70
60114N9308BL8-3000°K - CRI>90on/off10381301785880-0.70
60114N9313BL13-3000°K - CRI>90on/off14571121785880-0.70
60114N9308BD8-3000°K - CRI>90dali 2 / dali 2 push10381301785880-0.70
60114N9313BD13-3000°K - CRI>90dali 2 / dali 2 push14571121785880-0.70
