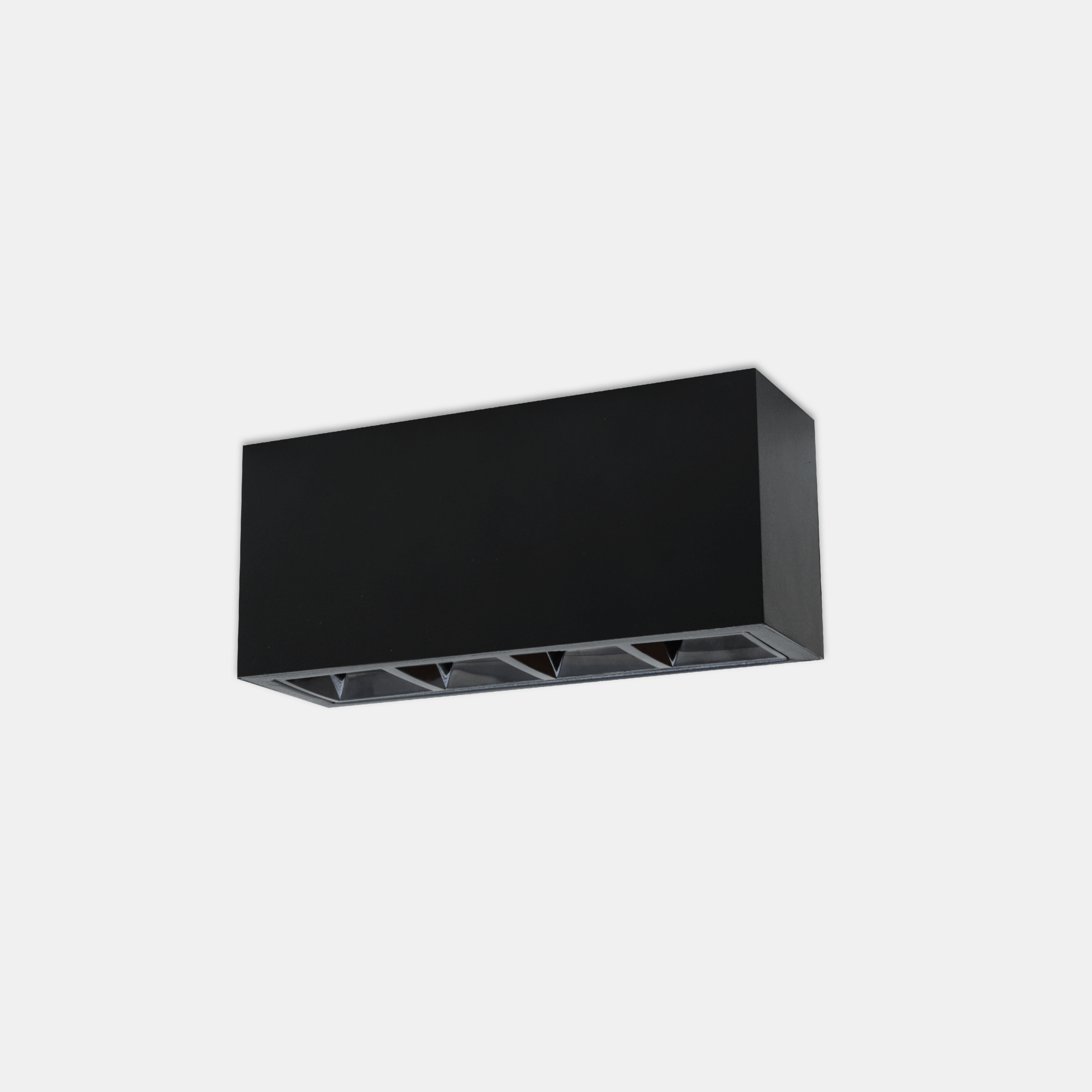

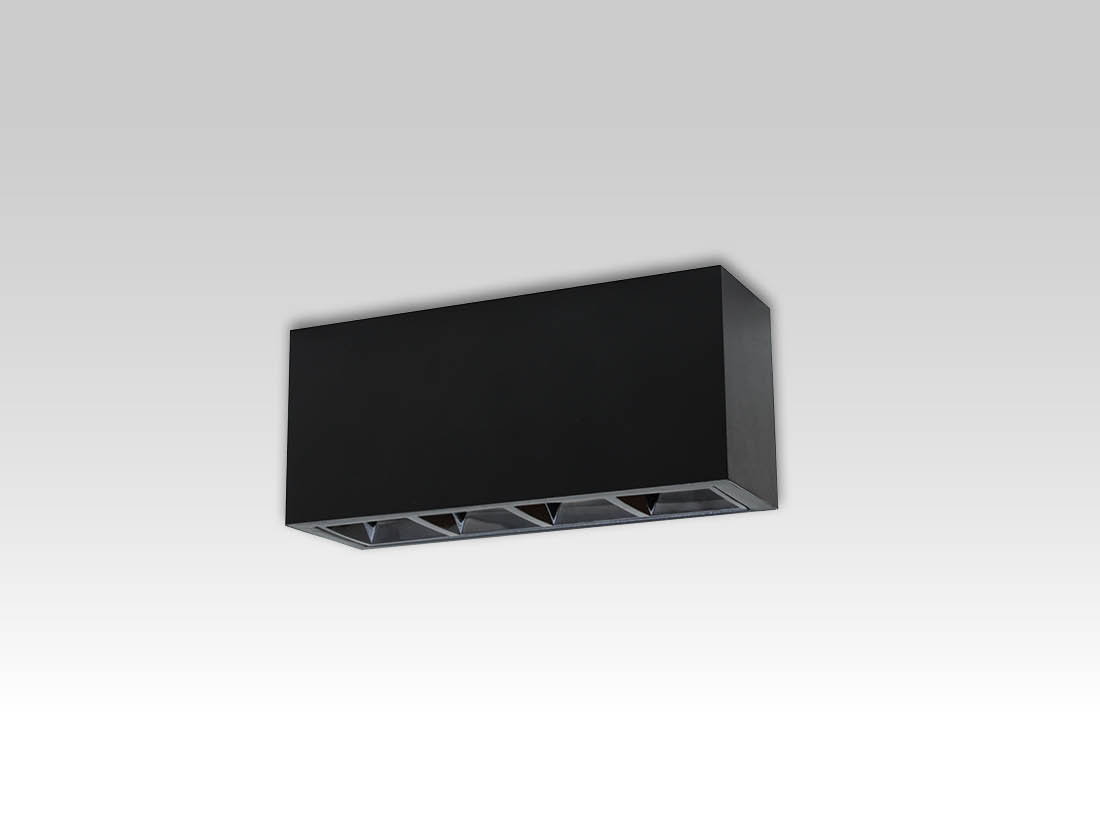

MODU/4N

Led indoor light for ceiling installation. Steel sheet body, painted with embossed anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1. Available in three color variants.
Categories: Led, MODU - 6011, Architectural Indoor, art. 6011 Modu
Models: 20
Color: Matt black
Catalogue abstract
Installation instructions

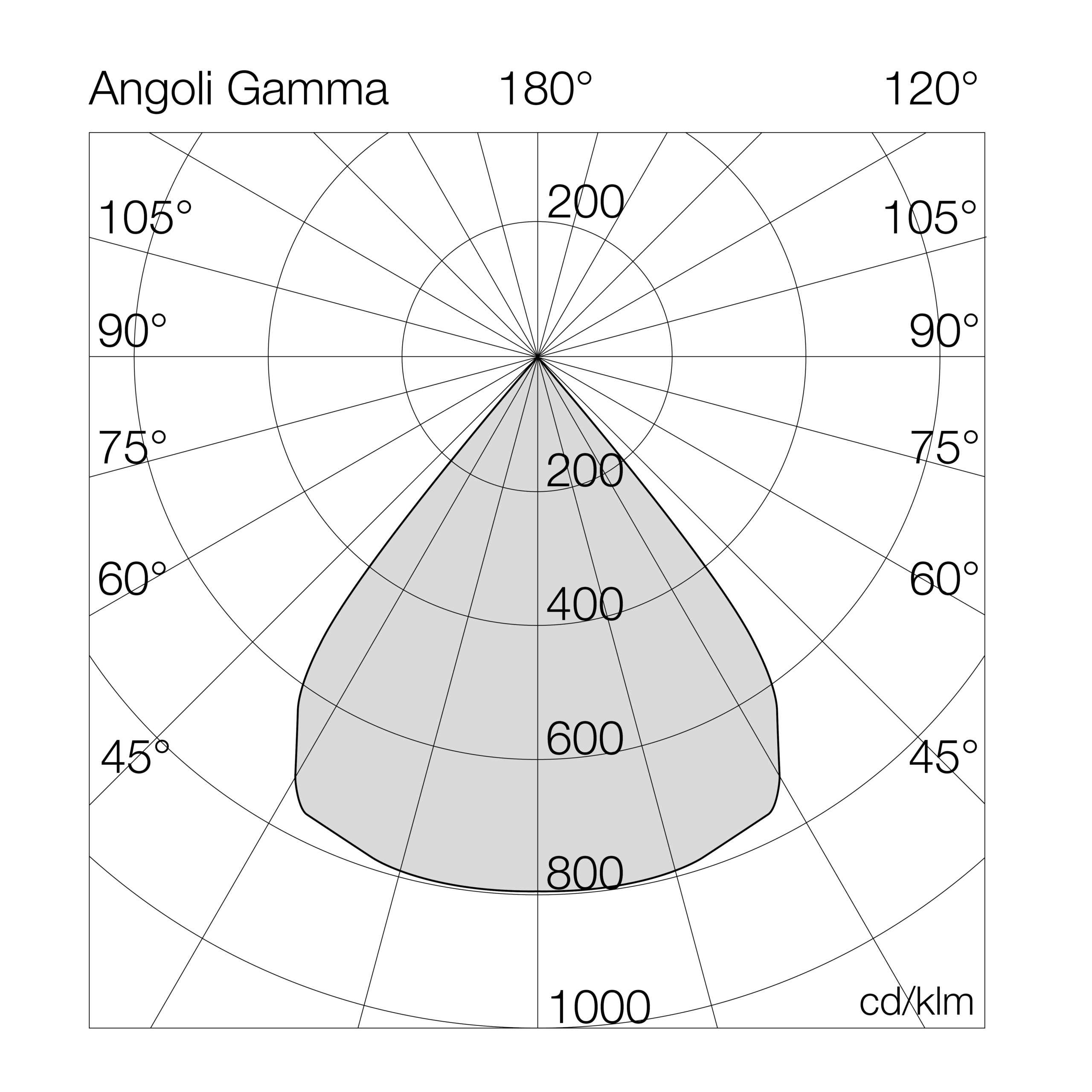

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
60114N27= 2700°K (CRI >80)08NL= on/off
03= 3000°K (CRI >80)13ND= dali 2 / dali 2 push
04= 4000°K (CRI >80)
93= 3000°K (CRI >90)
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options

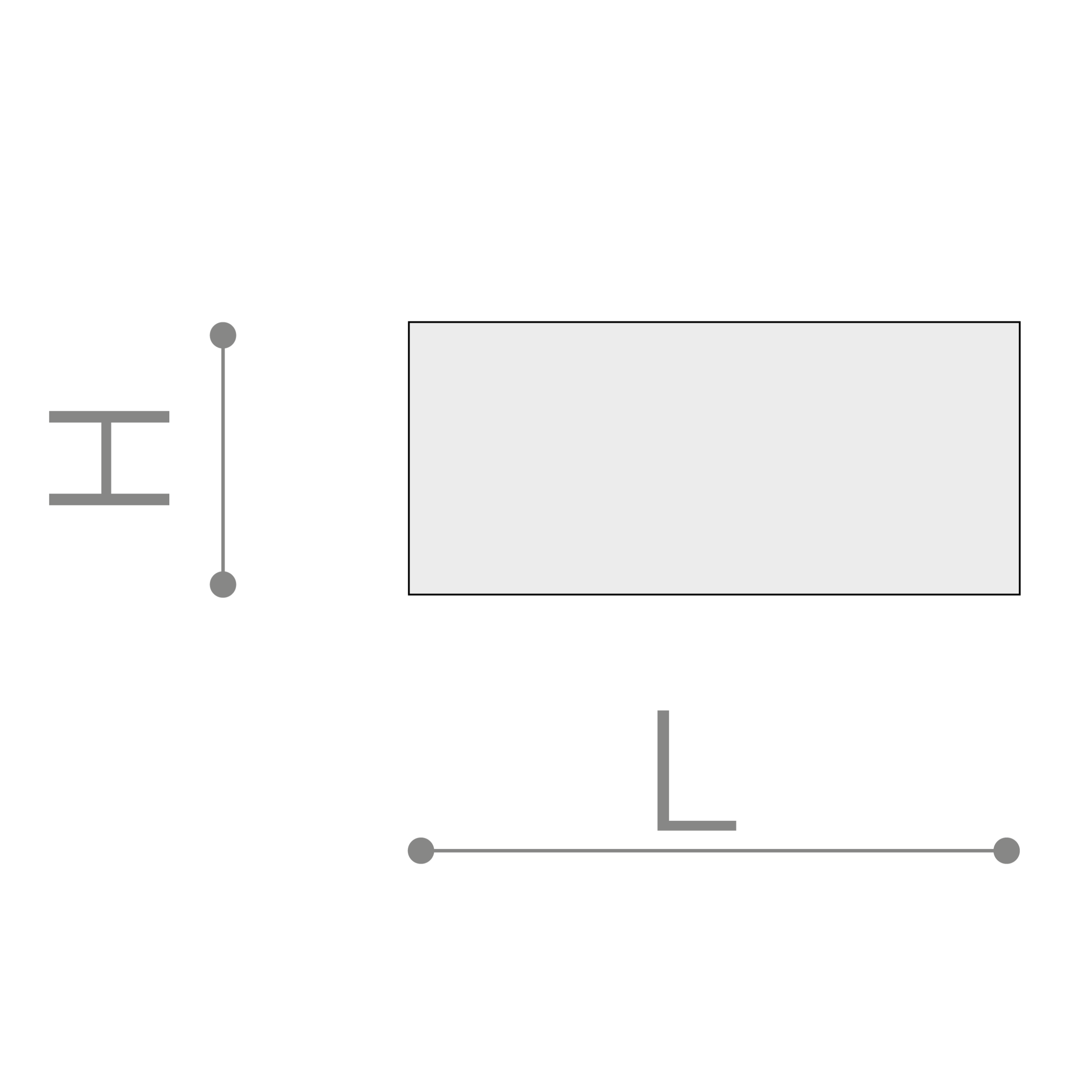

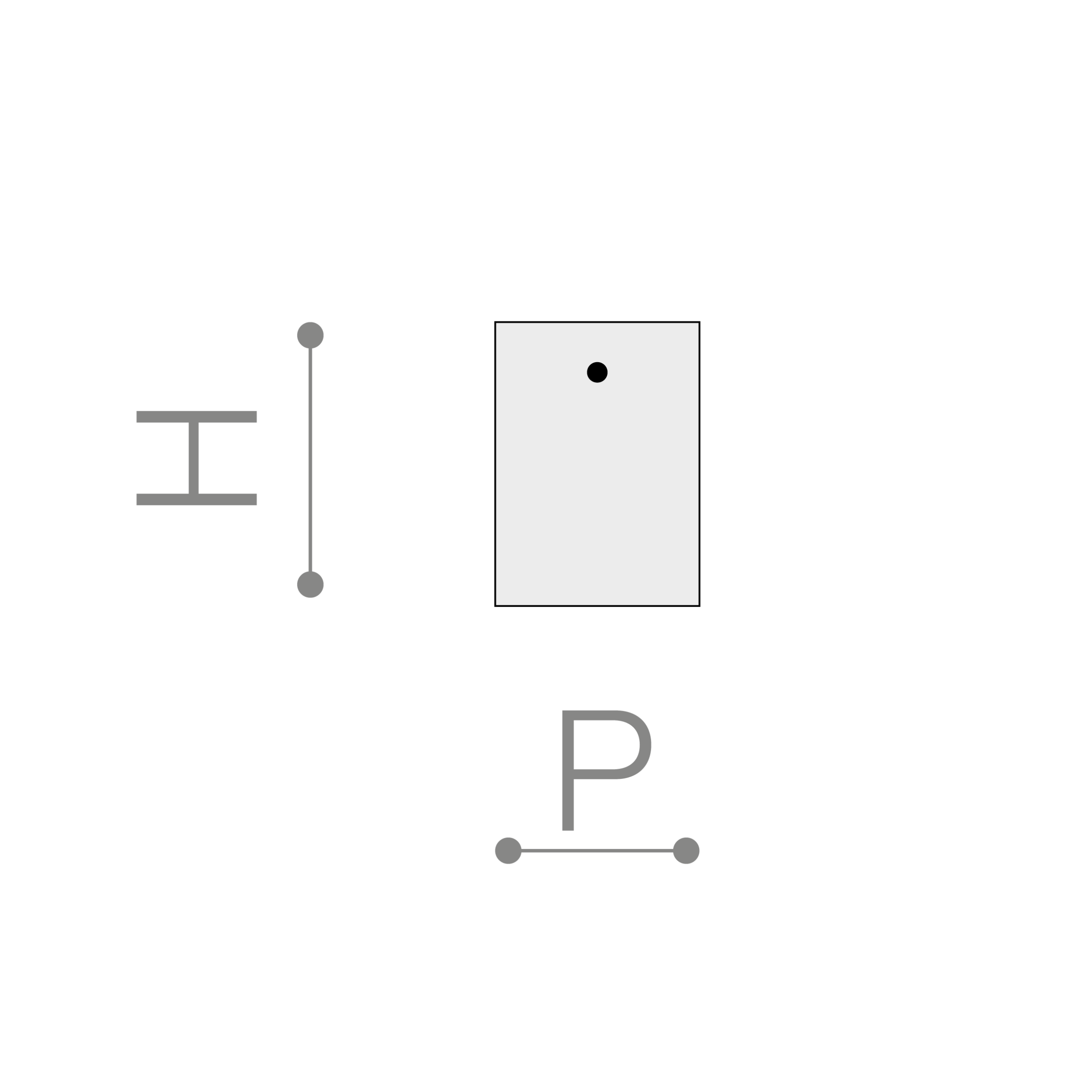

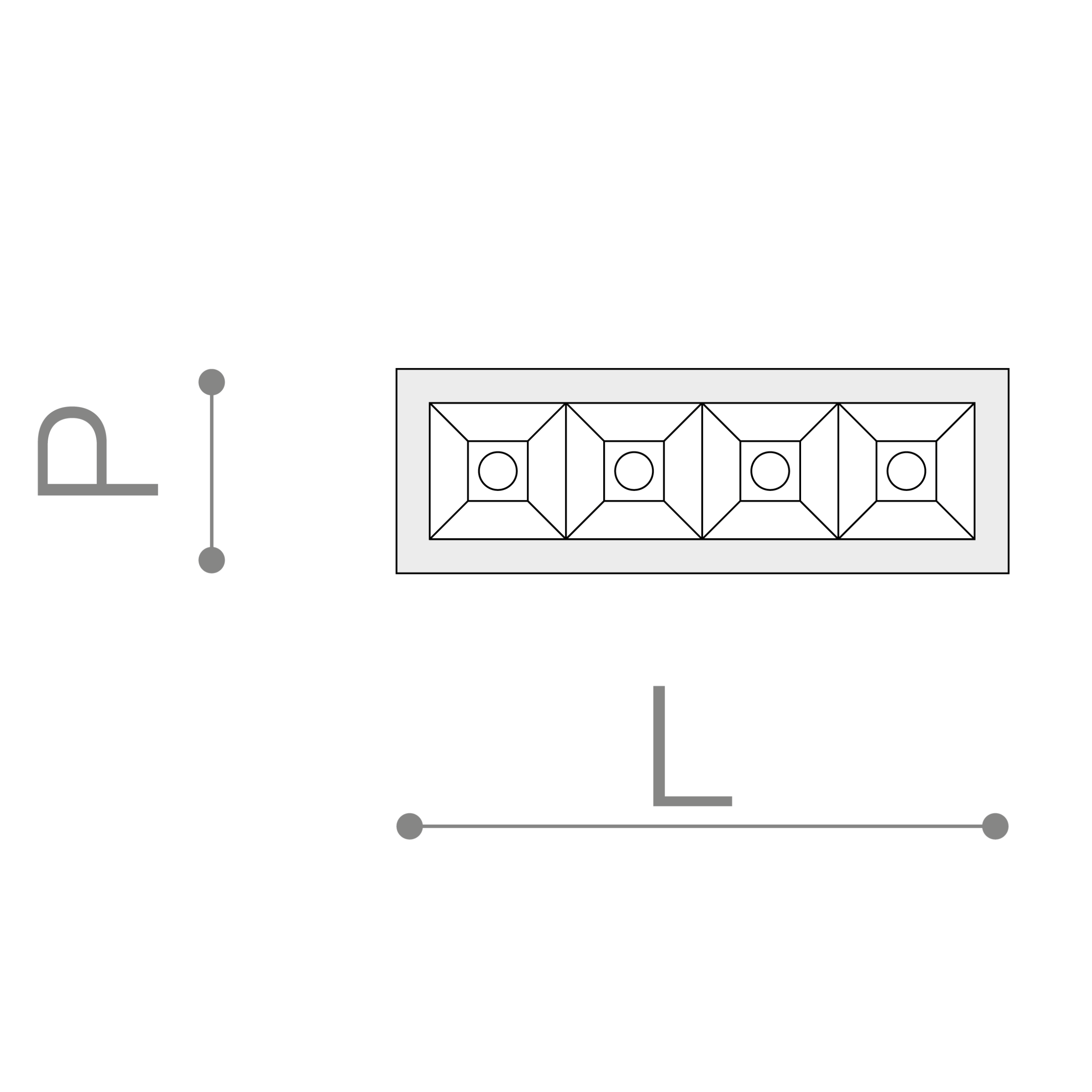

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
60114N0408NL8-4000°K - CRI>80on/off12441561785880-0.70
60114N0413NL13-4000°K - CRI>80on/off17461341785880-0.70
60114N0408ND8-4000°K - CRI>80dali 2 / dali 2 push12441561785880-0.70
60114N0413ND13-4000°K - CRI>80dali 2 / dali 2 push17461341785880-0.70
60114N0308NL8-3000°K - CRI>80on/off11801481785880-0.70
60114N0313NL13-3000°K - CRI>80on/off16561271785880-0.70
60114N0308ND8-3000°K - CRI>80dali 2 / dali 2 push11801481785880-0.70
60114N0313ND13-3000°K - CRI>80dali 2 / dali 2 push16561271785880-0.70
60114N9408NL8-4000°K - CRI>90on/off10561321785880-0.70
60114N9413NL13-4000°K - CRI>90on/off14831141785880-0.70
60114N9408ND8-4000°K - CRI>90dali 2 / dali 2 push10561321785880-0.70
60114N9413ND13-4000°K - CRI>90dali 2 / dali 2 push14831141785880-0.70
60114N2708NL8-2700°K - CRI>80on/off11481441785880-0.70
60114N2713NL13-2700°K - CRI>80on/off16121241785880-0.70
60114N2708ND8-2700°K - CRI>80dali 2 / dali 2 push11481441785880-0.70
60114N2713ND13-2700°K - CRI>80dali 2 / dali 2 push16121241785880-0.70
60114N9308NL8-3000°K - CRI>90on/off10381301785880-0.70
60114N9313NL13-3000°K - CRI>90on/off14571121785880-0.70
60114N9308ND8-3000°K - CRI>90dali 2 / dali 2 push10381301785880-0.70
60114N9313ND13-3000°K - CRI>90dali 2 / dali 2 push14571121785880-0.70
