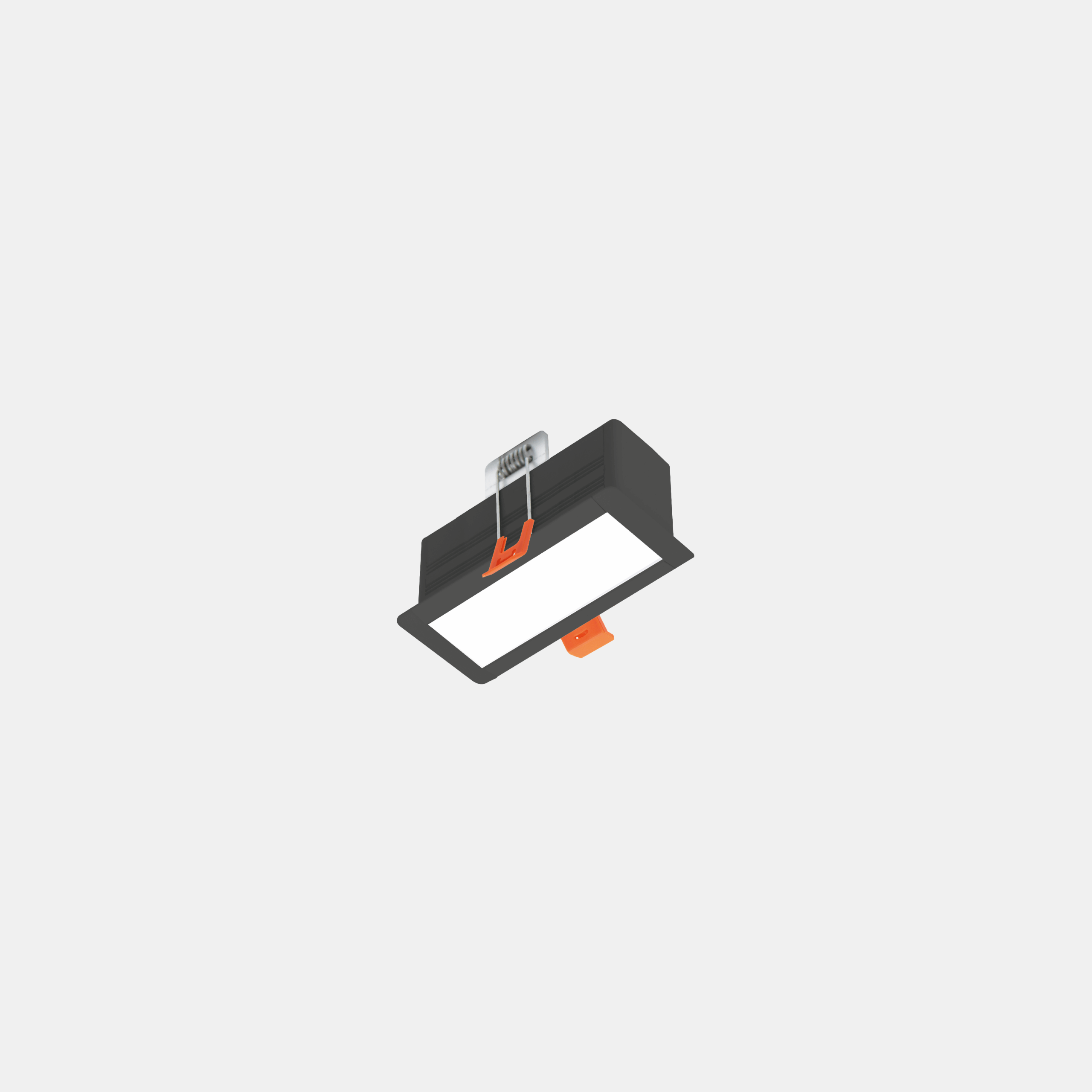

art.-6012-linear-r3-nero-corto

LINEAR/R3

Led indoor linear spotlight for recessed installation. Extruded aluminum body painted with anthracite epoxy-polyester powders, anti-yellowing with fine embossed finish with pre-treatment of phosphating and degreasing. end caps in white printed polycarbonate. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, LINEAR - 6012, Architectural Indoor, art. 6012 Linear
Models: 48
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6012R327= 2700°K (CRI >80)03NL= on/off
30= 3000°K (CRI >80)06ND= dali 2 / dali 2 push
40= 4000°K (CRI >80)09
94= 4000°K (CRI >80)12
15
18

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6012R34003NL3-4000°K - CRI>80on/off374125456090-0.24
6012R34006NL6-4000°K - CRI>80on/off7471254560160-0.32
6012R34009NL9-4000°K - CRI>80on/off11211254560230-0.40
6012R34012NL12-4000°K - CRI>80on/off14951254560300-0.48
6012R34015NL15-4000°K - CRI>80on/off18681254560370-0.56
6012R34018NL18-4000°K - CRI>80on/off22421254560460-0.66
6012R34003ND3-4000°K - CRI>80dali 2 / dali 2 push374125456090-0.24
6012R34006ND6-4000°K - CRI>80dali 2 / dali 2 push7471254560160-0.32
6012R34009ND9-4000°K - CRI>80dali 2 / dali 2 push11211254560230-0.40
6012R34012ND12-4000°K - CRI>80dali 2 / dali 2 push14951254560300-0.48
6012R34015ND15-4000°K - CRI>80dali 2 / dali 2 push18681254560370-0.56
6012R34018ND18-4000°K - CRI>80dali 2 / dali 2 push22421254560460-0.66
6012R33003NL3-3000°K - CRI>80on/off355118456090-0.24
6012R33006NL6-3000°K - CRI>80on/off7091184560160-0.32
6012R33009NL9-3000°K - CRI>80on/off10631184560230-0.40
6012R33012NL12-3000°K - CRI>80on/off14181184560300-0.48
6012R33015NL15-3000°K - CRI>80on/off17721184560370-0.56
6012R33018NL18-3000°K - CRI>80on/off21271184560460-0.66
6012R33003ND3-3000°K - CRI>80dali 2 / dali 2 push355118456090-0.24
6012R33006ND6-3000°K - CRI>80dali 2 / dali 2 push7091184560160-0.32
