TOGO/35

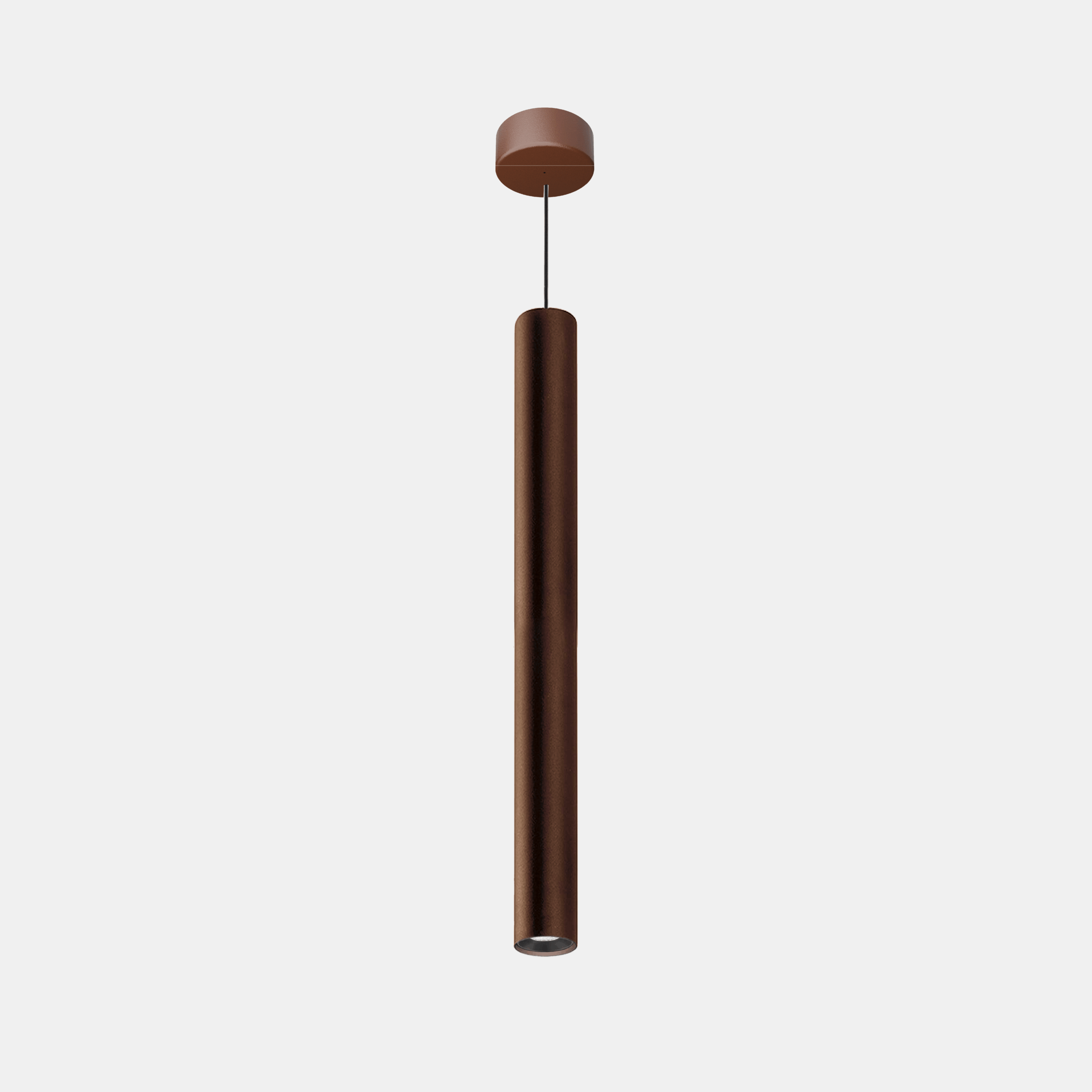

Led indoor light for suspended installation. Extruded aluminium body, painted with embossed anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1. Available in four color variants.
Categories: Led, TOGO - 6015, Architectural Indoor, art. 6015 Togo
Models: 24
Color: Corten
Catalogue abstract
Installation instructions

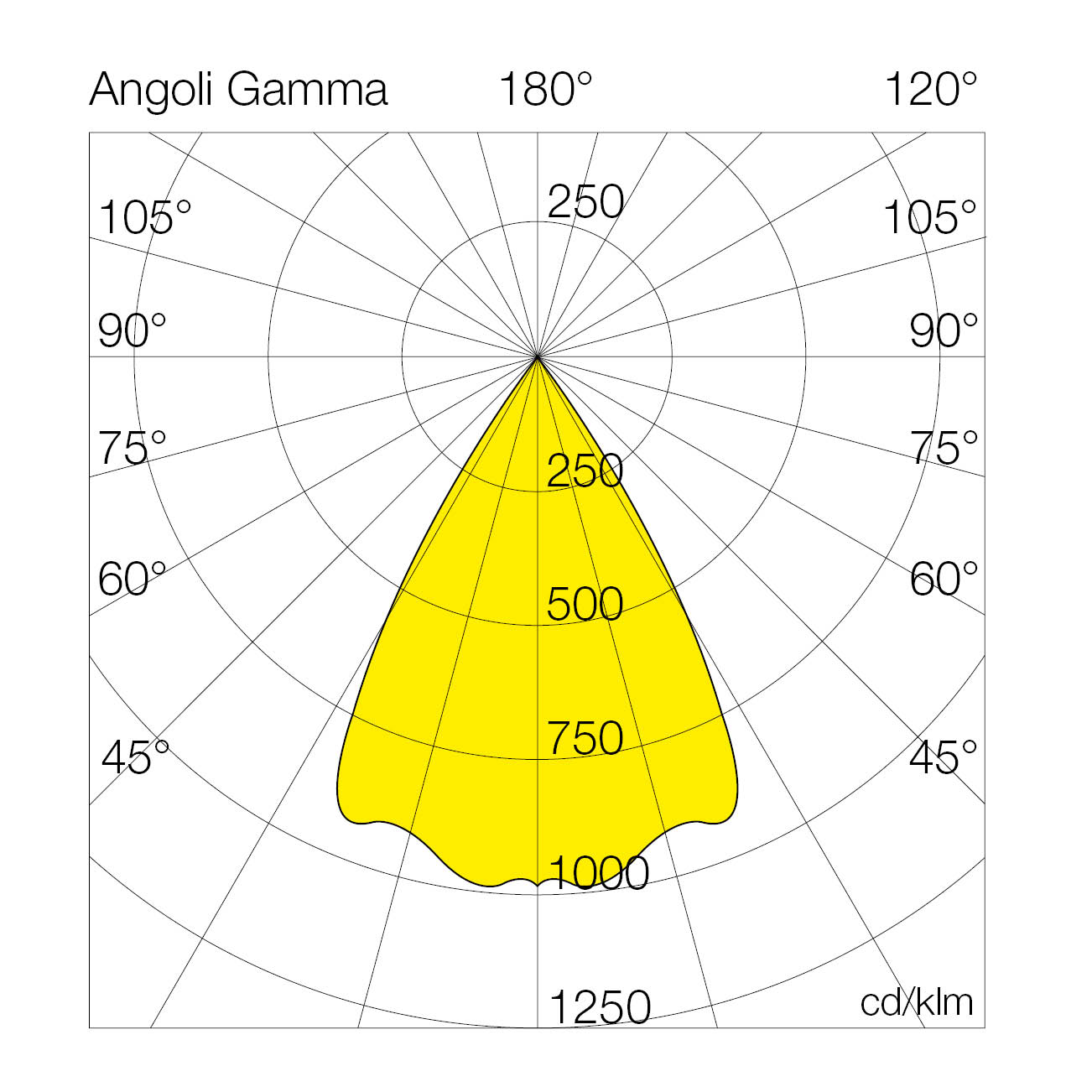

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
60153527= 2700°K (CRI >80)03C3= 350 mm
30= 3000°K (CRI >80)05C5= 550 mm
40= 4000°K (CRI >80)
93= 3000°K (CRI >90)
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options

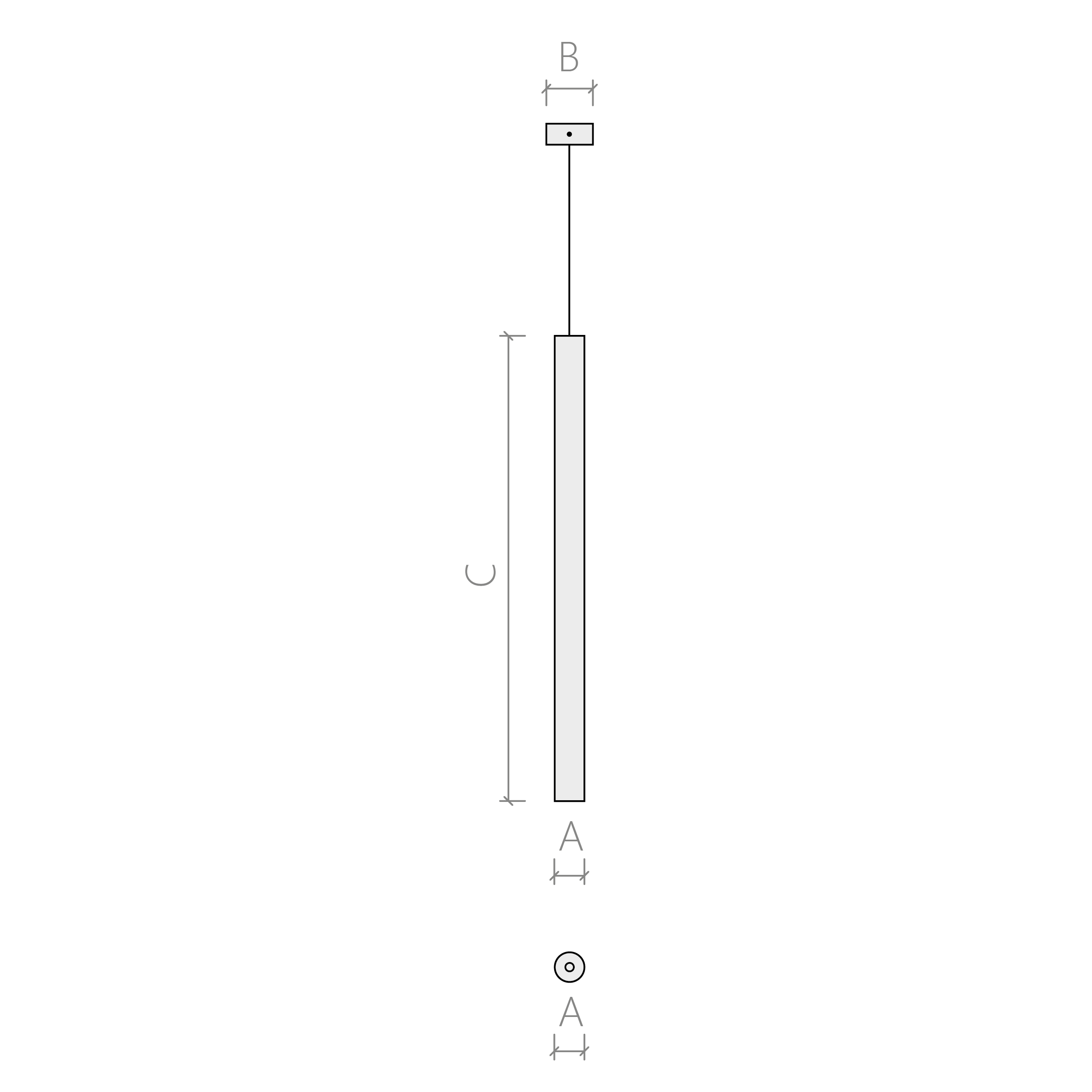

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6015354003C33-4000°K - CRI>80350 mm3941313555350-0.60
6015354005C35-4000°K - CRI>80350 mm5341073555350-0.60
6015354003C53-4000°K - CRI>80550 mm3941313555550-0.70
6015354005C55-4000°K - CRI>80550 mm5341073555350-0.60
6015353003C33-3000°K - CRI>80350 mm3821273555350-0.60
6015353005C35-3000°K - CRI>80350 mm5181043555350-0.60
6015353003C53-3000°K - CRI>80550 mm3821273555550-0.70
6015353005C55-3000°K - CRI>80550 mm5181043555350-0.60
6015352703C33-2700°K - CRI>80350 mm3641213555350-0.60
6015352705C35-2700°K - CRI>80350 mm493993555350-0.60
6015352703C53-2700°K - CRI>80550 mm3641213555550-0.70
6015352705C55-2700°K - CRI>80550 mm493993555350-0.60
6015359303C33-3000°K - CRI>90350 mm3221073555350-0.60
6015359305C35-3000°K - CRI>90350 mm437873555350-0.60
6015359303C53-3000°K - CRI>90550 mm3221073555550-0.70
6015359305C55-3000°K - CRI>90550 mm437873555350-0.60
6015359703C33-2700°K - CRI>90350 mm3061023555350-0.60
6015359705C35-2700°K - CRI>90350 mm414833555350-0.60
6015359703C53-2700°K - CRI>90550 mm3061023555550-0.70
6015359705C55-2700°K - CRI>90550 mm414833555350-0.60
