art.-6015-togo-35-nero

TOGO/35

Led indoor light for suspended installation. Extruded aluminium body, painted with embossed anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1. Available in four color variants.
Categories: Led, TOGO - 6015, Architectural Indoor, art. 6015 Togo
Models: 24
Color: Matt black
Catalogue abstract
Installation instructions

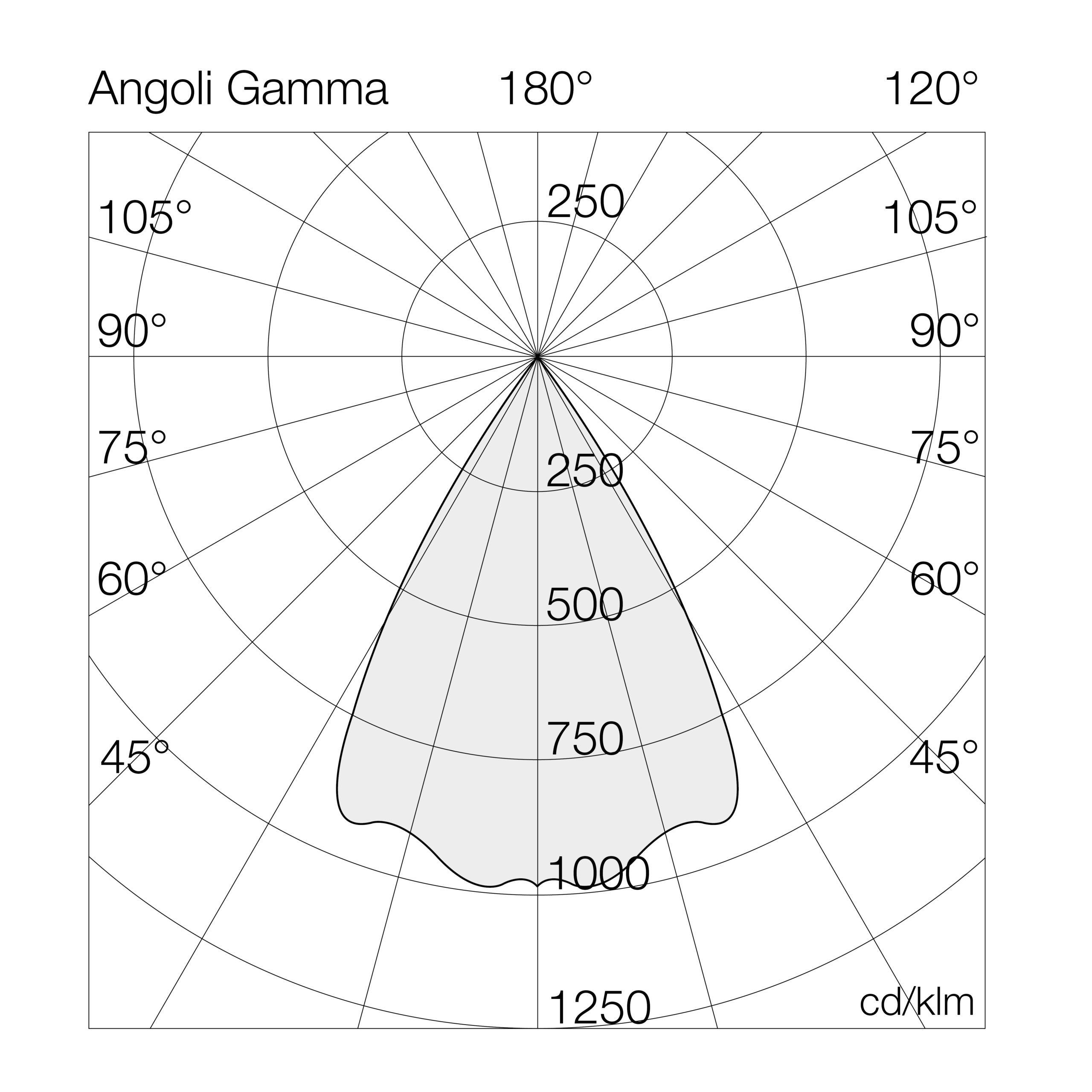

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
60153527= 2700°K (CRI >80)03N3= 350 mm
30= 3000°K (CRI >80)05N5= 550 mm
40= 4000°K (CRI >80)
93= 3000°K (CRI >90)
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6015354003N33-4000°K - CRI>80350 mm3941313555350-0.60
6015354005N35-4000°K - CRI>80350 mm5341073555350-0.60
6015354003N53-4000°K - CRI>80550 mm3941313555550-0.70
6015354005N55-4000°K - CRI>80550 mm5341073555350-0.60
6015353003N33-3000°K - CRI>80350 mm3821273555350-0.60
6015353005N35-3000°K - CRI>80350 mm5181043555350-0.60
6015353003N53-3000°K - CRI>80550 mm3821273555550-0.70
6015353005N55-3000°K - CRI>80550 mm5181043555350-0.60
6015352703N33-2700°K - CRI>80350 mm3641213555350-0.60
6015352705N35-2700°K - CRI>80350 mm493993555350-0.60
6015352703N53-2700°K - CRI>80550 mm3641213555550-0.70
6015352705N55-2700°K - CRI>80550 mm493993555350-0.60
6015359303N33-3000°K - CRI>90350 mm3221073555350-0.60
6015359305N35-3000°K - CRI>90350 mm437873555350-0.60
6015359303N53-3000°K - CRI>90550 mm3221073555550-0.70
6015359305N55-3000°K - CRI>90550 mm437873555350-0.60
6015359703N33-2700°K - CRI>90350 mm3061023555350-0.60
6015359705N35-2700°K - CRI>90350 mm414833555350-0.60
6015359703N53-2700°K - CRI>90550 mm3061023555550-0.70
6015359705N55-2700°K - CRI>90550 mm414833555350-0.60

TEC-MAR is aimed at constant research and development of new technologies, quality materials, enhanced production processes, in accordance with latest trends in design and technology.
