TOGO – Mod. 55

(UGR<16)

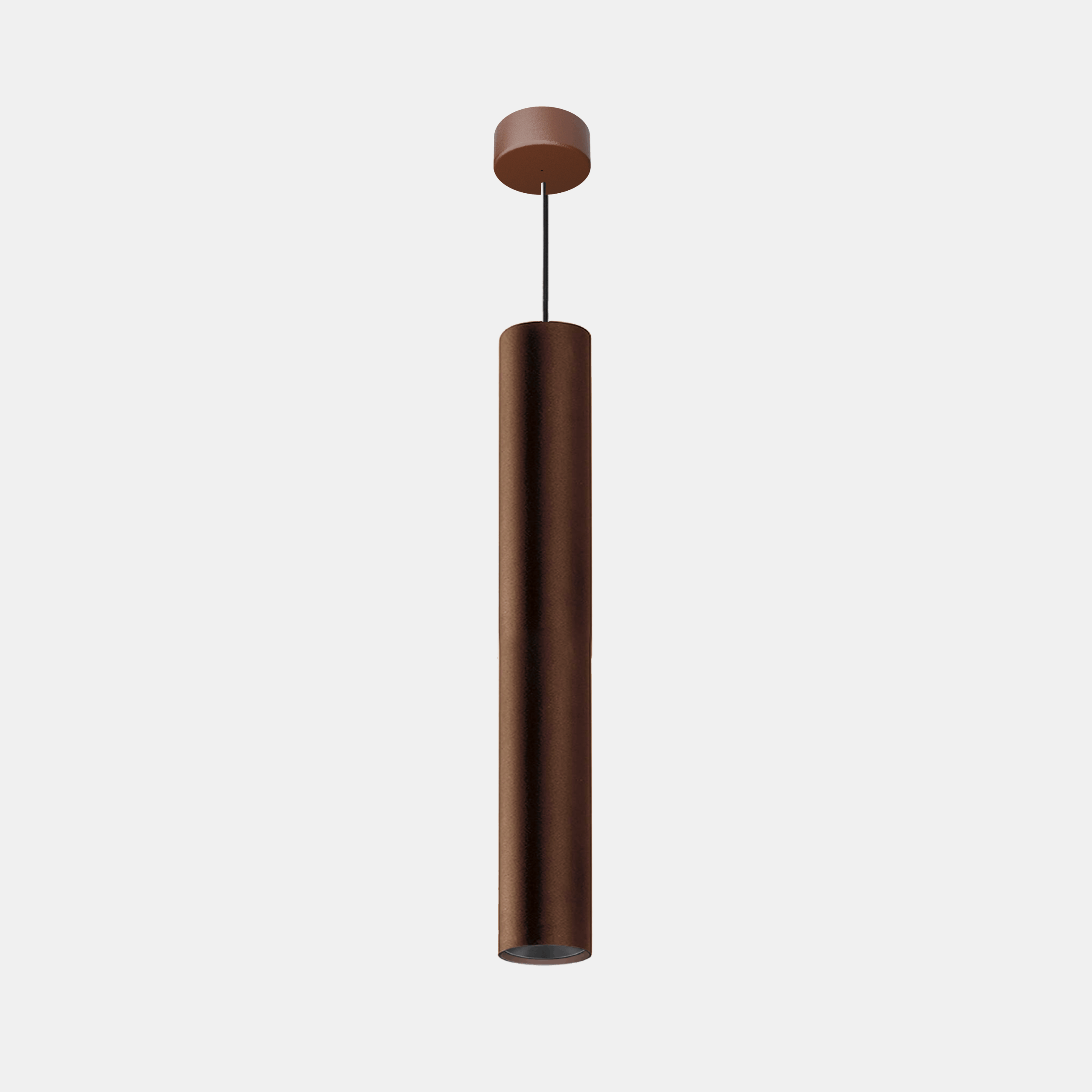

Indoor LED fixture suitable for pendant installation. Body made of extruded aluminum, painted with non-yellowing epoxy-polyester powders with fine embossed finish, phosphating and degreasing pretreatment color corten. Optics with 50° anti-glare reflector in polished PC with high flux efficiency and controlled UGR <16.

Categories: Led, TOGO - 6015, Architectural Indoor, TOGO

Models: 24

Color: Corten

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
6015	55	27	= 2700°K (CRI >80)	07	C3	= 350 mm
		30	= 3000°K (CRI >80)	10	C5	= 550 mm
		40	= 4000°K (CRI >80)
		93	= 3000°K (CRI >90)
		94	= 4000°K (CRI >90)

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
6015554007C3	7	-	4000°K - CRI>80	350 mm	832	119	55	55	350	-	0.80
6015554010C3	10	-	4000°K - CRI>80	350 mm	1033	103	55	55	350	-	0.80
6015554007C5	7	-	4000°K - CRI>80	550 mm	832	119	55	55	550	-	0.90
6015554010C5	10	-	4000°K - CRI>80	550 mm	1033	103	55	55	350	-	0.80
6015553007C3	7	-	3000°K - CRI>80	350 mm	807	115	55	55	350	-	0.80
6015553010C3	10	-	3000°K - CRI>80	350 mm	1002	100	55	55	350	-	0.80
6015553007C5	7	-	3000°K - CRI>80	550 mm	807	115	55	55	550	-	0.90
6015553010C5	10	-	3000°K - CRI>80	550 mm	1002	100	55	55	350	-	0.80
6015552707C3	7	-	2700°K - CRI>80	350 mm	768	110	55	55	350	-	0.80
6015552710C3	10	-	2700°K - CRI>80	350 mm	954	95	55	55	350	-	0.80
6015552707C5	7	-	2700°K - CRI>80	550 mm	768	110	55	55	550	-	0.90
6015552710C5	10	-	2700°K - CRI>80	550 mm	954	95	55	55	350	-	0.80
6015559307C3	7	-	3000°K - CRI>90	350 mm	680	97	55	55	350	-	0.80
6015559310C3	10	-	3000°K - CRI>90	350 mm	844	84	55	55	350	-	0.80
6015559307C5	7	-	3000°K - CRI>90	550 mm	680	97	55	55	550	-	0.90
6015559310C5	10	-	3000°K - CRI>90	550 mm	844	84	55	55	350	-	0.80
6015559707C3	7	-	2700°K - CRI>90	350 mm	645	92	55	55	350	-	0.80
6015559710C3	10	-	2700°K - CRI>90	350 mm	801	80	55	55	350	-	0.80
6015559707C5	7	-	2700°K - CRI>90	550 mm	645	92	55	55	550	-	0.90
6015559710C5	10	-	2700°K - CRI>90	550 mm	801	80	55	55	350	-	0.80
