art.-6016-teo-rs-rf-bianco

TEO/RF

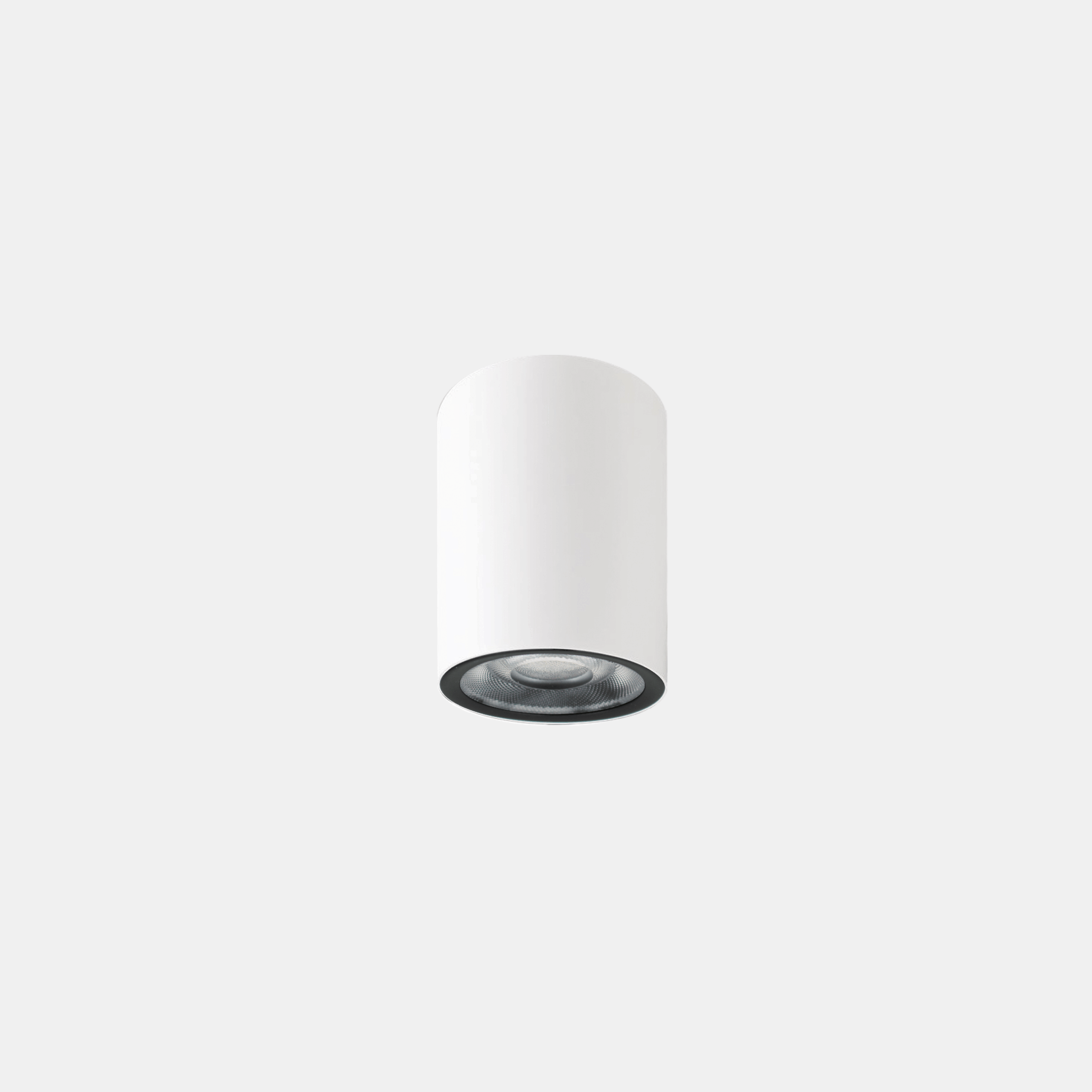

Led indoor light for ceiling installation. Extruded aluminium body, painted with embossed anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1. Available in three color variants.

Categories: Led, TEO - 6016, Architectural Indoor, art. 6016 Teo

Models: 6

Color: Matt white

Catalogue abstract

Installation instructions

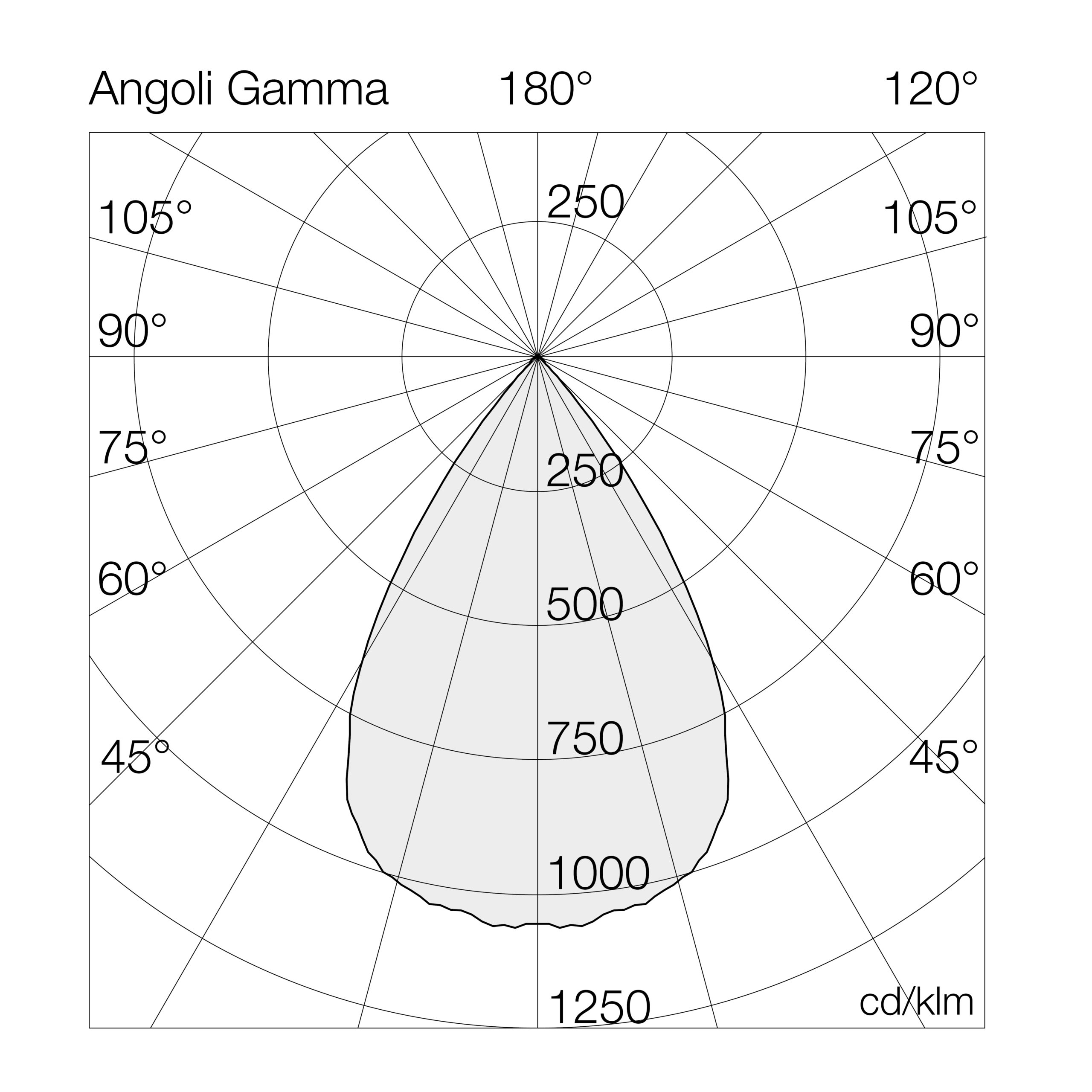

Photometric data

Legenda

Art.	+	Mod.	+	°K (CRI)		+	W tot.	+	Options
6016		RF		27	= 2700°K (CRI >80)		06		BL	= on/off
				30	= 3000°K (CRI >80)
				40	= 4000°K (CRI >80)
				97	= 2700°K (CRI >90)
				93	= 3000°K (CRI >90)
				94	= 4000°K (CRI >90)

Models

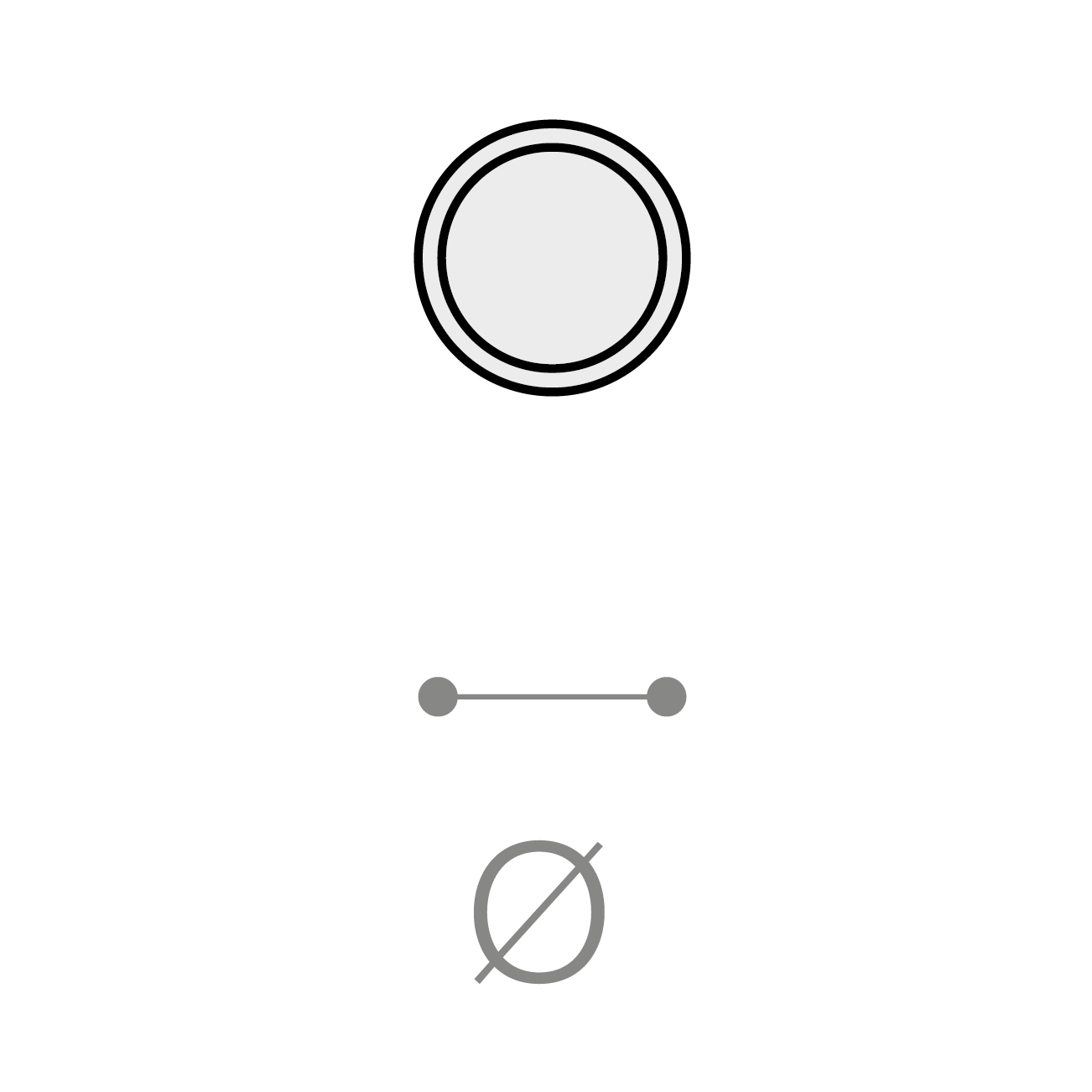

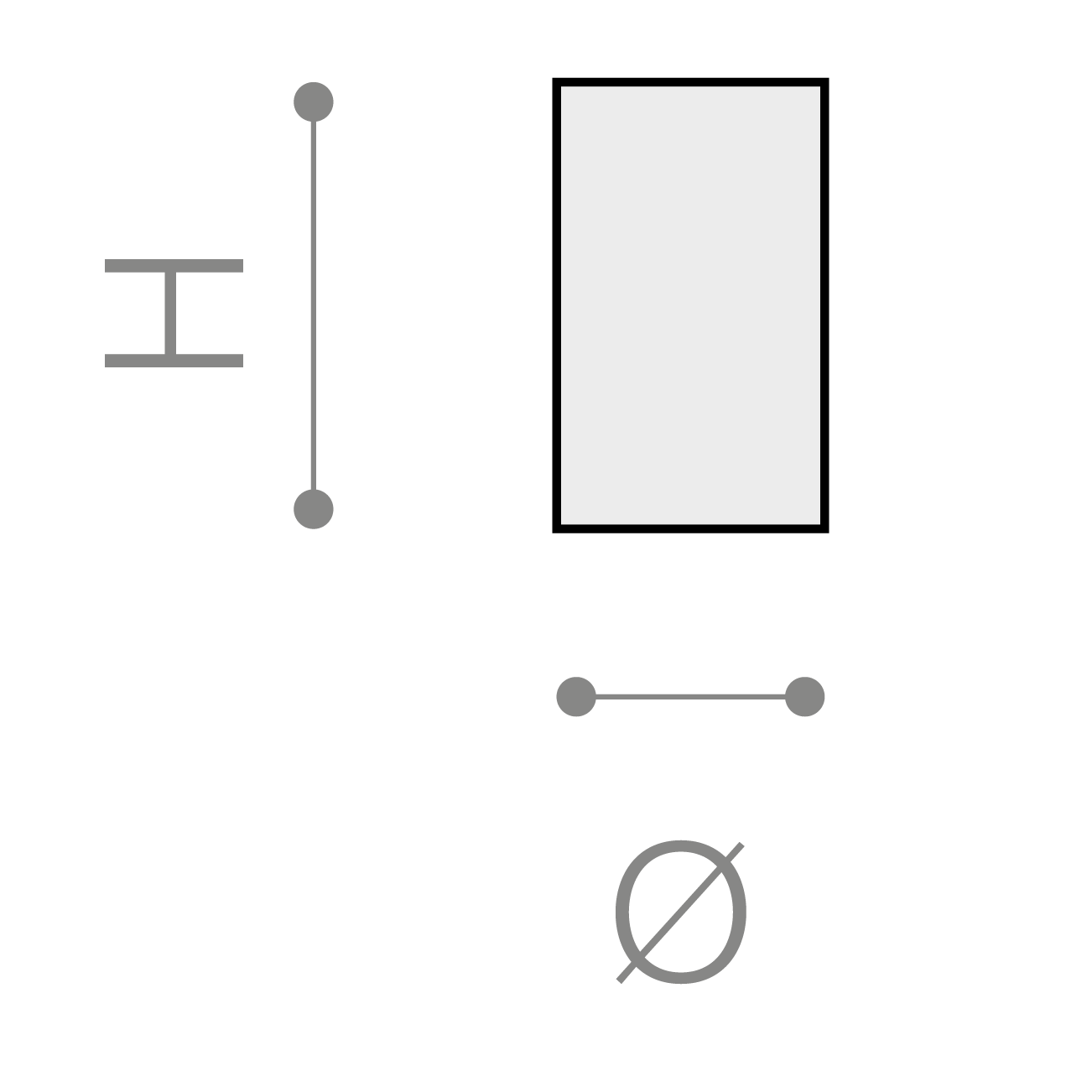

	Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
	6016RF4006BL	6	-	4000°K - CRI>80	on/off	752	125	60	-	110	-	0.30
	6016RF3006BL	6	-	3000°K - CRI>80	on/off	729	122	60	-	110	-	0.30
	6016RF2706BL	6	-	2700°K - CRI>80	on/off	695	116	60	-	110	-	0.30
	6016RF9306BL	6	-	3000°K - CRI>90	on/off	615	103	60	-	110	-	0.30
	6016RF9706BL	6	-	2700°K - CRI>90	on/off	583	97	60	-	110	-	0.30
	6016RF9406BL	6	-	4000°K - CRI>90	on/off	644	107	60	-	110	-	0.30

TEC-MAR is aimed at constant research and development of new technologies, quality materials, enhanced production processes, in accordance with latest trends in design and technology.
