NOBU – Mod. QF

(60° medium diffusing optics - UGR<19)

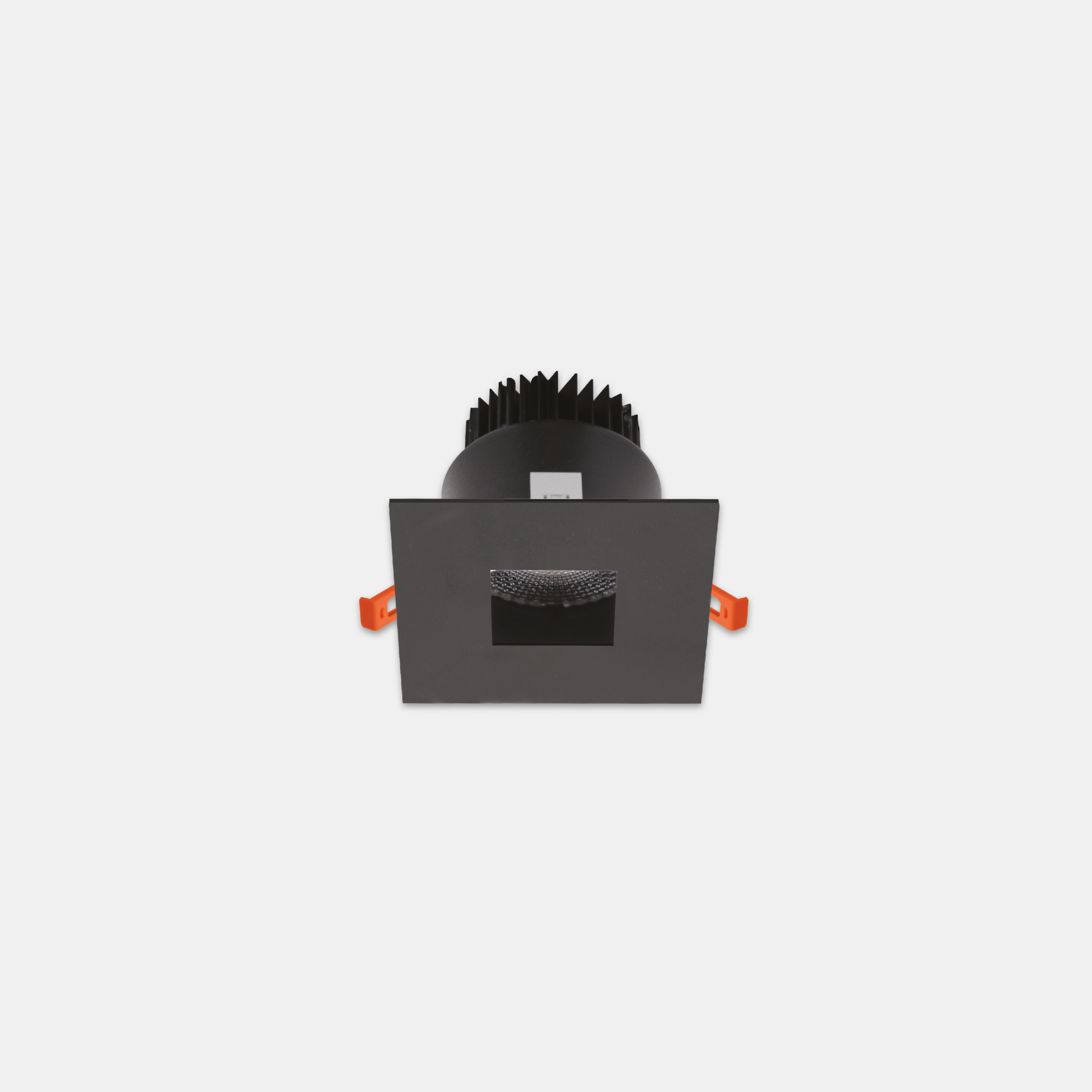

Indoor LED fixture suitable for recessed installation. Square frame, both made of steel sheet painted with black epoxy-polyester powders, non-yellowing with fine embossed finish and turned aluminum body painted with black epoxy-polyester powders (phosphating and degreasing pretreatment). Black anodized extruded aluminum heat sink, fixing springs included. 60° medium diffusing optics - UGR<19.
Categories: Led, NOBU - 6020, Architectural Indoor, NOBU
Models: 66
Color: Matt black
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6020QF27= 2700°K (CRI >80)02NL= on/off
30= 3000°K (CRI >80)04ND= dali 2 / dali 2 push
40= 4000°K (CRI >80)06
93= 3000°K (CRI >90)08
94= 4000°K (CRI >90)15
25
40

Models

W tot.
°K - CRI
Options

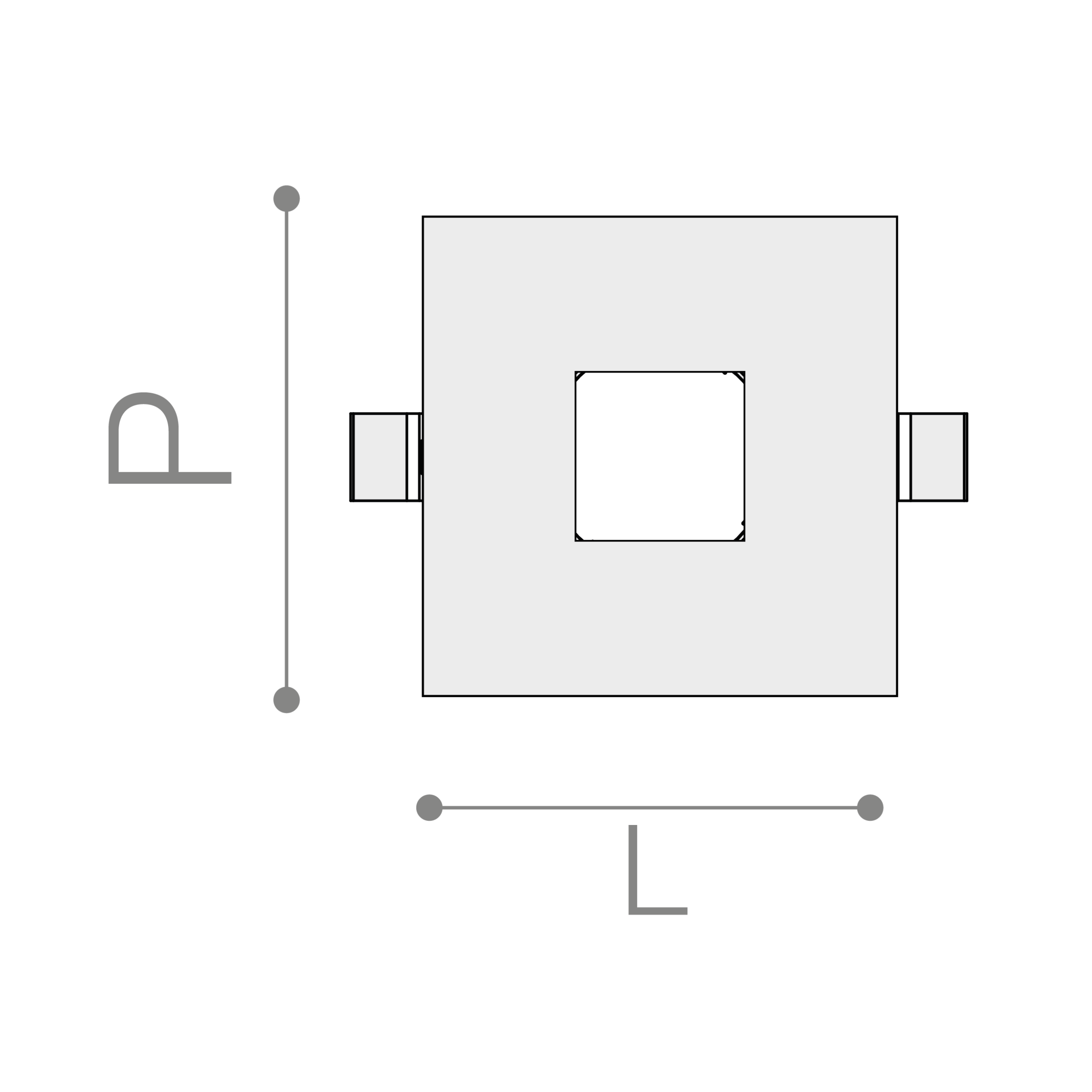

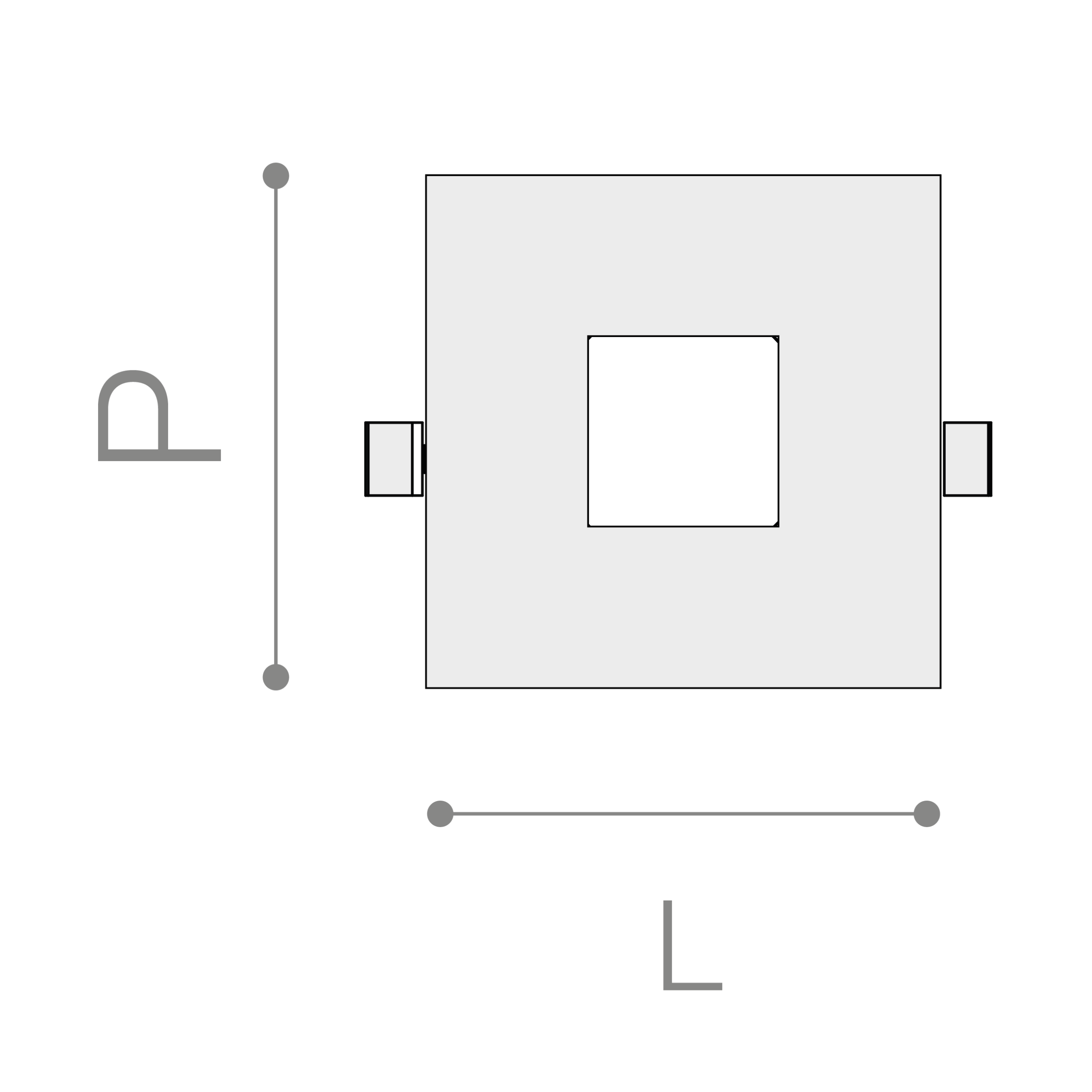

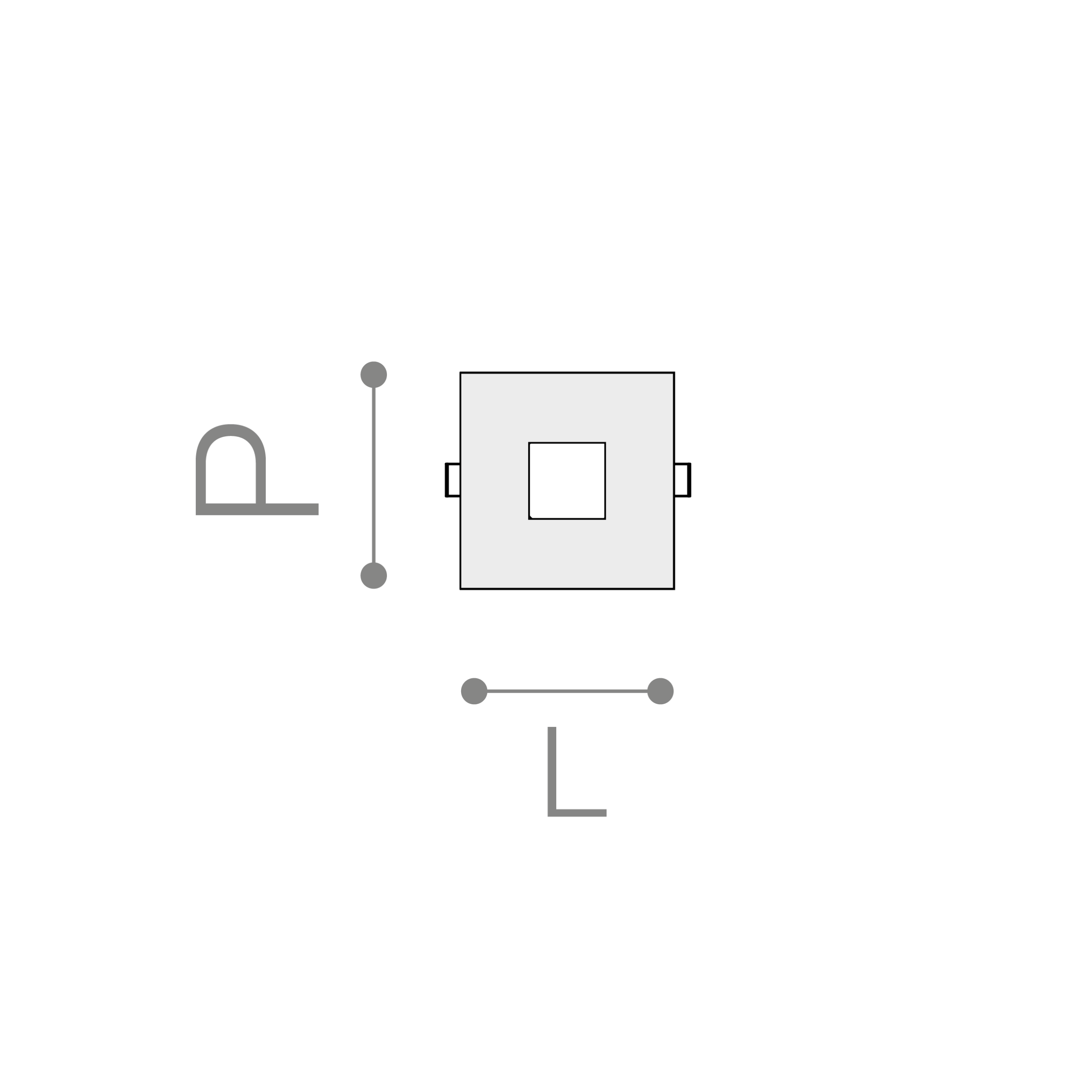

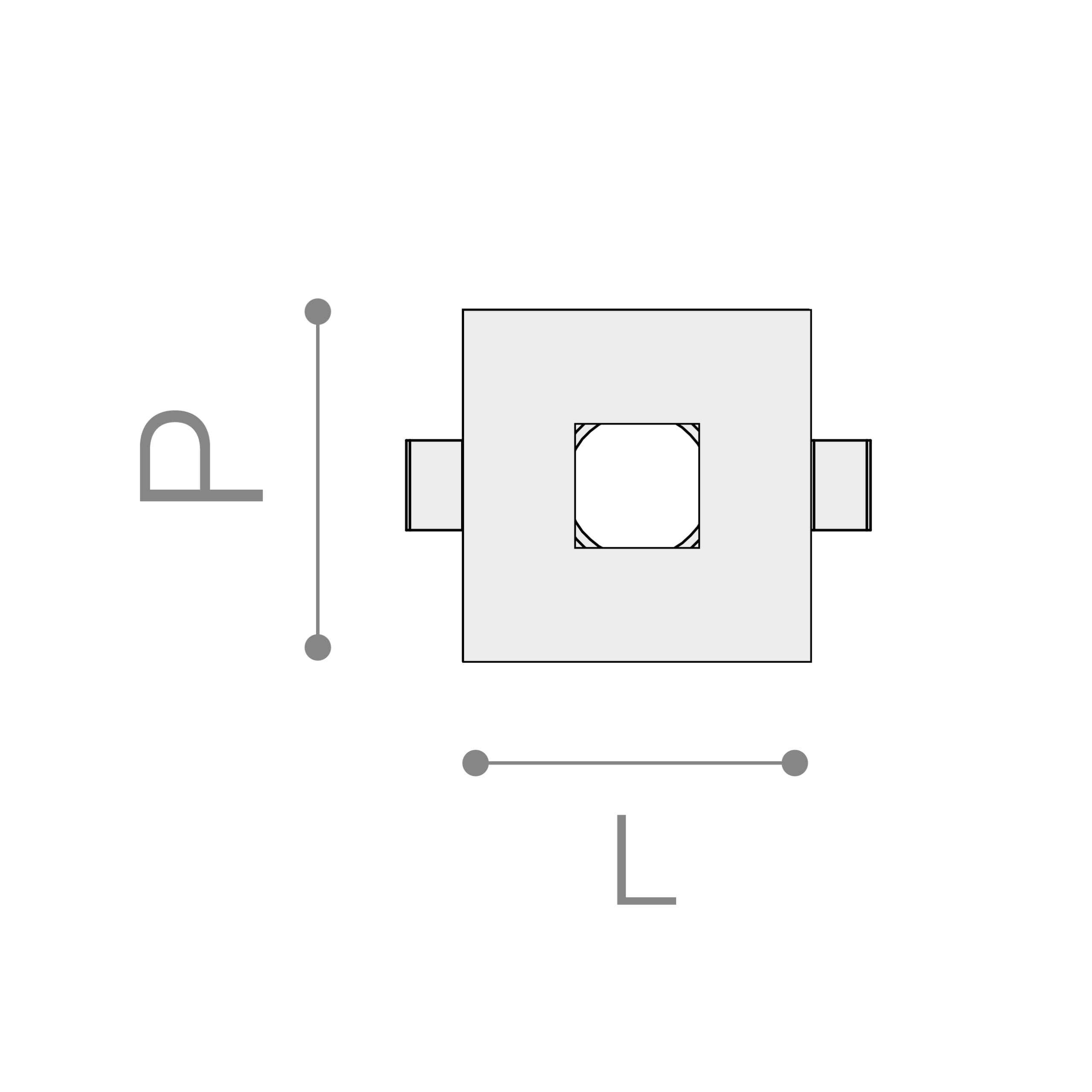

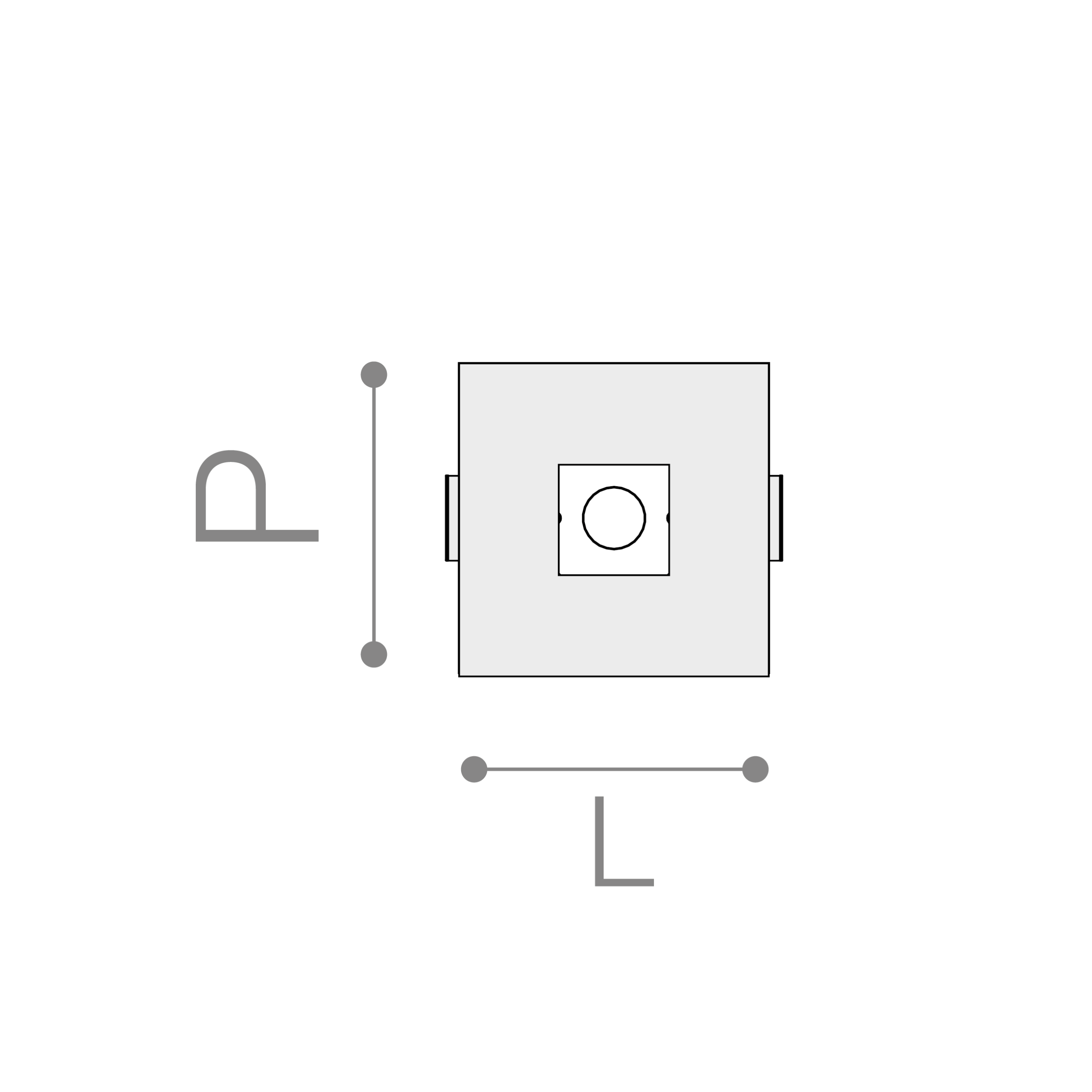

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
6020QF4002NL2-4000°K - CRI>80on/off15075404060-0.10
6020QF4004NL4-4000°K - CRI>80on/off30075404060-0.10
6020QF4006NL6-4000°K - CRI>80on/off48881555577-0.20
6020QF4008NL8-4000°K - CRI>80on/off78798757580-0.25
6020QF4015NL15-4000°K - CRI>80on/off1511101105105110-0.40
6020QF4025NL25-4000°K - CRI>80on/off232893135135105-0.50
6020QF4040NL40-4000°K - CRI>80on/off373993135135135-0.80
6020QF4008ND8-4000°K - CRI>80dali 2 / dali 2 push78798757580-0.25
6020QF4015ND15-4000°K - CRI>80dali 2 / dali 2 push1511101105105110-0.40
6020QF4025ND25-4000°K - CRI>80dali 2 / dali 2 push232893135135105-0.50
6020QF4040ND40-4000°K - CRI>80dali 2 / dali 2 push373993135135135-0.80
6020QF3002NL2-3000°K - CRI>80on/off14573404060-0.10
6020QF3004NL4-3000°K - CRI>80on/off29173404060-0.10
6020QF3006NL6-3000°K - CRI>80on/off47379555577-0.20
6020QF3008NL8-3000°K - CRI>80on/off76395757580-0.25
6020QF3015NL15-3000°K - CRI>80on/off146598105105110-0.40
6020QF3025NL25-3000°K - CRI>80on/off225890135135105-0.50
6020QF3040NL40-3000°K - CRI>80on/off362691135135135-0.80
6020QF3008ND8-3000°K - CRI>80dali 2 / dali 2 push76395757580-0.25
6020QF3015ND15-3000°K - CRI>80dali 2 / dali 2 push146598105105110-0.40
