| Art. | + | Mod. | + | °K (CRI) | + | W tot. | + | Options | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 6021 | RF | 27 | = 2700°K (CRI >80) | 06 | BL | = on/off | ||||
| 30 | = 3000°K (CRI >80) | 10 | BD | = dali 2 / dali 2 push | ||||||
| 40 | = 4000°K (CRI >80) | 15 | ||||||||
| 97 | = 2700°K (CRI >80) | 25 | ||||||||
| 93 | = 3000°K (CRI >80) | 40 | ||||||||
| 94 | = 4000°K (CRI >80) |

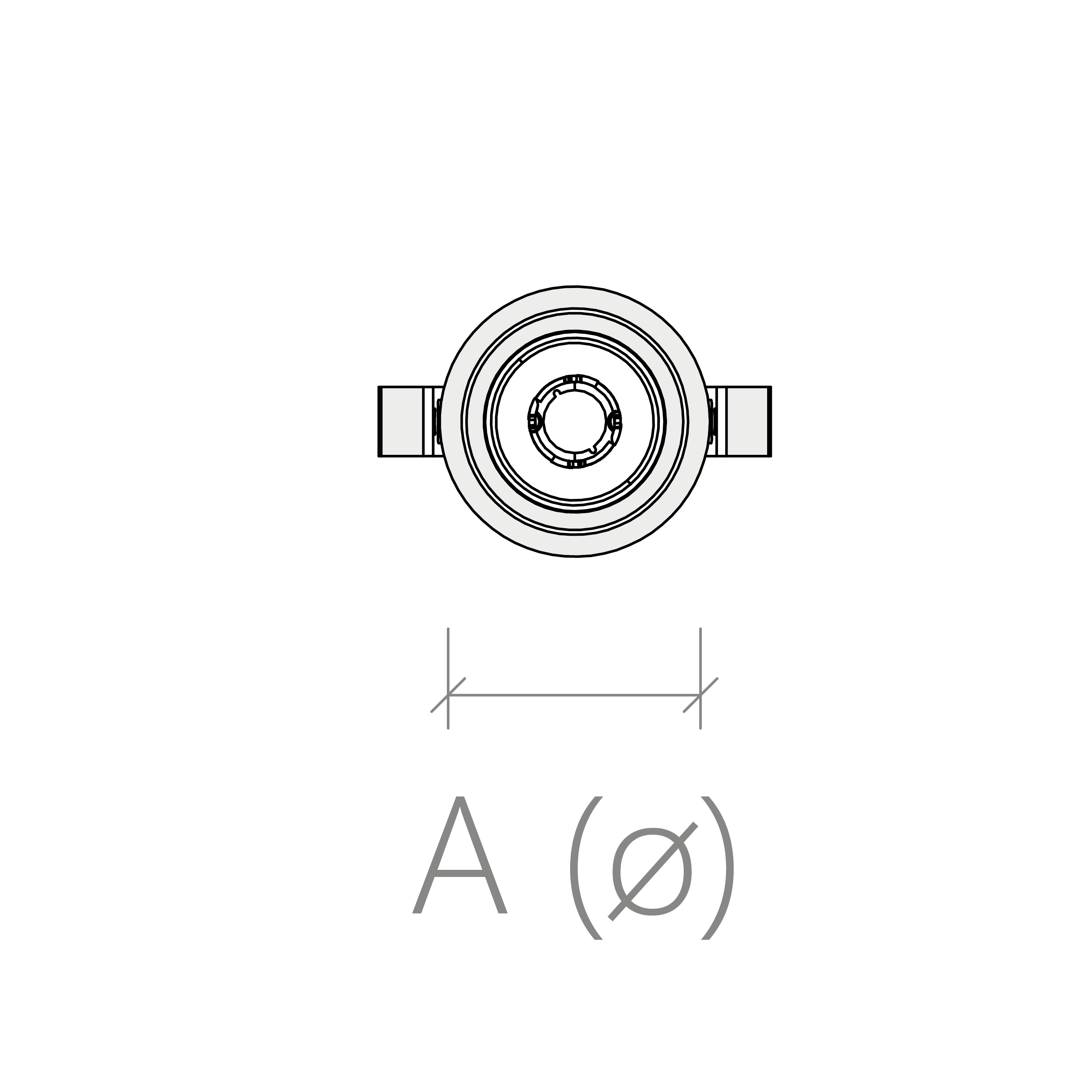

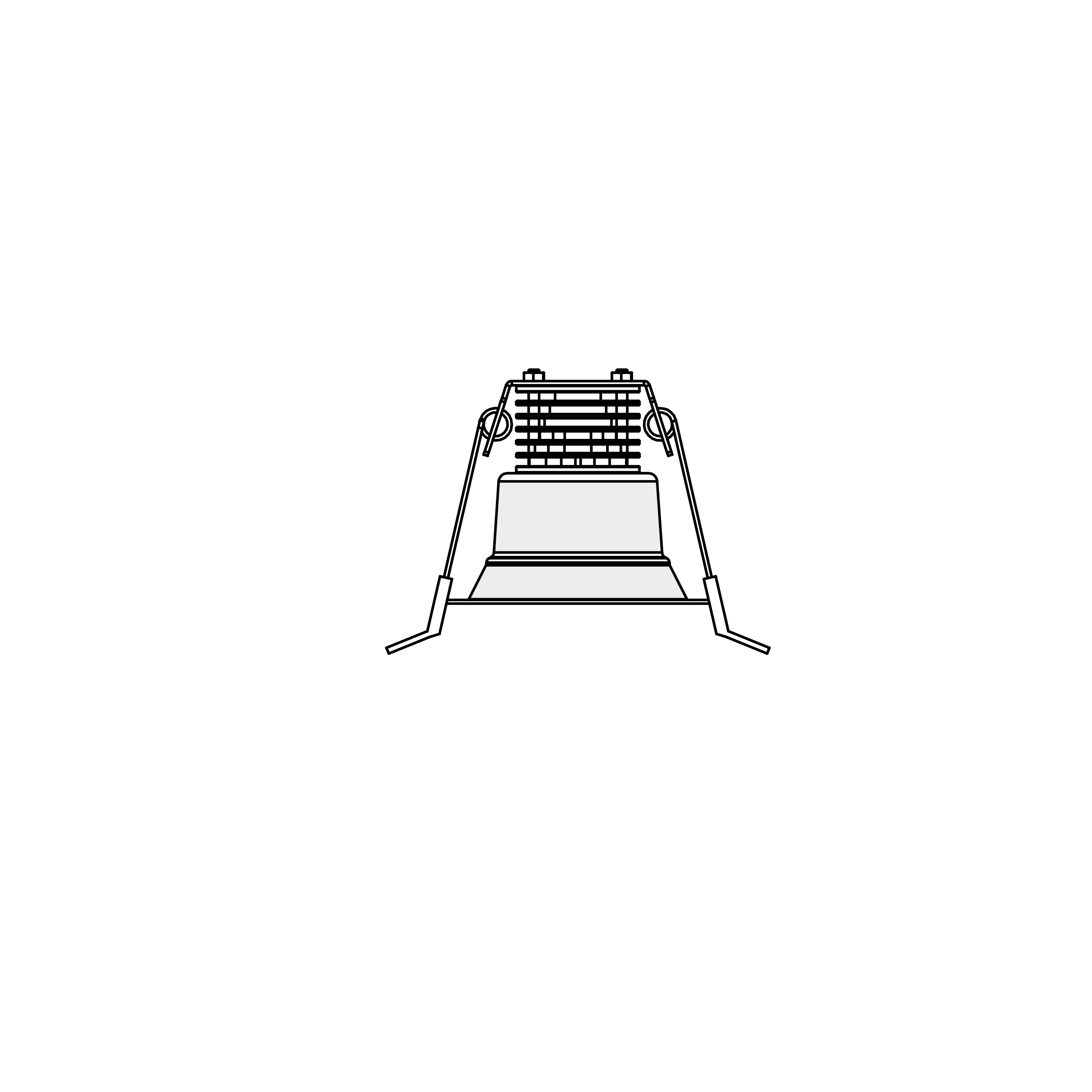

| Codice | W tot. | mA | °K - CRI | Options | Lumen OUTPUT | Lm/W | A (mm) | B (mm) | C (mm) | D (mm) | Kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6021RF4006BL | 6 | - | 4000°K - CRI>80 | on/off | 598 | 100 | 55 | - | 70 | - | 0.20 | |
| 6021RF4010BL | 10 | - | 4000°K - CRI>80 | on/off | 1193 | 119 | 75 | - | 70 | - | 0.25 | |
| 6021RF4015BL | 15 | - | 4000°K - CRI>80 | on/off | 1851 | 123 | 105 | - | 110 | - | 0.40 | |
| 6021RF4025BL | 25 | - | 4000°K - CRI>80 | on/off | 2852 | 114 | 135 | - | 100 | - | 0.50 | |
| 6021RF4040BL | 40 | - | 4000°K - CRI>80 | on/off | 4580 | 114 | 135 | - | 130 | - | 0.80 | |
| 6021RF4010BD | 10 | - | 4000°K - CRI>80 | dali 2 / dali 2 push | 1193 | 119 | 75 | - | 70 | - | 0.25 | |
| 6021RF4015BD | 15 | - | 4000°K - CRI>80 | dali 2 / dali 2 push | 1851 | 123 | 105 | - | 110 | - | 0.40 | |
| 6021RF4025BD | 25 | - | 4000°K - CRI>80 | dali 2 / dali 2 push | 2852 | 114 | 135 | - | 100 | - | 0.50 | |
| 6021RF4040BD | 40 | - | 4000°K - CRI>80 | dali 2 / dali 2 push | 4580 | 114 | 135 | - | 130 | - | 0.80 | |
| 6021RF3006BL | 6 | - | 3000°K - CRI>80 | on/off | 580 | 97 | 55 | - | 70 | - | 0.20 | |
| 6021RF3010BL | 10 | - | 3000°K - CRI>80 | on/off | 1157 | 116 | 75 | - | 70 | - | 0.25 | |
| 6021RF3015BL | 15 | - | 3000°K - CRI>80 | on/off | 1795 | 120 | 105 | - | 110 | - | 0.40 | |
| 6021RF3025BL | 25 | - | 3000°K - CRI>80 | on/off | 2766 | 111 | 135 | - | 100 | - | 0.50 | |
| 6021RF3040BL | 40 | - | 3000°K - CRI>80 | on/off | 4442 | 111 | 135 | - | 130 | - | 0.80 | |
| 6021RF3010BD | 10 | - | 3000°K - CRI>80 | dali 2 / dali 2 push | 1157 | 116 | 75 | - | 70 | - | 0.25 | |
| 6021RF3015BD | 15 | - | 3000°K - CRI>80 | dali 2 / dali 2 push | 1795 | 120 | 105 | - | 110 | - | 0.40 | |
| 6021RF3025BD | 25 | - | 3000°K - CRI>80 | dali 2 / dali 2 push | 2766 | 111 | 135 | - | 100 | - | 0.50 | |
| 6021RF3040BD | 40 | - | 3000°K - CRI>80 | dali 2 / dali 2 push | 4442 | 111 | 135 | - | 130 | - | 0.80 | |
| 6021RF2706BL | 6 | - | 2700°K - CRI>80 | on/off | 552 | 92 | 55 | - | 70 | - | 0.20 | |
| 6021RF2710BL | 10 | - | 2700°K - CRI>80 | on/off | 1102 | 110 | 75 | - | 70 | - | 0.25 |
