TADAO/QF

Led indoor spotlight for recessed installation. Body in sheared turned aluminum painted with white epoxy-polyester powders (pre-treatment of phosphating and degreasing). Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, TADAO - 6022, Architectural Indoor, art. 6022 Tadao
Models: 54
Color: Matt white
Catalogue abstract
Installation instructions

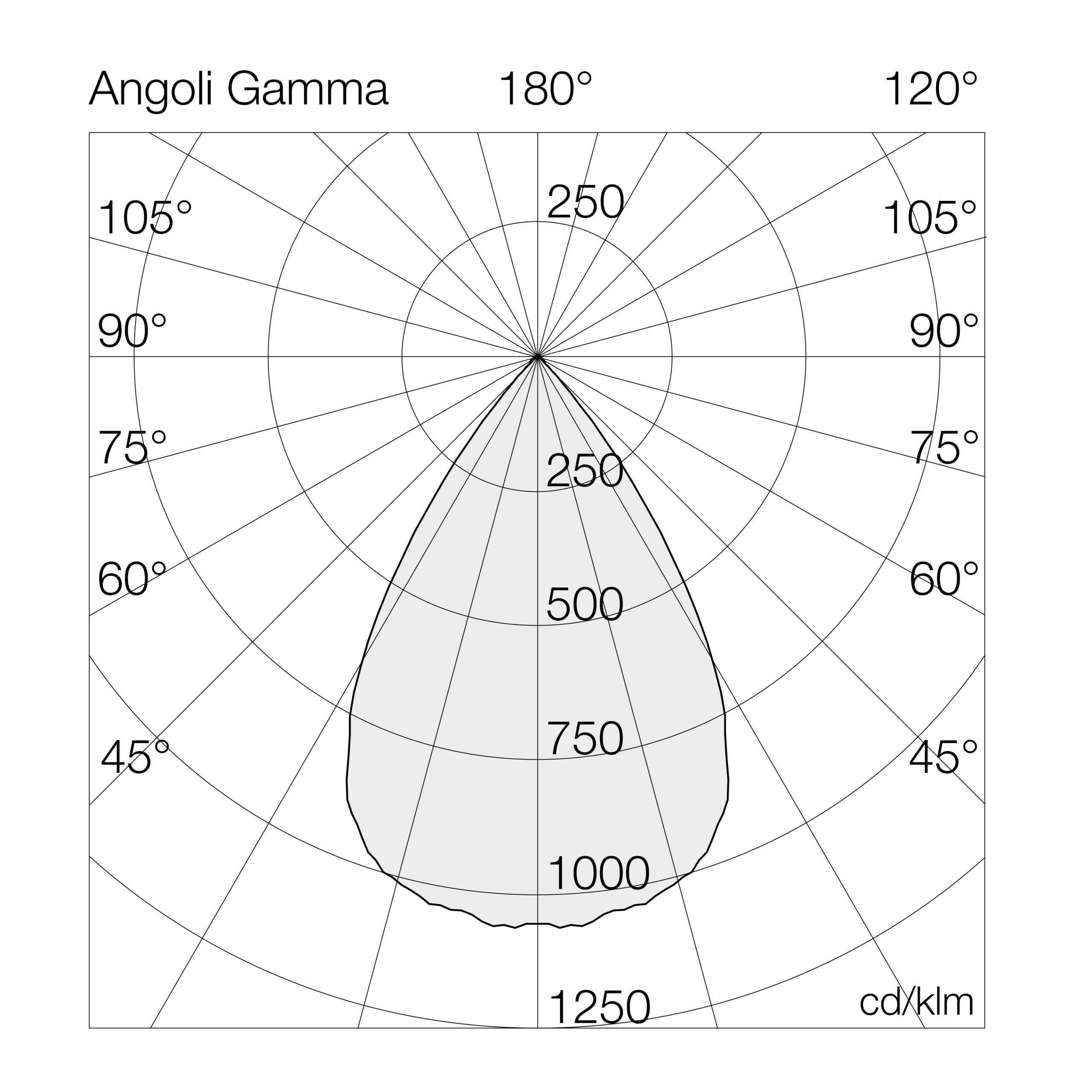

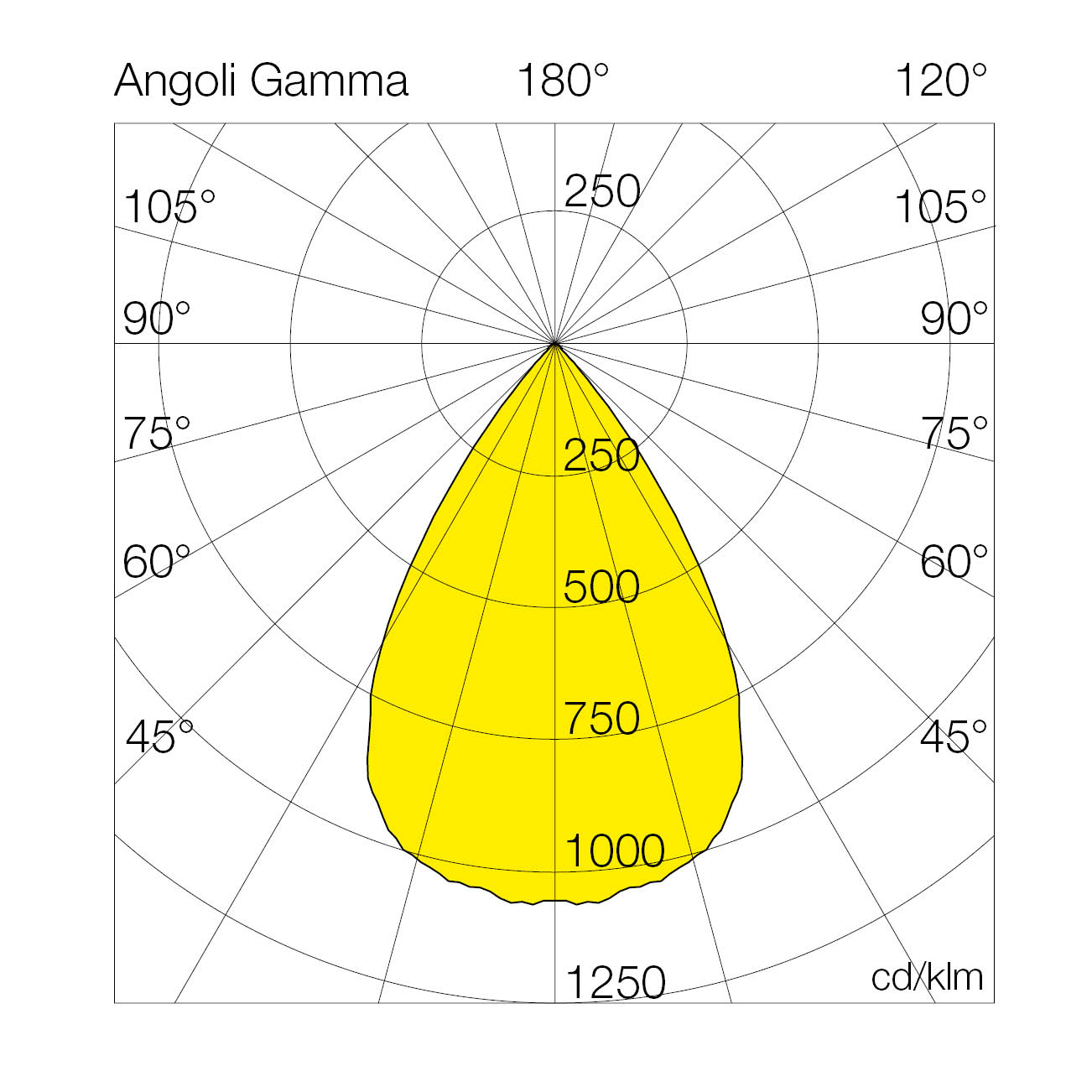

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6022QF27= 2700°K (CRI >80)06BL= on/off
30= 3000°K (CRI >80)10BD= dali 2 / dali 2 push
40= 4000°K (CRI >80)15
97= 2700°K (CRI >80)25
93= 3000°K (CRI >80)40
94= 4000°K (CRI >80)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6022QF4006BL6-4000°K - CRI>80on/off52888555580-0.20
6022QF4010BL10-4000°K - CRI>80on/off1055105757590-0.25
6022QF4015BL15-4000°K - CRI>80on/off1637109105105130-0.40
6022QF4025BL25-4000°K - CRI>80on/off2522101135135110-0.50
6022QF4040BL40-4000°K - CRI>80on/off4050101135135140-0.80
6022QF4010BD10-4000°K - CRI>80dali 2 / dali 2 push1055105757590-0.25
6022QF4015BD15-4000°K - CRI>80dali 2 / dali 2 push1637109105105130-0.40
6022QF4025BD25-4000°K - CRI>80dali 2 / dali 2 push2522101135135110-0.50
6022QF4040BD40-4000°K - CRI>80dali 2 / dali 2 push4050101135135140-0.80
6022QF3006BL6-3000°K - CRI>80on/off51285555580-0.20
6022QF3010BL10-3000°K - CRI>80on/off1023102757590-0.25
6022QF3015BL15-3000°K - CRI>80on/off1588106105105130-0.40
6022QF3025BL25-3000°K - CRI>80on/off244698135135110-0.50
6022QF3040BL40-3000°K - CRI>80on/off392898135135140-0.80
6022QF3010BD10-3000°K - CRI>80dali 2 / dali 2 push1023102757590-0.25
6022QF3015BD15-3000°K - CRI>80dali 2 / dali 2 push1588106105105130-0.40
6022QF3025BD25-3000°K - CRI>80dali 2 / dali 2 push244698135135110-0.50
6022QF3040BD40-3000°K - CRI>80dali 2 / dali 2 push392898135135140-0.80
6022QF2706BL6-2700°K - CRI>80on/off48881555580-0.20
6022QF2710BL10-2700°K - CRI>80on/off97497757590-0.25
