art.-6023-elio-qs-qf-nero

ELIO – Mod. QS

(Medium optics 36° - UGR<16)

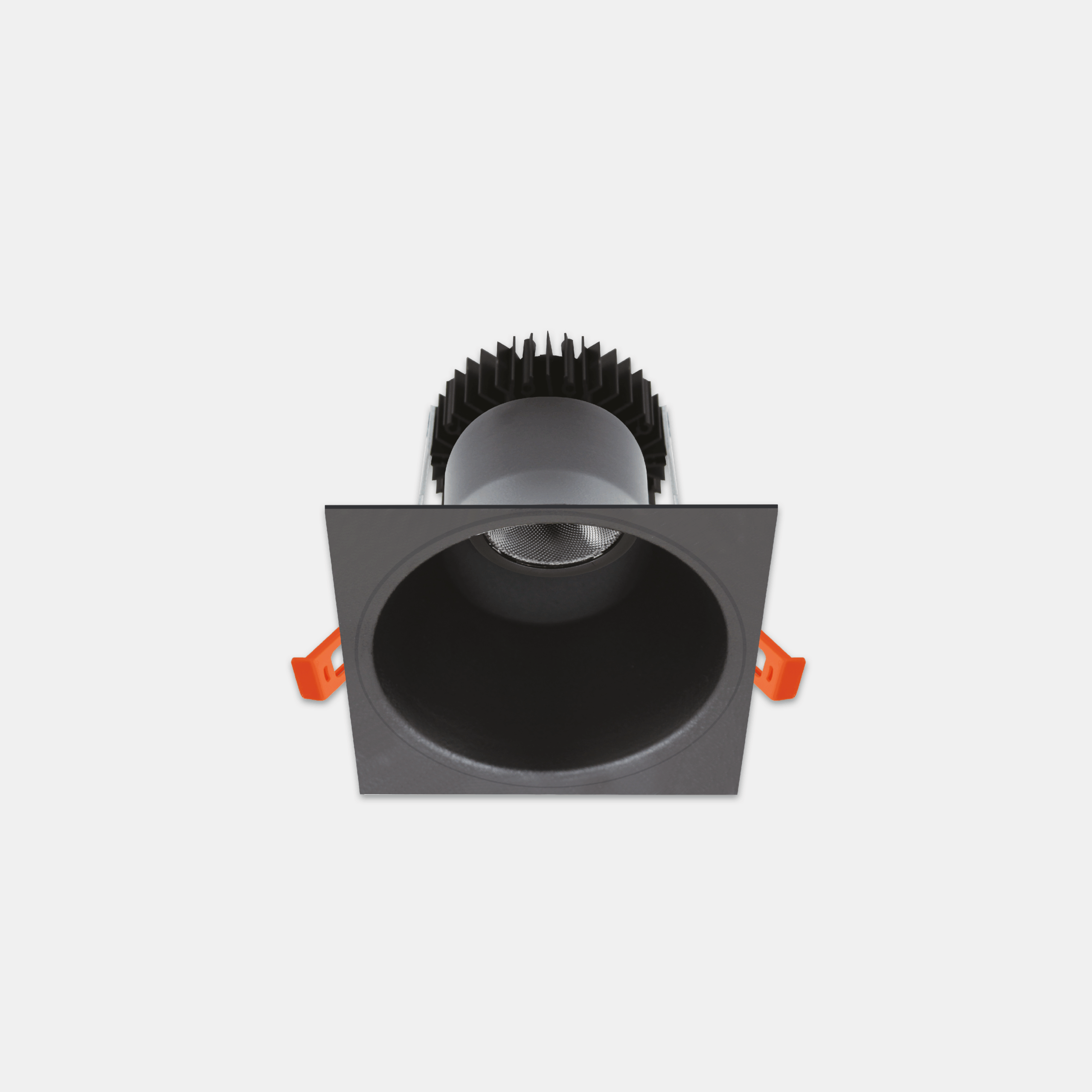

Indoor LED fixture suitable for recessed installation. Square frame, both made of turned aluminum painted with black epoxy-polyester powder coating (phosphating and degreasing pretreatment). Black anodized extruded aluminum heat sink, fixing springs included. Medium optics 36° - UGR<16.
Categories: Led, ELIO - 6023, Architectural Indoor, ELIO
Models: 54
Color: Matt black
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6023QS27= 2700°K (CRI >80)06NL= on/off
30= 3000°K (CRI >80)10ND= dali 2 / dali 2 push
40= 4000°K (CRI >80)15
93= 3000°K (CRI >90)25
94= 4000°K (CRI >90)40

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
6023QS4006NL6-4000°K - CRI>80on/off55392555580-0.20
6023QS4010NL10-4000°K - CRI>80on/off1104110757590-0.25
6023QS4015NL15-4000°K - CRI>80on/off1713114105105130-0.40
6023QS4025NL25-4000°K - CRI>80on/off2638106135135110-0.50
6023QS4040NL40-4000°K - CRI>80on/off4237106135135140-0.80
6023QS4010ND10-4000°K - CRI>80dali 2 / dali 2 push1104110757590-0.25
6023QS4015ND15-4000°K - CRI>80dali 2 / dali 2 push1713114105105130-0.40
6023QS4025ND25-4000°K - CRI>80dali 2 / dali 2 push2638106135135110-0.50
6023QS4040ND40-4000°K - CRI>80dali 2 / dali 2 push4237106135135140-0.80
6023QS3006NL6-3000°K - CRI>80on/off53689555580-0.20
6023QS3010NL10-3000°K - CRI>80on/off1071107757590-0.25
6023QS3015NL15-3000°K - CRI>80on/off1661111105105130-0.40
6023QS3025NL25-3000°K - CRI>80on/off2558102135135110-0.50
6023QS3040NL40-3000°K - CRI>80on/off4109103135135140-0.80
6023QS3010ND10-3000°K - CRI>80dali 2 / dali 2 push1071107757590-0.25
6023QS3015ND15-3000°K - CRI>80dali 2 / dali 2 push1661111105105130-0.40
6023QS3025ND25-3000°K - CRI>80dali 2 / dali 2 push2558102135135110-0.50
6023QS3040ND40-3000°K - CRI>80dali 2 / dali 2 push4109103135135140-0.80
6023QS2706NL6-2700°K - CRI>80on/off51185555580-0.20
6023QS2710NL10-2700°K - CRI>80on/off1020102757590-0.25
