| Art. | + | Mod. | + | °K (CRI) | + | W tot. | + | Options | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 6023 | RS | 27 | = 2700°K (CRI >80) | 06 | BL | = on/off | ||||
| 30 | = 3000°K (CRI >80) | 10 | BD | = dali 2 / dali 2 push | ||||||
| 40 | = 4000°K (CRI >80) | 15 | ||||||||
| 93 | = 3000°K (CRI >90) | 25 | ||||||||
| 94 | = 4000°K (CRI >90) | 40 |

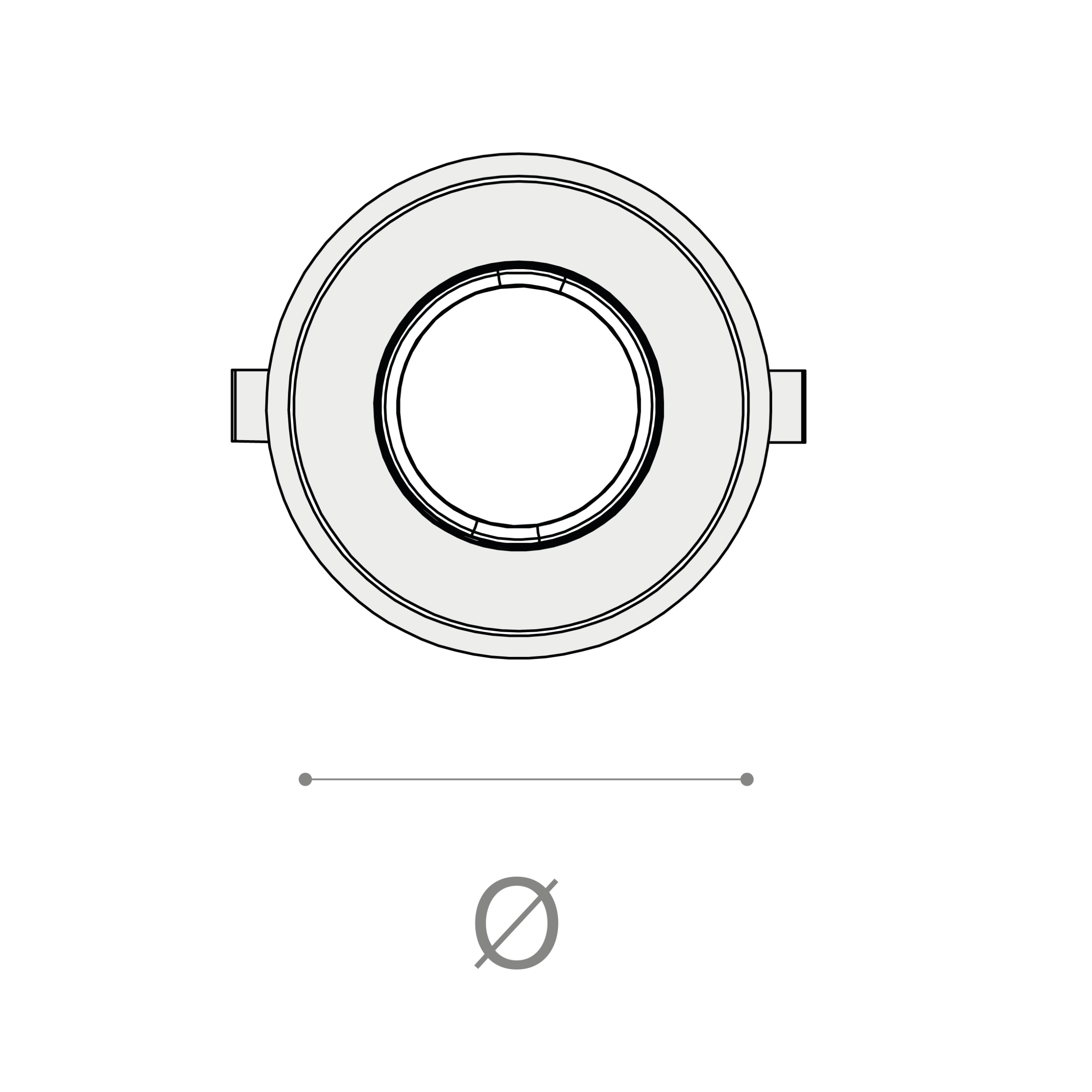

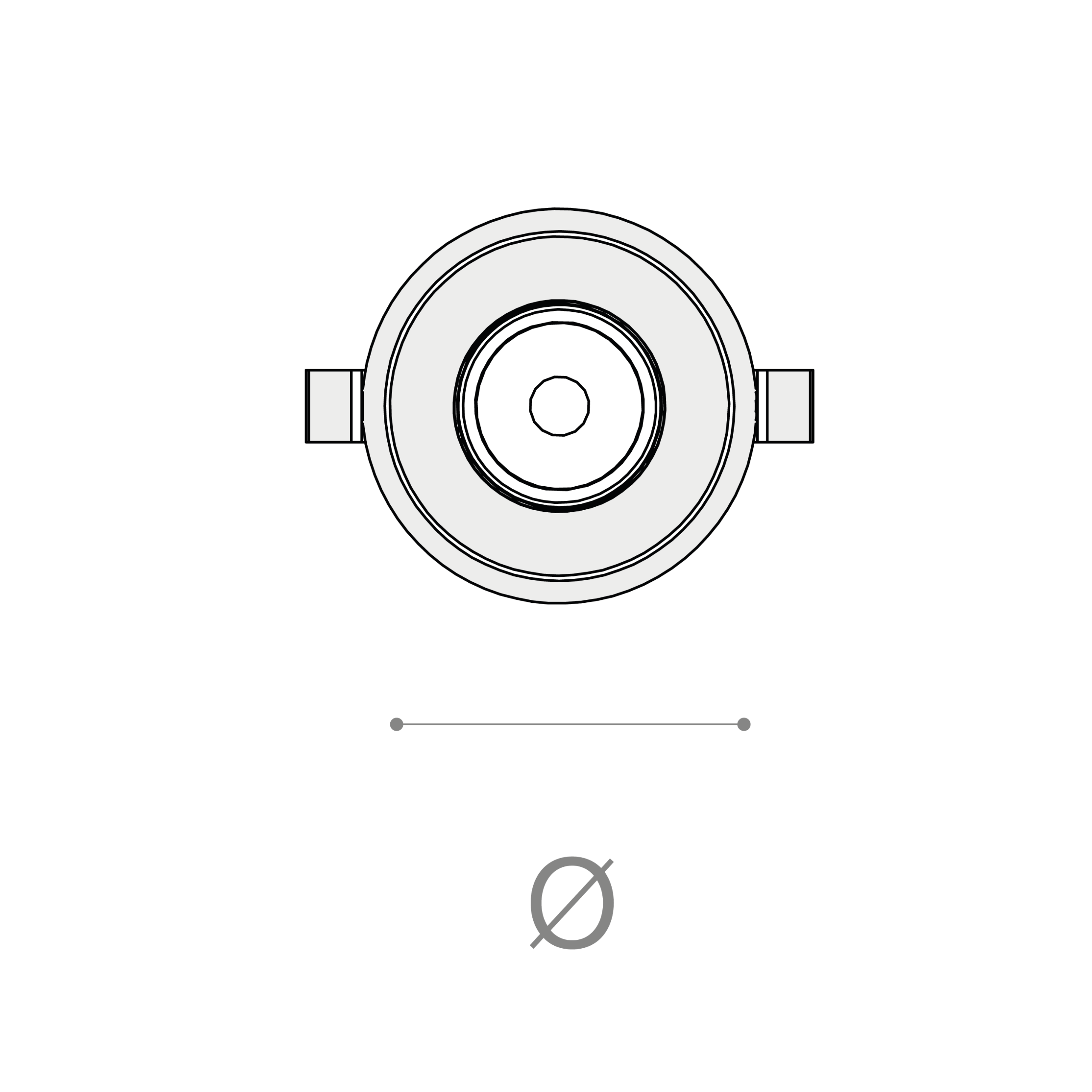

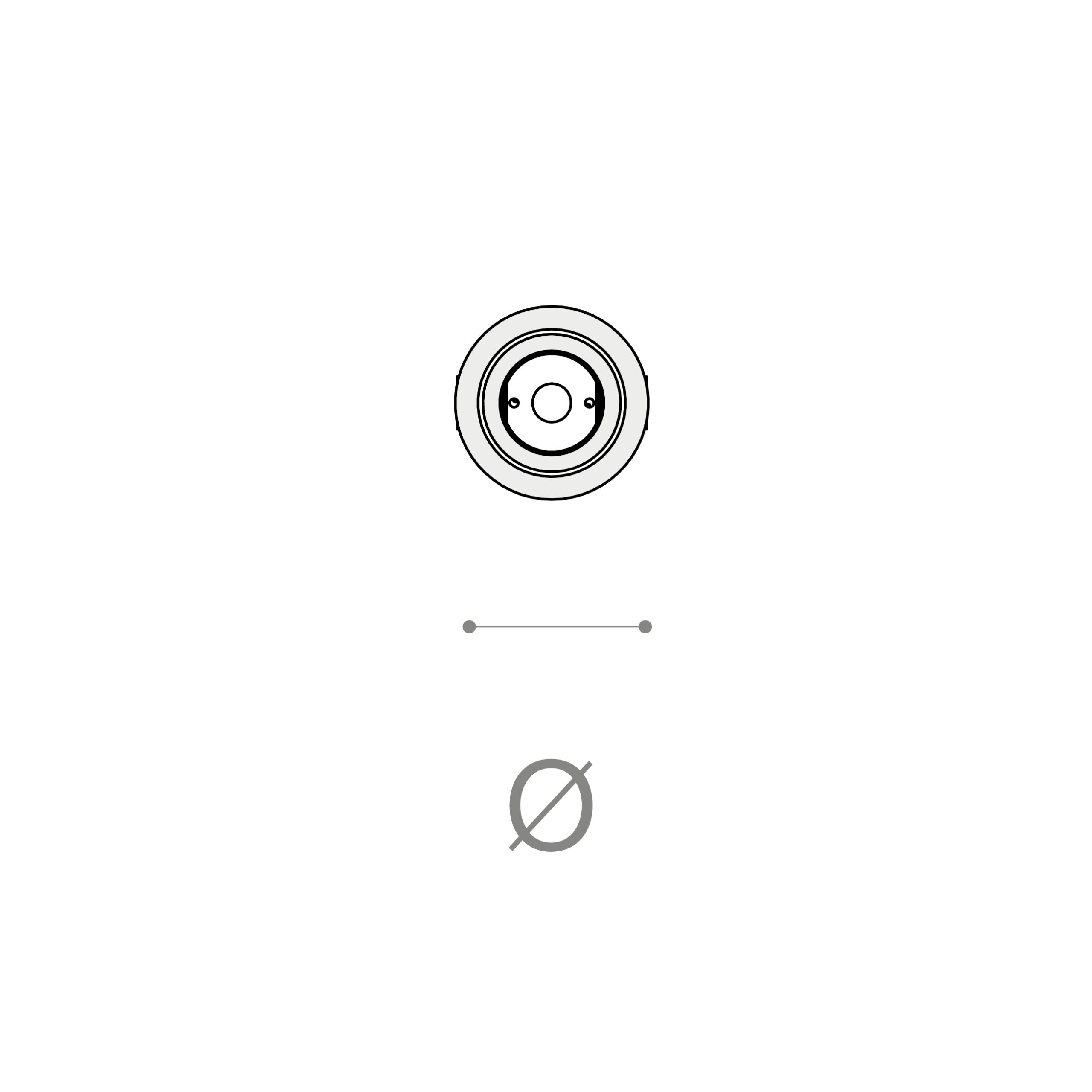

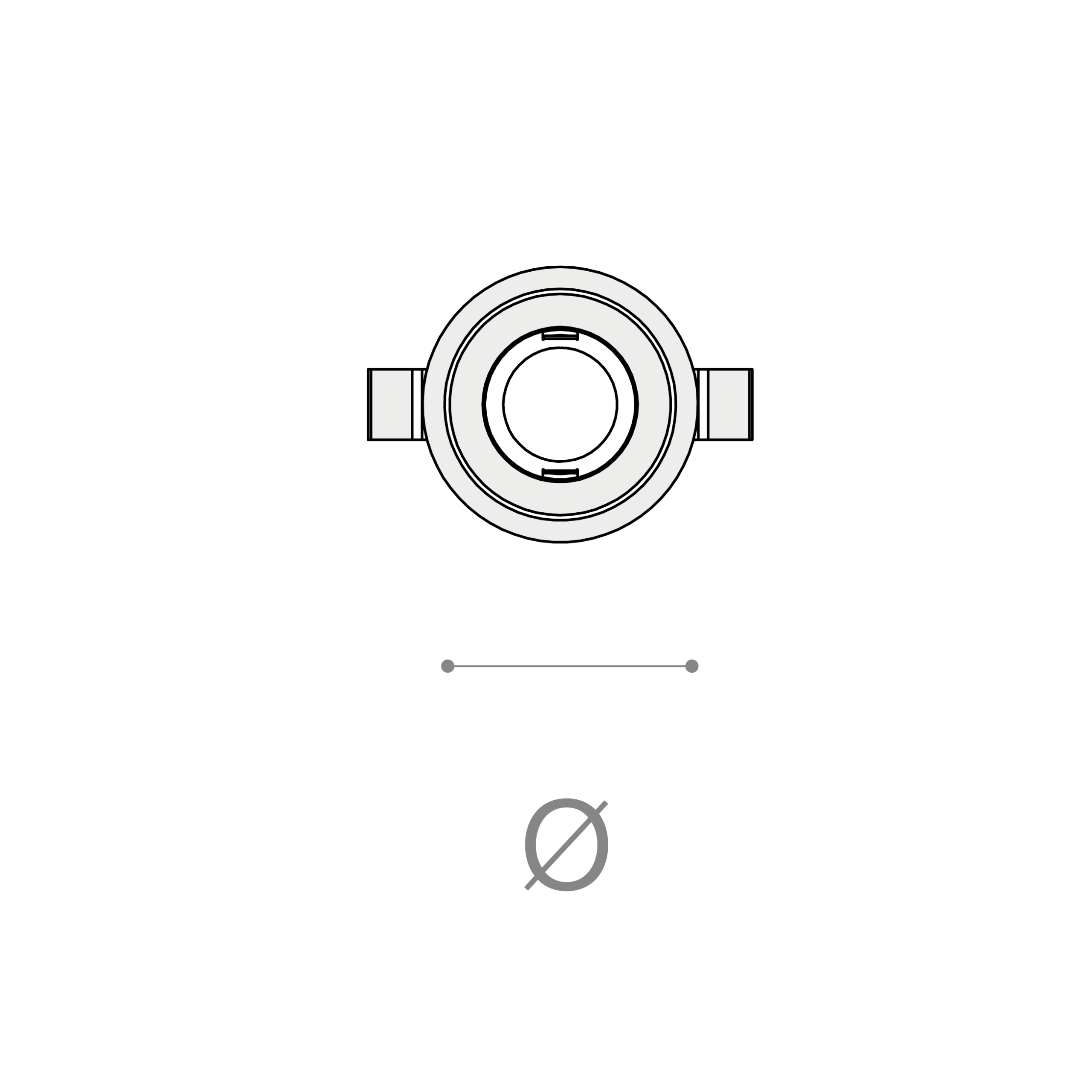

| Codice | W tot. | mA | °K - CRI | Options | Lumen OUTPUT | Lm/W | A (mm) | B (mm) | C (mm) | D (mm) | Kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6023RS4006BL | 6 | - | 4000°K - CRI>80 | on/off | 553 | 92 | 55 | - | 80 | - | 0.20 | |
| 6023RS4010BL | 10 | - | 4000°K - CRI>80 | on/off | 1104 | 110 | 75 | - | 90 | - | 0.25 | |
| 6023RS4015BL | 15 | - | 4000°K - CRI>80 | on/off | 1713 | 114 | 105 | - | 130 | - | 0.40 | |
| 6023RS4025BL | 25 | - | 4000°K - CRI>80 | on/off | 2638 | 106 | 135 | - | 110 | - | 0.50 | |
| 6023RS4040BL | 40 | - | 4000°K - CRI>80 | on/off | 4237 | 106 | 135 | - | 140 | - | 0.80 | |
| 6023RS4010BD | 10 | - | 4000°K - CRI>80 | dali 2 / dali 2 push | 1104 | 110 | 75 | - | 90 | - | 0.25 | |
| 6023RS4015BD | 15 | - | 4000°K - CRI>80 | dali 2 / dali 2 push | 1713 | 114 | 105 | - | 130 | - | 0.40 | |
| 6023RS4025BD | 25 | - | 4000°K - CRI>80 | dali 2 / dali 2 push | 2638 | 106 | 135 | - | 110 | - | 0.50 | |
| 6023RS4040BD | 40 | - | 4000°K - CRI>80 | dali 2 / dali 2 push | 4237 | 106 | 135 | - | 140 | - | 0.80 | |
| 6023RS3006BL | 6 | - | 3000°K - CRI>80 | on/off | 536 | 89 | 55 | - | 80 | - | 0.20 | |
| 6023RS3010BL | 10 | - | 3000°K - CRI>80 | on/off | 1071 | 107 | 75 | - | 90 | - | 0.25 | |
| 6023RS3015BL | 15 | - | 3000°K - CRI>80 | on/off | 1661 | 111 | 105 | - | 130 | - | 0.40 | |
| 6023RS3025BL | 25 | - | 3000°K - CRI>80 | on/off | 2558 | 102 | 135 | - | 110 | - | 0.50 | |
| 6023RS3040BL | 40 | - | 3000°K - CRI>80 | on/off | 4109 | 103 | 135 | - | 140 | - | 0.80 | |
| 6023RS3010BD | 10 | - | 3000°K - CRI>80 | dali 2 / dali 2 push | 1071 | 107 | 75 | - | 90 | - | 0.25 | |
| 6023RS3015BD | 15 | - | 3000°K - CRI>80 | dali 2 / dali 2 push | 1661 | 111 | 105 | - | 130 | - | 0.40 | |
| 6023RS3025BD | 25 | - | 3000°K - CRI>80 | dali 2 / dali 2 push | 2558 | 102 | 135 | - | 110 | - | 0.50 | |
| 6023RS3040BD | 40 | - | 3000°K - CRI>80 | dali 2 / dali 2 push | 4109 | 103 | 135 | - | 140 | - | 0.80 | |
| 6023RS2706BL | 6 | - | 2700°K - CRI>80 | on/off | 511 | 85 | 55 | - | 80 | - | 0.20 | |
| 6023RS2710BL | 10 | - | 2700°K - CRI>80 | on/off | 1020 | 102 | 75 | - | 90 | - | 0.25 |
