art.-6101-talo-c1-c3-c6-z1-bianco

TALO/C1

Small size adjustable LED spot light suitable for Eurostandard electrified track. Die-cast aluminum body painted with matt white anti-yellowing epoxy-polyester powders with fine embossed finish, 220-240V 50/60Hz or 48Vdc electronic power supply. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, TALO - 6101, Retail, art. 6101 Talo
Models: 256
Color: Matt white
Catalogue abstract
Installation instructions

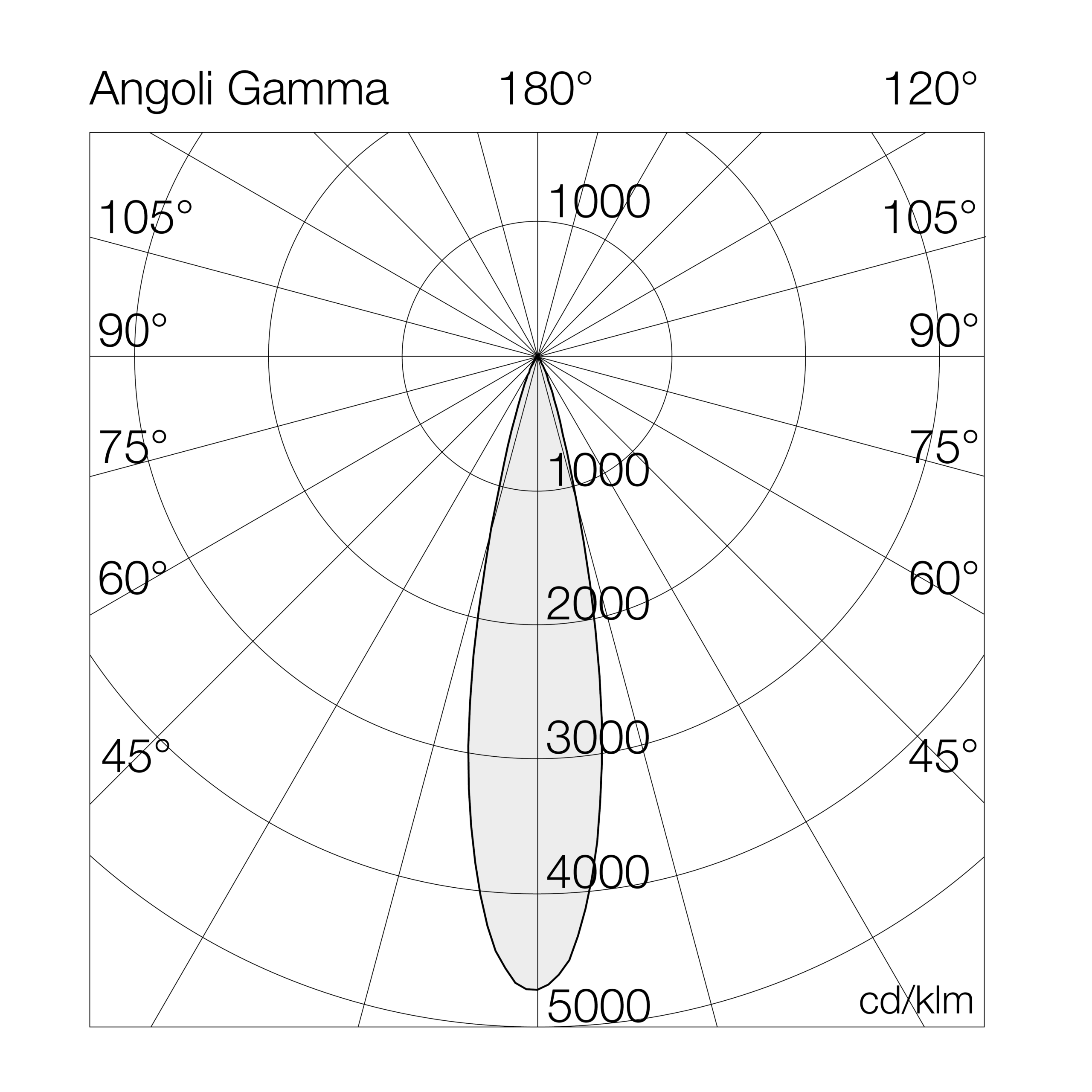

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6101C127= 2700°K (CRI >80)12BL= on/off (220-240Vac)
30= 3000°K (CRI >80)15BD= dali (220-240Vac)
40= 4000°K (CRI >80)18B4= on/off (48Vdc)
93= 3000°K (CRI >90)22D4= dali (48Vdc)
94= 4000°K (CRI >90)26
M0= Meat32
V0= Vegetables
FW= Fashion White

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6101C14012BL12-4000°K - CRI>80on/off (220-240Vac)17841496565100-0.45
6101C14015BL15-4000°K - CRI>80on/off (220-240Vac)21461436565100-0.45
6101C14018BL18-4000°K - CRI>80on/off (220-240Vac)25011396565100-0.45
6101C14022BL22-4000°K - CRI>80on/off (220-240Vac)29621356565100-0.45
6101C14026BL26-4000°K - CRI>80on/off (220-240Vac)34101316565100-0.45
6101C14032BL32-4000°K - CRI>80on/off (220-240Vac)40561276565100-0.45
6101C14036BL36-4000°K - CRI>80on/off (220-240Vac)44711246565100-0.45
6101C14040BL40-4000°K - CRI>80on/off (220-240Vac)48741226565100-0.45
6101C14012BD12-4000°K - CRI>80dali (220-240Vac)17841496565100-0.45
6101C14015BD15-4000°K - CRI>80dali (220-240Vac)21461436565100-0.45
6101C14018BD18-4000°K - CRI>80dali (220-240Vac)25011396565100-0.45
6101C14022BD22-4000°K - CRI>80dali (220-240Vac)29621356565100-0.45
6101C14026BD26-4000°K - CRI>80dali (220-240Vac)34101316565100-0.45
6101C14032BD32-4000°K - CRI>80dali (220-240Vac)40561276565100-0.45
6101C14036BD36-4000°K - CRI>80dali (220-240Vac)44711246565100-0.45
6101C14040BD40-4000°K - CRI>80dali (220-240Vac)48741226565100-0.45
6101C14012B412-4000°K - CRI>80on/off (48Vdc)17841496565100-0.45
6101C14015B415-4000°K - CRI>80on/off (48Vdc)21461436565100-0.45
6101C14018B418-4000°K - CRI>80on/off (48Vdc)25011396565100-0.45
6101C14022B422-4000°K - CRI>80on/off (48Vdc)29621356565100-0.45
