art.-6101-talo-c1-c3-c6-z1-bianco

TALO/C3

Small size adjustable LED spot light suitable for Eurostandard electrified track. Die-cast aluminum body painted with matt white anti-yellowing epoxy-polyester powders with fine embossed finish, 220-240V 50/60Hz or 48Vdc electronic power supply. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, TALO - 6101, Retail, art. 6101 Talo
Models: 256
Color: Matt white
Catalogue abstract
Installation instructions

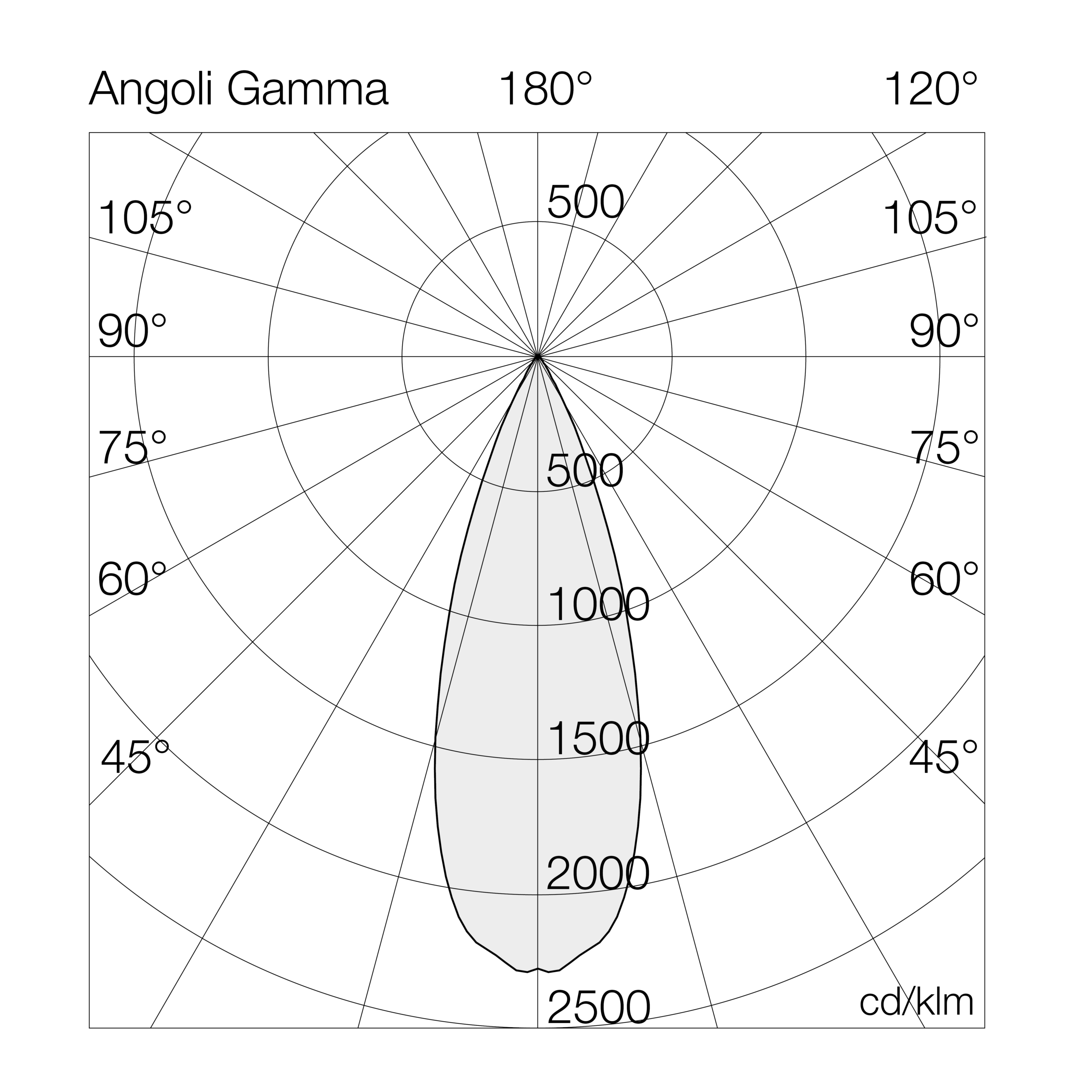

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6101C327= 2700°K (CRI >80)12BL= on/off
30= 3000°K (CRI >80)15BD= dali
40= 4000°K (CRI >80)18B4= on/off - 48Vdc
93= 3000°K (CRI >90)22D4= dali - 48Vdc
94= 4000°K (CRI >90)26
M0= Meat32
V0= Vegetables
FW= Fashion White

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6101C34012BL12-4000°K - CRI>80on/off (220-240Vac)16991426565100-0.45
6101C34015BL15-4000°K - CRI>80on/off (220-240Vac)20441366565100-0.45
6101C34018BL18-4000°K - CRI>80on/off (220-240Vac)23821326565100-0.45
6101C34022BL22-4000°K - CRI>80on/off (220-240Vac)28211286565100-0.45
6101C34026BL26-4000°K - CRI>80on/off (220-240Vac)32471256565100-0.45
6101C34032BL32-4000°K - CRI>80on/off (220-240Vac)38631216565100-0.45
6101C34036BL36-4000°K - CRI>80on/off (220-240Vac)42581186565100-0.45
6101C34040BL40-4000°K - CRI>80on/off (220-240Vac)46421166565100-0.45
6101C34012BD12-4000°K - CRI>80dali (220-240Vac)16991426565100-0.45
6101C34015BD15-4000°K - CRI>80dali (220-240Vac)20441366565100-0.45
6101C34018BD18-4000°K - CRI>80dali (220-240Vac)23821326565100-0.45
6101C34022BD22-4000°K - CRI>80dali (220-240Vac)28211286565100-0.45
6101C34026BD26-4000°K - CRI>80dali (220-240Vac)32471256565100-0.45
6101C34032BD32-4000°K - CRI>80dali (220-240Vac)38631216565100-0.45
6101C34036BD36-4000°K - CRI>80dali (220-240Vac)42581186565100-0.45
6101C34040BD40-4000°K - CRI>80dali (220-240Vac)46421166565100-0.45
6101C34012B412-4000°K - CRI>80on/off (48Vdc)16991426565100-0.45
6101C34015B415-4000°K - CRI>80on/off (48Vdc)20441366565100-0.45
6101C34018B418-4000°K - CRI>80on/off (48Vdc)23821326565100-0.45
6101C34022B422-4000°K - CRI>80on/off (48Vdc)28211286565100-0.45
