art.-6101-talo-c1-c3-c6-z1-bianco

TALO/C6

Small size adjustable LED spot light suitable for Eurostandard electrified track. Die-cast aluminum body painted with matt white anti-yellowing epoxy-polyester powders with fine embossed finish, 220-240V 50/60Hz or 48Vdc electronic power supply. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, TALO - 6101, Retail, art. 6101 Talo
Models: 256
Color: Matt white
Catalogue abstract
Installation instructions

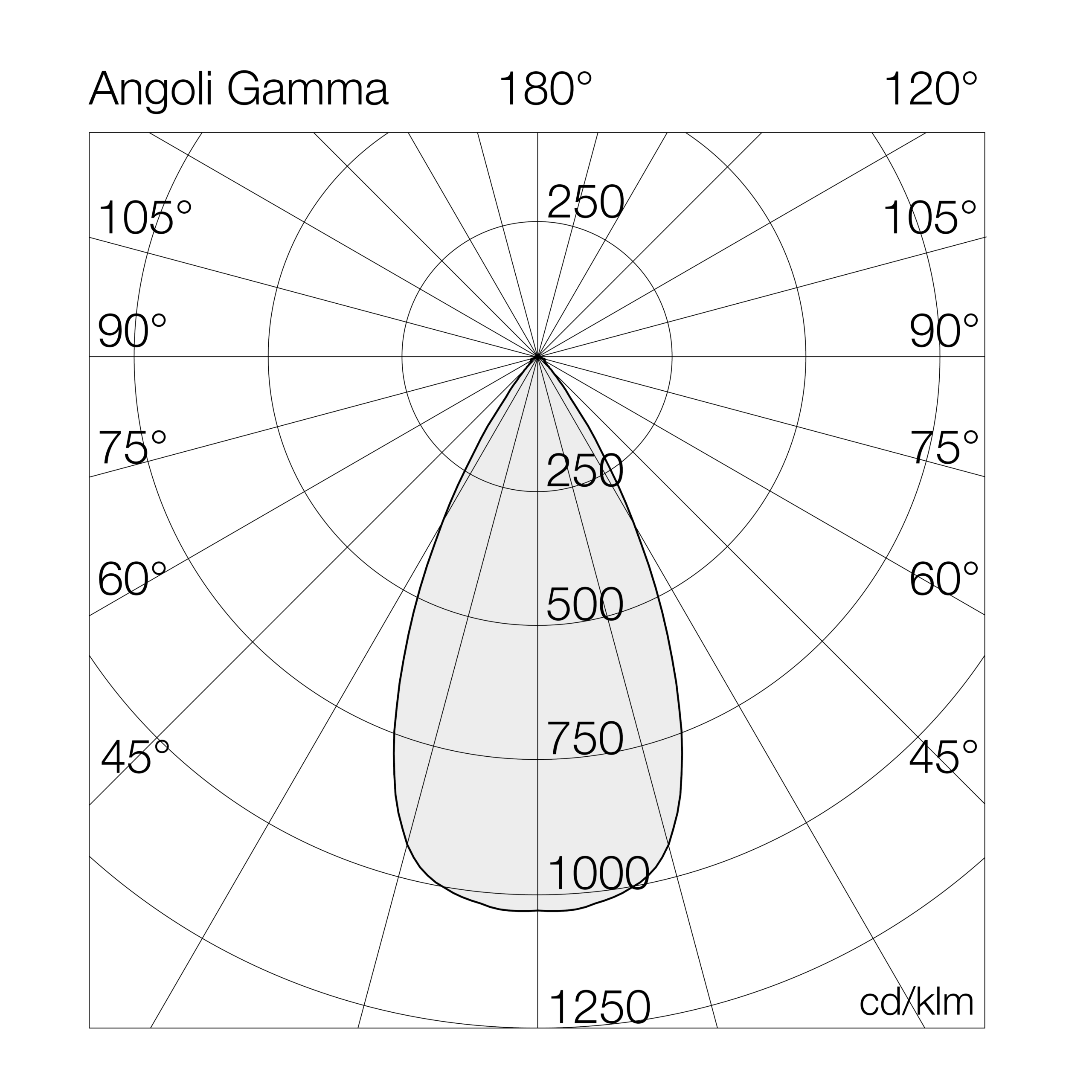

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6101C627= 2700°K (CRI >80)12BL= on/off
30= 3000°K (CRI >80)15BD= dali
40= 4000°K (CRI >80)18B4= on/off - 48Vdc
93= 3000°K (CRI >90)22D4= dali - 48Vdc
94= 4000°K (CRI >90)26
M0= Meat32
V0= Vegetables
FW= Fashion White

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6101C64012BL12-4000°K - CRI>80on/off (220-240Vac)16781406565100-0.45
6101C64015BL15-4000°K - CRI>80on/off (220-240Vac)20181356565100-0.45
6101C64018BL18-4000°K - CRI>80on/off (220-240Vac)23521316565100-0.45
6101C64022BL22-4000°K - CRI>80on/off (220-240Vac)27861276565100-0.45
6101C64026BL26-4000°K - CRI>80on/off (220-240Vac)32071236565100-0.45
6101C64032BL32-4000°K - CRI>80on/off (220-240Vac)38151196565100-0.45
6101C64036BL36-4000°K - CRI>80on/off (220-240Vac)42051176565100-0.45
6101C64040BL40-4000°K - CRI>80on/off (220-240Vac)45841156565100-0.45
6101C64012BD12-4000°K - CRI>80dali (220-240Vac)16781406565100-0.45
6101C64015BD15-4000°K - CRI>80dali (220-240Vac)20181356565100-0.45
6101C64018BD18-4000°K - CRI>80dali (220-240Vac)23521316565100-0.45
6101C64022BD22-4000°K - CRI>80dali (220-240Vac)27861276565100-0.45
6101C64026BD26-4000°K - CRI>80dali (220-240Vac)32071236565100-0.45
6101C64032BD32-4000°K - CRI>80dali (220-240Vac)38151196565100-0.45
6101C64036BD36-4000°K - CRI>80dali (220-240Vac)42051176565100-0.45
6101C64040BD40-4000°K - CRI>80dali (220-240Vac)45841156565100-0.45
6101C64012B412-4000°K - CRI>80on/off (48Vdc)16781406565100-0.45
6101C64015B415-4000°K - CRI>80on/off (48Vdc)20181356565100-0.45
6101C64018B418-4000°K - CRI>80on/off (48Vdc)23521316565100-0.45
6101C64022B422-4000°K - CRI>80on/off (48Vdc)27861276565100-0.45
