TALO – Mod. Z1

(ZOOM optics adjustable from 15° to 45°)

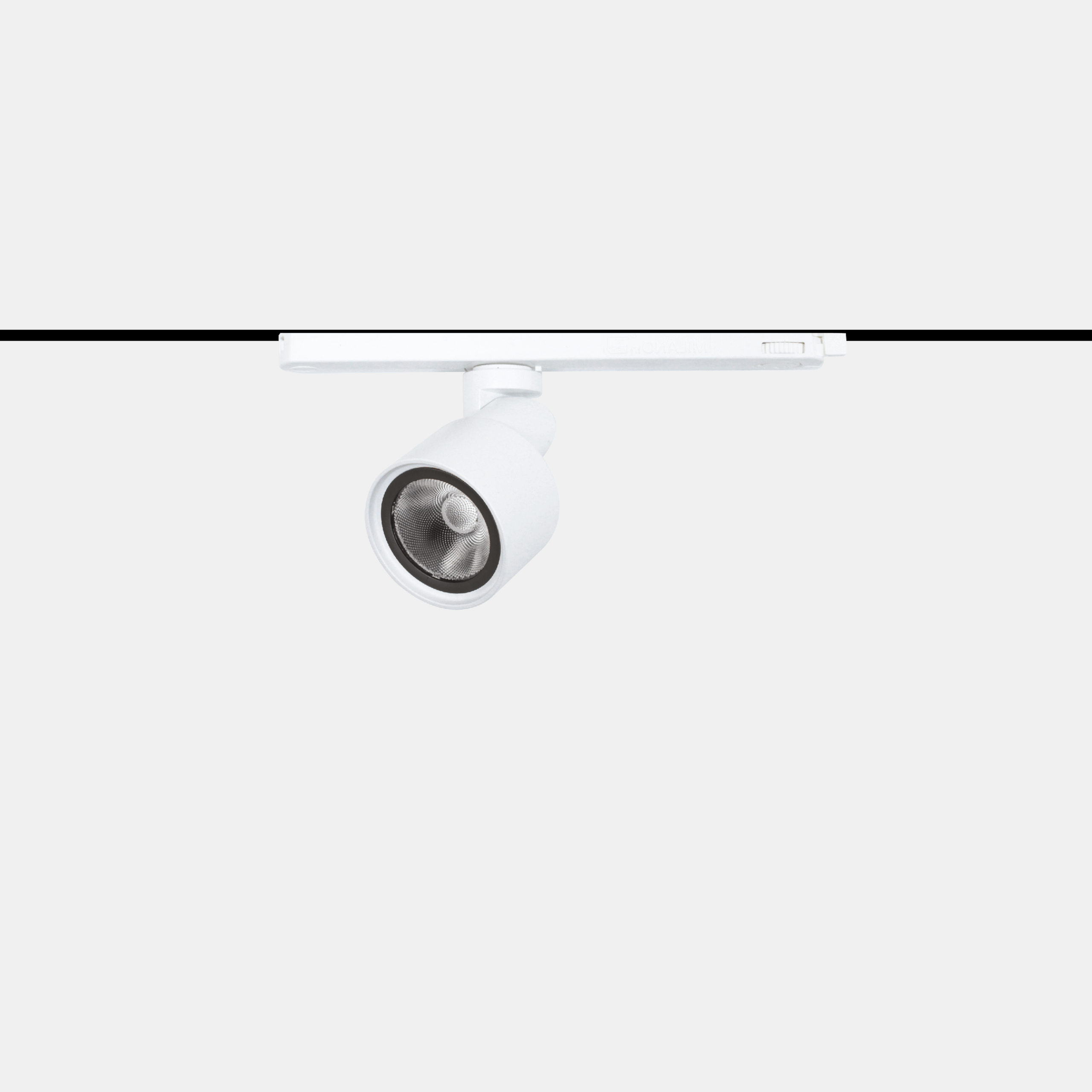

Indoor adjustable LED projector suitable for installation on Eurostandard electrified track. Die-cast aluminum body painted with epoxy-polyester powder coating in white nonyellowing color with fine embossed finish. ZOOM optics adjustable from 15° to 45°.
Categories: Led, TALO - 6101, Retail, TALO
Models: 256
Color: Matt white
Catalogue abstract
Installation instructions

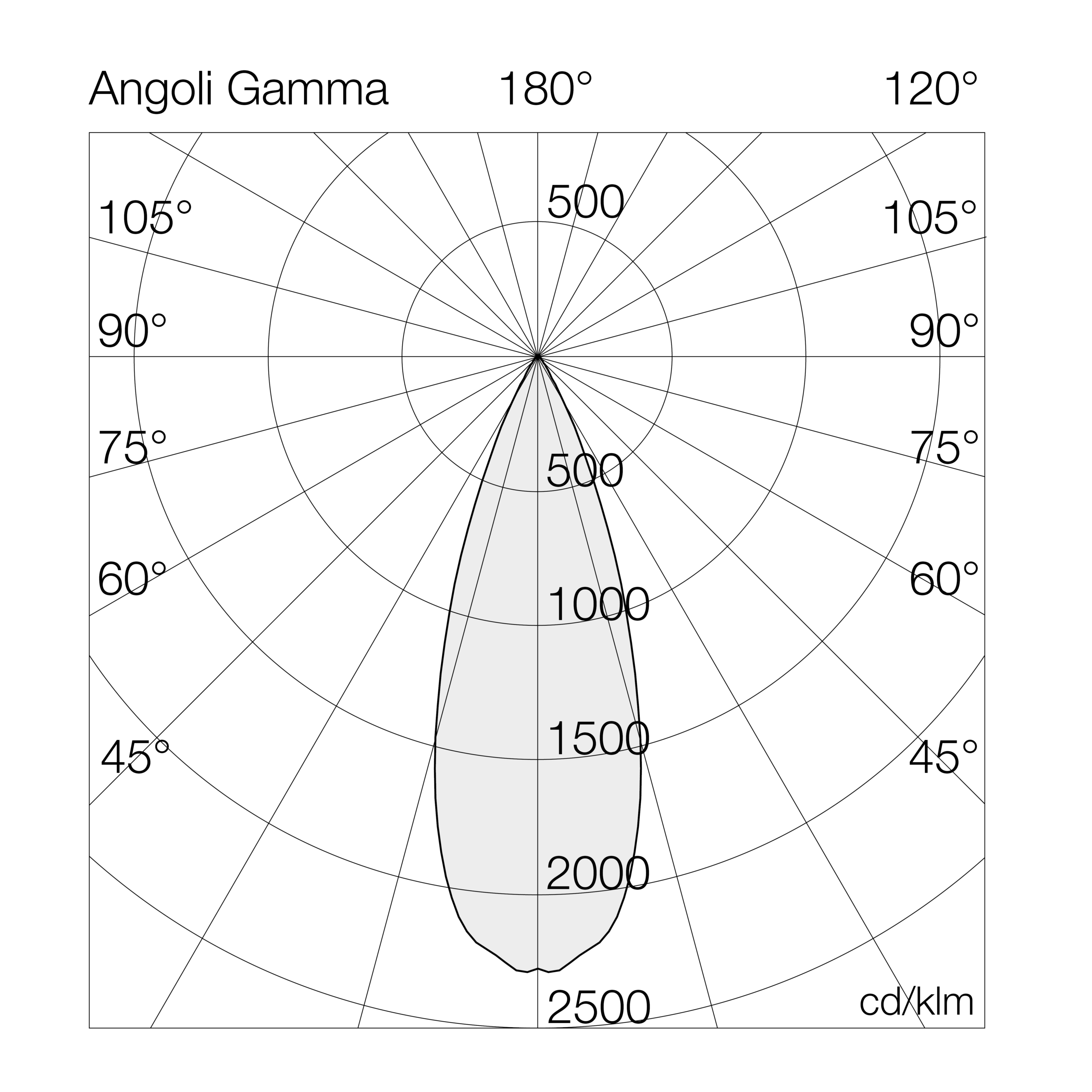

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6101Z127= 2700°K (CRI >80)12BL= on/off
30= 3000°K (CRI >80)15BD= dali
40= 4000°K (CRI >80)18B4= on/off - 48Vdc
93= 3000°K (CRI >90)22D4= dali - 48Vdc
94= 4000°K (CRI >90)26
M0= Meat32
V0= Vegetables
FW= Fashion White

Models

W tot.
°K - CRI
Options

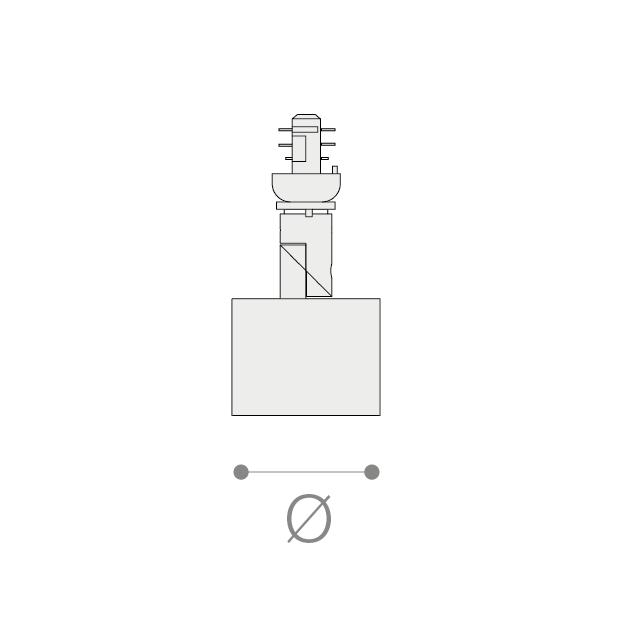

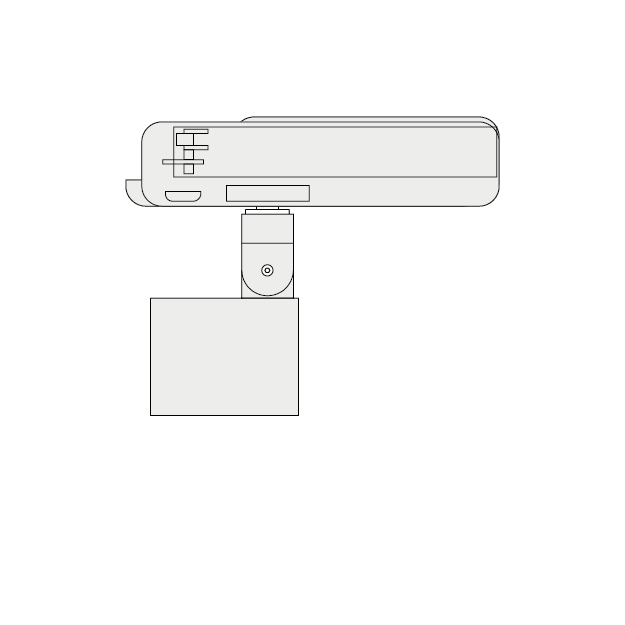

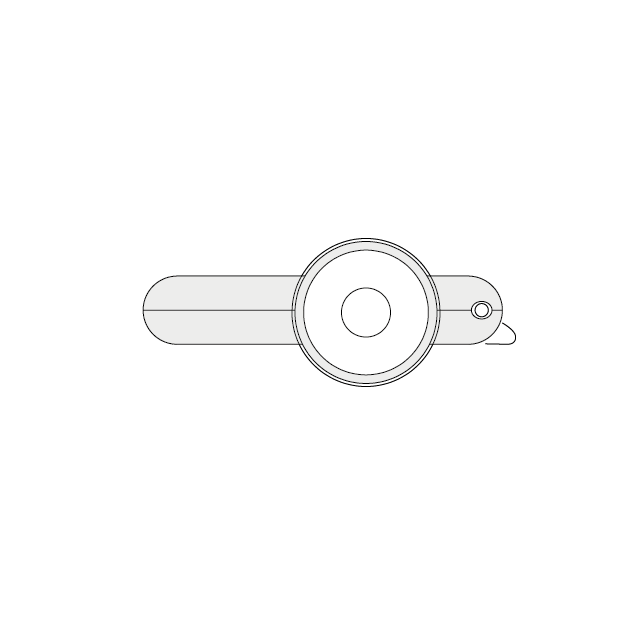

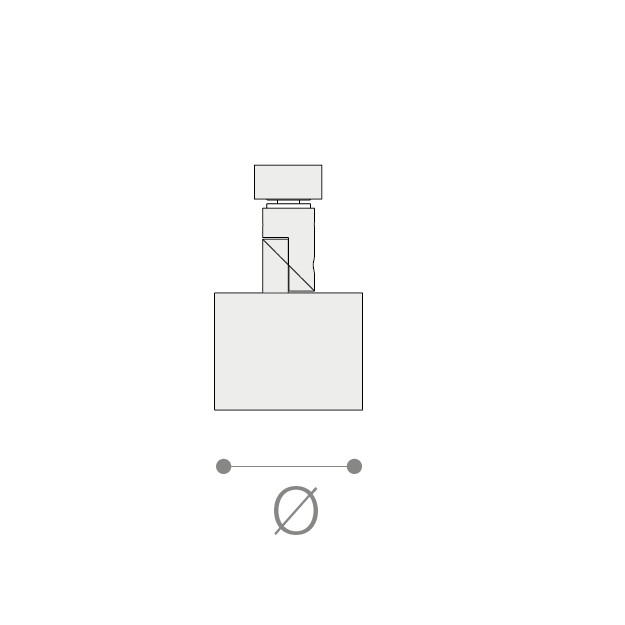

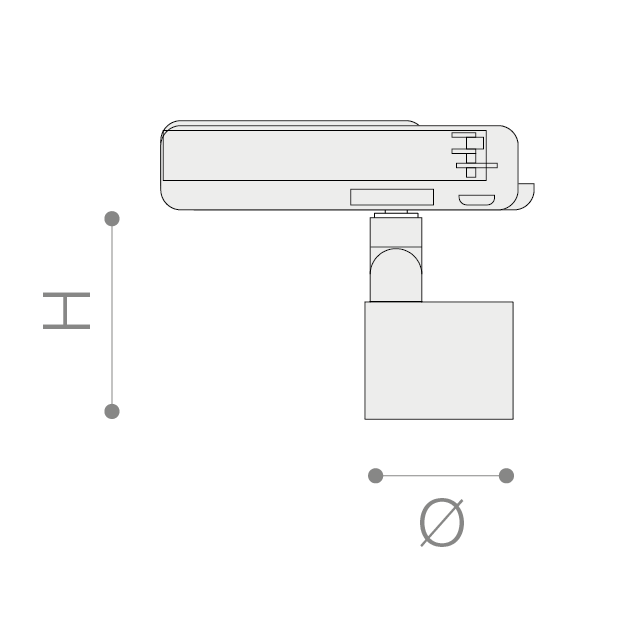

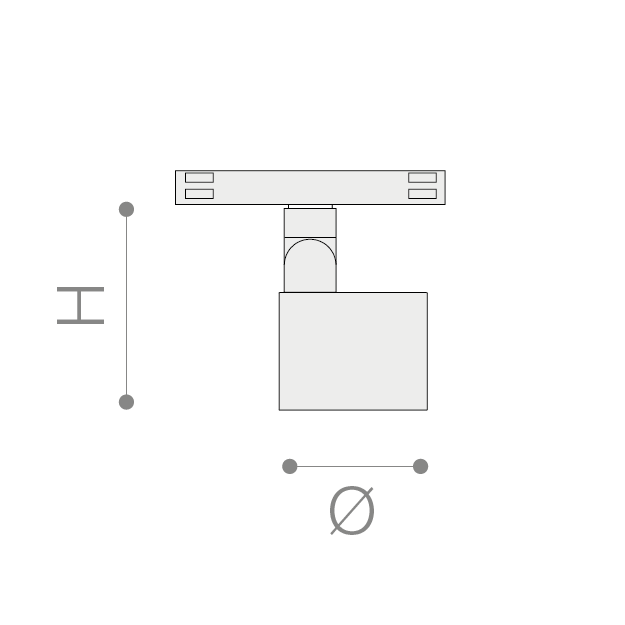

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
6101Z14012BL12-4000°K - CRI>80on/off (220-240Vac)16141356565100-0.45
6101Z14015BL15-4000°K - CRI>80on/off (220-240Vac)19421296565100-0.45
6101Z14018BL18-4000°K - CRI>80on/off (220-240Vac)22631266565100-0.45
6101Z14022BL22-4000°K - CRI>80on/off (220-240Vac)26801226565100-0.45
6101Z14026BL26-4000°K - CRI>80on/off (220-240Vac)30851196565100-0.45
6101Z14032BL32-4000°K - CRI>80on/off (220-240Vac)36701156565100-0.45
6101Z14036BL36-4000°K - CRI>80on/off (220-240Vac)40451126565100-0.45
6101Z14040BL40-4000°K - CRI>80on/off (220-240Vac)44101106565100-0.45
6101Z14012BD12-4000°K - CRI>80dali (220-240Vac)16141356565100-0.45
6101Z14015BD15-4000°K - CRI>80dali (220-240Vac)19421296565100-0.45
6101Z14018BD18-4000°K - CRI>80dali (220-240Vac)22631266565100-0.45
6101Z14022BD22-4000°K - CRI>80dali (220-240Vac)26801226565100-0.45
6101Z14026BD26-4000°K - CRI>80dali (220-240Vac)30851196565100-0.45
6101Z14032BD32-4000°K - CRI>80dali (220-240Vac)36701156565100-0.45
6101Z14036BD36-4000°K - CRI>80dali (220-240Vac)40451126565100-0.45
6101Z14040BD40-4000°K - CRI>80dali (220-240Vac)44101106565100-0.45
6101Z14012B412-4000°K - CRI>80on/off (48Vdc)16141356565100-0.45
6101Z14015B415-4000°K - CRI>80on/off (48Vdc)19421296565100-0.45
6101Z14018B418-4000°K - CRI>80on/off (48Vdc)22631266565100-0.45
6101Z14022B422-4000°K - CRI>80on/off (48Vdc)26801226565100-0.45
