art.-6102-togo-b-33-35-bianco

TOGO B/35

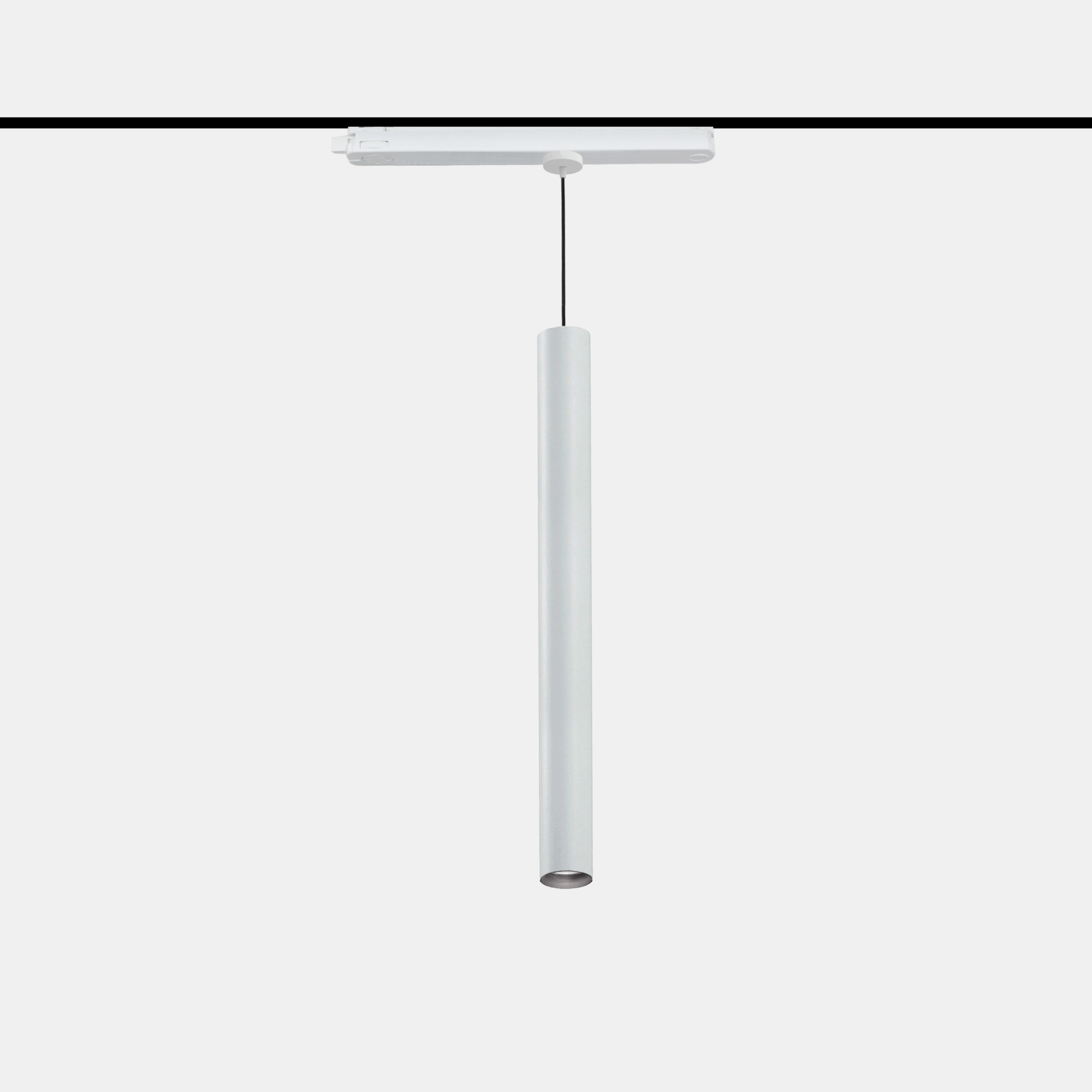

Single emission LED suspension for Eurostandard electrified track. Extruded aluminum body painted with matt white anti-yellowing epoxypolyester powders with fine embossed finish, 220-240V 50/60Hz or 48Vdc track electronic power supply. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, TOGO B - 6102, Retail, art. 6102 Togo B
Models: 40
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
61023530= 3000°K (CRI >80)03BL= on/off (220-240Vac)
40= 4000°K (CRI >80)05B4= on/off (48Vdc)
93= 3000°K (CRI >90)BD= dali (220-240Vac)
94= 4000°K (CRI >90)DB= dali (48Vdc)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6102354003BL3-4000°K - CRI>80on/off (220-240Vac)39413135170550-0.90
6102354005BL5-4000°K - CRI>80on/off (220-240Vac)53410735170550-0.90
6102354003B43-4000°K - CRI>80on/off (48Vdc)39413135170550-0.90
6102354005B45-4000°K - CRI>80on/off (48Vdc)53410735170550-0.90
6102354003BD3-4000°K - CRI>80dali (220-240Vac)39413135170550-0.90
6102354005BD5-4000°K - CRI>80dali (220-240Vac)53410735170550-0.90
6102354003DB3-4000°K - CRI>80dali (48Vdc)39413135170550-0.90
6102354005DB5-4000°K - CRI>80dali (48Vdc)53410735170550-0.90
6102353003BL3-3000°K - CRI>80on/off (220-240Vac)38212735170550-0.90
6102353005BL5-3000°K - CRI>80on/off (220-240Vac)51810435170550-0.90
6102353003B43-3000°K - CRI>80on/off (48Vdc)38212735170550-0.90
6102353005B45-3000°K - CRI>80on/off (48Vdc)51810435170550-0.90
6102353003BD3-3000°K - CRI>80dali (220-240Vac)38212735170550-0.90
6102353005BD5-3000°K - CRI>80dali (220-240Vac)51810435170550-0.90
6102353003DB3-3000°K - CRI>80dali (48Vdc)38212735170550-0.90
6102353005DB5-3000°K - CRI>80dali (48Vdc)51810435170550-0.90
6102359303BL3-3000°K - CRI>90on/off (220-240Vac)32210735170550-0.90
6102359305BL5-3000°K - CRI>90on/off (220-240Vac)4378735170550-0.90
6102359303B43-3000°K - CRI>90on/off (48Vdc)32210735170550-0.90
6102359305B45-3000°K - CRI>90on/off (48Vdc)4378735170550-0.90

TEC-MAR is aimed at constant research and development of new technologies, quality materials, enhanced production processes, in accordance with latest trends in design and technology.
