TOGO B/55

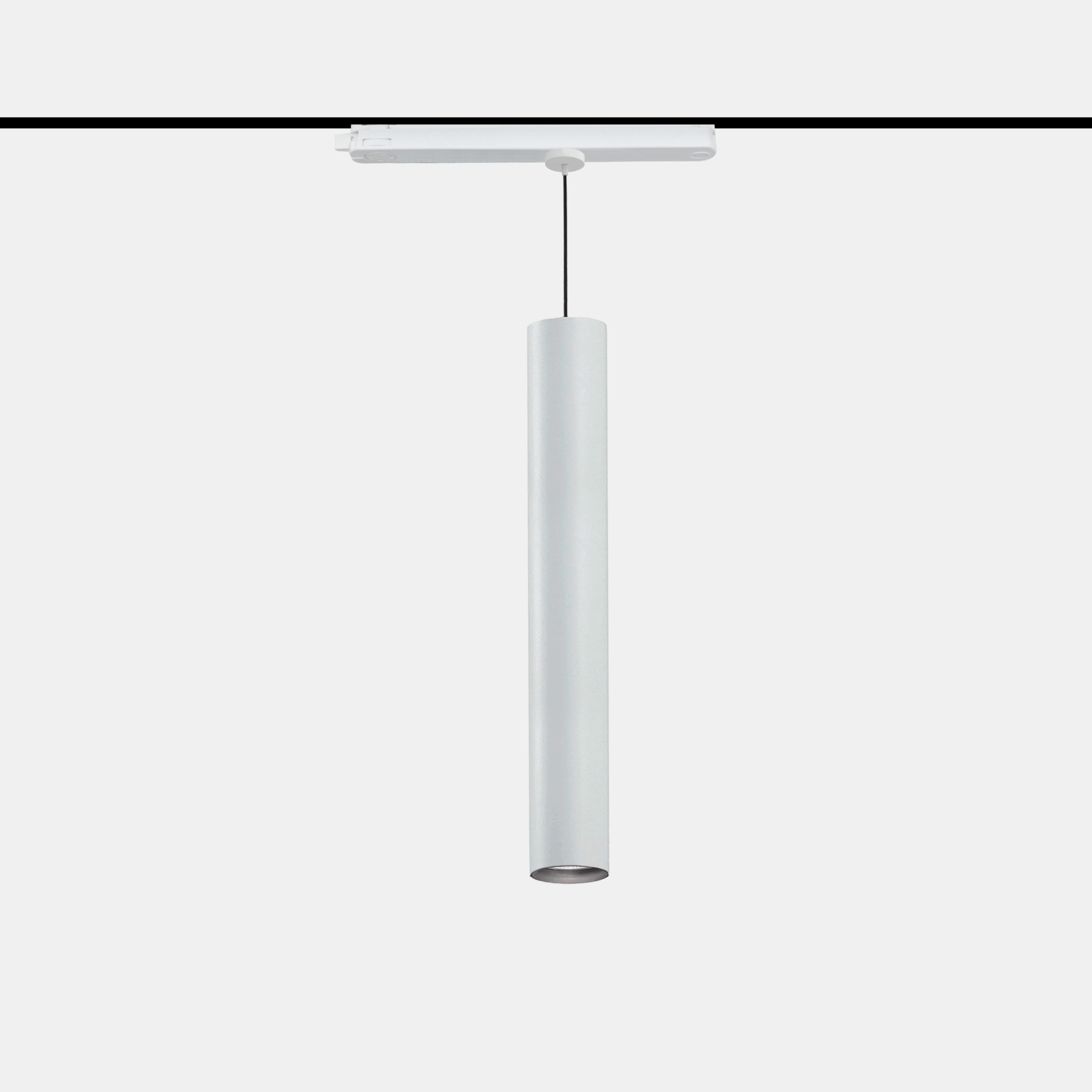

Single emission LED suspension for Eurostandard electrified track. Extruded aluminum body painted with matt white anti-yellowing epoxypolyester powders with fine embossed finish, 220-240V 50/60Hz or 48Vdc track electronic power supply. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, TOGO B - 6102, Retail, art. 6102 Togo B
Models: 40
Color: Matt white
Catalogue abstract
Installation instructions

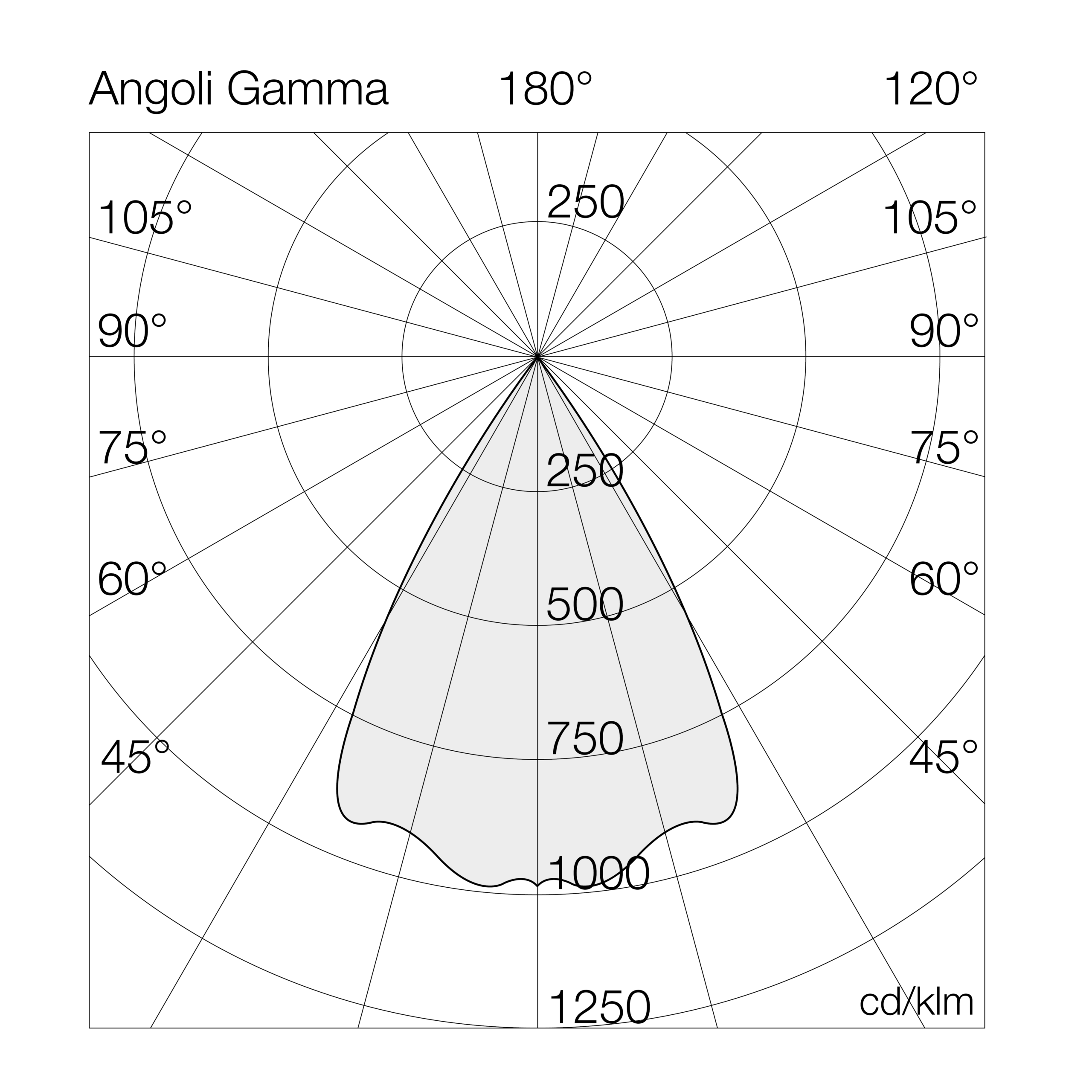

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
61025530= 3000°K (CRI >80)07BL= on/off (220-240Vac)
40= 4000°K (CRI >80)10B4= on/off (48Vdc)
93= 3000°K (CRI >90)BD= dali (220-240Vac)
94= 4000°K (CRI >90)DB= dali (48Vdc)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6102554007BL7-4000°K - CRI>80on/off (220-240Vac)83211955170550-1.1
6102554010BL10-4000°K - CRI>80on/off (220-240Vac)103310355170550-1.1
6102554007B47-4000°K - CRI>80on/off (48Vdc)83211955170550-1.1
6102554010B410-4000°K - CRI>80on/off (48Vdc)103310355170550-1.1
6102554007BD7-4000°K - CRI>80dali (220-240Vac)83211955170550-1.1
6102554010BD10-4000°K - CRI>80dali (220-240Vac)103310355170550-1.1
6102554007DB7-4000°K - CRI>80dali (48Vdc)83211955170550-1.1
6102554010DB10-4000°K - CRI>80dali (48Vdc)103310355170550-1.1
6102553007BL7-3000°K - CRI>80on/off (220-240Vac)80711555170550-1.1
6102553010BL10-3000°K - CRI>80on/off (220-240Vac)100210055170550-1.1
6102553007B47-3000°K - CRI>80on/off (48Vdc)80711555170550-1.1
6102553010B410-3000°K - CRI>80on/off (48Vdc)100210055170550-1.1
6102553007BD7-3000°K - CRI>80dali (220-240Vac)80711555170550-1.1
6102553010BD10-3000°K - CRI>80dali (220-240Vac)100210055170550-1.1
6102553007DB7-3000°K - CRI>80dali (48Vdc)80711555170550-1.1
6102553010DB10-3000°K - CRI>80dali (48Vdc)100210055170550-1.1
6102559307BL7-3000°K - CRI>90on/off (220-240Vac)6809755170550-1.1
6102559310BL10-3000°K - CRI>90on/off (220-240Vac)8448455170550-1.1
6102559307B47-3000°K - CRI>90on/off (48Vdc)6809755170550-1.1
6102559310B410-3000°K - CRI>90on/off (48Vdc)8448455170550-1.1
