SLIM B/RP

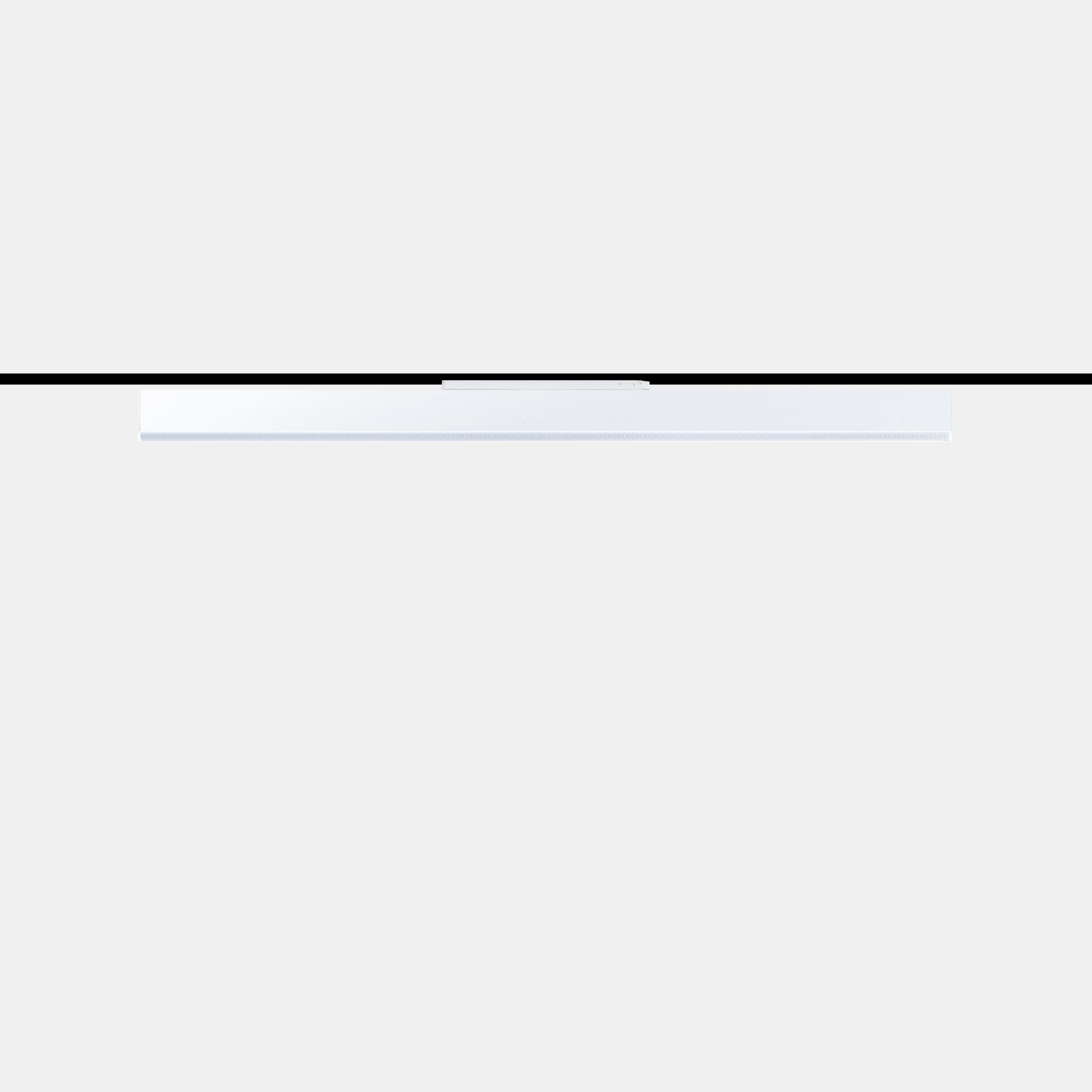

Linear LED luminaire for Eurostandard electrified track. Extruded aluminum body painted with matt white epoxy-polyester powders with fine embossed finish, 220-240V 50/60Hz or 48Vdc track electronic power supply. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, SLIM B - 6103, Retail, art. 6103 Slim B
Models: 120
Color: Matt white
Catalogue abstract
Installation instructions

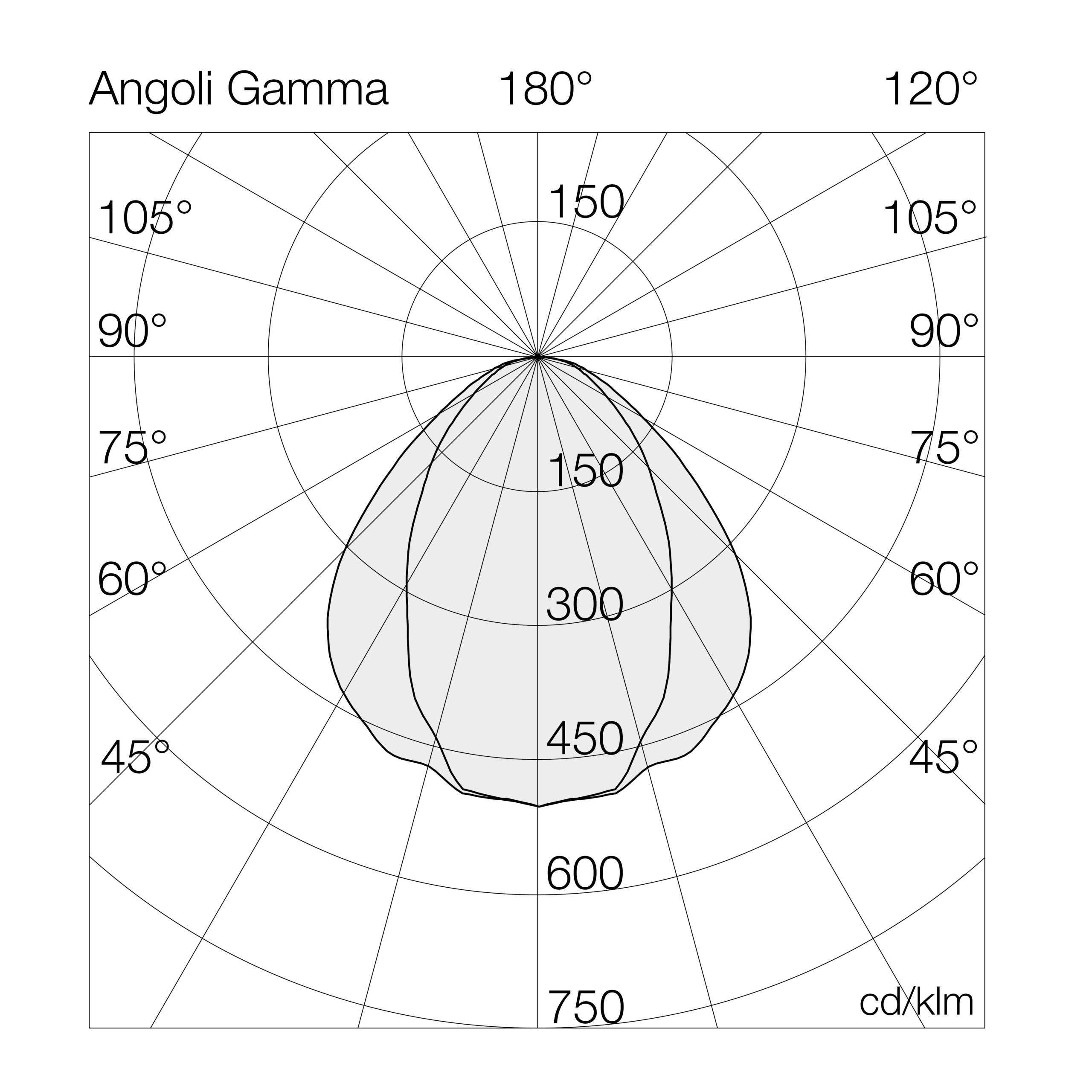

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6103RP30= 3000°K (CRI >80)06BL= on/off (220-240Vac)
40= 4000°K (CRI >80)09B4= on/off (48Vdc)
93= 3000°K (CRI >90)12BD= dali (220-240Vac)
94= 4000°K (CRI >90)18DB= dali (48Vdc)
24
36

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6103RP4006BL6-4000°K - CRI>80on/off (220-240Vac)7181203187290-0.70
6103RP4012BL12-4000°K - CRI>80on/off (220-240Vac)14371203187570-1.3
6103RP4024BL24-4000°K - CRI>80on/off (220-240Vac)287312031871130-2.6
6103RP4009BL9-4000°K - CRI>80on/off (220-240Vac)9521063187290-0.70
6103RP4018BL18-4000°K - CRI>80on/off (220-240Vac)19051063187570-1.3
6103RP4036BL36-4000°K - CRI>80on/off (220-240Vac)380910631871130-2.6
6103RP4006BD6-4000°K - CRI>80dali (220-240Vac)7181203187290-0.70
6103RP4012BD12-4000°K - CRI>80dali (220-240Vac)14371203187570-1.3
6103RP4024BD24-4000°K - CRI>80dali (220-240Vac)287312031871130-2.6
6103RP4009BD9-4000°K - CRI>80dali (220-240Vac)9521063187290-0.70
6103RP4018BD18-4000°K - CRI>80dali (220-240Vac)19051063187570-1.3
6103RP4036BD36-4000°K - CRI>80dali (220-240Vac)380910631871130-2.6
6103RP4006B46-4000°K - CRI>80on/off (48Vdc)7181203187290-0.70
6103RP4012B412-4000°K - CRI>80on/off (48Vdc)14371203187570-1.3
6103RP4024B424-4000°K - CRI>80on/off (48Vdc)287312031871130-2.6
6103RP4009B49-4000°K - CRI>80on/off (48Vdc)9521063187290-0.70
6103RP4018B418-4000°K - CRI>80on/off (48Vdc)19051063187570-1.3
6103RP4036B436-4000°K - CRI>80on/off (48Vdc)380910631871130-2.6
6103RP4006DB6-4000°K - CRI>80dali (48Vdc)7181203187290-0.70
6103RP4012DB12-4000°K - CRI>80dali (48Vdc)14371203187570-1.3
