SLIM B – Mod. RP

(UGR<19)

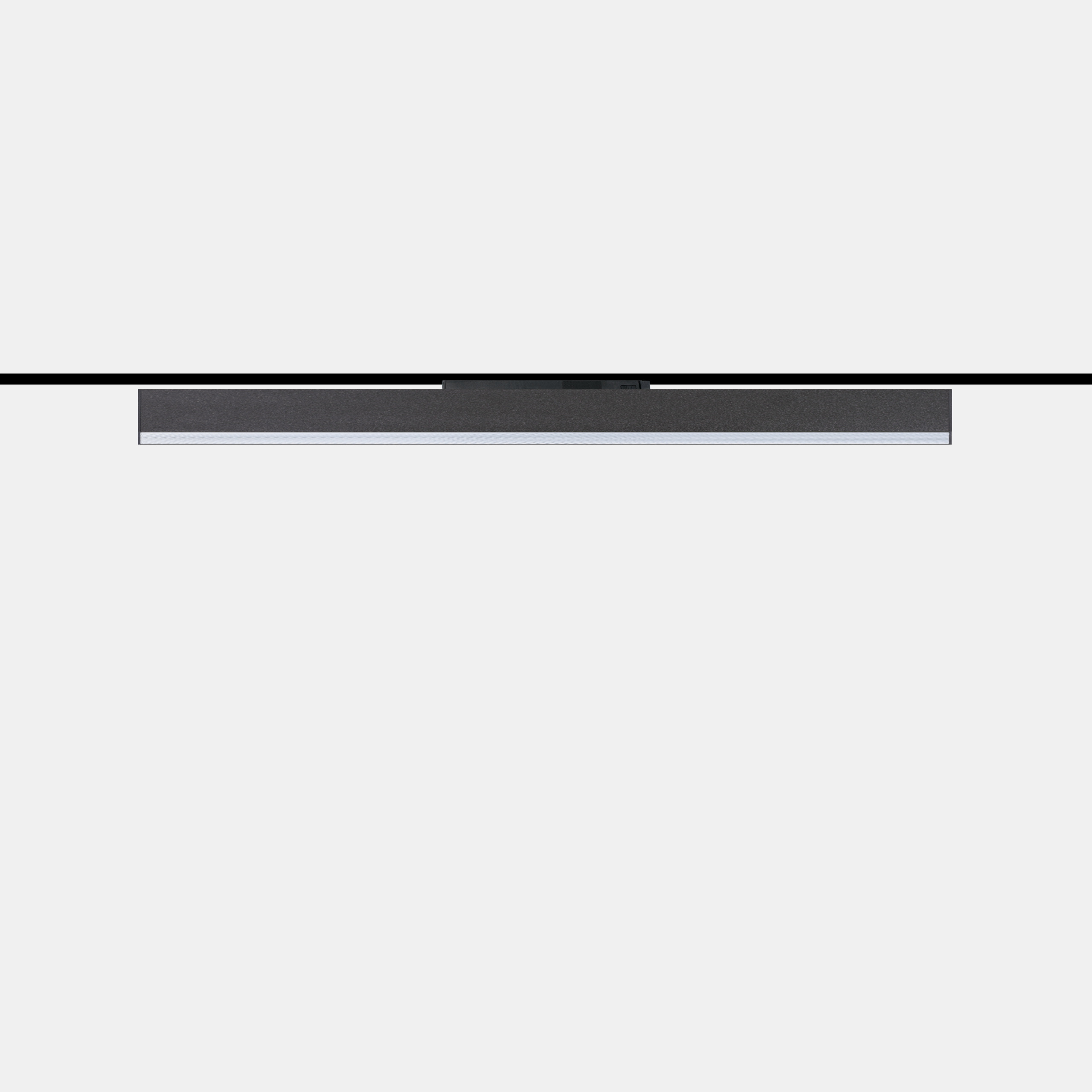

Indoor linear LED fixture suitable for installation on Eurostandard track. Epoxy-polyester powder-coated extruded aluminum body with fine embossed finish in black. Optics with microprismatic anti-glare and anti-reflection.
Categories: Led, SLIM B - 6103, Retail, SLIM B
Models: 120
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6103RP30= 3000°K (CRI >80)06NL= on/off (220-240Vac)
40= 4000°K (CRI >80)09N4= on/off (48Vdc)
93= 3000°K (CRI >90)12ND= dali (220-240Vac)
94= 4000°K (CRI >90)18DN= dali (48Vdc)
24
36

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
6103RP4006NL6-4000°K - CRI>80on/off (220-240Vac)7181203187290-0.70
6103RP4012NL12-4000°K - CRI>80on/off (220-240Vac)14371203187570-1.3
6103RP4024NL24-4000°K - CRI>80on/off (220-240Vac)287312031871130-2.6
6103RP4009NL9-4000°K - CRI>80on/off (220-240Vac)9521063187290-0.70
6103RP4018NL18-4000°K - CRI>80on/off (220-240Vac)19051063187570-1.3
6103RP4036NL36-4000°K - CRI>80on/off (220-240Vac)380910631871130-2.6
6103RP4006ND6-4000°K - CRI>80dali (220-240Vac)7181203187290-0.70
6103RP4012ND12-4000°K - CRI>80dali (220-240Vac)14371203187570-1.3
6103RP4024ND24-4000°K - CRI>80dali (220-240Vac)287312031871130-2.6
6103RP4009ND9-4000°K - CRI>80dali (220-240Vac)9521063187290-0.70
6103RP4018ND18-4000°K - CRI>80dali (220-240Vac)19051063187570-1.3
6103RP4036ND36-4000°K - CRI>80dali (220-240Vac)380910631871130-2.6
6103RP4006N46-4000°K - CRI>80on/off (48Vdc)7181203187290-0.70
6103RP4012N412-4000°K - CRI>80on/off (48Vdc)14371203187570-1.3
6103RP4024N424-4000°K - CRI>80on/off (48Vdc)287312031871130-2.6
6103RP4009N49-4000°K - CRI>80on/off (48Vdc)9521063187290-0.70
6103RP4018N418-4000°K - CRI>80on/off (48Vdc)19051063187570-1.3
6103RP4036N436-4000°K - CRI>80on/off (48Vdc)380910631871130-2.6
6103RP4006DN6-4000°K - CRI>80dali (48Vdc)7181203187290-0.70
6103RP4012DN12-4000°K - CRI>80dali (48Vdc)14371203187570-1.3
