art.-6104-tom-c1-c3-c6-nero

TOM/C3

Small size adjustable LED spot light suitable for Eurostandard electrified track. Die-cast aluminum body painted with matt black anti-yellowing epoxy-polyester powders with fine embossed finish, 220-240V 50/60Hz or 48Vdc electronic power supply. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, TOM - 6104, Retail, art. 6104 Tom
Models: 80
Color: Matt black
Catalogue abstract
Installation instructions

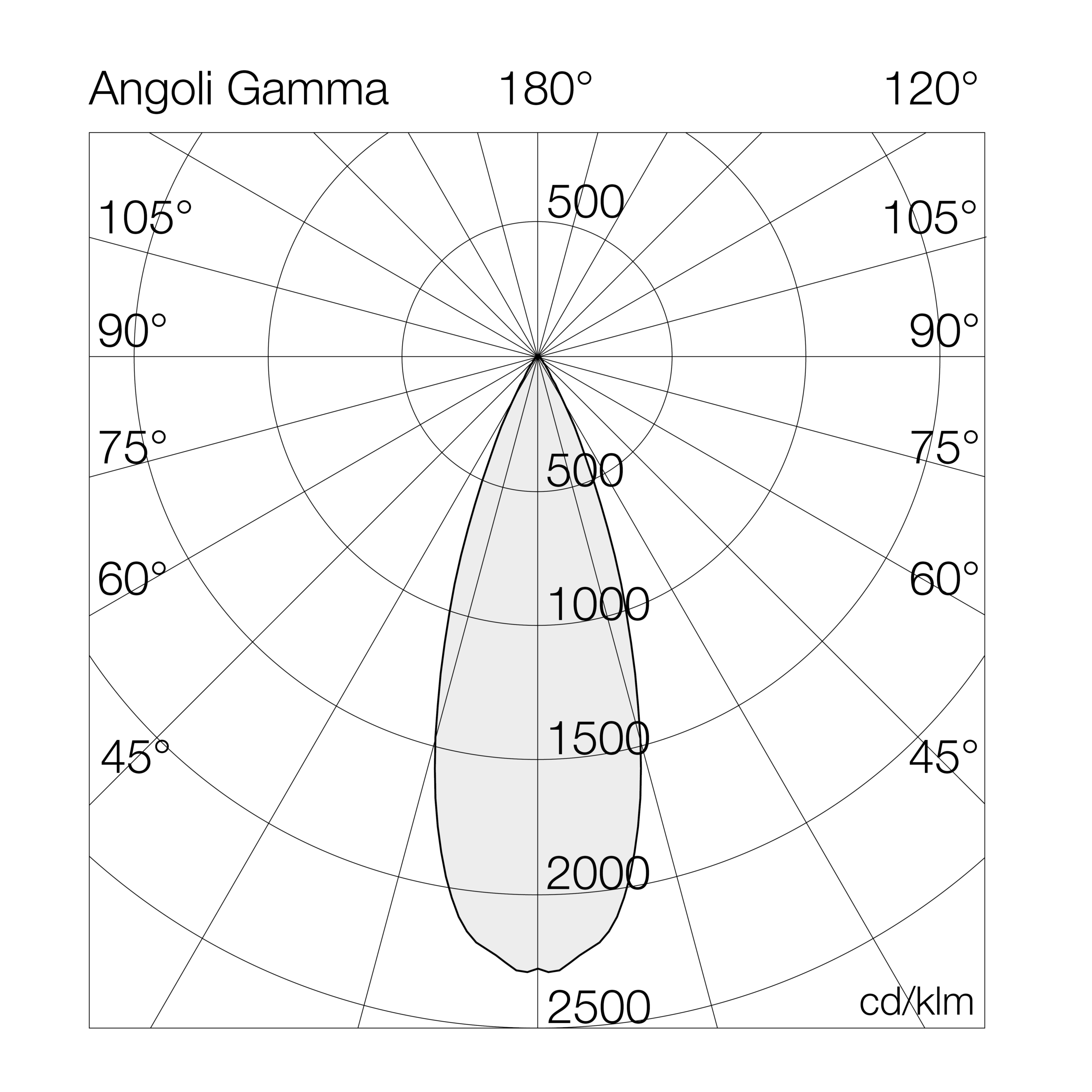

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6104C330= 3000°K (CRI >80)13NL= on/off (220-240Vac)
40= 4000°K (CRI >80)17ND= dali (220-240Vac)
93= 3000°K (CRI >90)19N4= on/off (48Vdc)
94= 4000°K (CRI >90)23L4= dali (48Vdc)
27

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6104C34013NL13-4000°K - CRI>80on/off (220-240Vac)17461347575125-0.65
6104C34017NL17-4000°K - CRI>80on/off (220-240Vac)22061307575125-0.65
6104C34019NL19-4000°K - CRI>80on/off (220-240Vac)24311287575125-0.65
6104C34023NL23-4000°K - CRI>80on/off (220-240Vac)28641257575125-0.65
6104C34027NL27-4000°K - CRI>80on/off (220-240Vac)32821227575125-0.65
6104C34013ND13-4000°K - CRI>80dali (220-240Vac)17461347575125-0.65
6104C34017ND17-4000°K - CRI>80dali (220-240Vac)22061307575125-0.65
6104C34019ND19-4000°K - CRI>80dali (220-240Vac)24311287575125-0.65
6104C34023ND23-4000°K - CRI>80dali (220-240Vac)28641257575125-0.65
6104C34027ND27-4000°K - CRI>80dali (220-240Vac)32821227575125-0.65
6104C34013N413-4000°K - CRI>80on/off (48Vdc)17461347575125-0.65
6104C34017N417-4000°K - CRI>80on/off (48Vdc)22061307575125-0.65
6104C34019N419-4000°K - CRI>80on/off (48Vdc)24311287575125-0.65
6104C34023N423-4000°K - CRI>80on/off (48Vdc)28641257575125-0.65
6104C34027N427-4000°K - CRI>80on/off (48Vdc)32821227575125-0.65
6104C34013L413-4000°K - CRI>80dali (48Vdc)17461347575125-0.65
6104C34017L417-4000°K - CRI>80dali (48Vdc)22061307575125-0.65
6104C34019L419-4000°K - CRI>80dali (48Vdc)24311287575125-0.65
6104C34023L423-4000°K - CRI>80dali (48Vdc)28641257575125-0.65
6104C34027L427-4000°K - CRI>80dali (48Vdc)32821227575125-0.65
