TOM/C6

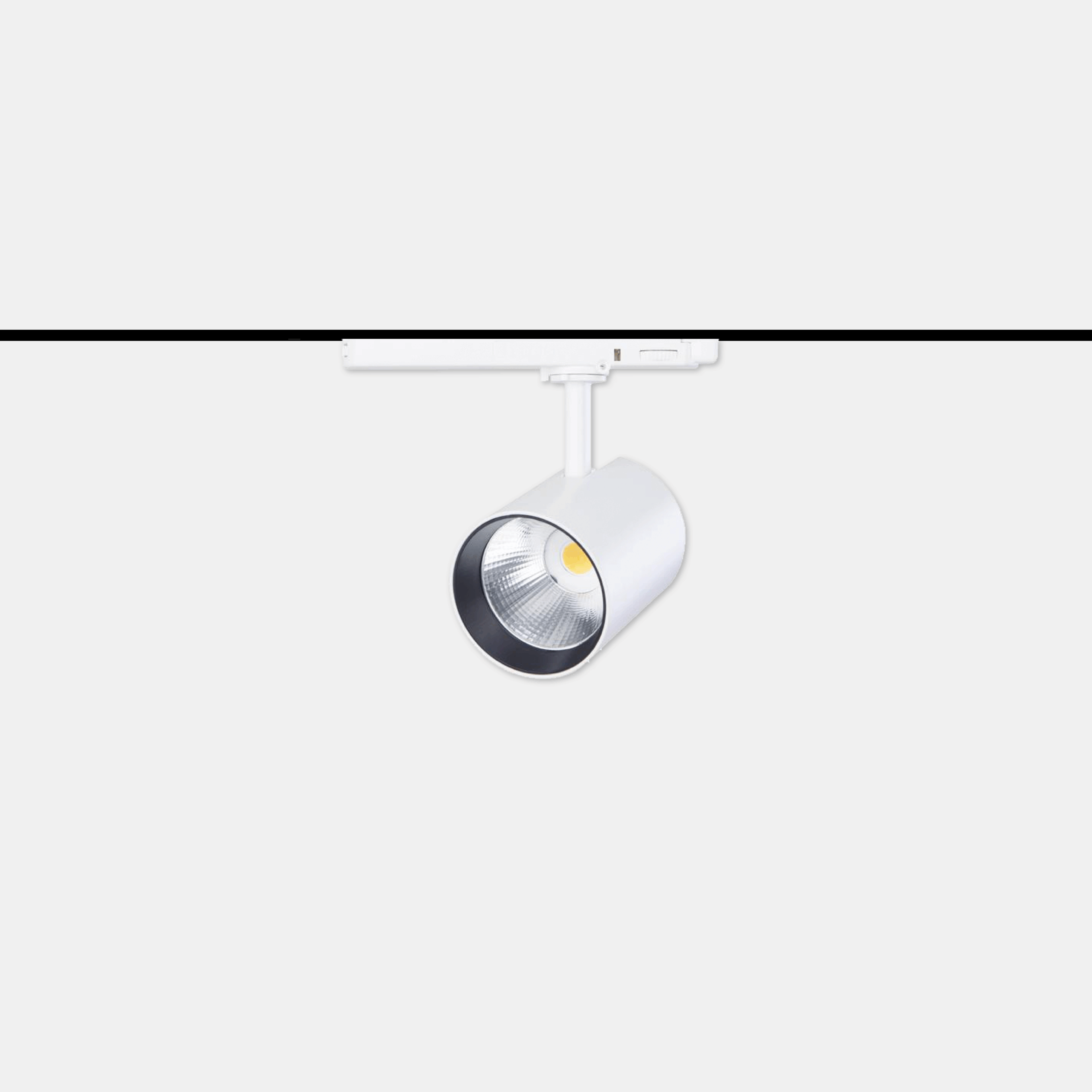

Small size adjustable LED spot light suitable for Eurostandard electrified track. Die-cast aluminum body painted with matt white anti-yellowing epoxy-polyester powders with fine embossed finish, 220-240V 50/60Hz or 48Vdc electronic power supply. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, TOM - 6104, Retail, art. 6104 Tom
Models: 80
Color: Matt white
Catalogue abstract
Installation instructions

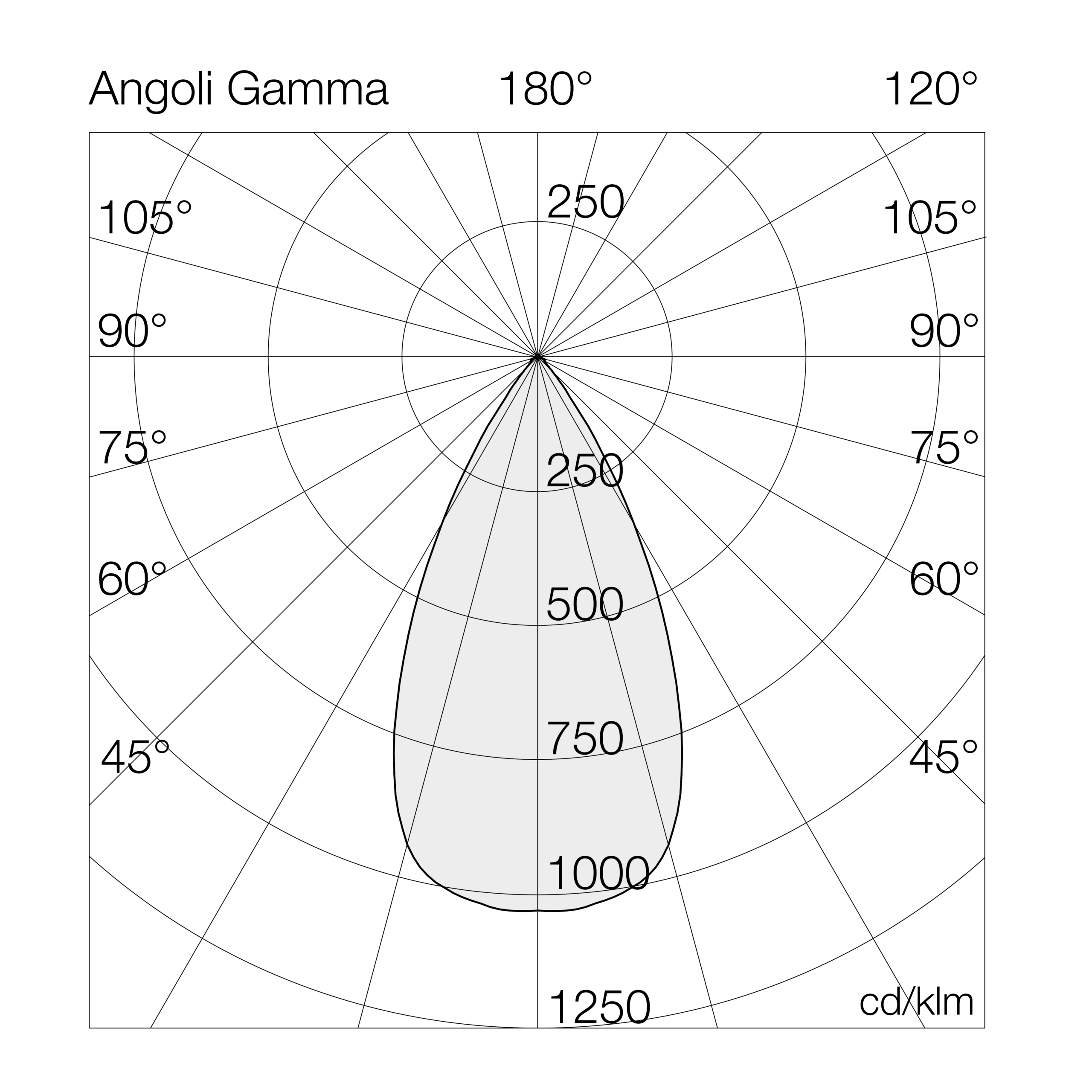

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6104C630= 3000°K (CRI >80)13BL= on/off (220-240Vac)
40= 4000°K (CRI >80)17BD= dali (220-240Vac)
93= 3000°K (CRI >90)19B4= on/off (48Vdc)
94= 4000°K (CRI >90) 23D4= dali (48Vdc)
27

Models

W tot.
°K - CRI
Options

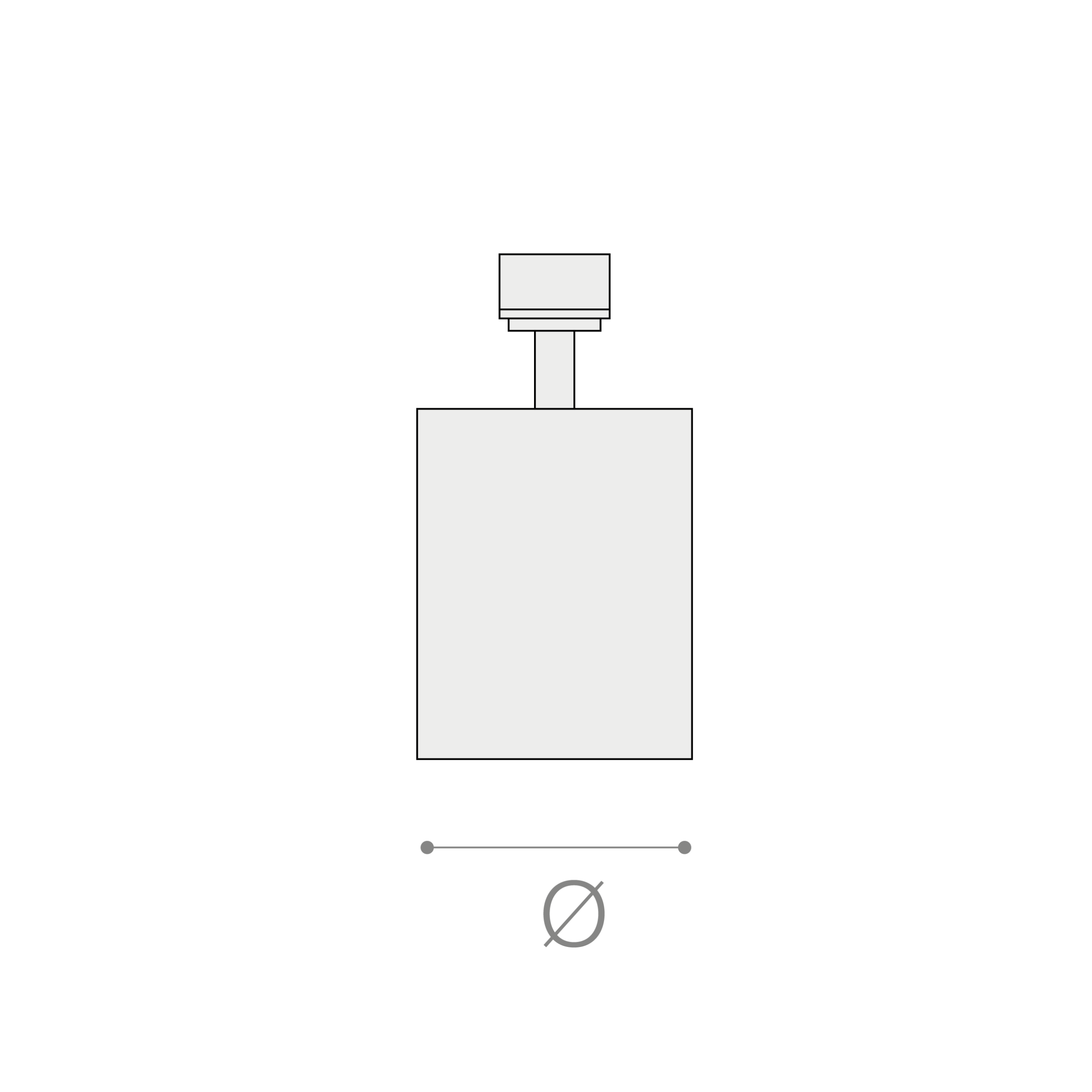

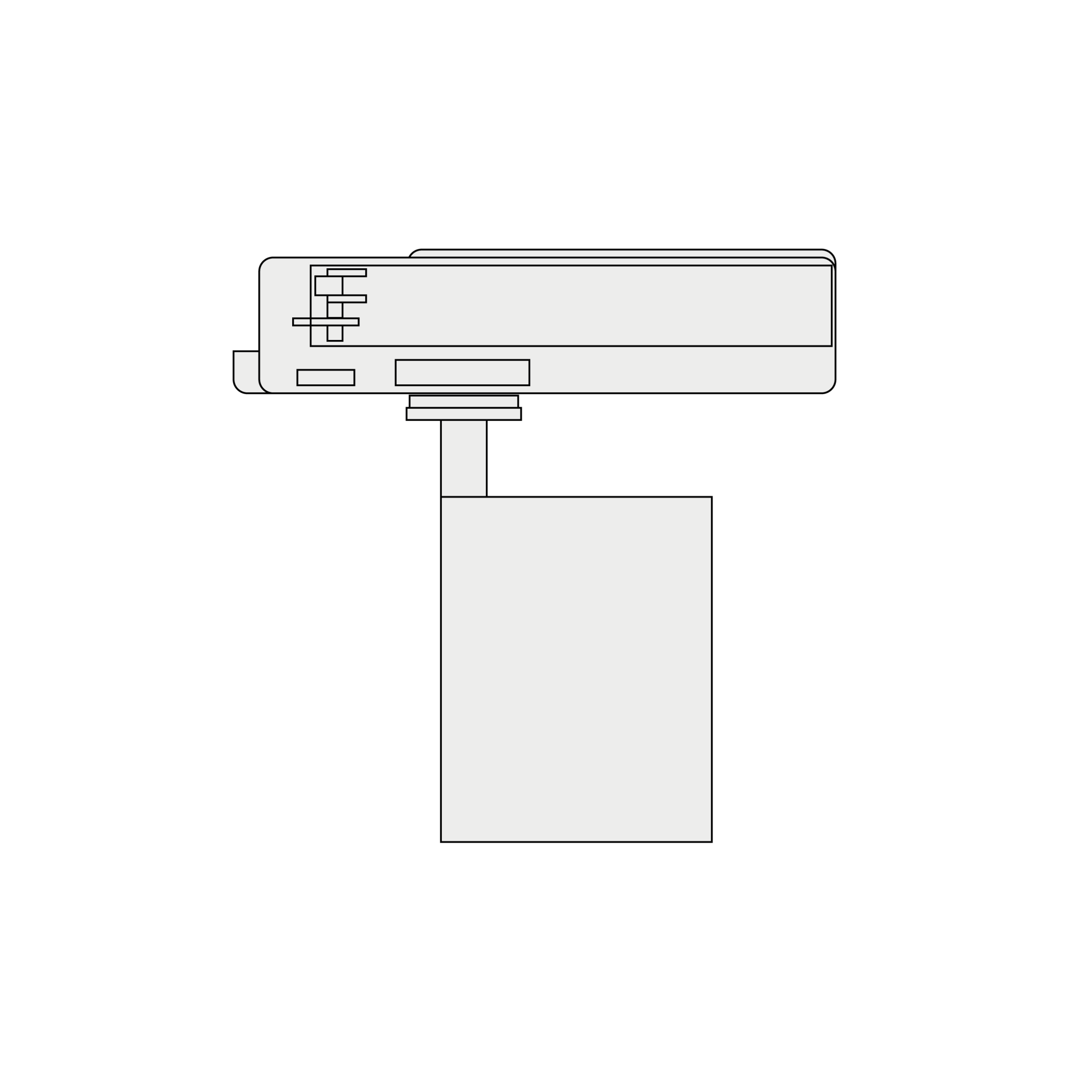

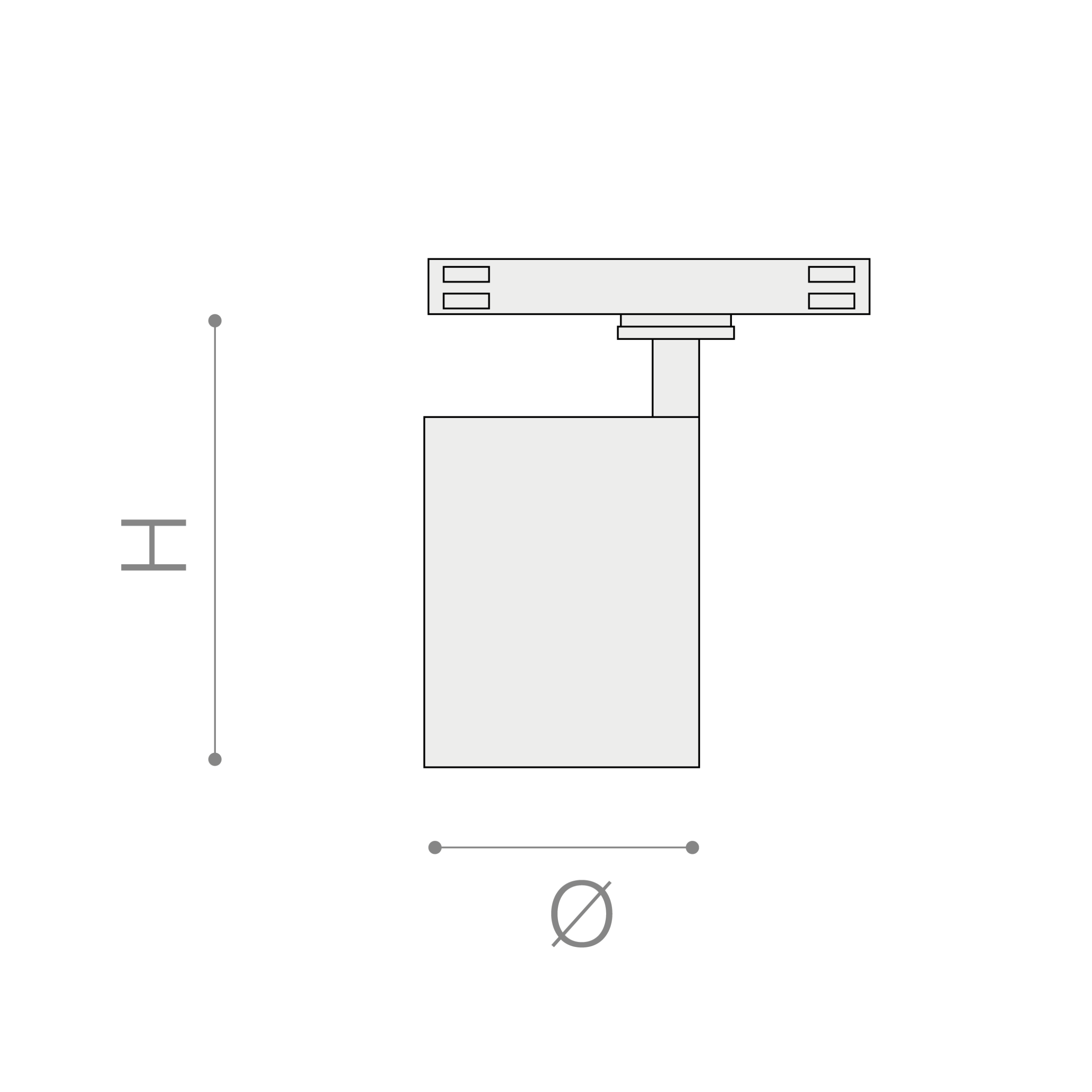

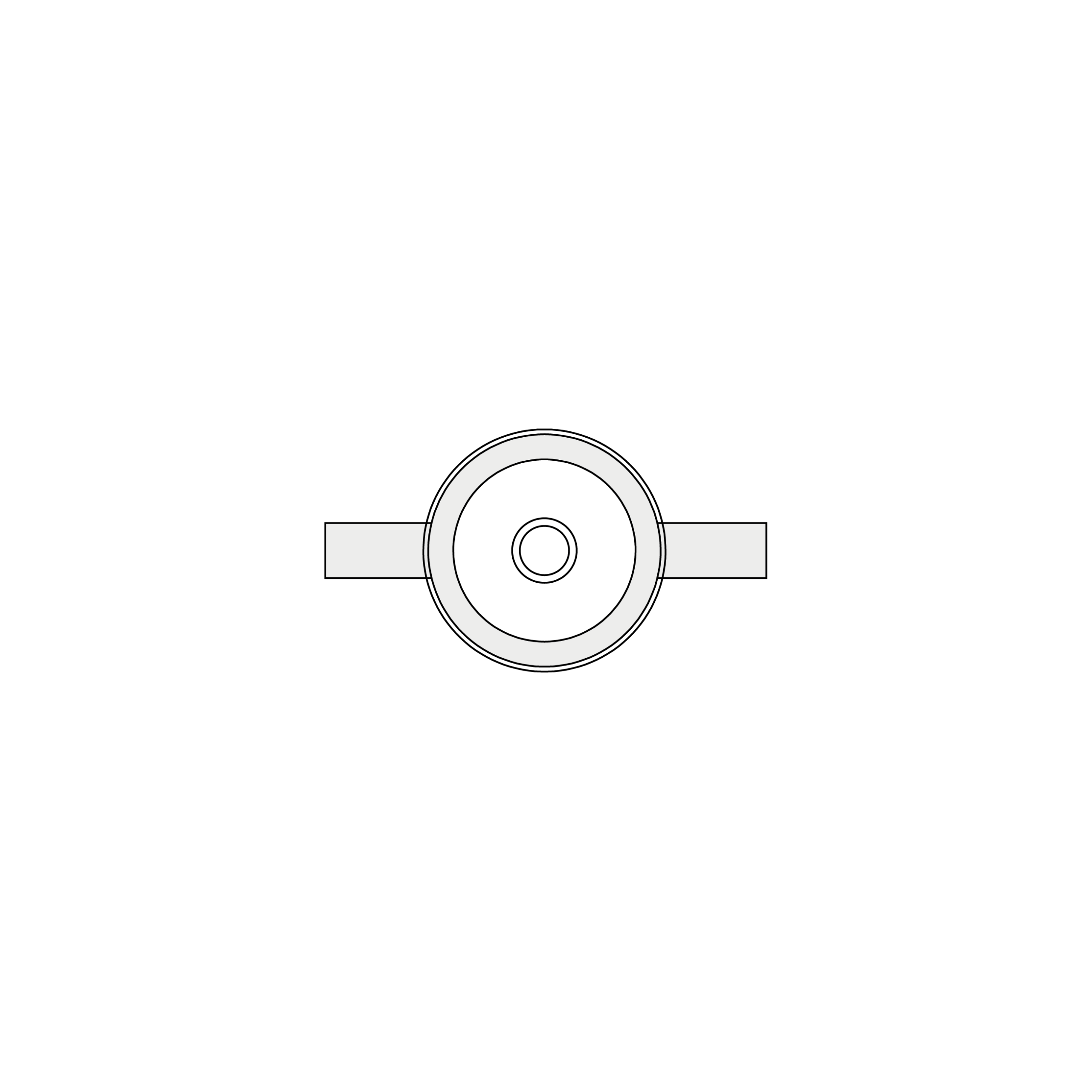

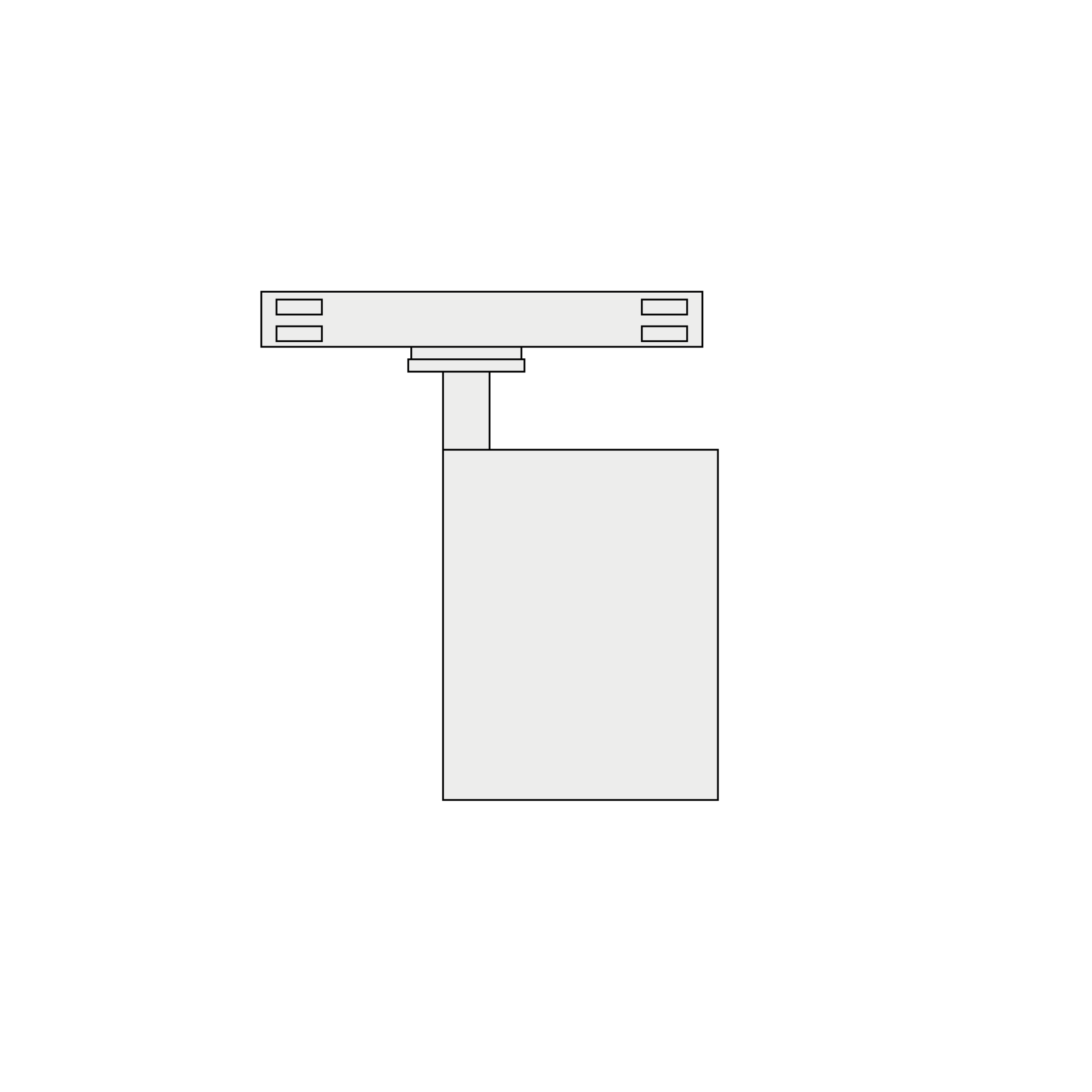

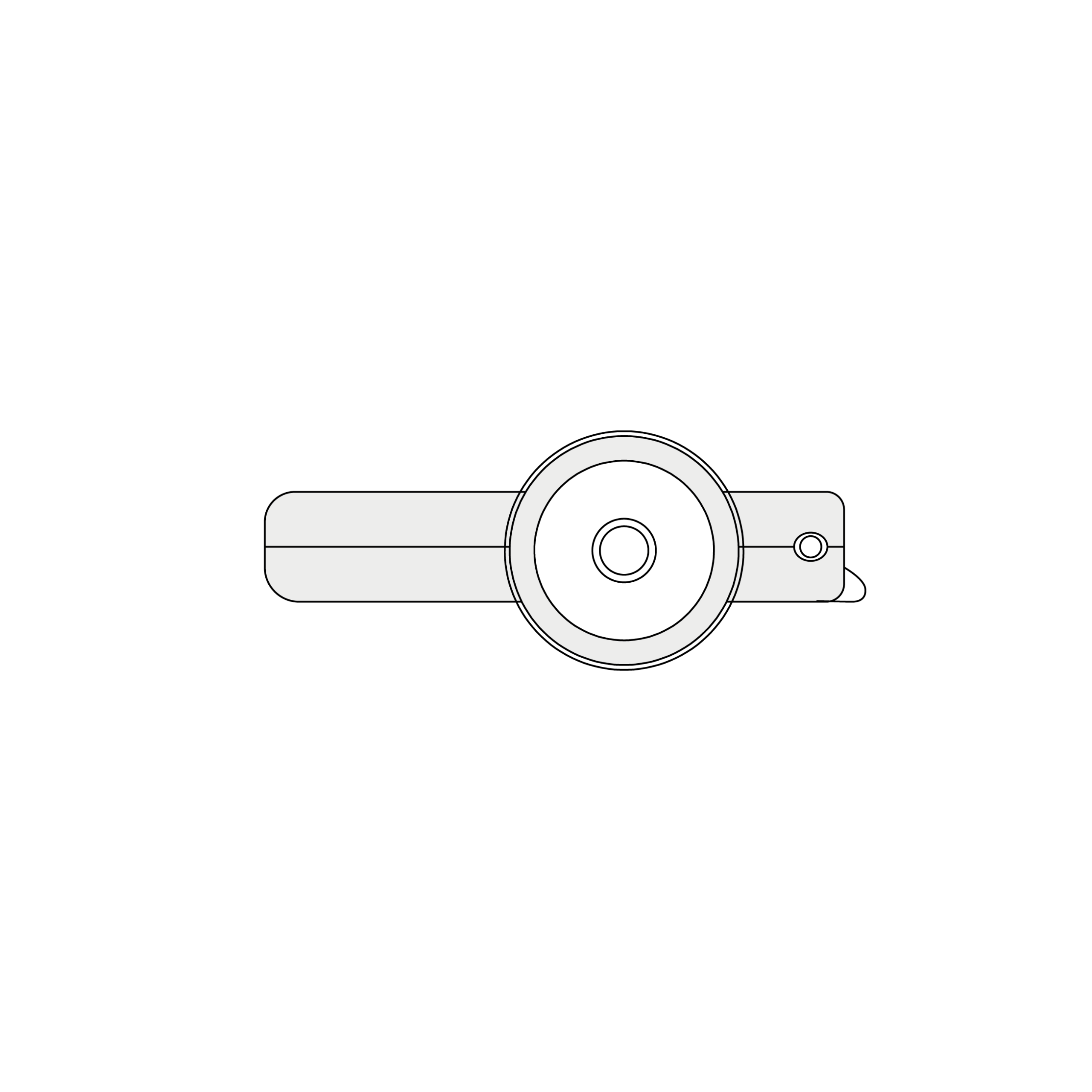

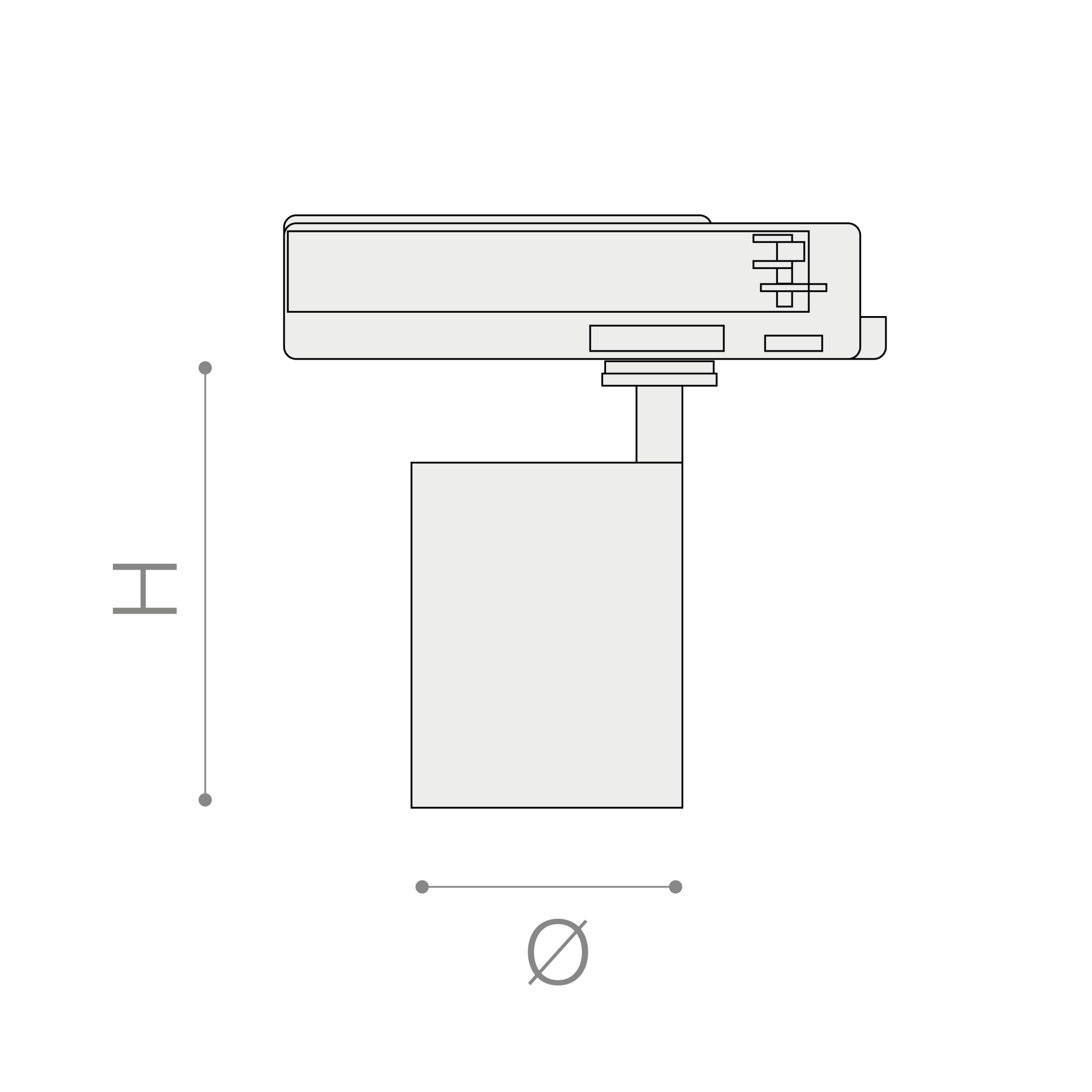

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6104C64013BL13-4000°K - CRI>80on/off (220-240Vac)17351337575125-0.65
6104C64017BL17-4000°K - CRI>80on/off (220-240Vac)21931297575125-0.65
6104C64019BL19-4000°K - CRI>80on/off (220-240Vac)24161277575125-0.65
6104C64023BL23-4000°K - CRI>80on/off (220-240Vac)28471247575125-0.65
6104C64027BL27-4000°K - CRI>80on/off (220-240Vac)32621217575125-0.65
6104C64013BD13-4000°K - CRI>80dali (220-240Vac)17351337575125-0.65
6104C64017BD17-4000°K - CRI>80dali (220-240Vac)21931297575125-0.65
6104C64019BD19-4000°K - CRI>80dali (220-240Vac)24161277575125-0.65
6104C64023BD23-4000°K - CRI>80dali (220-240Vac)28471247575125-0.65
6104C64027BD27-4000°K - CRI>80dali (220-240Vac)32621217575125-0.65
6104C64013B413-4000°K - CRI>80on/off (48Vdc)17351337575125-0.65
6104C64017B417-4000°K - CRI>80on/off (48Vdc)21931297575125-0.65
6104C64019B419-4000°K - CRI>80on/off (48Vdc)24161277575125-0.65
6104C64023B423-4000°K - CRI>80on/off (48Vdc)28471247575125-0.65
6104C64027B427-4000°K - CRI>80on/off (48Vdc)32621217575125-0.65
6104C64013D413-4000°K - CRI>80dali (48Vdc)17351337575125-0.65
6104C64017D417-4000°K - CRI>80dali (48Vdc)21931297575125-0.65
6104C64019D419-4000°K - CRI>80dali (48Vdc)24161277575125-0.65
6104C64023D423-4000°K - CRI>80dali (48Vdc)28471247575125-0.65
6104C64027D427-4000°K - CRI>80dali (48Vdc)32621217575125-0.65
