art.-6200-cleo-r1-r3-r6-nero

CLEO/R3

Led recessed downlight for indoor and outdoor use. Body in anti-corrosion die-cast aluminum painted with black epoxy powders. Ring in steel sheet painted with matt black epoxy powders with fine embossed finish, 220-240V 50 / 60Hz remote electronic power supply. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, CLEO - 6200, Architectural Outdoor, art. 6200 Cleo
Models: 24
Color: Matt black
Catalogue abstract
Installation instructions

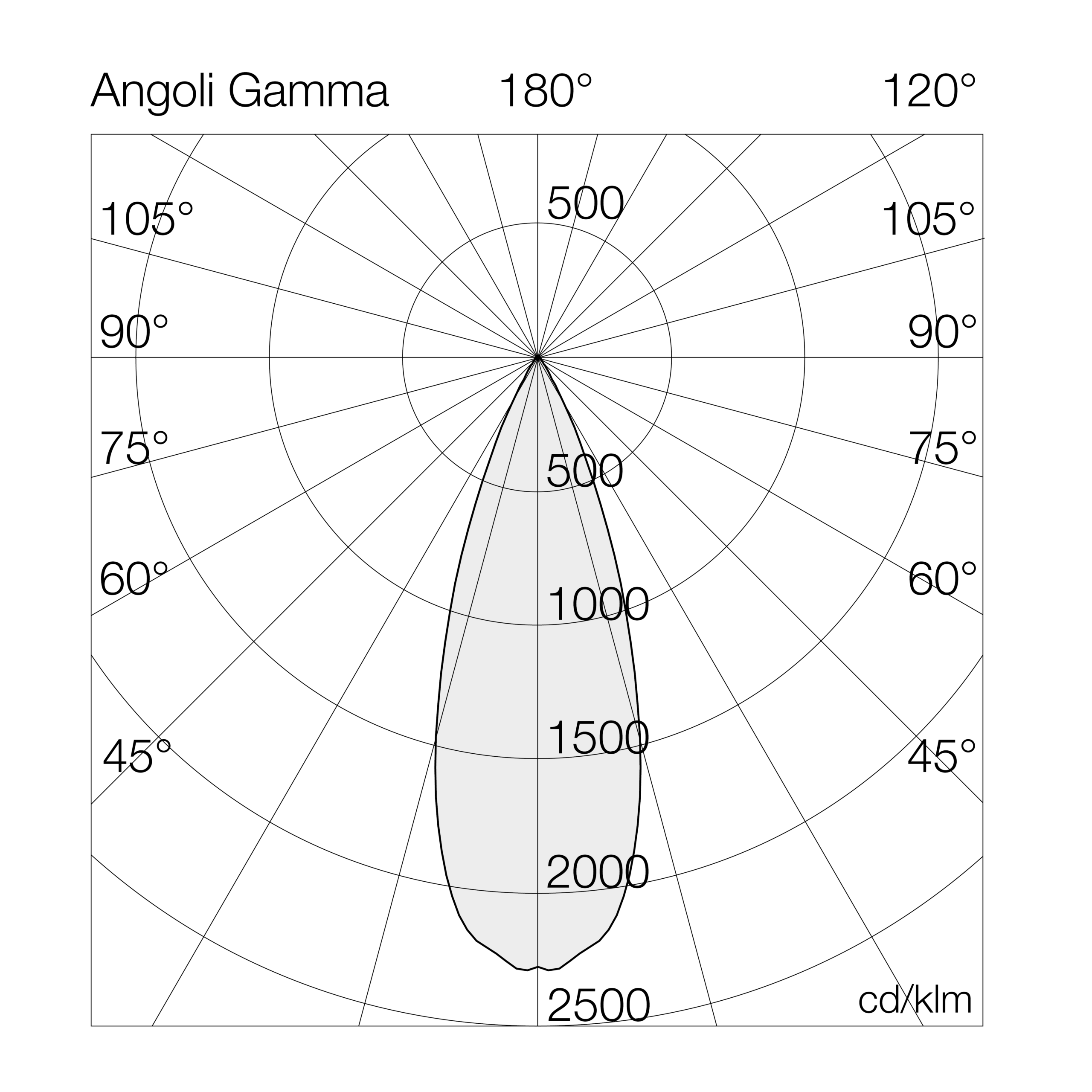

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6200R327= 2700°K (CRI >80)08NL= on/off
30= 3000°K (CRI >80)12ND= dali 2
40= 4000°K (CRI >80)18
26

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6200R34008NL8-4000°K - CRI>80on/off1090136110-158-0.60
6200R34012NL12-4000°K - CRI>80on/off1508126110-158-0.60
6200R34018NL18-4000°K - CRI>80on/off2114117110-158-0.60
6200R34026NL26-4000°K - CRI>80on/off2905112110-158-0.60
6200R34008ND8-4000°K - CRI>80dali1090136110-158-0.60
6200R34012ND12-4000°K - CRI>80dali1508126110-158-0.60
6200R34018ND18-4000°K - CRI>80dali2114117110-158-0.60
6200R34026ND26-4000°K - CRI>80dali2905112110-158-0.60
6200R33008NL8-3000°K - CRI>80on/off1057132110-158-0.60
6200R33012NL12-3000°K - CRI>80on/off1462122110-158-0.60
6200R33018NL18-3000°K - CRI>80on/off2050114110-158-0.60
6200R33026NL26-3000°K - CRI>80on/off2817108110-158-0.60
6200R33008ND8-3000°K - CRI>80dali1057132110-158-0.60
6200R33012ND12-3000°K - CRI>80dali1462122110-158-0.60
6200R33018ND18-3000°K - CRI>80dali2050114110-158-0.60
6200R33026ND26-3000°K - CRI>80dali2817108110-158-0.60
6200R32708NL8-2700°K - CRI>80on/off1007126110-158-0.60
6200R32712NL12-2700°K - CRI>80on/off1393116110-158-0.60
6200R32718NL18-2700°K - CRI>80on/off1952108110-158-0.60
6200R32726NL26-2700°K - CRI>80on/off2683103110-158-0.60
