art.-6200-cleo-r1-r3-r6-nero

CLEO/R6

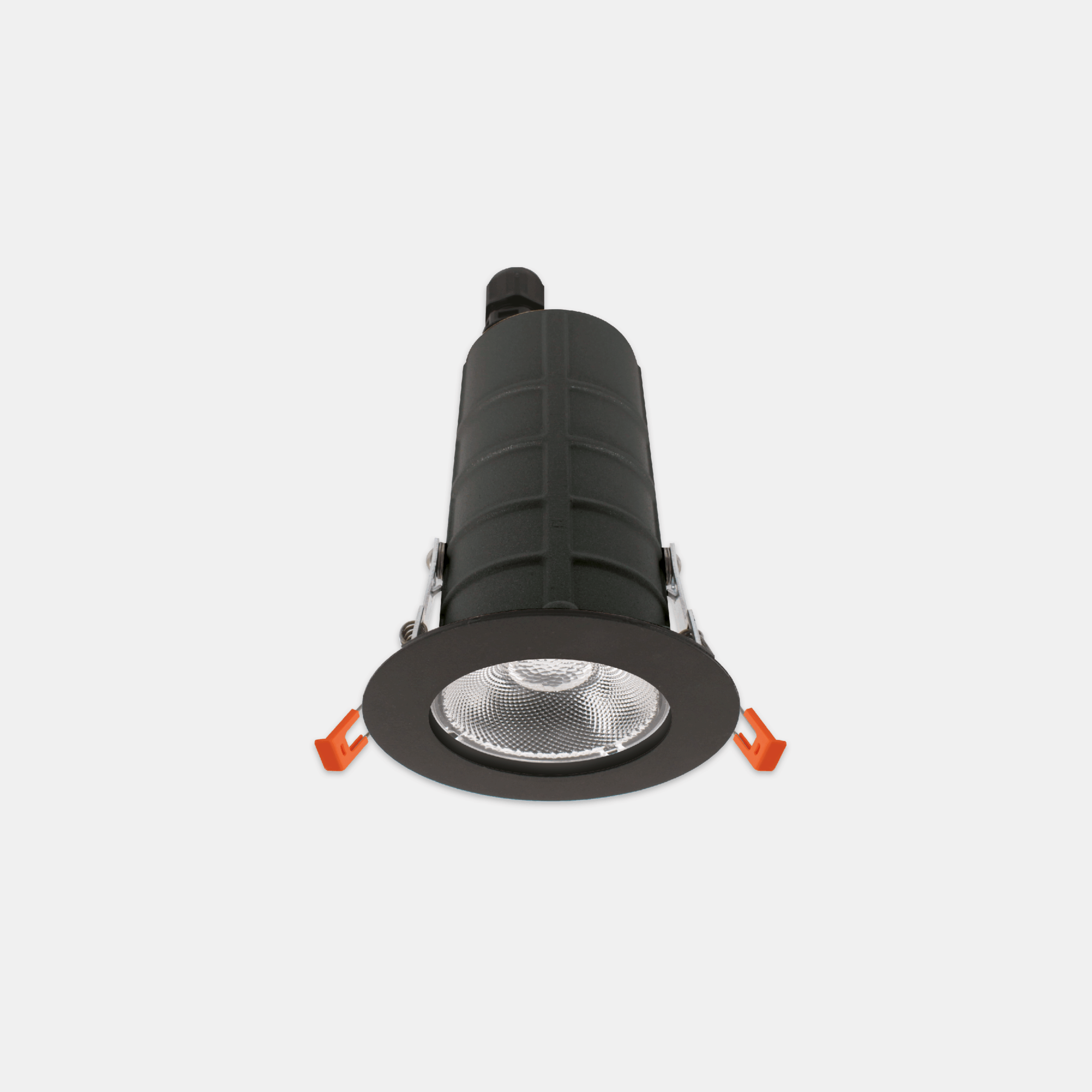

Led recessed downlight for indoor and outdoor use. Body in anti-corrosion die-cast aluminum painted with black epoxy powders. Ring in steel sheet painted with matt black epoxy powders with fine embossed finish, 220-240V 50 / 60Hz remote electronic power supply. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, CLEO - 6200, Architectural Outdoor, art. 6200 Cleo
Models: 24
Color: Matt black
Catalogue abstract
Installation instructions

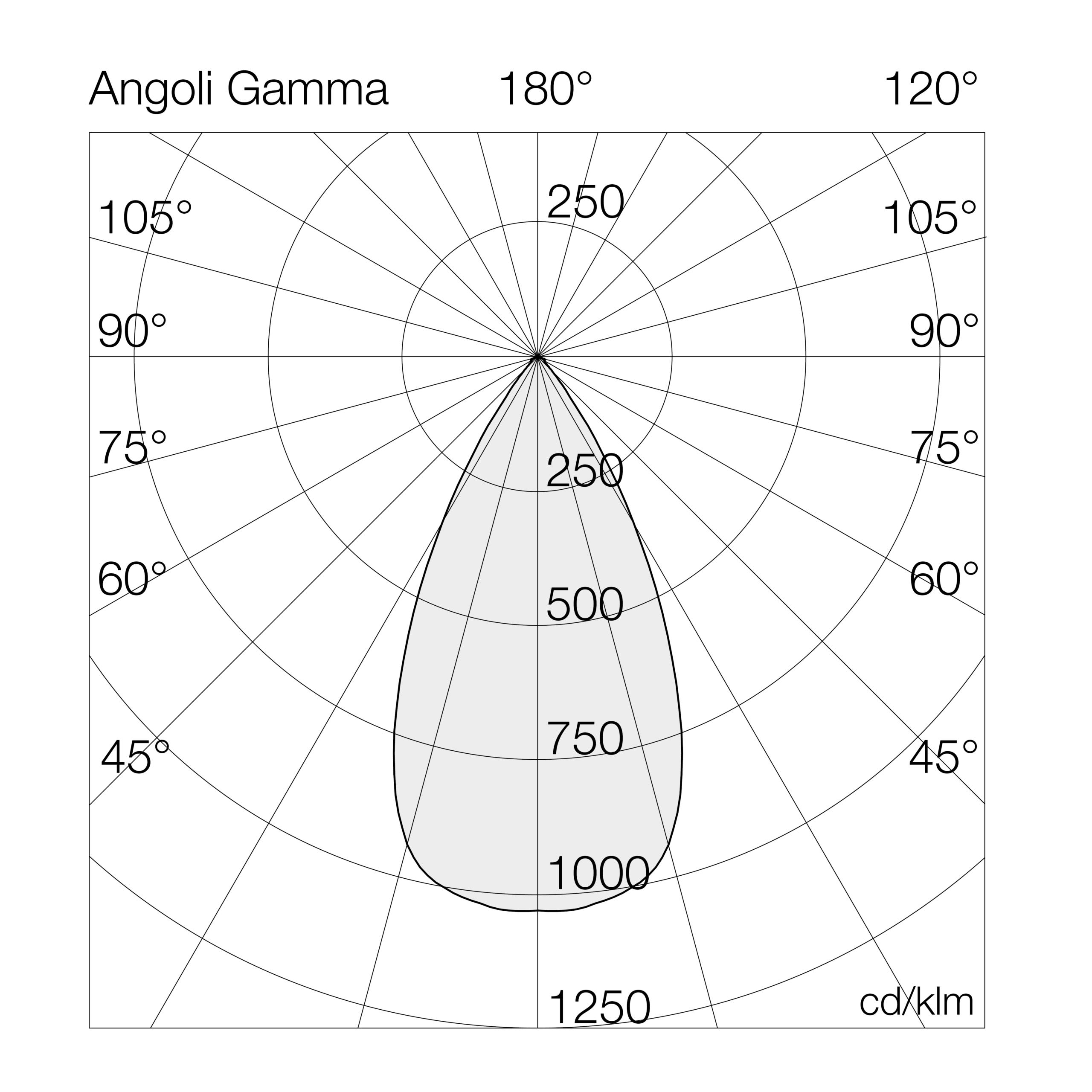

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6200R627= 2700°K (CRI >80)08NL= on/off
30= 3000°K (CRI >80)12ND= dali 2
40= 4000°K (CRI >80)18
26

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6200R64008NL8-4000°K - CRI>80on/off1105138110-158-0.60
6200R64012NL12-4000°K - CRI>80on/off1529127110-158-0.60
6200R64018NL18-4000°K - CRI>80on/off2143119110-158-0.60
6200R64026NL26-4000°K - CRI>80on/off2946113110-158-0.60
6200R64008ND8-4000°K - CRI>80dali1105138110-158-0.60
6200R64012ND12-4000°K - CRI>80dali1529127110-158-0.60
6200R64018ND18-4000°K - CRI>80dali2143119110-158-0.60
6200R64026ND26-4000°K - CRI>80dali2946113110-158-0.60
6200R63008NL8-3000°K - CRI>80on/off1072134110-158-0.60
6200R63012NL12-3000°K - CRI>80on/off1483124110-158-0.60
6200R63018NL18-3000°K - CRI>80on/off2078115110-158-0.60
6200R63026NL26-3000°K - CRI>80on/off2857110110-158-0.60
6200R63008ND8-3000°K - CRI>80dali1072134110-158-0.60
6200R63012ND12-3000°K - CRI>80dali1483124110-158-0.60
6200R63018ND18-3000°K - CRI>80dali2078115110-158-0.60
6200R63026ND26-3000°K - CRI>80dali2857110110-158-0.60
6200R62708NL8-2700°K - CRI>80on/off1021128110-158-0.60
6200R62712NL12-2700°K - CRI>80on/off1412118110-158-0.60
6200R62718NL18-2700°K - CRI>80on/off1979110110-158-0.60
6200R62726NL26-2700°K - CRI>80on/off2721105110-158-0.60
