art.-7012-zoe-g3

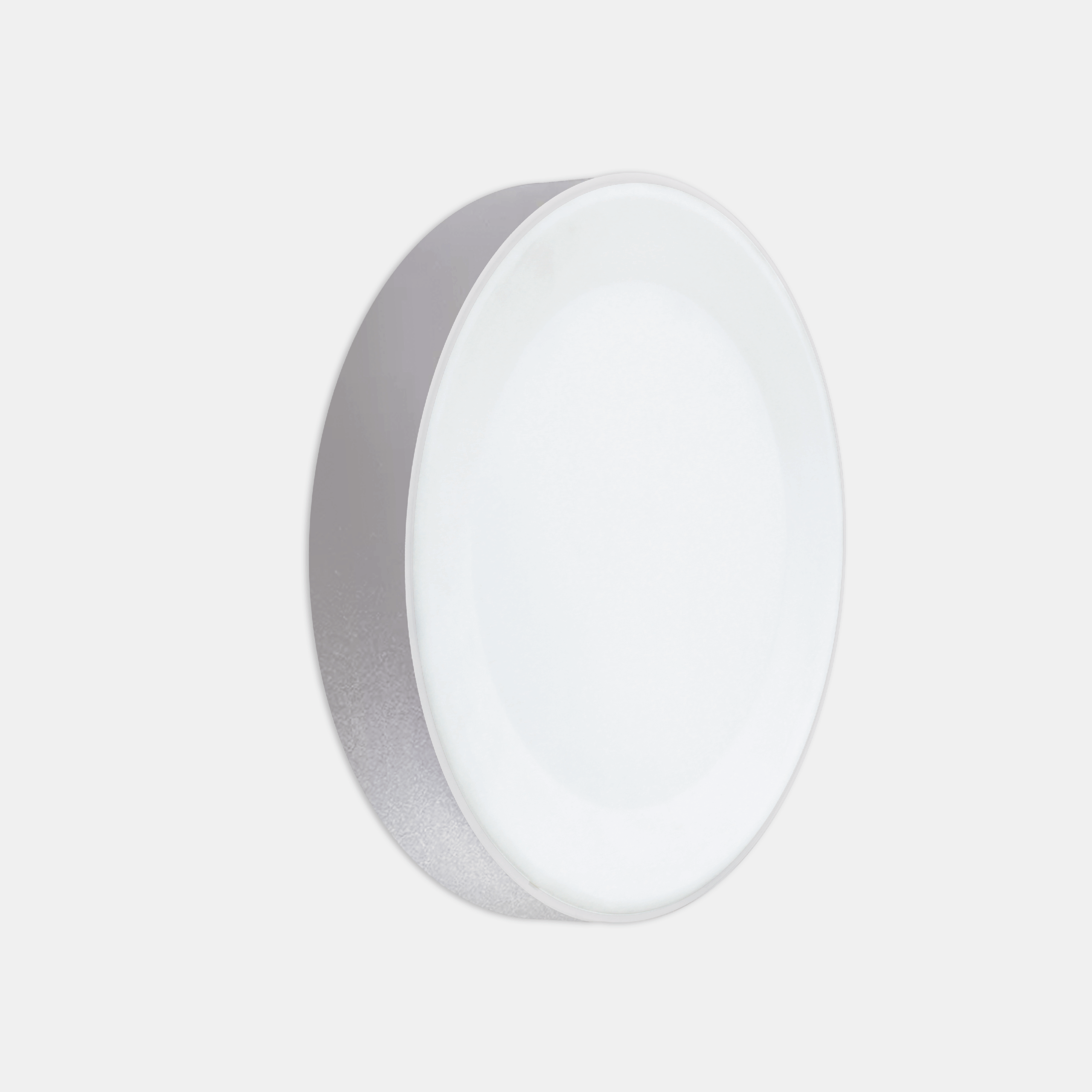

ZOE RS/G3

Indoor and outdoor led fitting for ceiling or wall installation. Body in selfextinguishing matt grey polycarbonate, silicone gasket with quick closure. Led boards powered directly at 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 6059 8-1.
Categories: Led, ZOE RS - 7013, Architectural Outdoor, art. 7013 Zoe RS
Models: 9
Color: Matt grey
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7013G327= 2700°K (CRI >80)15EL= radar sensor
30= 3000°K (CRI >80)20
40= 4000°K (CRI >80)24

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7013G34015EL15-4000°K - CRI>80on/off144096280-55620.90
7013G34020EL20-4000°K - CRI>80on/off192096280-55620.90
7013G34024EL24-4000°K - CRI>80on/off230496280-55620.90
7013G33015EL15-3000°K - CRI>80on/off136691280-55620.90
7013G33020EL20-3000°K - CRI>80on/off182191280-55620.90
7013G33024EL24-3000°K - CRI>80on/off218591280-55620.90
7013G32715EL15-2700°K - CRI>80on/off130587280-55620.90
7013G32720EL20-2700°K - CRI>80on/off174087280-55620.90
7013G32724EL24-2700°K - CRI>80on/off208887280-55620.90

Accessories
