CRIO – Mod. N3

(120° diffusing optics)

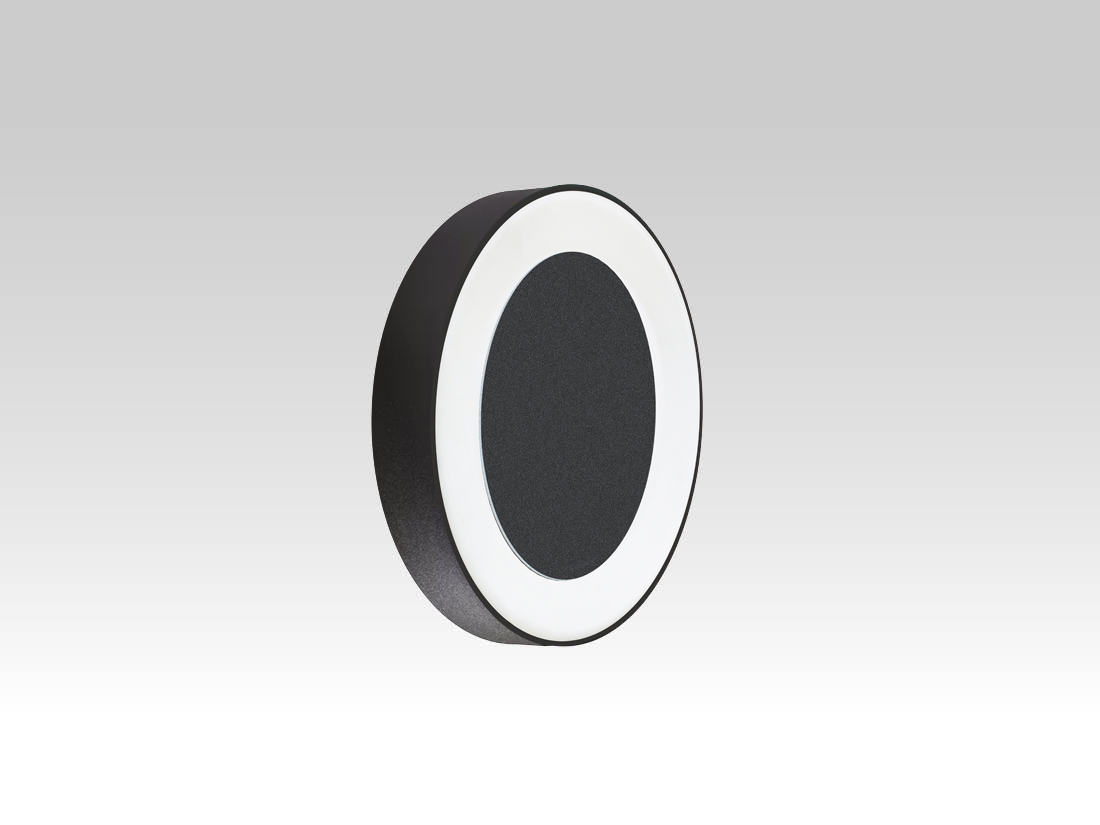

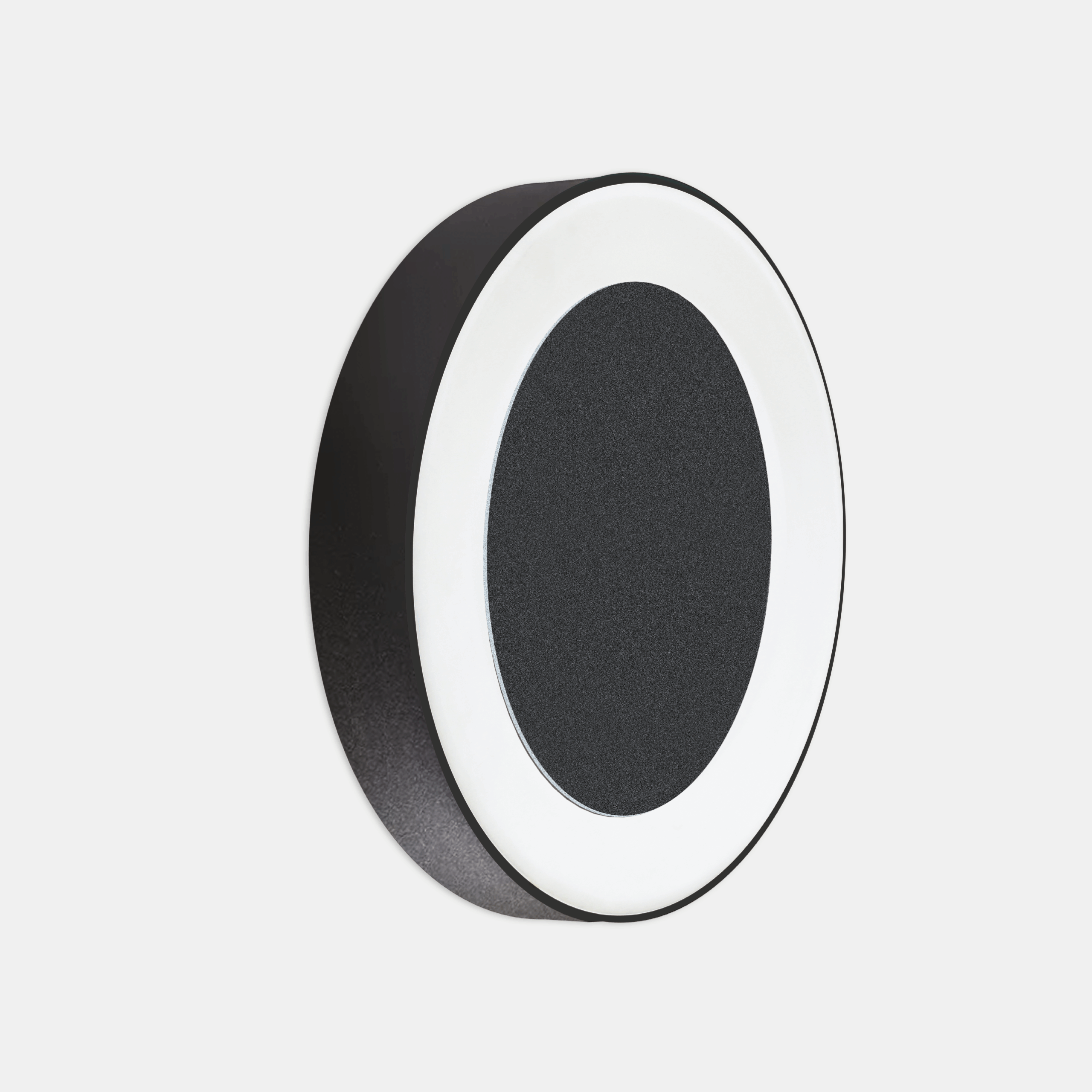

Outdoor and indoor LED fixture, suitable for wall or ceiling installation. Body made of injectionmolded self-extinguishing polycarbonate in black color, silicone gasket with quick closure. The luminaire is fitted as standard for through-wiring. Injection-molded, 120° frosted opal polycarbonate diffuser with high flux efficiency, anti-glare and anti-reflection. Extradiffusing 120° optics with 360° light distribution.
Categories: Led, CRIO - 7014, Architectural Outdoor, CRIO
Models: 72
Color: Matt black
Catalogue abstract

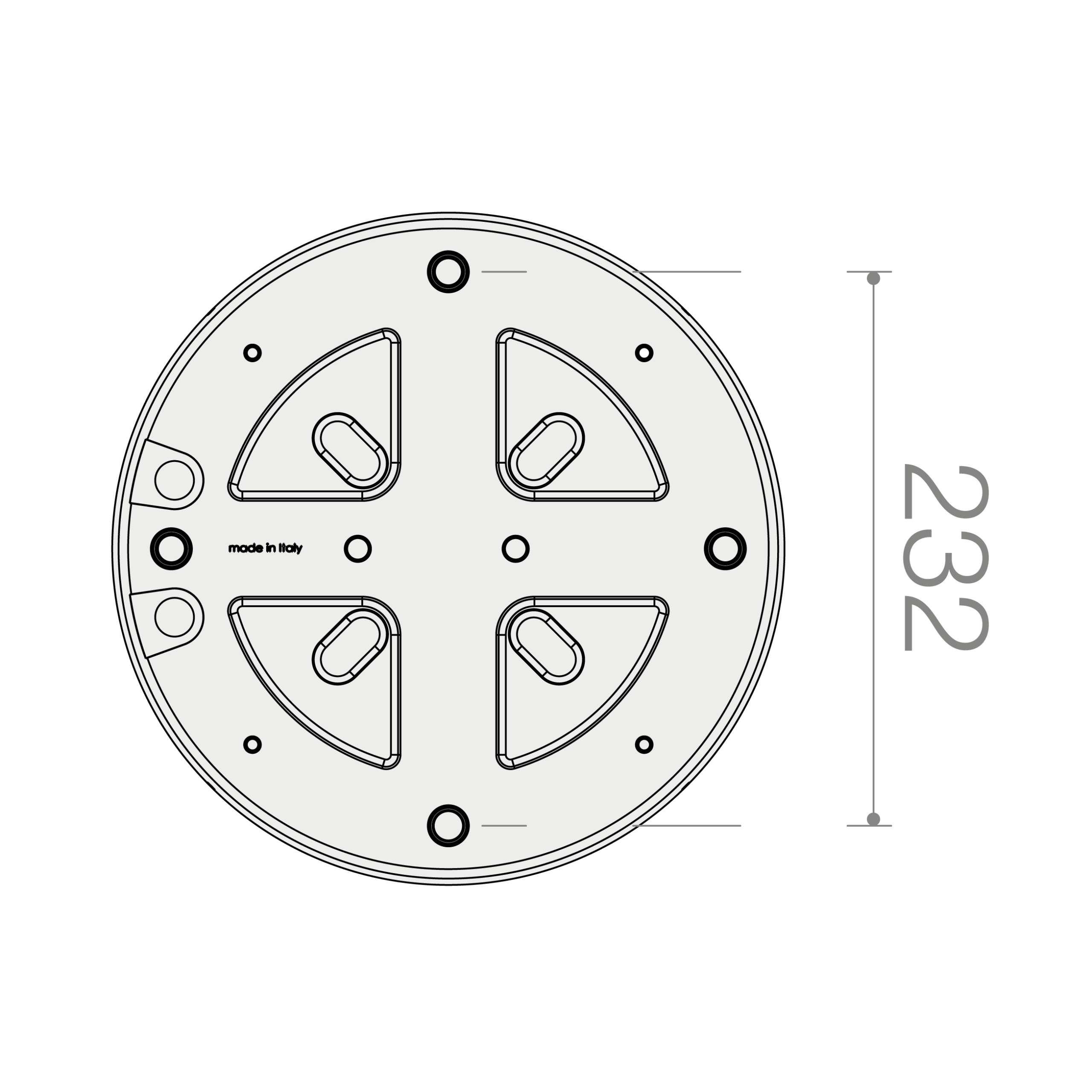

Installation instructions

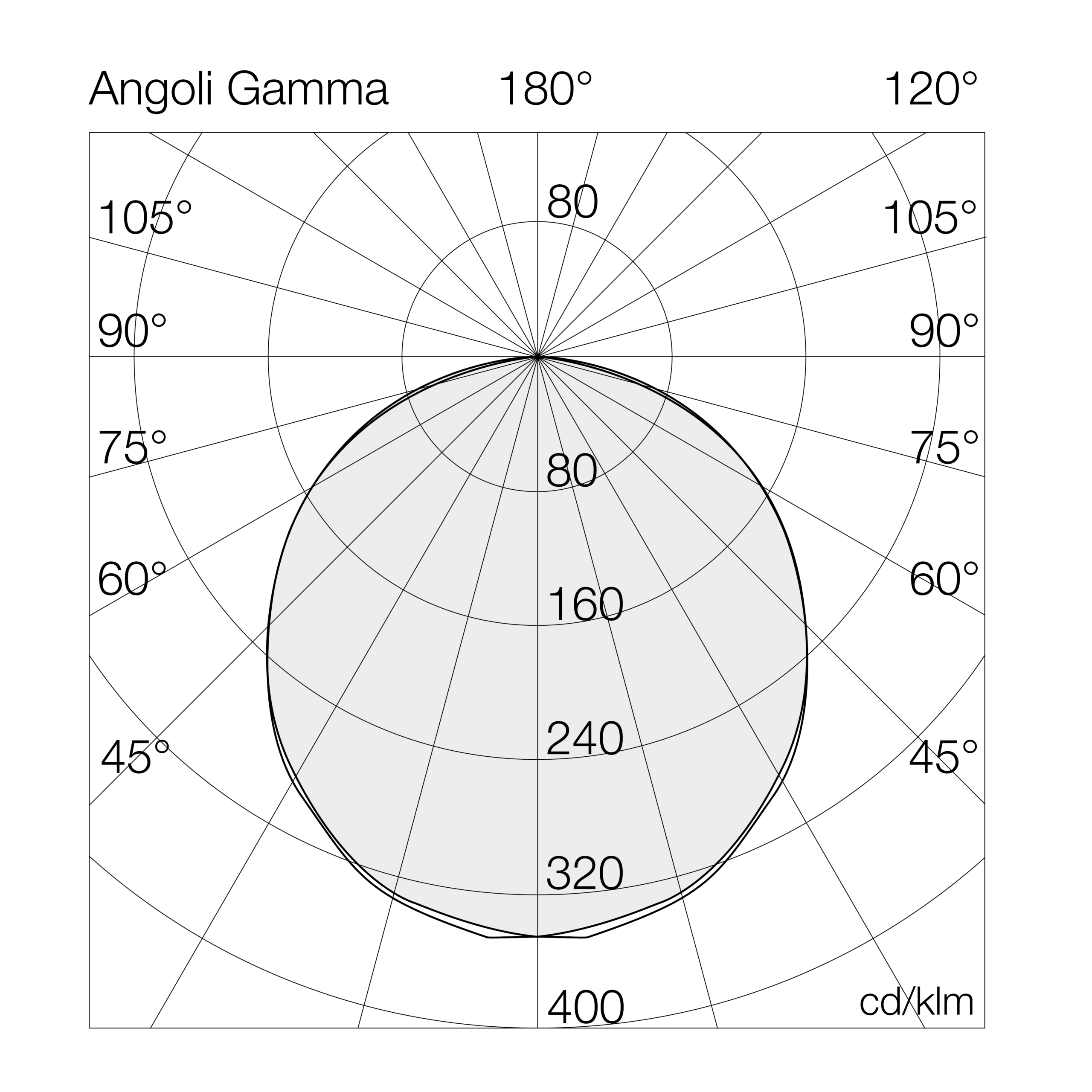

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7014N327= 2700°K (CRI >80)24EL= on/off (DIP-switch)
30= 3000°K (CRI >80)28LD= dali 2 (DIP-switch)
40= 4000°K (CRI >80)RS= radar sensor (DIP-switch)
E3= em. 3h (DIP-switch)

Models

W tot.
°K - CRI
Options

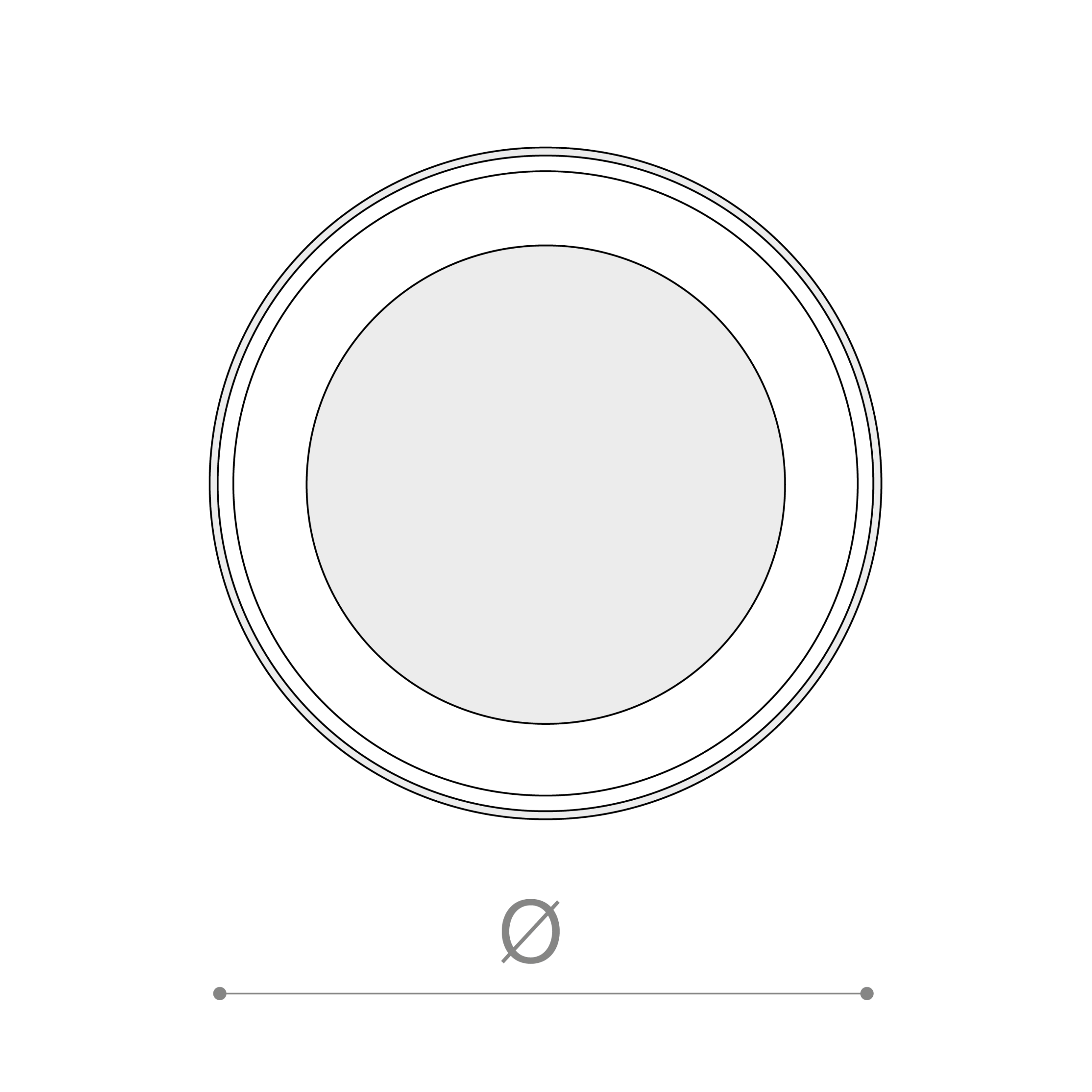

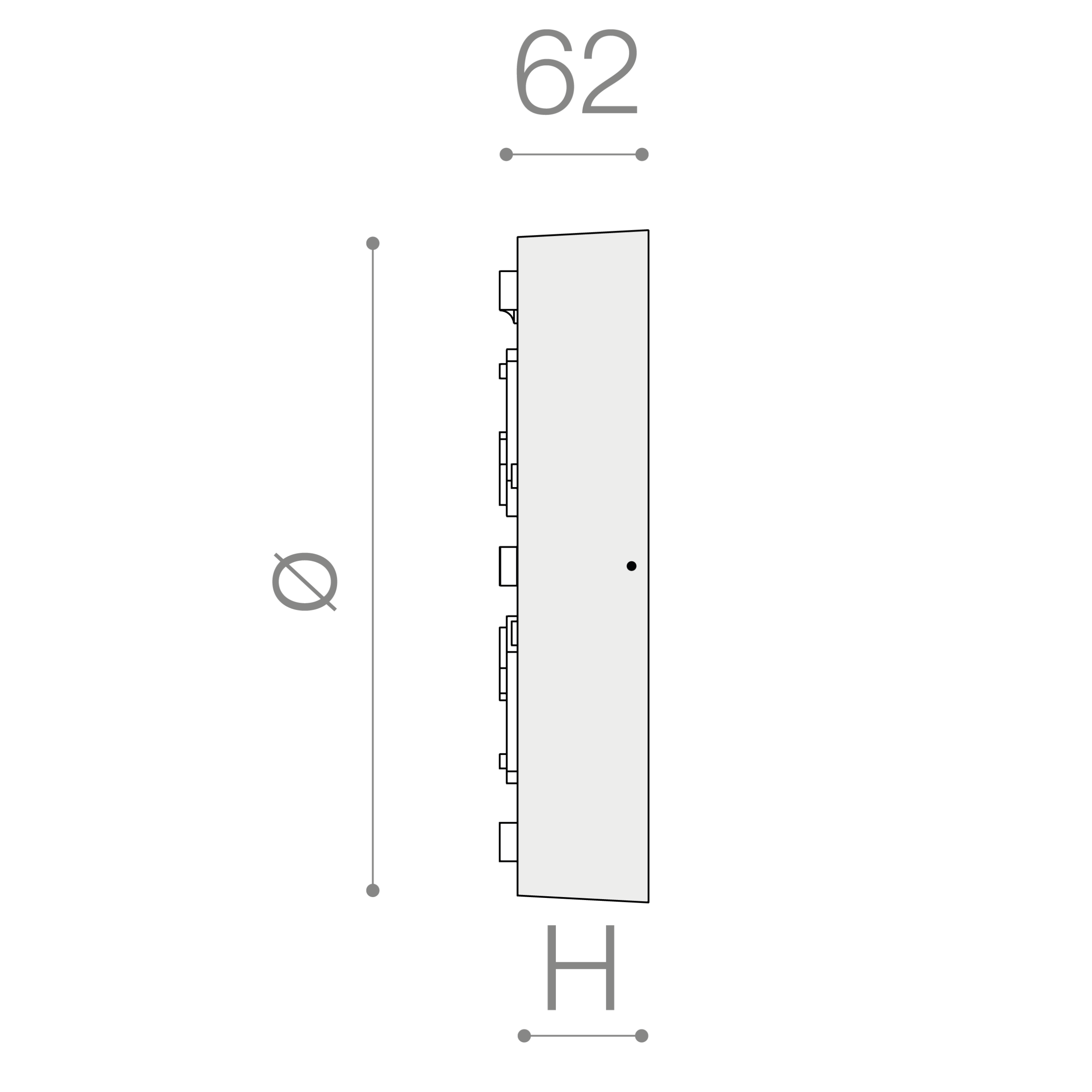

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7014N34010EL10-4000°K - CRI>80on/off (dip-switch)1262126280-55621.45
7014N34015EL15-4000°K - CRI>80on/off (dip-switch)1789119280-55621.45
7014N34018EL18-4000°K - CRI>80on/off (dip-switch)2121118280-55621.45
7014N34021EL21-4000°K - CRI>80on/off (dip-switch)2448117280-55621.45
7014N34024EL24-4000°K - CRI>80on/off (dip-switch)2768115280-55621.45
7014N34028EL28-4000°K - CRI>80on/off3083110280-55621.45
7014N34010LD10-4000°K - CRI>80dali 2 (dip-switch)1262126280-55621.45
7014N34015LD15-4000°K - CRI>80dali 2 (dip-switch)1789119280-55621.45
7014N34018LD18-4000°K - CRI>80dali 2 (dip-switch)2121118280-55621.45
7014N34021LD21-4000°K - CRI>80dali 2 (dip-switch)2448117280-55621.45
7014N34024LD24-4000°K - CRI>80dali 2 (dip-switch)2768115280-55621.45
7014N34028LD28-4000°K - CRI>80dali 23083110280-55621.45
7014N34010RS10-4000°K - CRI>80radar sensor (dip-switch)1262126280-55621.45
7014N34015RS15-4000°K - CRI>80radar sensor (dip-switch)1789119280-55621.45
7014N34018RS18-4000°K - CRI>80radar sensor (dip-switch)2121118280-55621.45
7014N34021RS21-4000°K - CRI>80radar sensor (dip-switch)2448117280-55621.45
7014N34024RS24-4000°K - CRI>80radar sensor (dip-switch)2768115280-55621.45
7014N34028RS28-4000°K - CRI>80radar sensor3083110280-55621.45
7014N34010E310-4000°K - CRI>80em. 3h (dip-switch)1262126280-55621.45
7014N34015E315-4000°K - CRI>80em. 3h (dip-switch)1789119280-55621.45
