art.-7016-gem-n3

GEM/N3

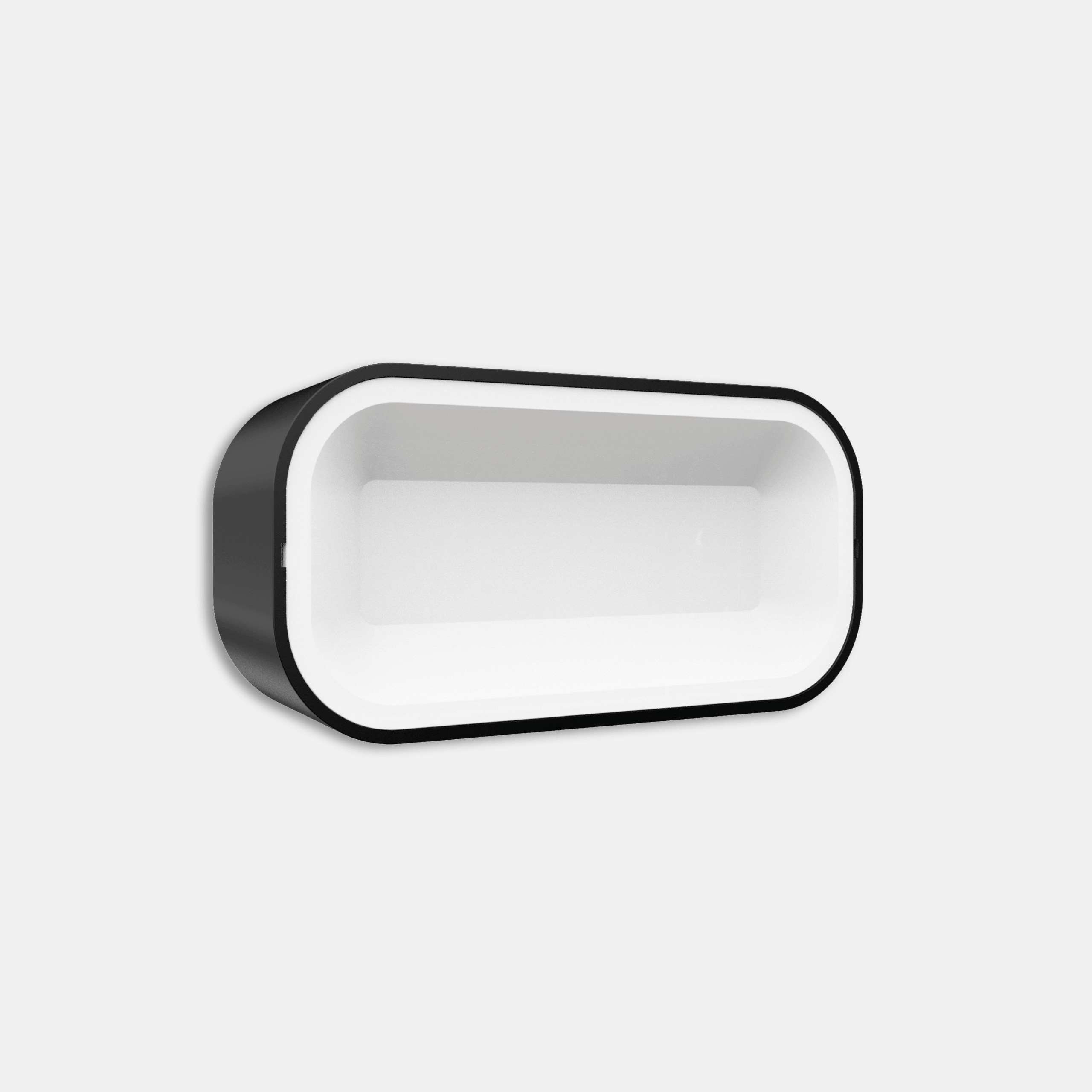

Indoor and outdoor led fitting for ceiling or wall installation. Body in self-extinguishing matt black, polycarbonate, silicone gasket with quick closure. 120° extra-wide beam diffuser in anti-glare satin opal polycarbonate with high flux efficiency.
Categories: Led, GEM - 7016, art. 7016 Gem, Architectural Outdoor, art. 7016 Gem
Models: 6
Color: Matt black
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7016N327= 2700°K (CRI >80)15= 10-15W (DIP-switch)EL= on/off + DIP-switch
30= 3000°K (CRI >80)
40= 4000°K (CRI >80)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7016N34010EL10-4000°K - CRI>80on/off + DIP-switch8048020010055620.4
7016N34015EL15-4000°K - CRI>80on/off + DIP-switch10927320010055620.4
7016N33010EL10-3000°K - CRI>80on/off + DIP-switch7637620010055620.4
7016N33015EL15-3000°K - CRI>80on/off + DIP-switch10366920010055620.4
7016N32710EL10-2700°K - CRI>80on/off + DIP-switch7297320010055620.4
7016N32715EL15-2700°K - CRI>80on/off + DIP-switch9906620010055620.4

Accessories
