art.-7019-dino-b1-bianco

DINO/B1

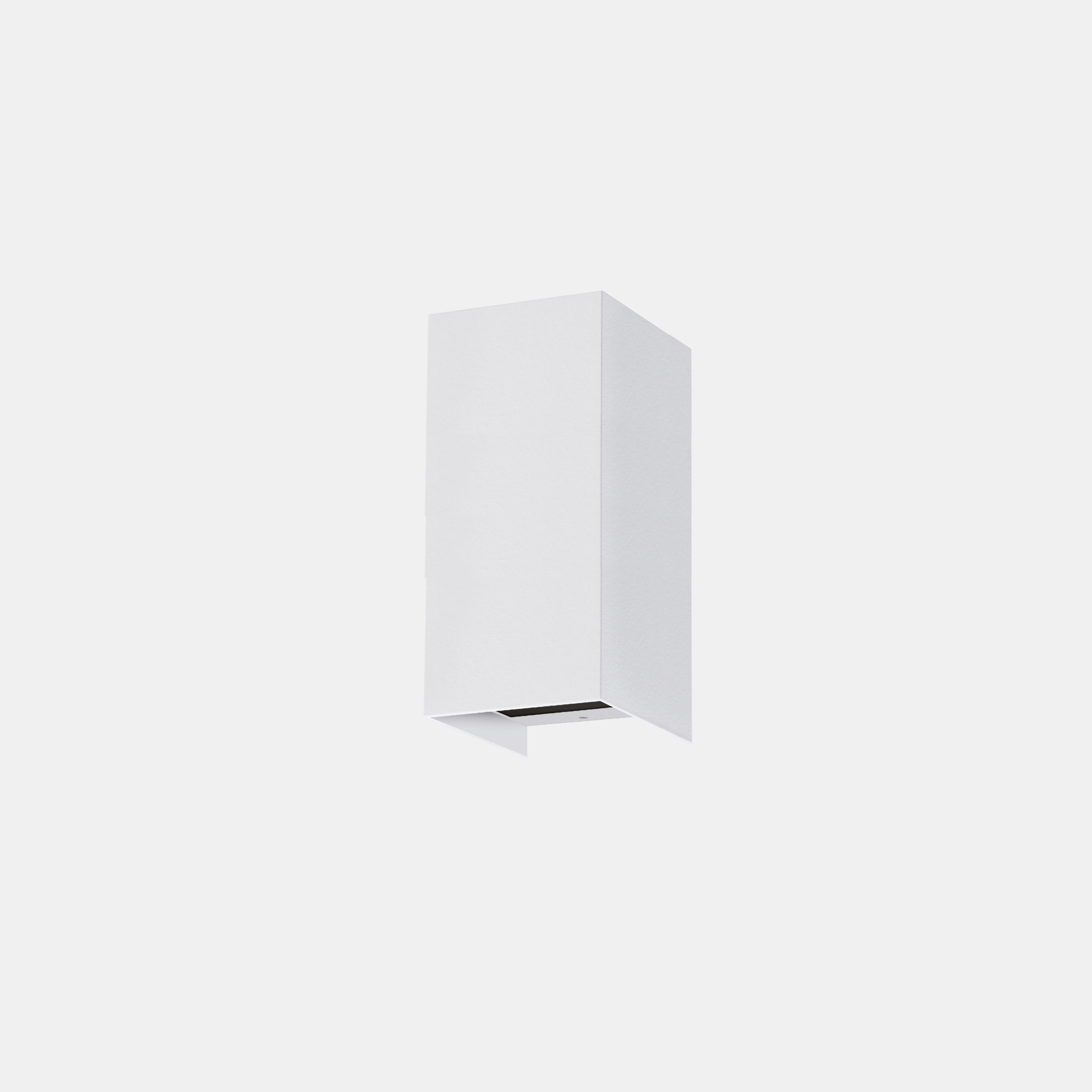

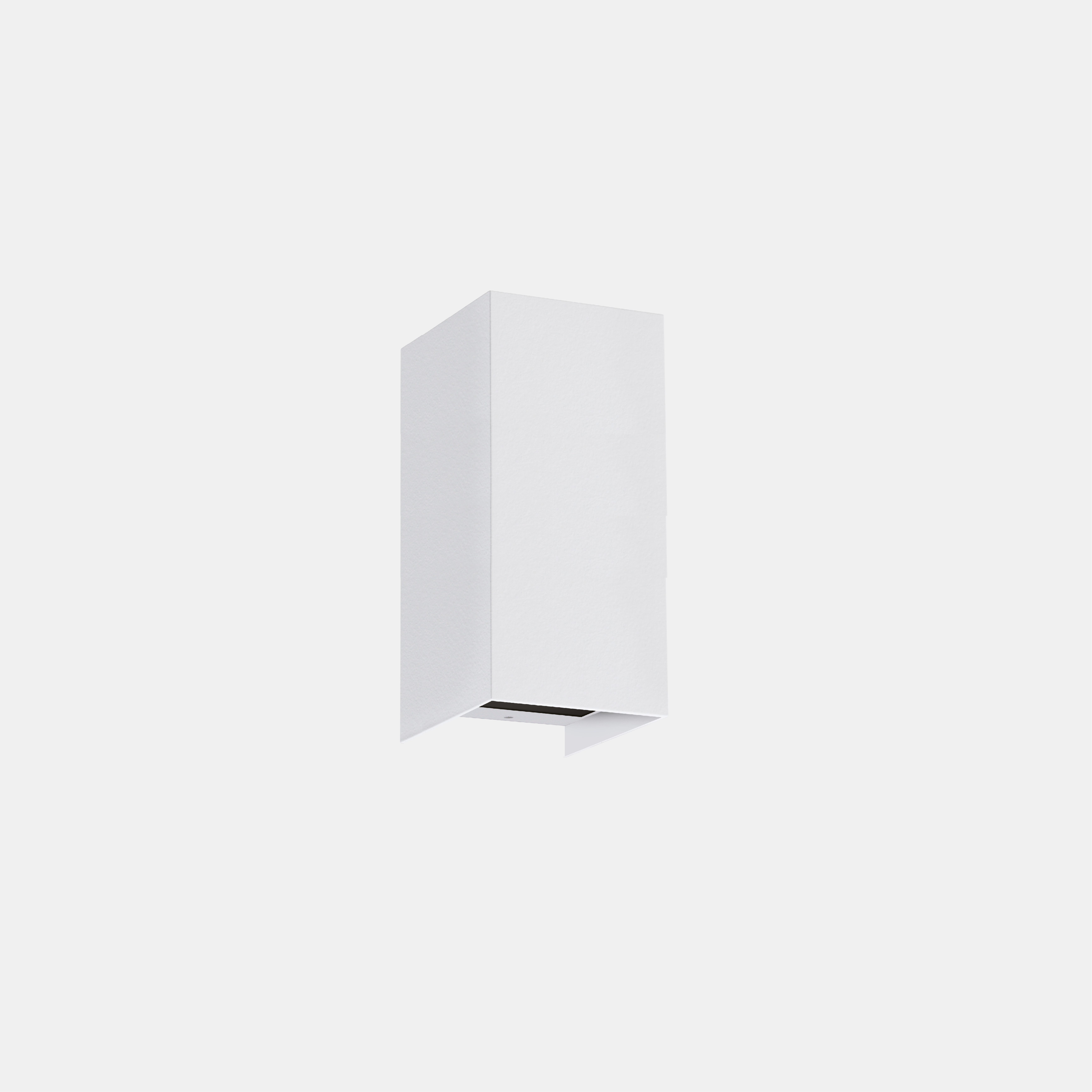

Outdoor and indoor LED fixture suitable for wall installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders, color white. Extra-clear tempered flat glass diffuser 3 mm thick. Anti-glare and anti-reflection 90° diffusing bi-emission optics.

Categories: Led, DINO - 7019, Architectural Outdoor, art. 7019 Dino

Models: 5

Color: Matt white

Catalogue abstract

Installation instructions

Legenda

Art.	+	Mod.	+	°K (CRI)		+	W tot.	+	Options
7019		B1		27	= 2700°K (CRI >80)		09		BL	= on/off
				30	= 3000°K (CRI >80)
				40	= 4000°K (CRI >80)

Models

	Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
	7019B14009BL	9	-	4000°K - CRI>80	on/off	806	90	68	150	68	-	0.60
	7019B13009BL	9	-	3000°K - CRI>80	on/off	806	90	68	150	68	-	0.60
	7019B12709BL	9	-	2700°K - CRI>80	on/off	806	90	68	150	68	-	0.60
	7019B14009BL	9	-	4000°K - CRI>80	on/off	806	90	68	150	68	-	0.6
	7019B13009BL	9	-	3000°K - CRI>80	on/off	754	84	68	150	68	-	0.6

TEC-MAR is aimed at constant research and development of new technologies, quality materials, enhanced production processes, in accordance with latest trends in design and technology.
